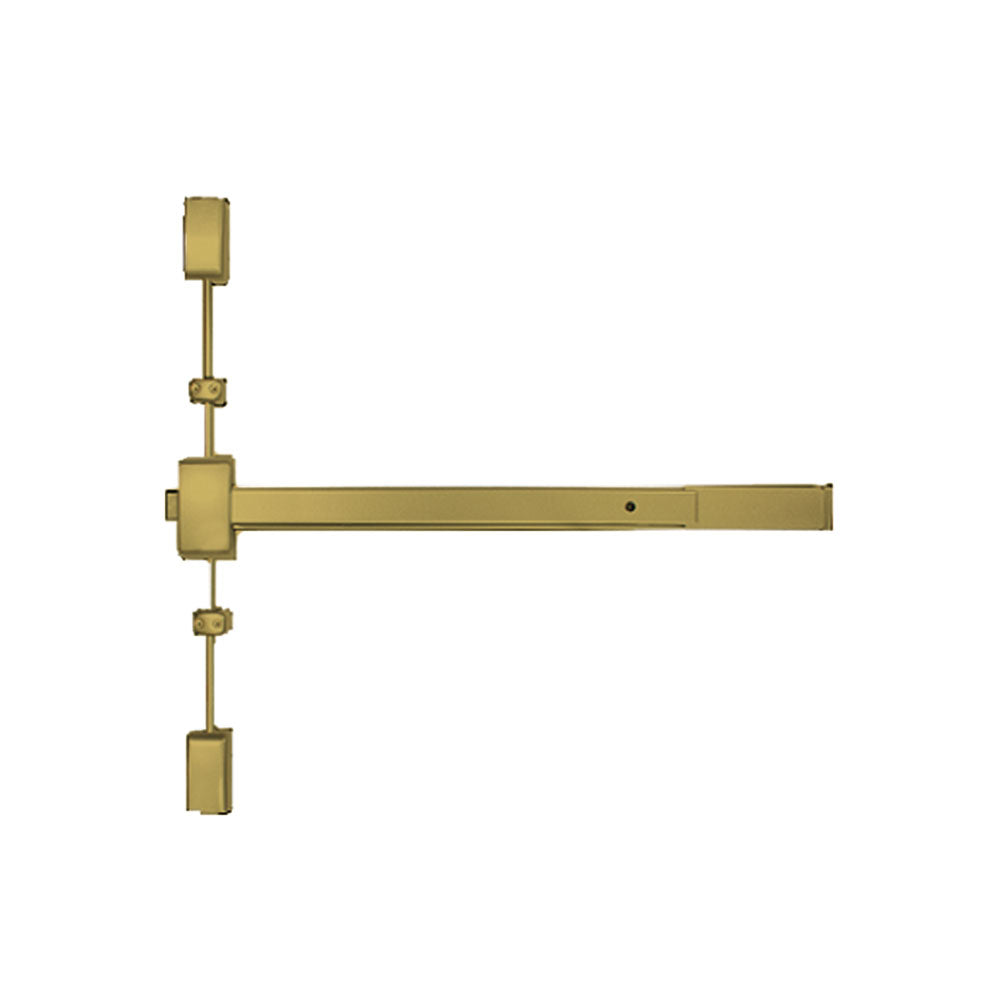

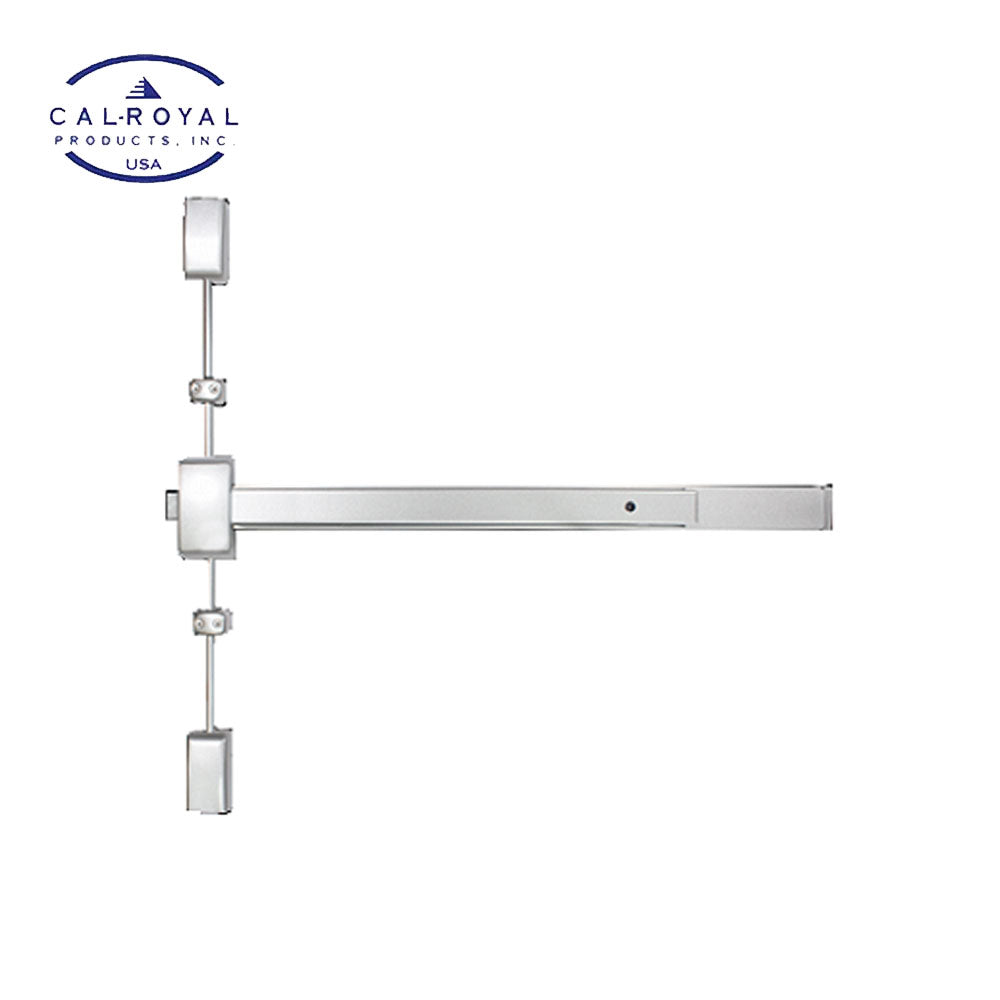

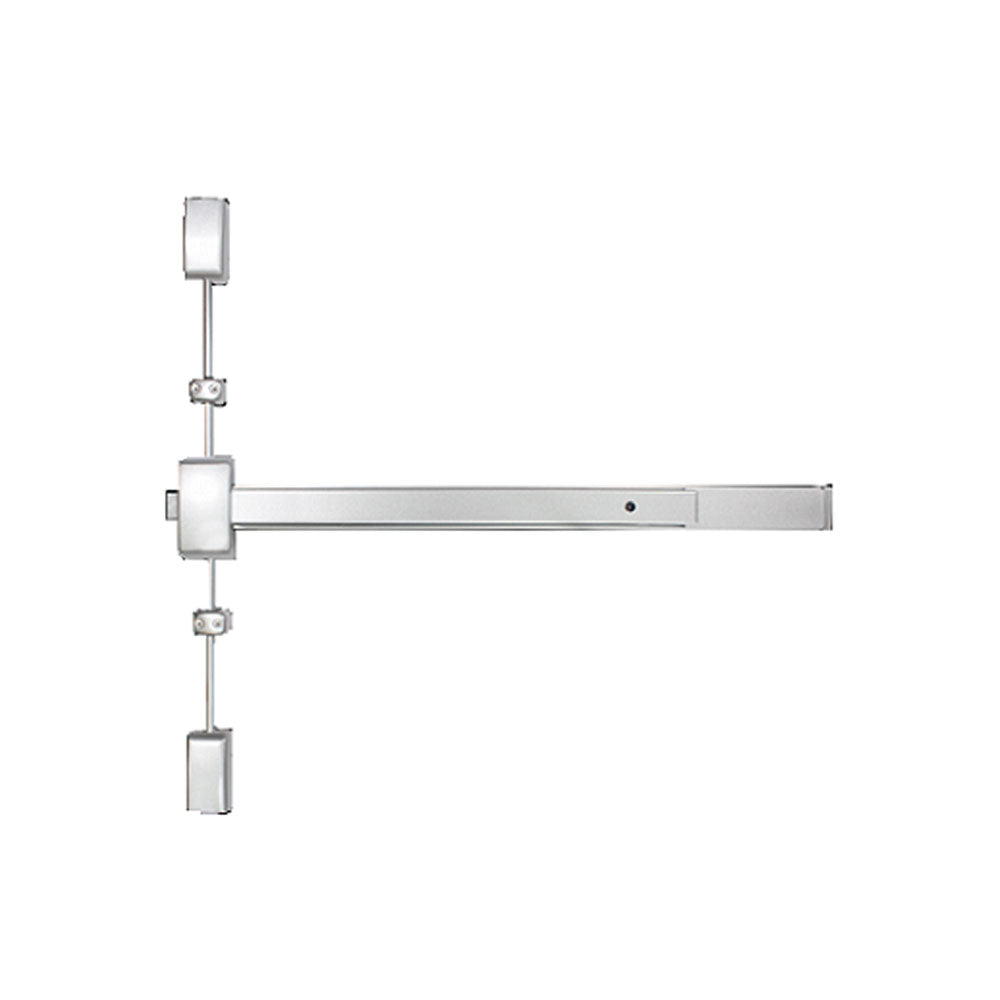

Cal-Royal A2280V4896 / AF2280V4896 Surface Vertical Rod Exit Device - Grade 1
$33214
$47449
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Cal-Royal A2280V4896 / AF2280V4896 Surface Vertical Rod Exit Device...
From
$26610
$38014
Unit price
/
Unavailable
Description
Description
Cal-Royal A2280V4896 / AF2280V4896 Surface Vertical Rod Exit Device - Grade 1
Feature:
- Americans with Disability Act (ADA) compliant. 5 lbs opening force on ADA product only
- ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes
- UL Listed for Fire Exit Hardware. 3 Hours
- Conforms and Meets ADA Regulations (ADA products only)
- (A) label rating in pairs of doors up to 8'0" x 8'0" swinging in same or opposite directions
- Uncompromising security and safety in single and double fire exit doors
- Chassis mounted unit construction
- Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch-on rose trims. Escutcheon trims are rigid and covers
161 cut out.
Specifications:
| For Doors | 1 3/4" thick standard optional 2 1/4" thick. 3 3/4" minimum stile width required for single door application. 3 1/2" minimum stile width required for double door application. Lever trims available. 2 3/4" backset |
| Top and Bottom Chassis | Non-ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out |
| Mounting | Furnished standard with wood and machine screws. Thru-bolts are standard packaging on fi re rated devices |
| End Cap | Steel construction |
| Hand | Handed. Easily fi eld reversible. Specify at time of order LHR, RHR for convenience |
| Latch Bolt and Spring | Stainless steel |
| ANSI Standard | A156.3, Grade 1 |
| Dogging Feature | Allen-type key furnished standard on non-fi re labeled devices |
| UL and ULC Listed | A2280V - Non-Fire Rated AF2280V - Fire Rated |
| Finish | Available in Alum, Duro, Gold, L1 (Black) |
