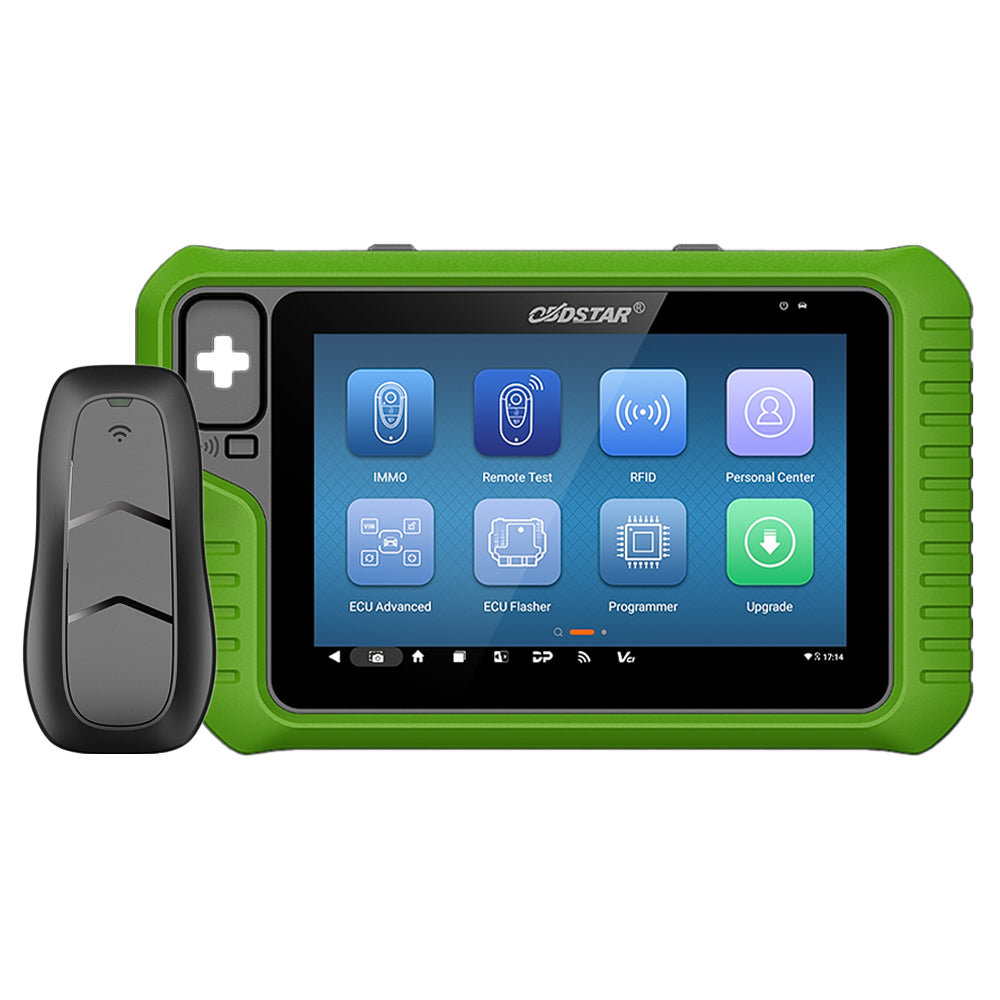

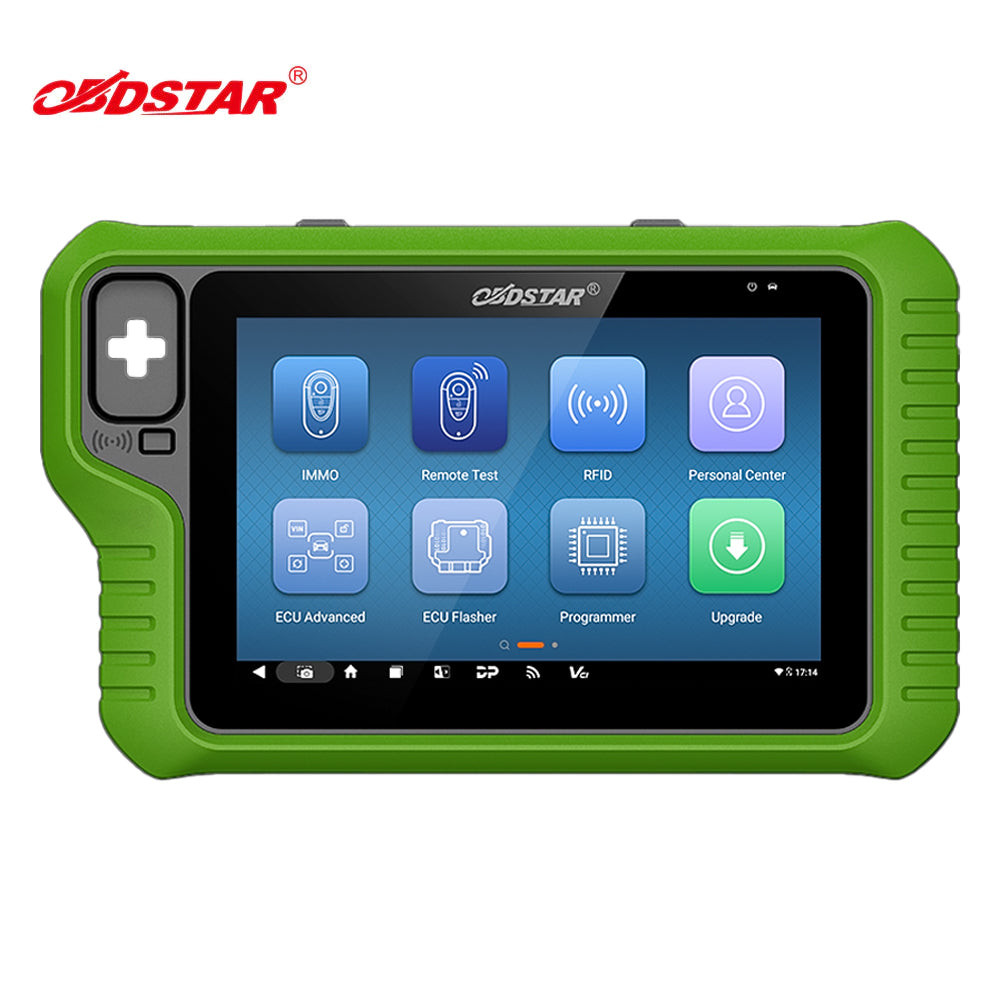

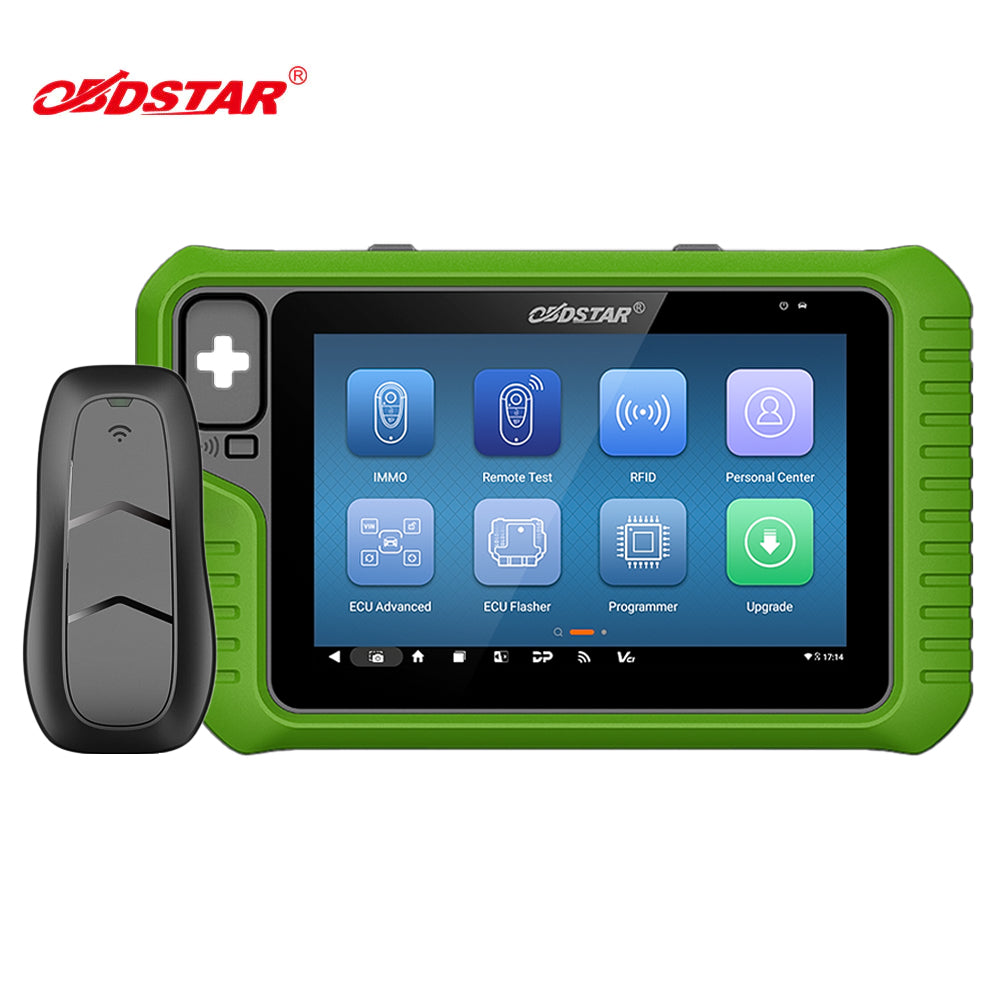

OBDSTAR Key Master G3 Programming Device Full Immobilizer with Key Simulator (2 Years Update)

OBDSTAR Key Master G3 Programming Device Full Immobilizer with Key Simulator

The OBDSTAR Key Master G3 boasts significant enhancements in both software and hardware, promising an elevated user experience. Its upgraded platform features a Cortex-A55 RK3568 quad-core processor and an 8-inch LED capacitive touch screen, all running on the latest Android multi-tasking operating system. With built-in CANFD, fault-tolerant CAN, OBD16 full-pin switching, DOIP, remote control frequency test, and RFID capabilities, this tablet offers expanded support for various models and functions, making it a versatile and efficient tool for automotive professionals.

Features:

• Upgraded platform with Cortex-A55 RK3568 quad-core processor.
• 8-inch LED capacitive touch screen for an enhanced user interface.
• New Android multi-tasking operating system for improved functionality.
• Built-in CANFD for advanced automotive communication.
• Fault-tolerant CAN support for increased reliability.
• OBD16 full-pin switching capability for versatile diagnostics.
• Built-in DOIP (Diagnostic Over Internet Protocol) for modern vehicle diagnostics.
• Built-in remote control frequency test for added convenience.
• Built-in RFID functionality for secure access and identification.
• Expanded support for a wider range of vehicle models and functions.

Functions:

• MOTO key programming (without pin code) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others.
• Marine key programming function for BRP, KAWASAKI, YAMAHA and others.
• E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others.
• Unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others.
• Programming solutions for SMART 453 that have lost all keys and all functions have been disabled.
• Programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3.
• Pin code reading function that have lost all keys (risk-free) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6/SM6 models.
• Paid software activation service for ODO METER, ECU Flasher, Crash Reset, Test Platform and the other functions are available.
• Toyota/Lexus Mileage Calibration for 2019-S6J3XX and 2021-R7F701401

Function Module List:

• A: IMMO
• A1.1: CAR IMMO
• A1.2: HD IMMO
• A1.3: E-CAR IMMO
• A1.4: MOTO IMMO
• A1.5: MARINE IMMO
• A2.1 Remote Test
• A3.1 ECU Advanced
• A4.1 Make Key
• A4.2 R/W Transponder
• A4.3 Unlock Smart Key
• A5.1 EEPROM/MCU
• A5.2 Renew Key

• B: ODO METER
• B1.1: CAR ODO METER
• B1.2: MOTO ODO METER
• B2.1: Oil/Service Reset

• ECU Flasher
• C1.1: CAR ECM
• C1.2 :CAR TCM
• C1.3: CAR BODY
• C2.1: MOTO ECM

• D: Crash Reset
• D1.1: Battery Reset (MVBM)
• D1.2: Airbag Reset
• D1.3: SAS Reset

• E: Test Platform
• E1.1: Dash Board
• E1.2: E-CAR ABS
• E1.3: Gear Lever
• E1.4: A/C Panel
• E1.5: E-CAR BSG
• E1.6: E-CAR MHEV
• E1.7: E-CAR AUDIO
• E1.8: E-CAR EBA

Supported Vehicle Types:

• Car
• HD
• E-Car
• MOTO
• Marine (jet-ski)

Specifications:

Accessories:

Download:

• Function Display
• User Manual
• ECU Flasher Software Major Upgrade
• Auto IMMO Software Major Upgrade
• Toyota/Lexus Mileage Calibration Major Upgrade
