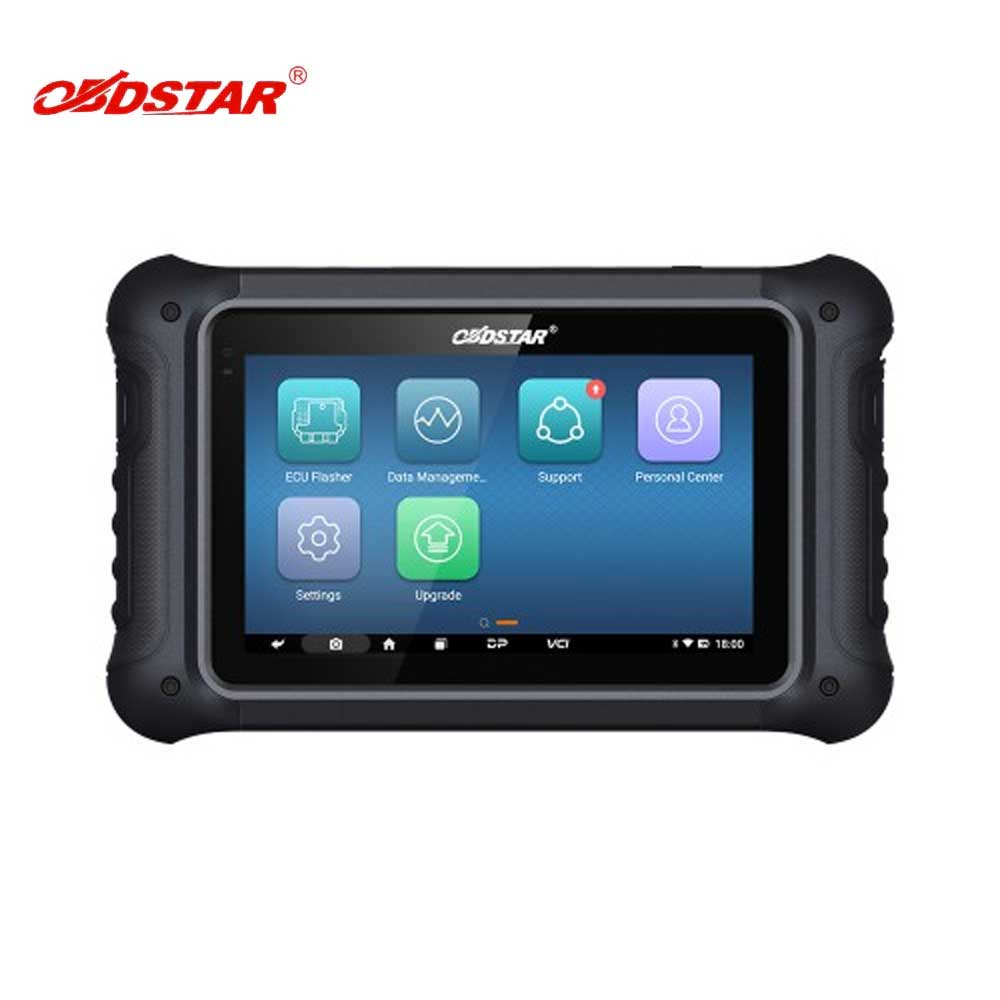

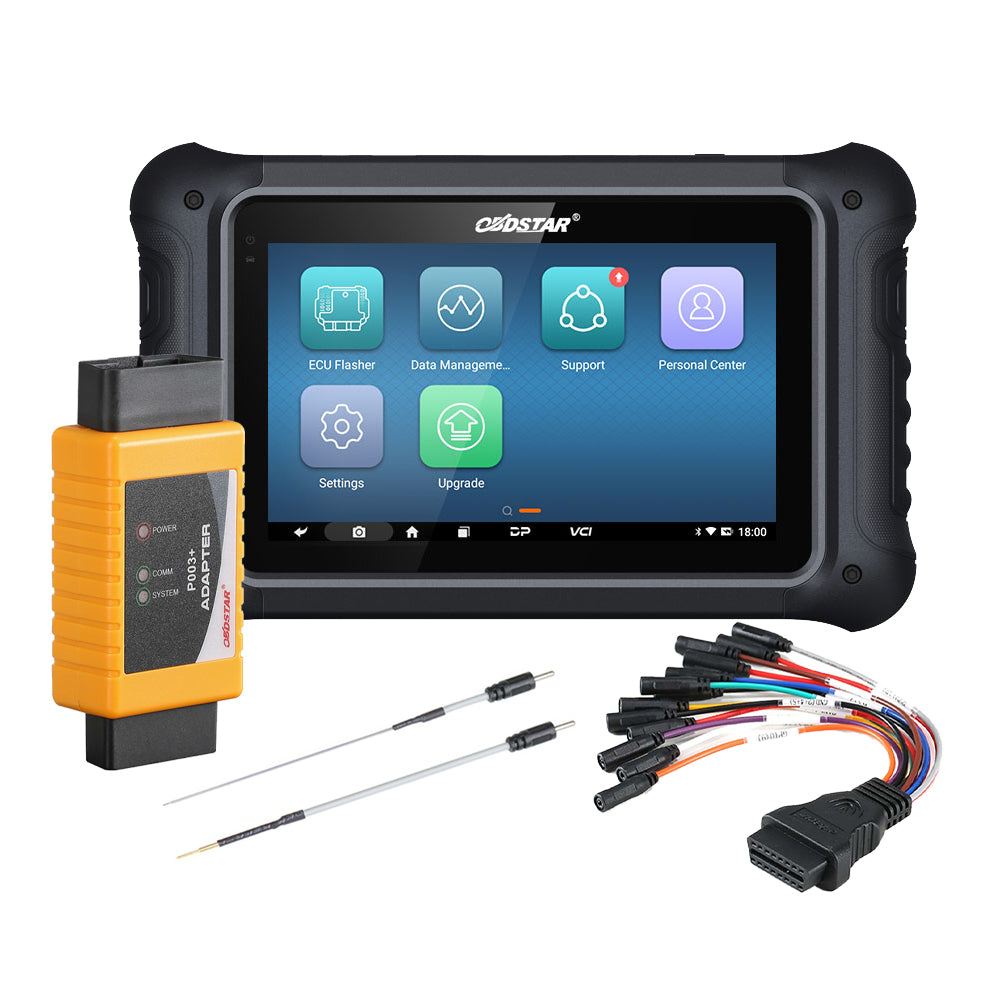

OBDSTAR DC706 ECU Tool Full Version with P003+ Kit Support P002 Function and ECU Bench Jumper

OBDSTAR DC706 ECU Tool Full Version with P003+ Kit Support P002 Function and ECU Bench Jumper

Includes:

• OBDSTAR DC706 ECU Tool Full Version
• OBDSTAR P003+ Kit Support P002 Function

OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle ECM, TCM & BODY Clone by OBD

Description:

• ECM, TCM & BODY Clone by OBD or BENCH
• ECU Clone for Cars and Motorcycles
• One Year Update for Free

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU programming. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO PIN code, ECU recovery and so on. It's all by OBD or BENCH mode and makes ECU cloning easy. Support English only.

1 year update for free. 249 USD for another year of update. (There is a promotion, if you buy the one year update before it expires, 179 USD for one year update)

Full version: ECM clone (Car/Motorcycle) + TCM clone + Body/Other clone
Ship from the USA and EU warehouse, fast delivery & no tax to the USA and EU countries.

OBDSTAR DC706 Functions:

• ECU Clone/ All by OBD or Bench
• ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens)
• ECM clone for motorcycles(Bosch, Delphi, EFI)
• TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF)
• Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO)

Supported ECU Manufacturers:

• ALPS
• Autoliv
• Bosch
• Continental
• Delphi
• Denso
• Johnson Controls
• Lear
• Magneti Marelli
• Siemens
• Temic
• Valero

Supported Brands:

Car:

• ASTON MARTIN
• BMW
• FAW
• FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
• FORD/LINCOLN
• GM/OPEL
• HYUNDAI/KIA
• LAND ROVER/JAGUAR
• LUXGEN
• MASERATI
• MAZDA
• MITSUBISHI
• NISSAN
• OPEL
• PSA
• SMART
• SUBARU
• SUZUKI
• VOLVO
• VW/AUDI/SEAT/SKODA

Motorcycle:

• APRILIA
• BRP
• CFMOTO
• DERBI
• GILERA
• GUZZI
• PEUGEOT
• PIAGGIO
• QJ BENELLI
• VESPA

Advanced Functions:

• R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pin code, ECU recovery
• Support 200+ ECM types Partial functions require P003 adapter
• Support dozens of TCM types
• Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
• Support VW DQXXX (TCM) calibrate mileage
• Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
• Support motorcycle BRP ME17.8.5 ECU clone works with P003 adapter
• Support Piaggio series engine ECU clone( such as MIU G4 (M4G1))
• Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
• Support automatic identification
• Strong help data files
• All by OBD or Bench mode
• Support recalibrate ODO function for DQ200, DQ250, VL501, DQ500 (0BH) CONTINENTAL, VL381
• Added recalibrate driving time function for VL381

More functions in development.

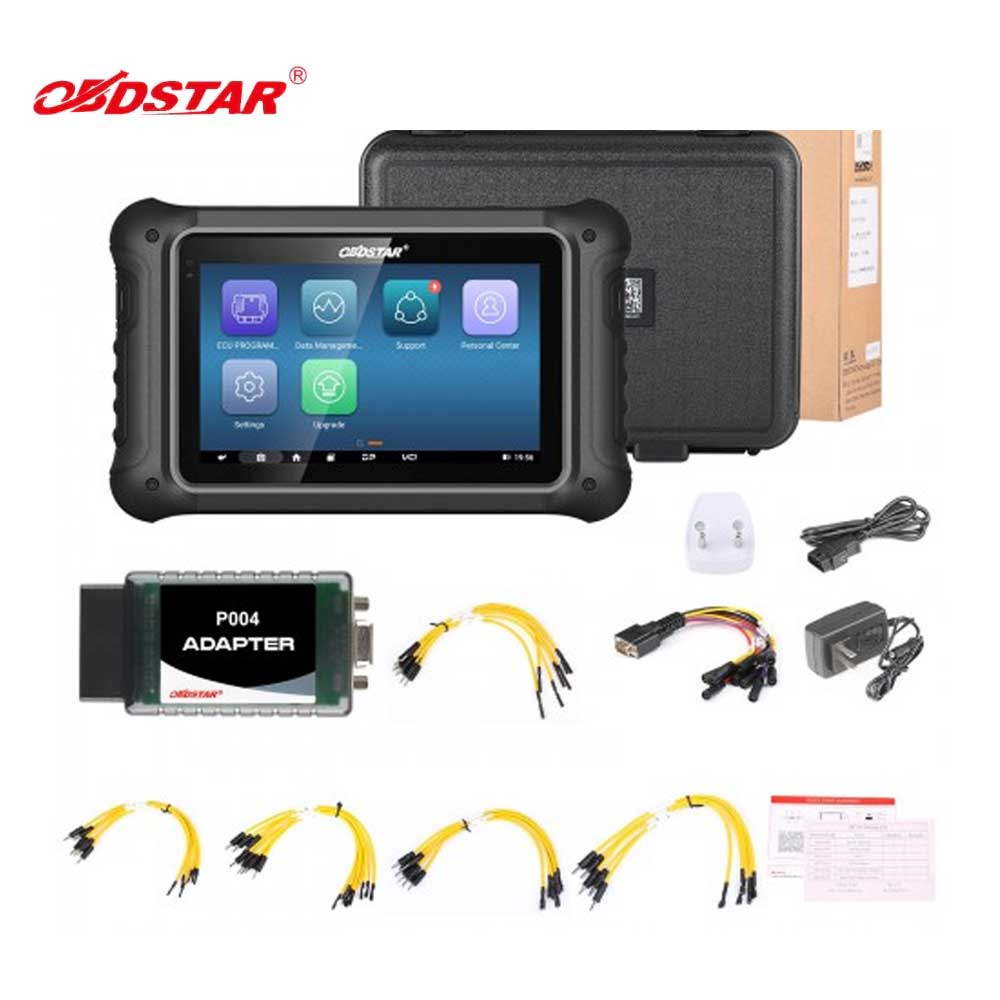

OBDSTAR DC706 Different Configurations:

Specifications:

Download:

• DC706 Function Display
• DC706 Accessories

OBDSTAR P003+ Kit Support P002 Function

OBDSTAR P003+ is compatible with P003 and supports the following models require a higher frequency clock during the decryption process (ME9.0, MED9.1, MED9.61, ME9.61, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8); Support P002 functions.

OBDSTAR P003 adapter with ECU bench cables are for reading BOSCH ECU data, CS, Pincode etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc. Works together with OBDSTAR X300 DP/ X300 DP PLUS/ DC706/ Key Master DP. OBDSTAR P003 Adapter with ECU Bench Cables for reading BOSCH ECU data, CS, PIN code etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc. Works together with OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ DC706/ D800

Functions:

• Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
• Bosch MED17.4.4 reading eeprom, PinCodeP003 KIT
• Bosch EDC17C60 reading eeprom, PinCodeP003 KIT
• Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
• Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
• Bosch ME17XX reading & writing eeprom, flash
• T87A, 6HP reading & writing TCM eeprom, flash

Specifications:

OBDSTAR P003 Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

Continental PCR2.1(TC1796):

• 2010-2014 Audi A1 (8X) 1.6L Diesel
• 2009-2012 Audi A3 (8P) 1.6L Diesel
• 2009-2013 Seat Altea 1.6L Diesel
• 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel
• 2010-2012 Seat Leon II 1.6L Diesel
• 2014 Seat Toledo (KG) 1.6L Diesel
• 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel
• 2010-2013 Skoda Fabia II (5J) 1.6L Diesel
• 2010-2011 Skoda Roomster (5J) 1.6L Diesel
• 2013-2014 Skoda Rapid (NH) 1.6L Diesel
• 2011-2013 Skoda Superb (3T) 1.6L Diesel
• 2012/2015 Skoda Yeti (5L) 1.6L Diesel
• 2010-2015 VW Caddy (2K) 1.6L Diesel
• 2009-2013 VW Golf VI 1.6L Diesel
• 2010-2013 VW Golf Plus 1.6L Diesel
• 2011-2014 VW New Beetle (9C) 1.6L Diesel
• 2011 VW Passat (B7) 1.6L Diesel
• 2009-2014 VW Polo V 1.6L Diesel
• 2010-2015 VW Touran (1T) 1.6L Diesel

Bosch MED17.4.4(TC1793):

• Citroen C3 Mk2
• Citroen C4 Gran Picasso
• Citroen C4 MK2
• Citroen C5 (RD/TD)
• Citroen C6
• DS DS3
• DS DS5
• DS DS6
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 3008 (T84)
• Peugeot 308 (T9)
• Peugeot 4008
• Peugeot 408
• Peugeot 508

Bosch EDC17C60(TC1793):

• Citroen Berlingo
• Citroen C-Elysee
• Citroen C3 Aircross
• Citroen C3 MK2
• Citroen C3 Picasso
• Citroen C4 Cactus
• Citroen C4 MK2
• Citroen C4 Picasso
• Citroen Jumpy
• Citroen Spacetourer
• DS DS3
• DS DS4
• DS DS5
• Peugeot 2008
• Peugeot 208
• Peugeot 3008 (P84)
• Peugeot 308 (T9)
• Peugeot 5008 (T87-P87)
• Peugeot 508
• Peugeot Expert
• Peugeot Ranch/Partner
• Peugeot Traveller
• Opel/Saturn/Vauxhall Combo E
• Opel/Saturn/Vauxhall Crossland X
• Opel/Saturn/Vauxhall Grandland X
• Toyota Proace

Bosch MD1CS018:

• Mahindra BS-6

Bosch MED17XX/EDC17XX:

• EDC17U01(TC1766)
• EDC17C46(TC1767)
• EDC17C54(TC1797)
• EDC17C64(TC1797)
• EDC17CP44(TC1797)
• EDC17CP44 MS(TC1797)
• MED17.5(TC1766)
• MED17.5.1(TC1766)
• MED17.5.20(TC1766)
• MED17.5.5(TC1766)
• MED17.5.5 HW2(TC1766)
• MED17.5.2(TC1767)
• MED17.5.5(TC1767)
• MED17.5.5 HW2(TC1767)
• MED17.5.21(TC1782)
• MED17.5.25(TC1782)
• MED17.1.1(TC1797)
• MED17.1.1 MS(TC1797)
• MED17.1.6(TC1797)
• VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

Bosch ME17XX:

• ME17.5.6(TC1767)
• ME17.5.20(TC1767)
• ME17.1.1(TC1797)
• ME17.1.6(TC1797)
• VW/Audi/Skoda/Seat, Bentley...

Download:

• Configuration and Package List
