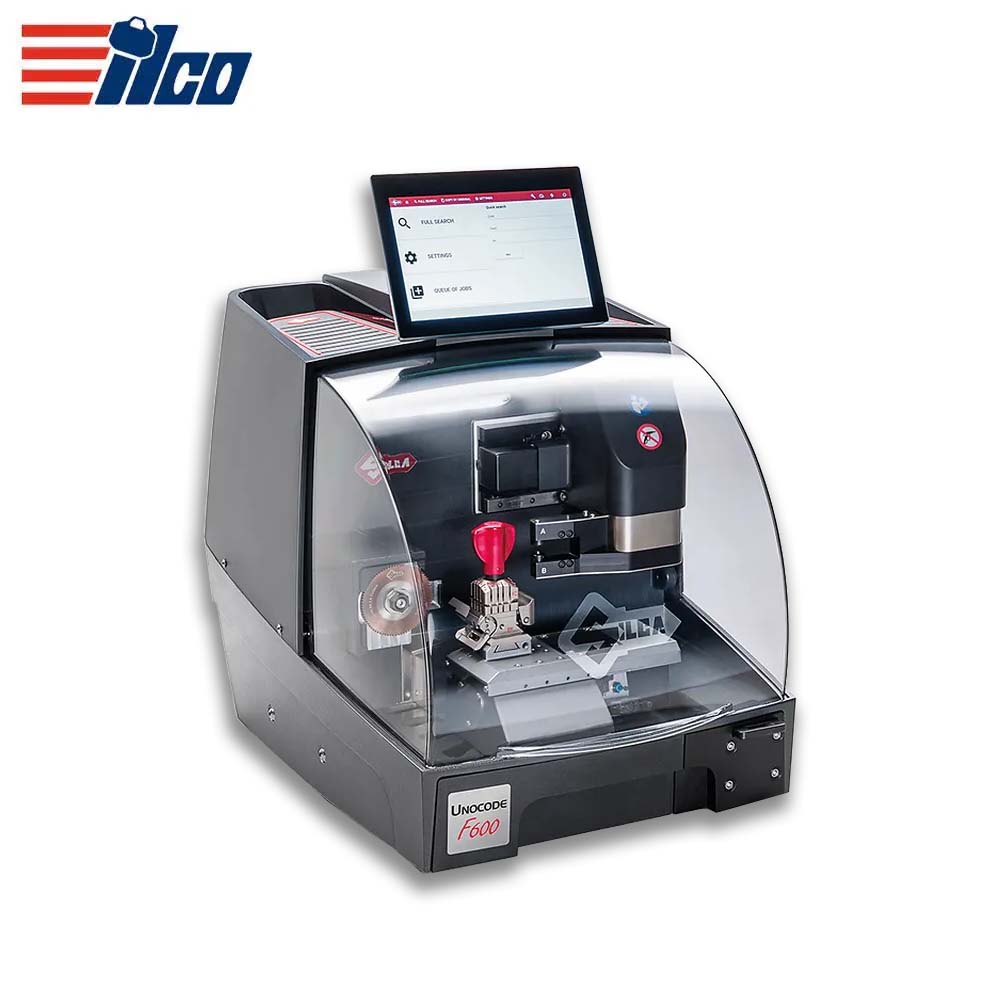

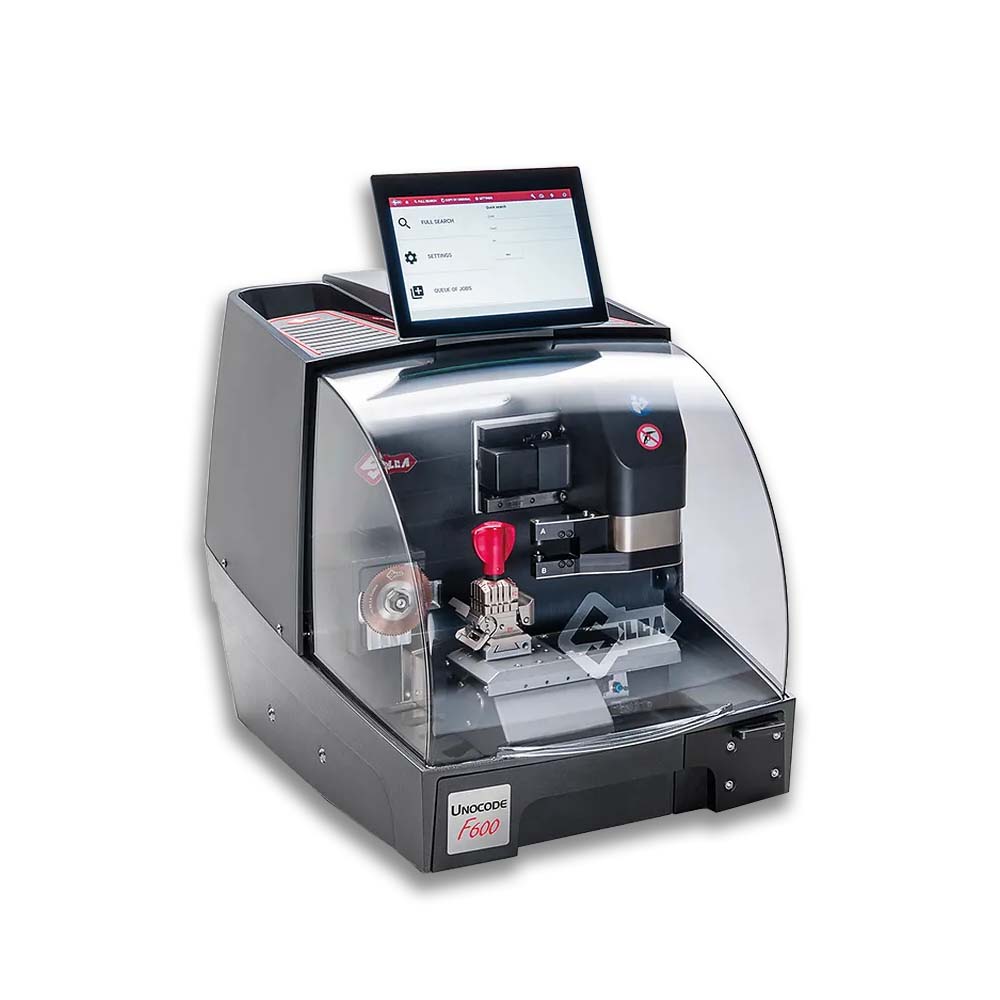

ILCO - Unocode F600 - Electronic Key Machine for Cutting and Engraving Flat Keys

ILCO - Unocode F600 - Electronic Key Machine for Cutting and Engraving Flat Keys

Designed for specialist locksmiths, Silca's Unocode F600 cuts and engraves flat keys in a significantly optimized process, improving the speed and quality of service to your customer. Keys can be decoded by simply dropping them in an innovative camera reader, whilst residential keys and vehicle keys with metal heads can be engraved and cut in one go, without wasting time on installing separate tools or manually moving the key.

Features:

• User-friendly software interface
• Professional display
• Full connectivity
• Cleaner, safer, and more comfortable working area
• Top performance and automated, double-sided marking
• Quiet
• Camera reader for fast optical decoding
• Four-sided, versatile clamp
• New Unocode F600 software

Technical Specifications:

User-Friendly Software Interface

• Intuitive software interface developed for the needs of professional locksmiths, with shortcuts to the most used cutting cards and job queues
• Works in stand-alone
• Compatible with SKP Pro to work with existing data archives and Codemaker cards

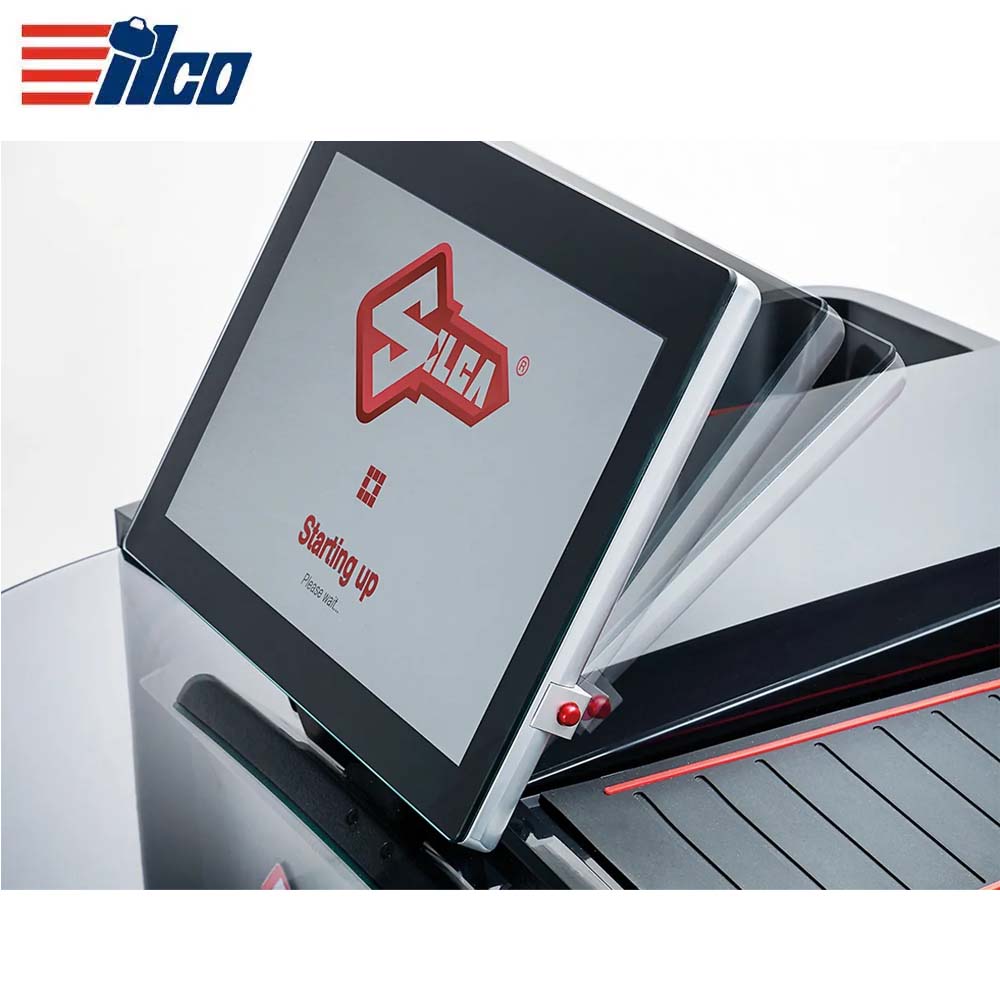

Professional Display

• Integrated, industrial 10-inch, touch-screen display
• Tilts to give the perfect viewing angle
• Immediate response to the touch (0.01 seconds)
• Color display with a resolution of 1280x800 pixels

Full Connectivity

• Connection both via Wi-Fi and via Ethernet to the local LAN network
• 4 USB ports (2 ports 3.0 + 2 ports 2.0)
• HDMI port to connect an external screen
• Possibility to connect a wireless keyboard and mouse

Cleaner, Safer and More Comfortable Working Area

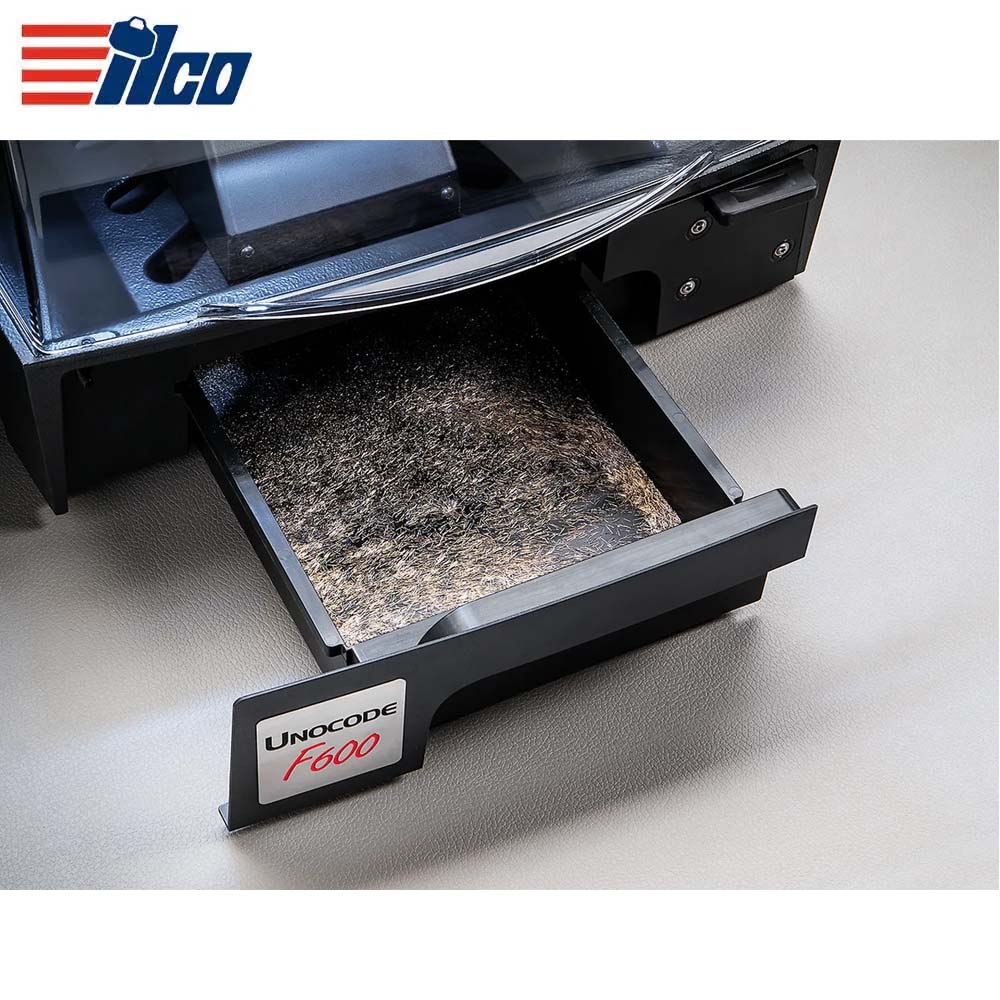

• The machine is completely enclosed: swarf is collected in the tray below the cutting area to leave the working area clean

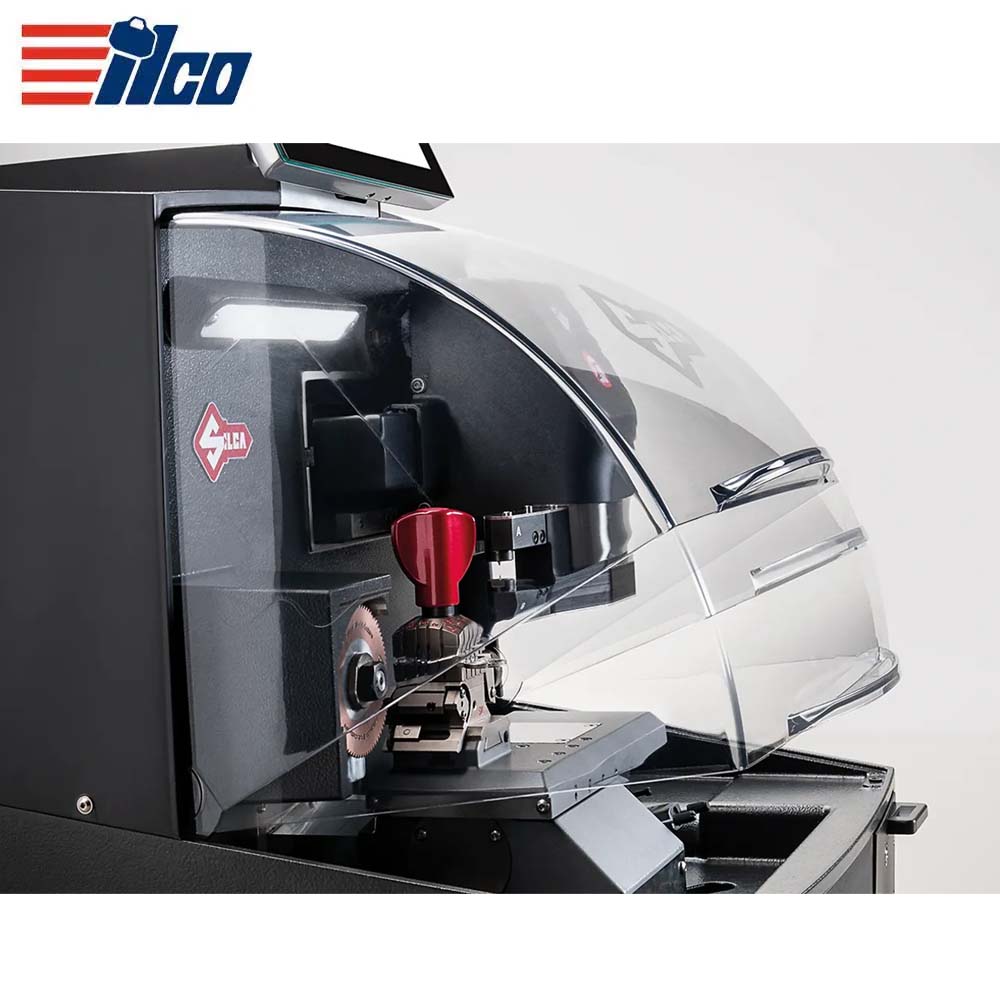

• The safety shield closes and opens automatically when starting or ending a cycle
• The shield features two microswitches and stops automatically if obstructed to give additional protection
• 55% bigger working area compared to previous models for easier operation

Top Performance and Automated, Double-Sided Marking

• Prismatic cutter and engraving cutters are made of hard metal for precise results and resistance to wear
• The process time is dramatically reduced: no need to install a separate tool or to move the key manually for engraving
• Both key sides can be independently marked

Quiet

• New structure optimized to absorb vibrations and noise.
• Fewer vibrations thanks to the new 80-teeth cutter in hard metal (widia).
• A completely enclosed working area reduces noise during marking and cutting.

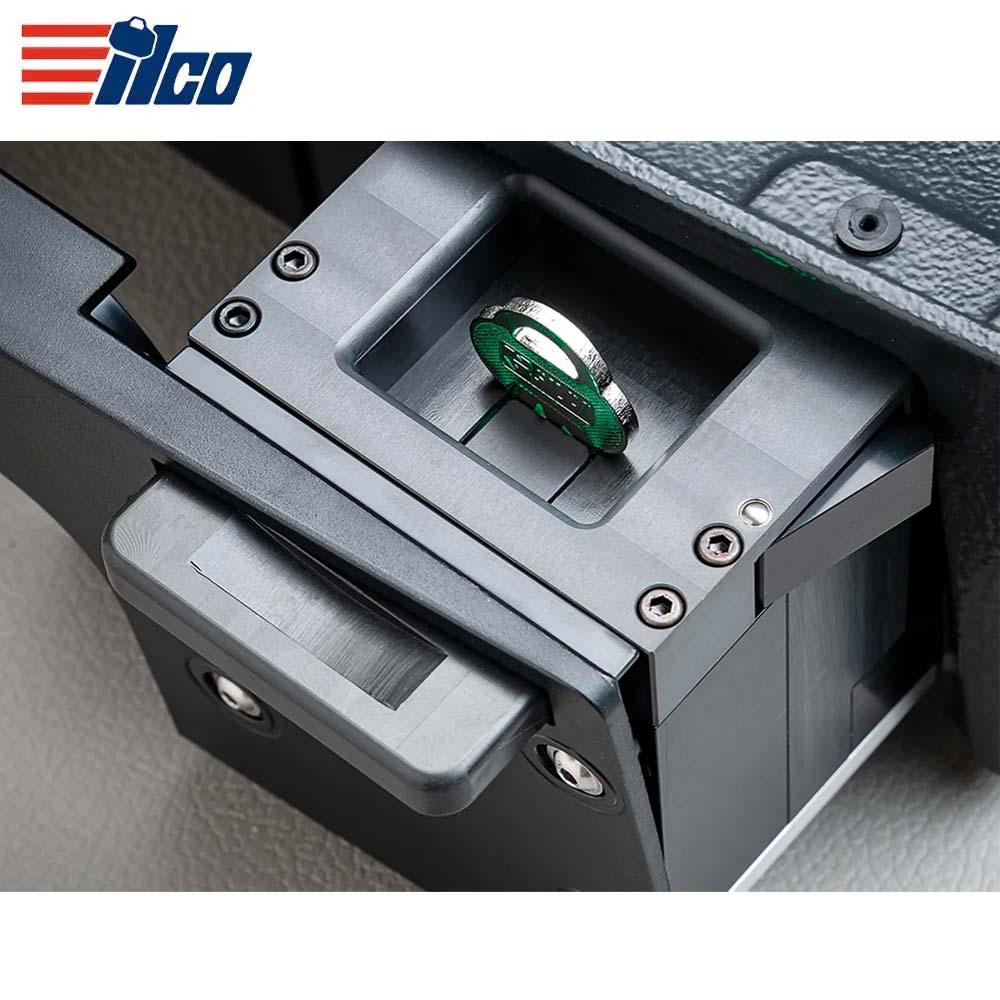

Camera Reader For Fast Optical Decoding

• Unique, patent-pending solution for immediate decoding.
• No positioning is needed: just drop the key in the pull-out compartment.
• The software shows the difference between the depths read and the depths defined by the manufacturer.
• Double-sided keys with asymmetrical cuts and single-sided keys with protrusions such as ball bearings or other patented design elements cannot be decoded.

UNOCODE F600 Software

For the Unocode F Series key machines, we have developed an entirely new software, engineered specifically to make your job easier and quicker. The new interface can also be customized according to your needs, so that you can keep within easy reach the functions you use most frequently.

• Cutting cards comparison available on board.
• Cutting cards shortlist: when decoding a key, you don't have to select a cutting card first. The camera reader decodes the key cuts and provides you with a shortlist of cards from which you can choose the one you need.
• Code tables available on board*.
• Customize your favorites: you can rename the cutting cards you use most frequently and reorder them according to your needs.
• Onboard video tutorials and product manual.
• Remote service to support you when needed.

Download:

• Unocode F600 Brochure
