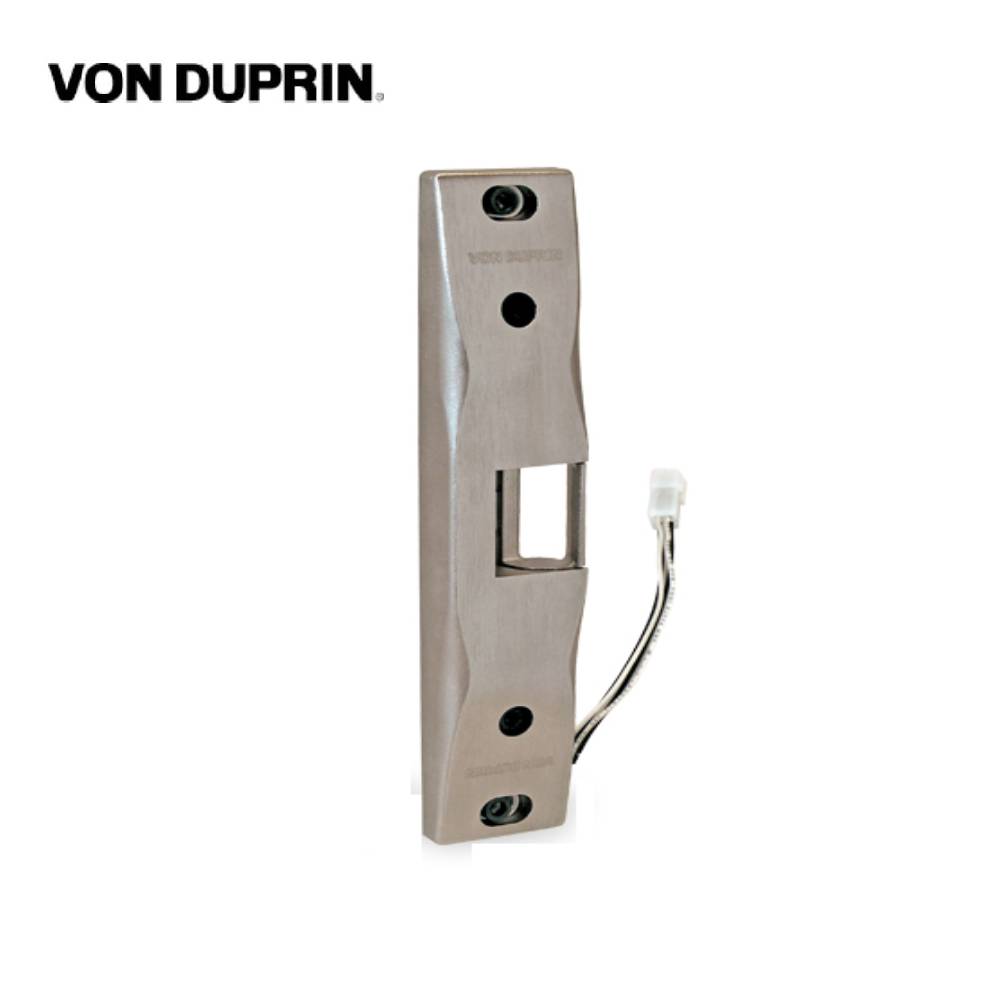

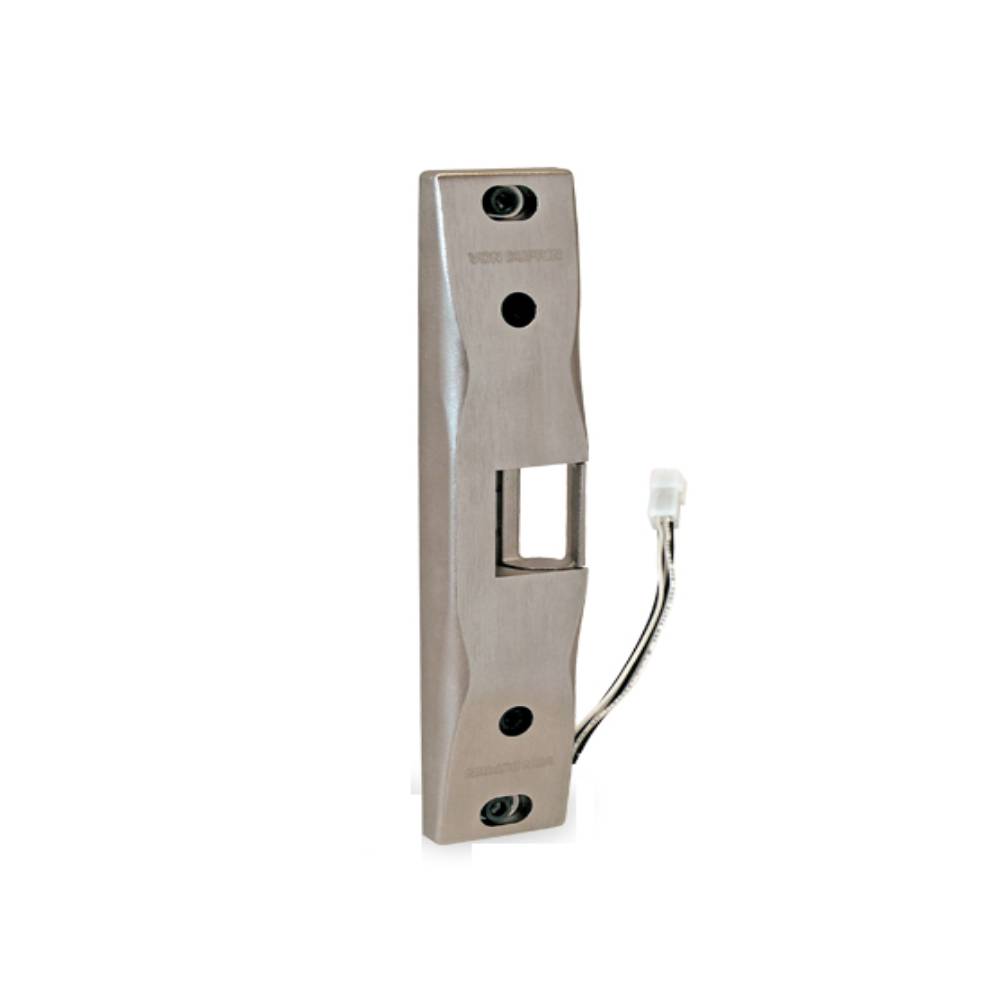

Von Duprin - 6300 32D - Fire Rated Electric Strike - Fail Secure - 9" x 1-3/4" Faceplate - 12/24 VDC - Satin Stainless Steel Finish - Grade 1
Von Duprin's 6300 Series strike designed for use with rim exit devices. It boasts a heavy-duty stainless steel construction and is fully UL 1034 and UL 10C listed.
The 6300 Series strike is designed for use with a variety of rim exit devices. An electrified strike, it allows remote release of a locked door by activating a movable lip using an entry/exit button or credential reader and can be a cost-effective means for managing access.
Designed for fail-secure-only mode, these strikes achieve compliance with UL10C for 3-hour fire-rated openings.
Feature:
- Designed for use with rim exit devices
- Heavy-duty stainless steel construction in BHMA 630 satin finish
- Surface mounted - requires no alteration or cutting to existing frame
- Field selectable voltage 12VDC or 24VDC
- Plug-in voltage connectors included for ease of installation and removal during strike servicing
- Non-handed design provides greater flexibility
- Suitable for interior and exterior doors
- UL 10C 3-hour fire-rated (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- UL 294 listed for access control system
- CSFM California State Fire Marshal listed
- Dynamic strength: 70 ft.-lbs.
- Endurance: 2,000,000 cycles
Product Specification:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 6300 32D |
| UID | VON1006300US32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Single Door, Double Door with Mullion |
| UL Listing Type | UL 10C, 1034 |
| Limited Warranty | 1 Year |
| Fire Rated | Yes {Variable} |
| Burglar Rated | Yes |
Technical Specification:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12/24VDC |
| Amp Draw | 500mA at 12VDC, 240mA at 24VDC |
| Keeper Size | Pullman Keeper |
| Configuration | Centered |
| For Use With | Rim Exit Devices |
| Faceplate Size | 9" x 1-3/4" |
| Faceplate Depth | 3/4" |
| Fire Rated | Yes |
| Frame Application | Hollow Metal, Aluminum, or Wood |
| Product Type | Electric Strikes |
