Description
Description

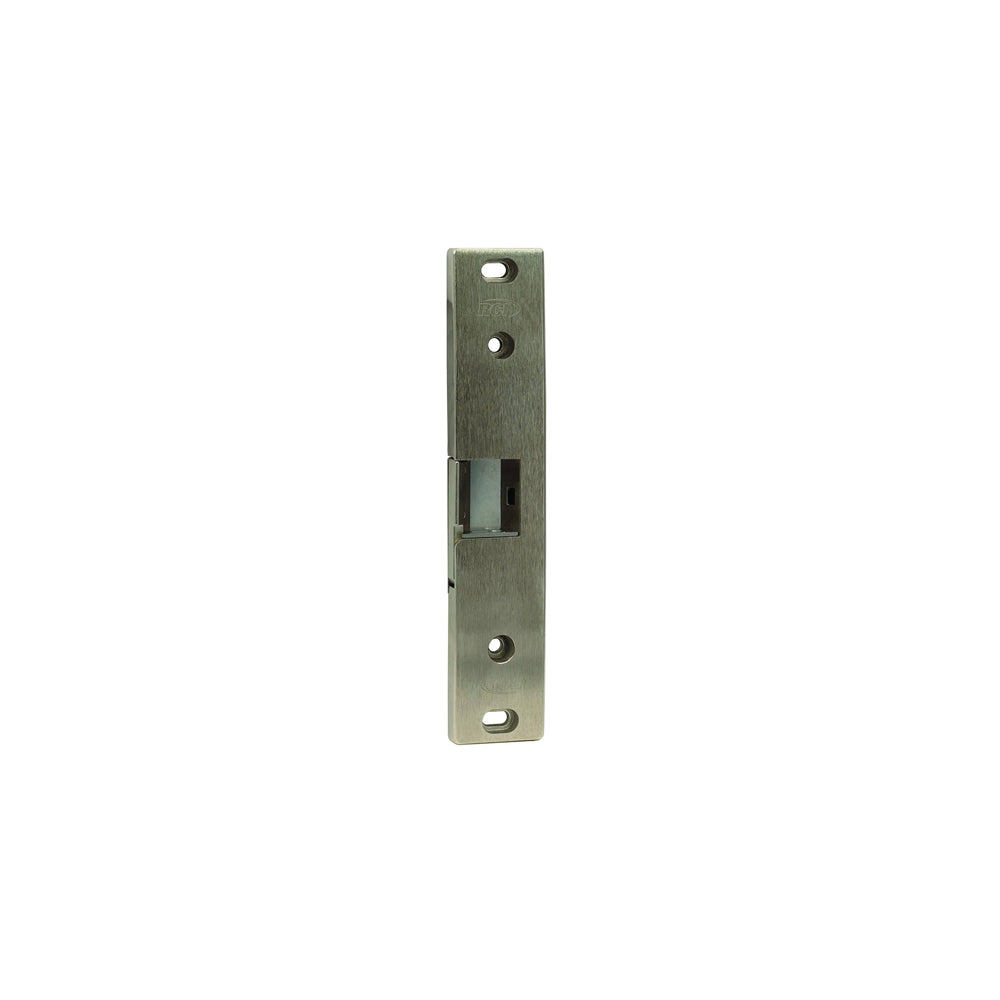

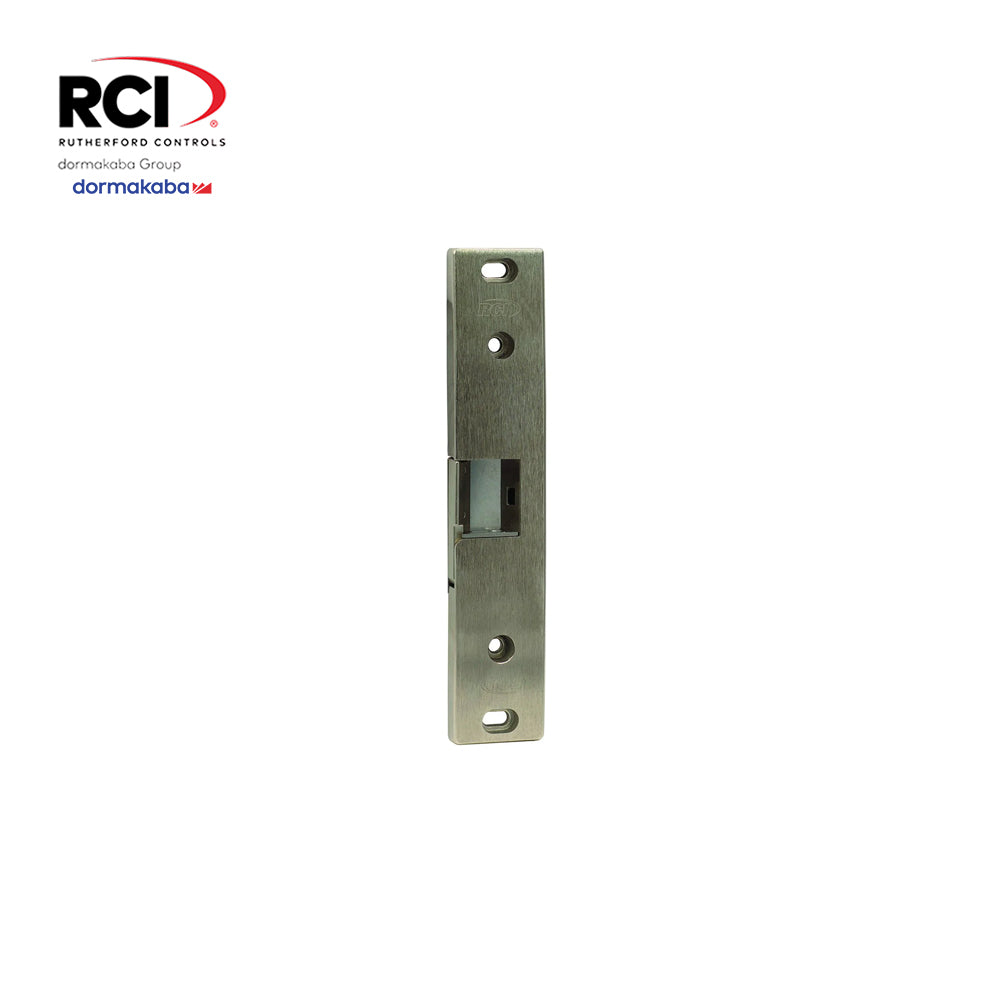

RCI 0163-32D - Surface Mounted Electric Strike with 1/2" Rim - 32D (Satin Stainless Steel-630)
This solenoid rim strike is a surface-mounted electric strike designed to work with Pullman style rim exit device latches. Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.
Features:
- Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC
- Mode: Fail-Secure
- Strength: 1,500lbf Static, 70ft-lb Dynamic
- Endurance: 500,000 Cycles
- Warranty: 5 Year Limited
- Monitoring: Optional Latch Monitor Model Available
Product Specifications:
| Manufacturer | RCI |
| SKU | 0163 32D |
| UID | RUT1000163 |
| Unit of Measure | Each |
| Limited Warranty | 5 Years |
Technical Specifications:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12VACDC/24VACDC |
| Keeper Size | PK |
| For Use With | Rim Exit Devices |
| Faceplate Size | 9 In. X 1-3/4 In. |
| Faceplate Depth | 1/2 In. |
| Holding Force | 1500 Lbs. |
| Product Type | Electric Strikes |
