Description
Description
Codelocks CL515 Mechanical, Heavy Duty, Optional Finish, Tubular Latchbolt Gate Box Kit
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Stainless steel or marine grade finish
- Back to back installation option

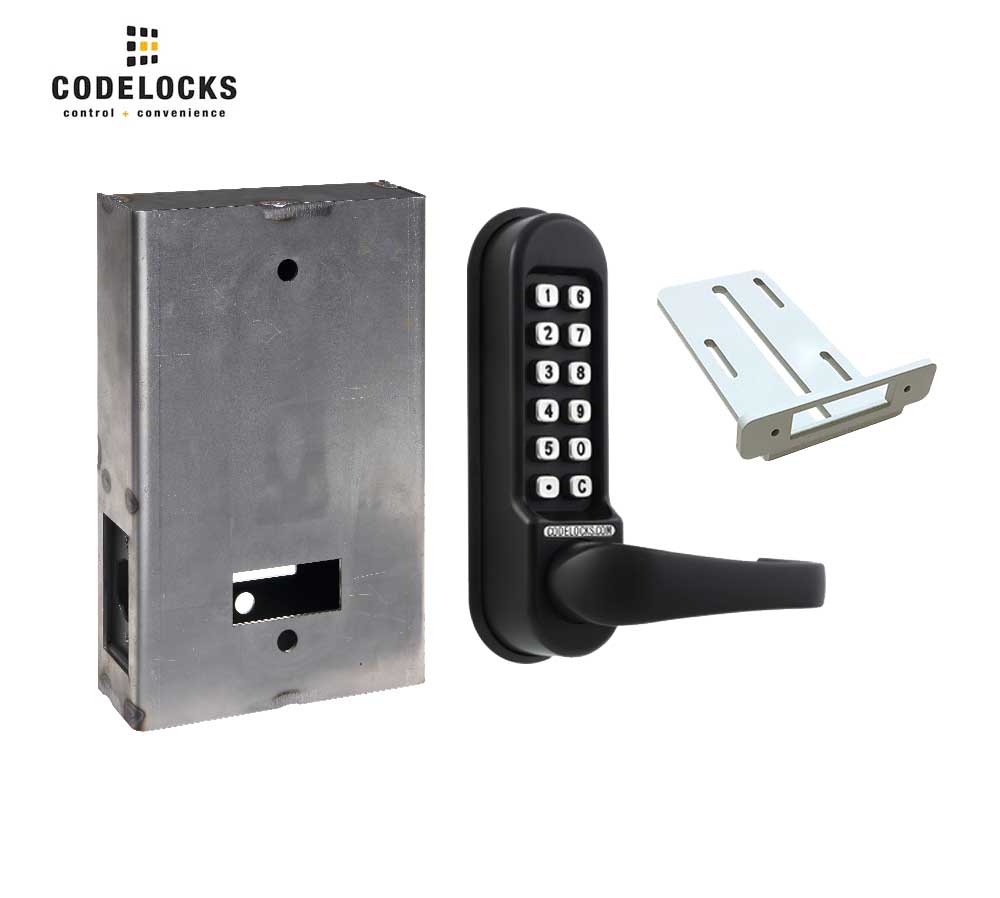

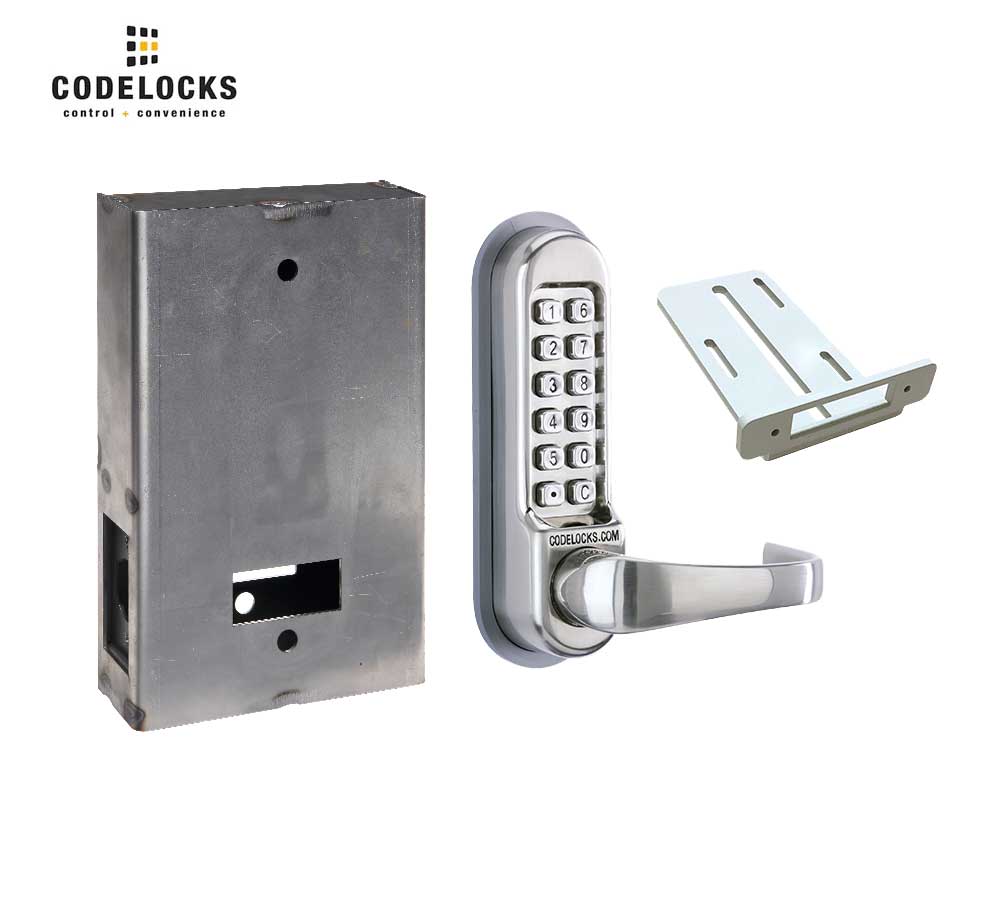

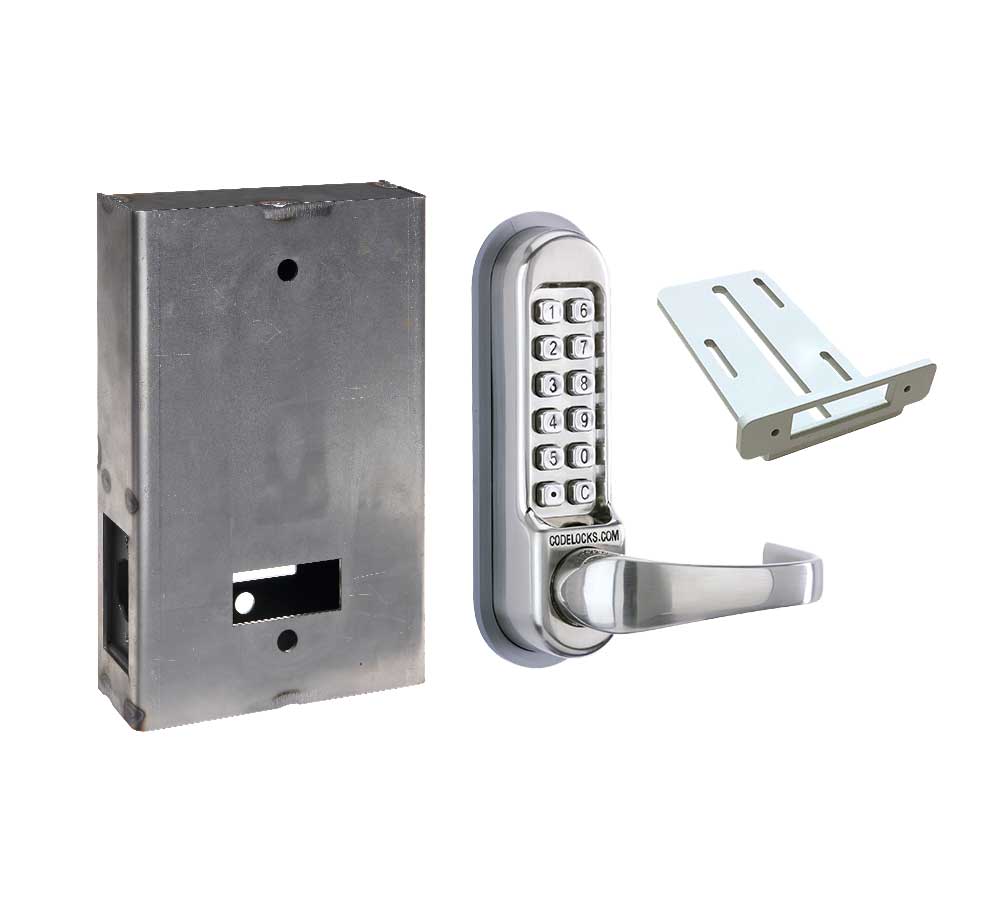

Gate Box Kit Components:
- CL515 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL515 Tubular Latchbolt Mechanical Codelock:
Heavy duty lock with tubular latch and full size lever handles, suitable for high traffic use. Code free passage function and back to back options available. The CL515 is a heavy-duty push-button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed. It features:
- Heavy duty tubular mortise latch
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Back to back model available
Technical Specifications:
| Gate Box Dimensions | 8.5” x 5.5” x 1.75” (H x W x D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 2 x 6 |
| Code Change Method | Tumblers (Off Door) |
| Codes | 2,047 Non-Sequential Code Combinations Available |
| Latch Type | 2 3⁄4"- 2 3⁄8" Tubular Latch Bolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞") |
| Handed | Non-Handed |
| Keypad | 12 Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Two-part 5⁄16" (8 mm) Spring Loaded Spindle |
| Manufacturer Warranty | Limited Lifetime Warranty |
