MBE ORANGE 5 Professional Programming Device with IMMO HPX Software

MB ORANGE 5 Professional Programming Device with IMMO HPX Software

Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro-language for writing down protocols, which gives fast and easy capability to add new types of micro-schemes, precisely meeting manufacturers' requirements to read/write algorithms. This set contains most of the popular adapters and is one of the most flexible EEPROM/ FLASH programmer, a powerful tool in your hands. This version contains extra software licenses It is required to send us the device Serial Number in order to receive the IMMOHPX license. Hardware was manufactured in USA.

Technical Info:

• Connection and power via USB interface (USB2.0)
• Universal easy to plug panel ZIF16 for EEPROM
• Control of contacts in the sockets
• Two expansions connectors compatible with Orange4 and Omega MTRK
• Protection against overcurrent
• Overload voltage protection
• Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
• Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
• Capability of functional emulation of USB CDC devices.
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
• plastic case.

Software:

• Maximum buffer size - 32Mb;
• Users can create own HPL modules;
• Edit 8 and 16 bits HEX values, as well as ASCII.
• Read and write files in BIN, HEX, S19 formats;
• Visual compare mode with highlight values;
• Write all chip or marked area;
• Support for multiple configuration files;
• Auto-save backups;
• Extended set of operations on the buffer;
• Works under Windows XP,WIN7,WIN8,WIN10 (32 bit and 64 bit).
• IMMO HPX for Orange5

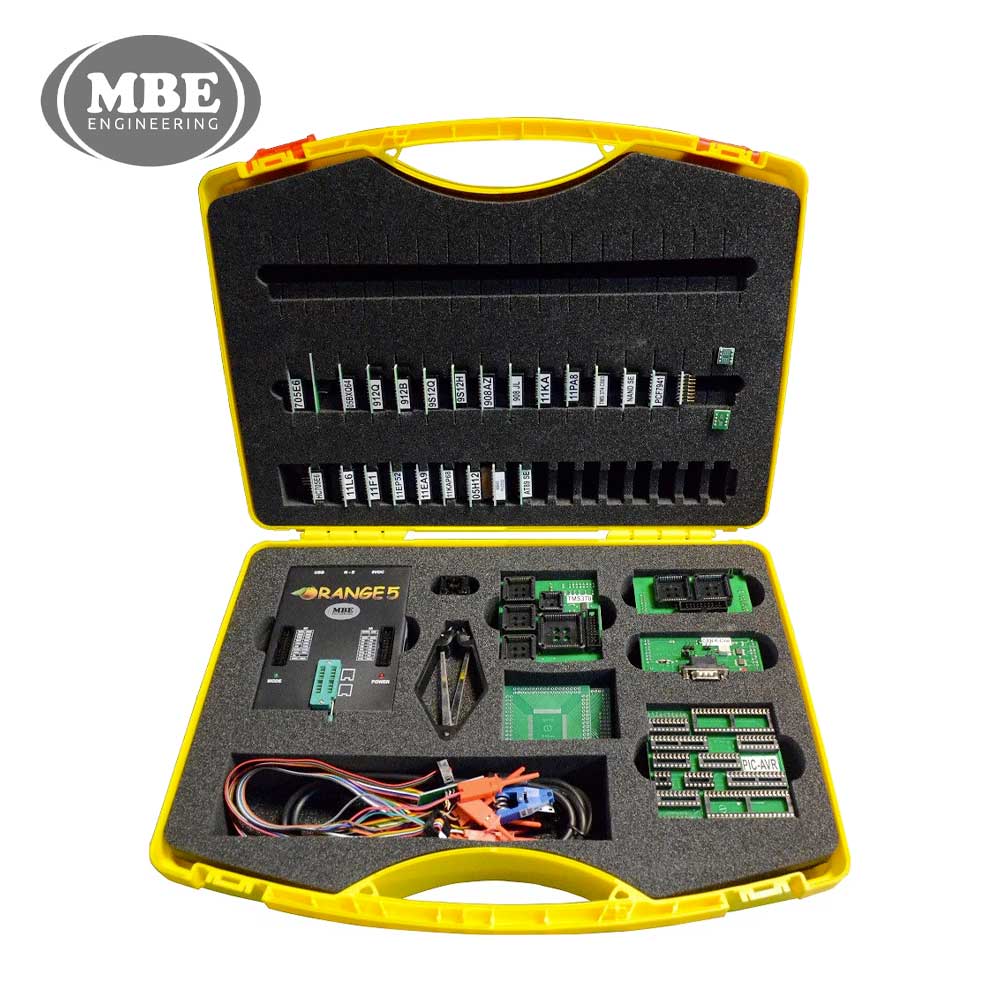

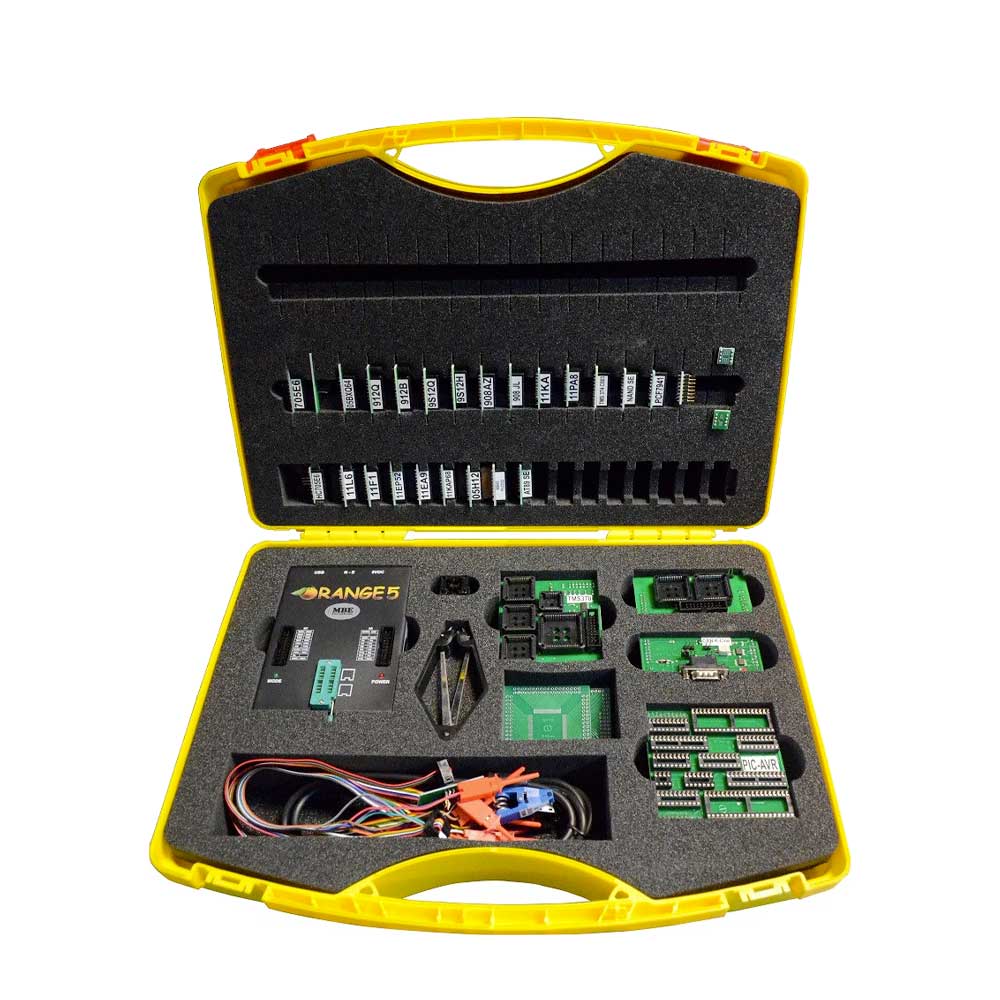

Set Contains:

• Orange5 device
• Orange5 Software
• Orange5 USB base + Motorola license
• USB cable
• SOIC8 clip POMONA with leads
• DIP8 clip POMONA with leads
• PLCC extractor
• All Adapters for Orange5
• IMMO HPX License coverage

Audi:

• BCM2
• Ver.1 uPD70F3239
• Ver.1 uPD70F3380
• Ver.2 uPD70F3380
• Ver.1 uPD70F3634
• Dash
• A2 VDO crypto 93C86
• A3 UKNSI 93C56
• A3 VDO '97/99 93C66
• A3 VDO crypto 93C86
• A3 MM 912DG128
• A4 UKNSI 0012-003 93C56
• A4 UKNSI 0014-001 93C56
• A4 UKNSI 0016-001 93C56
• A4 UKNSI '97/98 93C56
• A4 VDO '97/99 93C66
• A4 VDO '99/01 93C86
• A4 MM 912DG128
• A6 UKNSI 0012-001 93C56
• A6 UKNSI 0014-001 93C56
• A6 UKNSI 0016-001 93C56
• A6 VDO '97/99 93C66
• A6 VDO '99/01 93C86
• A6 VDO crypto 93C86
• A6 MM 912DG128
• S3/S6 MM 912DG128
• TT MM 912DG128
• Immo
• '94/97 4A0 953 234 93C46
• Delphi 8D0 953 234 93C46
• ECU
• '00/04 ECU EDC15 24C04
• A3 1.8T 0261204678 24C02
• A4 1.8T 0261204778 24C02
• A4 '02 8E0 909 xxx 95040
• ELV
• MC68HC908GR16A[4L35K]
• MC68HC908GR16A[0M76Z]

BMW:

• Dash
• Dash with M35080
• Immo
• EWS-3 HC11EA9 clips [0D46J]
• EWS-3 HC11EA9 wires [0D46J]
• EWS-3 HC11EA9 adap [2D47J]
• EWS-3+ HC11EA9 clip [0D46J]
• EWS-3+ HC11EA9 adap [2D47J]

Chery:

• All Chery with 0L72A
• All Chery with 0L59X

Chevrolet:

• Immo
• Captiva MC9S08DZ60 [3M05C]

Chrysler:

• Immo
• SKIM immobox 24C02
• Ram uPD70F3626

CitroenBSI:

• Berlingo 03/06 BSI v1 95160
• Berlingo 03/06 BSI v2 95160
• Berlingo 03/09 BSI v3 95160
• C2 '03/04 BSI 95160
• C3 '02/04 BSI v1 95160
• C3 '02/04 BSI v2 95160
• C5 '01/04 BSI 912DG128
• C5 '02/04 BSI 95160
• C8 '03/04 BSI 912DG128
• Picasso '03/04 BSI 95160
• Xsara II '01/03 BSI 95040
• Immo
• Berlingo Valeo 93C46
• Jumper '99/06 Delphi 93C56
• Jumpy 705E6 [F82B]
• Relay Delphi 93C56
• ECU
• Xsara ECU EDC15C2 95P08

DAF:

• Immo
• MC68HC908AZ60 [2J74Y]
• MC68HC08AZ32A [2L52H]

Dodge:

• Immo
• SKIM immobox 24C02

Fiat:

• Automotive K/CAN
• IMM 009.10 (More Information)
• BSI
• Albea 912DG128 [3K91D]
• Panda '02 BSI [1L40K]
• Stilo 912DG128 [3K91D]
• Stilo BSI [1K79X]
• Strada BSI [1K79X]
• Immo
• IMM001.11 [1K59H]
• IMM009.01 [1K59H]
• IMM009.01 [0L72A]
• IMM100.01 [1K59H]
• IMM110.01 [1K59H]
• Bravo 705E6 [G72G]
• Bravo 705E6 Clips [G72G]
• Bravo 08AZ32 [1H56A]
• Cinquecento '96 93C46
• Coupe '96 immobox BOSCH 93C46
• Ducato Delphi 93C56
• Marea 08AZ32 [1H56A]
• Punto 93C46
• Punto Delphi 93C66
• Scudo 705E6 [F82B]
• Palio '09 [0L72A]
• Seicento Delphi 93C56
• ECU
• Scudo '01 JTD EDC15C2 95P08

Ford:

• BSI
• Focus '03- 9S12XEP768 [5M48H]
• Dash
• 4M5T MC9S12H128[1K78X]
• 8VT4 MC9S12XHZ256[1M80F]
• ECU
• Focus '00 ECU 77012

Gilera:

• ECU
• Fouco 500 [ST10F269]

Great Wall:

• Immo
• With 0L72A

Hyundai:

• ECU
• Accent KEFICO ECU M95160
• Elantra KEFICO ECU M95160

Honda:

• Immo
• Acord '06 Immo HIS-5 93C46
• Legend '07 Immo HIS-5 93C46
• Valeo HC05B6 [0F10V]
• Valeo HC05B8 [3D33J]
• Valeo HC705B16 [0D28J]
• KEIHIN 38770-MFJ-D04 93C66

Jeep:

• Immo
• Grand Cherokee 08AZ32 0J66D
• Grand Cherokee '13 uPD70F3626
• Grand Cherokee '09 uPD70F3629
• SKIM immobox 24C02

KIA:

• Immo
• '99/01 Immobox 93C46
• ECU
• Cerato KEFICO ECU M95160

Lancia:

• Immo
• Kappa immobox BOSCH 93C46
• Mahindra
• Automotive K/CAN
• XYLO & Scorpio

Mazda:

• Immo
• Lucas 19AS HC05B8 [3D33J]
• SKLC
• 2 '09- MC9S12XDT384
• Demio '09- MC9S12XDT384
• ECU
• 6 ECU 93A66

Mercedes Benz:

• Immo
• Sprinter 05X16 [0D62J]
• Sprinter/Vito 08AZ32 [0J66D]
• Sprinter/Vito 08AZ32A [L52H]
• EZS
• W203 908AZ60 [1J35D]
• W203 908AZ60 [1J35D]
• W203 908AZ60 [4J74Y]
• W220 908AZ60 [1J35D&4J74Y]
• W639 Vito '03/up [1L02M]
• W639 Vito '03/up [3K85K]
• W639 Vito '03/up [4J74Y]

Nissan:

• Immo
• Immobox with TMS370Cx2x
• BSI
• Skyline [1L15Y] Wires
• Automotive K/CAN
• NATS-2 (Motorola) (More Information)
• NATS-2+ 5WK4 652 (More Information)
• NATS-4 (TMS) (More Information)
• NATS-5 (TMS) (More Information)
• NATS-5 (ST) (More Information)
• NATS-5 (TMS in 5WK48645) (More Information)

Opel:

• Immo
• Immo HC05B6 [0F10V]
• Immo TMS370C002 (PLCC28)
• Immo 5WK4 7631[0L72A]

Peugeot:

• BSI
• 307 '01/03 BSI 912DG128
• 307 '01/03 BSI 912DG128A
• 307 '02/05 BSI 95160
• 807 '04/05 BSI 912DG128
• 807 '05/06 BSI 95128
• Immo
• Boxer Delphi 93C56
• 106 Valeo 93C46,
• Partner Valeo 93C46

Piaggio:

• Immo
• Vespa '95 AEC302C 705E6 [0F82B]

Renault:

• Immo
• Clio-I immobox Sagem 93C46
• Clio-II '98 BMT Sagem 93C46
• Kangoo immobox Sagem 93C46
• Master '99-01 immobox Sagem 93C46
• UCH
• Clio III Sport [3L91N]
• Megane [4L91N]
• IR key
• Clio key with MC68HC05K3

Rover:

• Immo
• Valeo HC05B6 [0F10V]
• Valeo HC05B8 [3D33J]
• Valeo HC705B16 [0D28J]
• EWS 9S12DG128 [3L40K]

Seat:

• Dash
• Cordoba VDO '99/01 93C86
• Cordoba VDO '03/05 93C86
• Cordoba MM 9S12H256
• Ibiza VDO '00 93C66
• Ibiza VDO '99/01 93C86
• Ibiza VDO '03/04 93C86
• Ibiza VDO crypto 93C86
• Ibiza MM 9S12H256
• Ibiza 6J0 920 801A 24C32
• Ibiza 6J0 920 802H 24C64
• Ibiza 6J0 920 804L 24C64
• Leon VDO v.1 93C86
• Leon VDO v.2 93C86
• Leon VDO v.3 93C86
• Leon VDO v.4 93C86
• Toledo VDO v.1 93C86
• Toledo VDO v.2 93C86
• Toledo VDO v.3 93C86
• ECU
• EDC15 '00/04 24C04
• EDC16U1 '04/06 95320
• EDC16U31 '03/05 95320

Skoda:

• Dash
• Fabia VDO '00/01 v1 93C86
• Fabia VDO '00/01 v2 93C86
• Fabia VDO '04 93C86
• Fabia VDO crypto 93C86
• Felicia VDO 93C66,
• Felicia VDO '01/02 93C86
• Oktavia VDO 93C66
• Oktavia VDO '00/05 93C86
• Oktavia VDO crypto 93C86
• Roomster VDO crypto 93C86
• SuperB VDO '02/04 93C86
• SuperB VDO crypto 93C86
• ECU
• '00/04 ECU EDC15 24C04
• '05/06 ECU EDC16U1 95320

SsangYong:

• Immo
• 87110-0930 MSP430F1232
• 87110-0910 MSP430F1232
• MSP430F1232 (universal)
• VDO MC68HC05B16 [0D60J]

Suzuki:

• Immo
• Baleno '99- 93C66
• Swift '99- 93C66
• Alto 24C01
• Ignis 24C01
• Jimny 24C01
• SX4 [0L72A]

Toyota:

• Immo
• Immobox 89780-12070 93C66
• Immobox 89780-20010 24C04
• Immobox 89780-42030 93C66
• ECU
• ECU 89661-50440 93C56

VW:

• BCM2
• uPD70F3634
• VW Beetle dash
• Beetle 912D60
• Beetle '03/05 912DG128
• Beetle 03/05 912DG128C L05H
• Beetle 05/06 9S12H256 K78X
• VW Beetle ECU
• Beetle EDC16U31 95320
• VW Bora dash
• Bora MOT'99/00 24C02
• Bora VDO 93C66
• Bora VDO '99/00 93C86
• Bora VDO '01 93C86
• Bora VDO '01/03 93C86
• Bora VDO '03/05 93C86
• VW Caravelle ECU
• T5 '04/06 EDC16U1 95320
• T5 '04/06 EDC16U31 95320
• VW Fox dash
• Fox MM 9S12H256
• VW Golf dash
• G4 MOT 24C02
• G4 MOT '01/03 24C08
• G4 BOSCH '02/03 24C08
• G4 VDO 93C66
• G4 VDO '99/00 93C86
• G4 VDO '01 93C86
• G4 VDO '01/03 93C86
• G4 VDO '02/03 93C86,
• G4 MOT addr.line 24C02
• G6 5K0 920 870C 24C32
• G6 5K0 920 872A 24C64
• G6 5K0 920 873A 24C64
• VW Jetta dash
• Jetta VDO '00 93C66
• Jetta VDO '99/01 93C86
• Jetta VDO '01 93C86
• VW Passat dash
• Passat B5 MM HC11KG4
• B5 VDO 93C66
• B5 VDO '99/01 93C86
• B6 VDO '01/02 93C86
• B6 VDO '03/04 93C86
• MOT addr. line 24C02
• VW Pointer dash
• Pointer '05/06 93C66
• VW Polo dash
• Polo VDO '01/02 93C86
• Polo VDO '01/04 93C86
• Polo VDO crypto 93C86
• VW Polo ECU
• Polo '04 ECU 1.4 MM 95320
• VW Sharan ECU
• Sharan '00/04 EDC15 24C04
• Sharan 06/07 EDC16U31 95320
• VW Touran ECU
• ECU EDC16U34 '06/07 95320
• VW Transporter dash
• T4 VDO '01/03 93C86
• T5 VDO '03/07 93C86
• VW Transporter ECU
• '00/04 ECU EDC15 24C04
• '03/06 ECU EDC16U1 95320
• '03/07 ECU EDC16U31 95320

Immo:

• Fox '08 Brazil 93LC56
• Immo HC05B6 [0F10V]
• Immo HC05B6 [0B91T]
• Immo HC05B8 [3D33J]
• Immo TMS370C002 (PLCC28)

ECU:

• 00/04 ECU EDC15
• 03/06 ECU EDC16U1
• 03/07 ECU EDC16U31
• 06/07 ECU EDC16U34
