ILCO Engrave-It Pro XL Extra-Large Key Engraving Machine
Description
Description

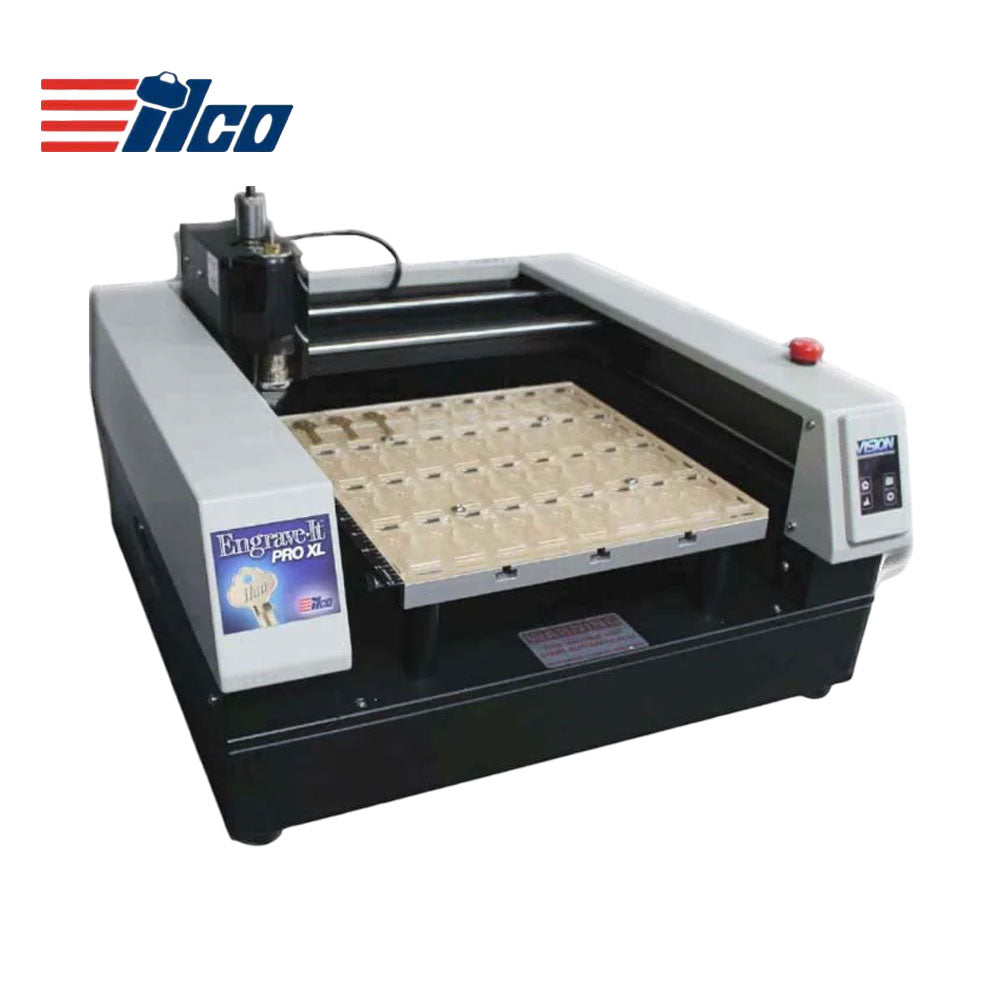

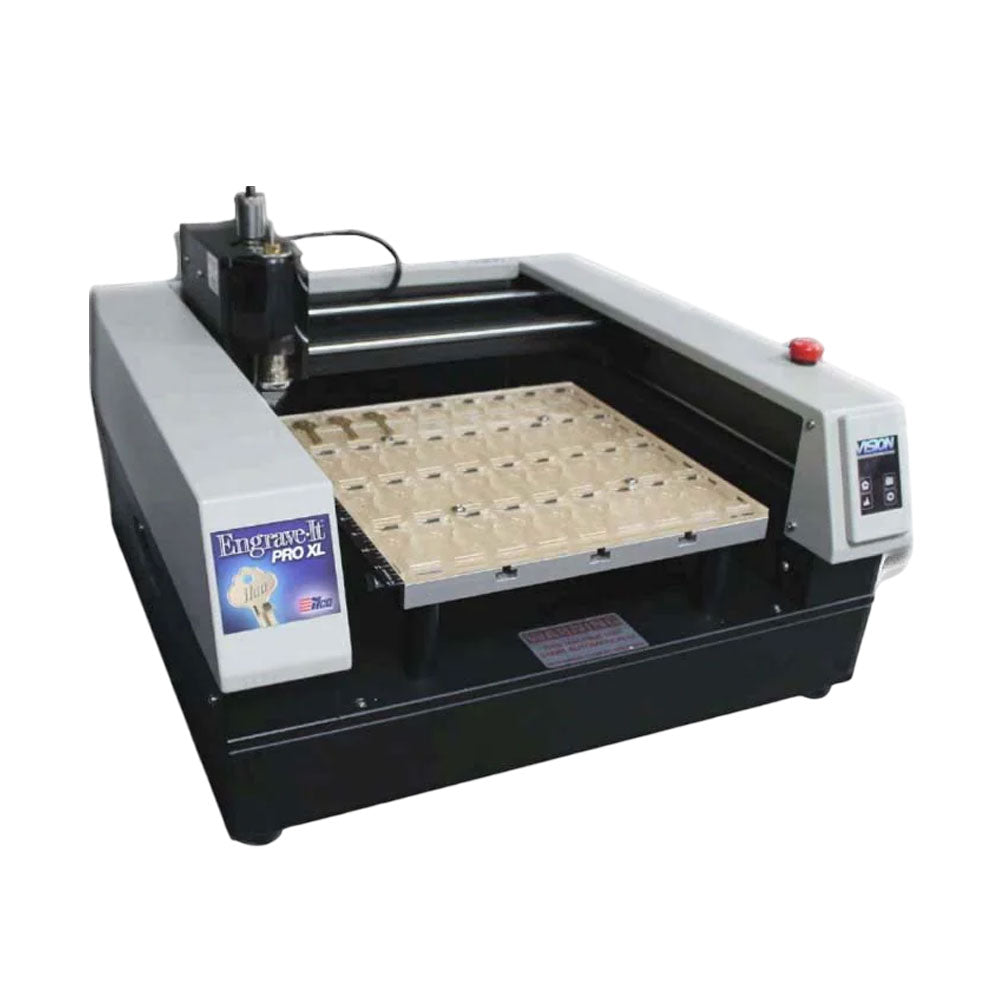

ILCO Engrave It Pro XL An Extra-Large Engraving Machine
The Engrave-It Pro XL is a simple-to-operate engraving solution that covers a broad range of items in both lock shops and institutional environments. This machine provides the maximum capacity needed for marking keys, lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, and much more!
Features:
- Capable of “fine” engraving for presentation plaques, etc.
- Custom lettering for marking keys, popular lock cylinders, and many other items.
- Extra-large holder for increased capacity of up to 40 keys
- New V-Touch multi-functional touch screen.
- Red laser pointer for easy job setup.
- Sequential numbering.
- Variety of fonts and marking styles
- Various clamping options provided to secure items being engraved.
- Vision Pro 10 “Expert” software package.
Specifications
| Software: | Vision PRO 10 “Expert” Software Package |
| MAX. Work Area | 12x12 inches |
| Maximum Work Piece Size | 17.5 inches (L) X any Width x 3 inches (H) |
| Z-Axis Clearance: | 1.25 inch (31.75 mm) |
| Z-Axis Stroke: | 1 inch standard (1.75 inch w/riser kit) |
| Table Resolution: | .0002 inches |
| Spindle Type: | 11/64 inches, 6mm, or 1/4 inch/Top loading, Collect Spindle Available |
| Table Type: | Removeable Aluminum T-slot |
| Interface | Ethernet |
| Warranty | 2-Year Limited |
| Power Requirements | 110/220v 2 Amp |
| Physical Dimensions | 21.5 inches (W) x 24 inches (D) x 11 inches (H) -75 lbs. |
| Shipping Dimensions | 25 inches (W) x 30 inches (D) x 19 inches (H) -85 lbs. Ground, 87 lbs Air |
| Part Number | IBA0388XXXX |
Computer Specifications
- A customer supplied PC is required to operate the Engrave It™ Pro XL
- Minimum System Requirements - Single Core 2 GHz CPU, 5 GB Hard Drive, 1 GB RAM
- Windows 7 or higher (32 bit or 64 bit) Operating System, Recommended System
- Requirements - Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM
