Lonsdor | SKU:
LON-KPROG2
17% off
Lonsdor KPROG2 Adapter for K518ISE K518S and K518 Pro Key Programmers
$11898
$14278
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Lonsdor KPROG2 Adapter for K518ISE K518S and K518 Pro Key Programmers
The KPROG2 Adapter is an adapter designed for use with the Lonsdor K518ISE & K518 Pro Key Programmer, capable of reading and writing EEPROM SOIC/MCU chips.
Features:
- Compatibility: Works with Lonsdor K518ISE & K518 Pro, ensuring seamless integration.
- Broad Support: Handles a wide range of chips from multiple manufacturers.
- Advanced Support: Can read and write Volvo CEM & KVM, an important feature for programming Volvo Smart Keys for 2009-2024 models.
- High Precision: Efficient reading and writing of EEPROM SOIC and MCu chips.
- User-Friendly: Easy binding process with K518 devices.
- One-Time Binding: Maintain security and exclusive pairing with one K518 device.
KPR0G-2 Adapter Binding Instructions:
- Connect the KPROG adapter to the Lonsdor K518 using the main cable.
- Connect the K518 to a 12V power supply.
- On the K518 device, navigate to the "Setting" menu.
- In the settings, find and select the option "Bind adapter".
- Confirm the action by clicking "OK".
- Once you complete these steps, the adapter will be bound to the K518, and you'll be able to use it for key programming.
Lonsdor KPROG-2 Adapter Read & Write EEPROM Chip List:
| 24 series Support ATMEL & ST chip |
| AT24C01 128 byte |
| AT24C02 256 byte |
| AT24C04 512 byte |
| AT24C08 1K |
| AT24C16 2K |
| AT24C32 4K |
| AT24C64 8K |
| AT24C128 16K |
| AT24C256 32K |
| 93 series; Support ATMEL & ST chip |
| AT93C46-8bit 128 byte read/write |
| AT93C56-8bit 256 byte read/write |
| AT93C57-8bit 256 byte read/write |
| AT93C66-8bit 512 byte read/write |
| AT93C76-8bit 1024 byte read/write |
| AT93C86-8bit 2048 byte read/write |
| AT93C46-16bit 128 byte read/write |
| AT93C56-16bit 256 byte read/write |
| AT93C57-16bit 256 byte read/write |
| AT93C66-16bit 512 byte read/write |
| AT93C76-16bit 1024 byte read/write |
| AT93C86-16bit 2048 byte read/write |
| 25 series; Support ATMEL chip |
| AT25010 128 byte |
| AT25020 256 byte |
| AT25040 512 byte |
| AT25080 1K |
| AT25160 2K |
| AT25320 4K |
| AT25640 8K |
| AT25128 16K |
| AT25256 32K |
| AT25M01 1M |
| AT25M02 2M |
| 95 series; Support ST chip |
| 95010 128 byte |
| 95020 256 byte |
| 95040 512 byte |
| 95080 1K |
| 95160 2K |
| 95320 4K |
| 95640 8K |
| 95128 16K |
| 95256 32K |
| 95M01 1M |
| 95M02 2M |
*Note: The Lonsdor KPROG-2 adapter can only be bind to one K518 Device, once you bind it you cannot bind to another device.

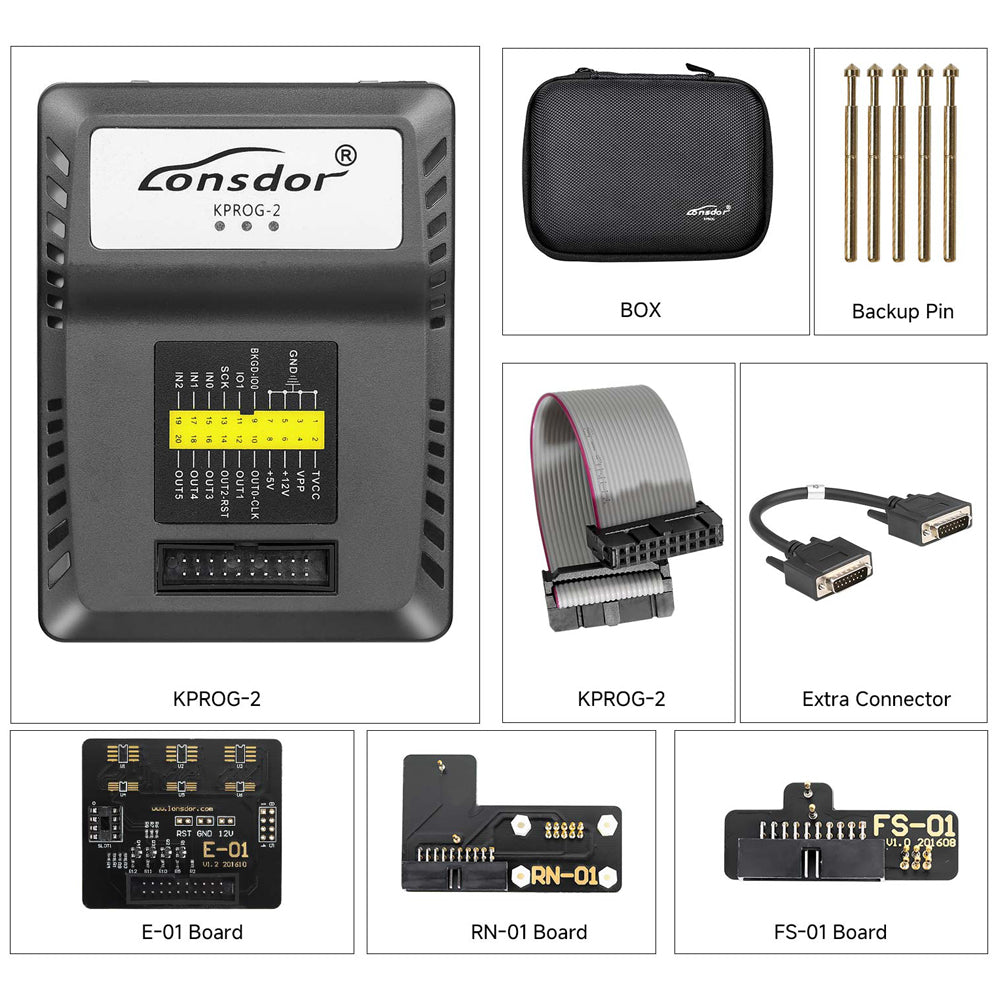

Packing List:
- Lonsdor KPROG-2 Main Unit
- Lonsdor KPROG-2 E-01 Board to Read EEPROM Chip
- Lonsdor KPROG-2 RN-01 Board to Read Volvo CEM
- Lonsdor KPROG-2 FS-01 Board to read Volvo KVM
- Lonsdor KPROG-2 Cable to Connect Adapter with the KPROG-2
- Losndor KPROG-2 Backup pin X 5pcs
- Lonsdor KPROG-2 Extra Connector Cable to connect the KPROG-2 with the Lonsdor K518
- Lonsdor KPROG-2 Case
