OLYMPUS LOCK - T37-2 - T-Bolt Metal Drawer Lock - N Series - Optional Accessories

OLYMPUS LOCK - T37-2 - T-Bolt Metal Drawer Lock - N Series - Optional Accessories

Olympus Lock manufactures institutional grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• Easily rekeyable via working top slide and retainer staple cylinder release mechanism
• Directly replaces National C8137 T-bolt lock
• Pin tumbler, 4-pin cylinder
• ANSI/BHMA No. E07051
• For 1/4" thick metal drawers
• Barrel diameter: 3/4"
• Includes: Insertable t-bolt and brass mounting nut
• Stainless steel bolt resists breakage
• 26D finish

Specification:

• Keying: Can be keyed together with other N Series locks

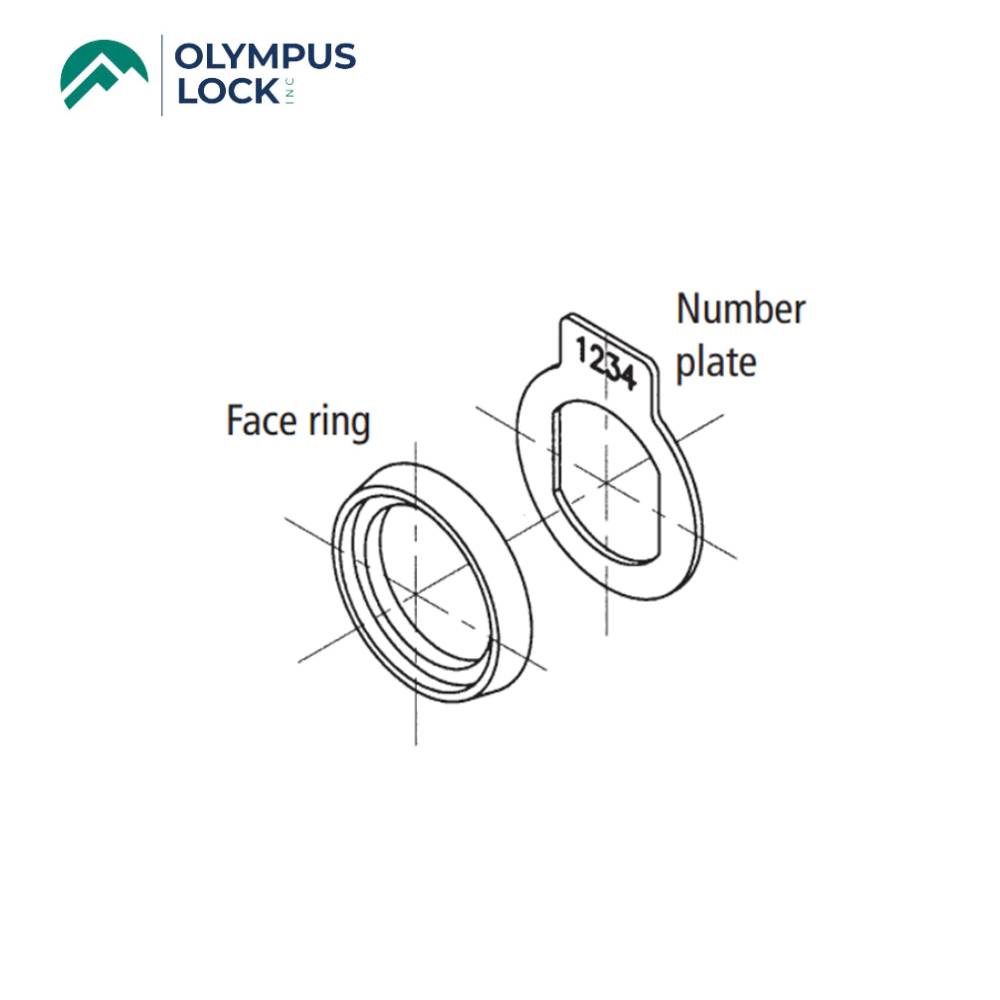

• Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.
• US Patent No: 5,038,589
• Standard function: Key removable in locked or unlocked position.
• Retrofits: National C8137
• Body: Zinc die cast
• Cylinder: Zinc die cast, pin tumbler
• Bolt: Stainless steel

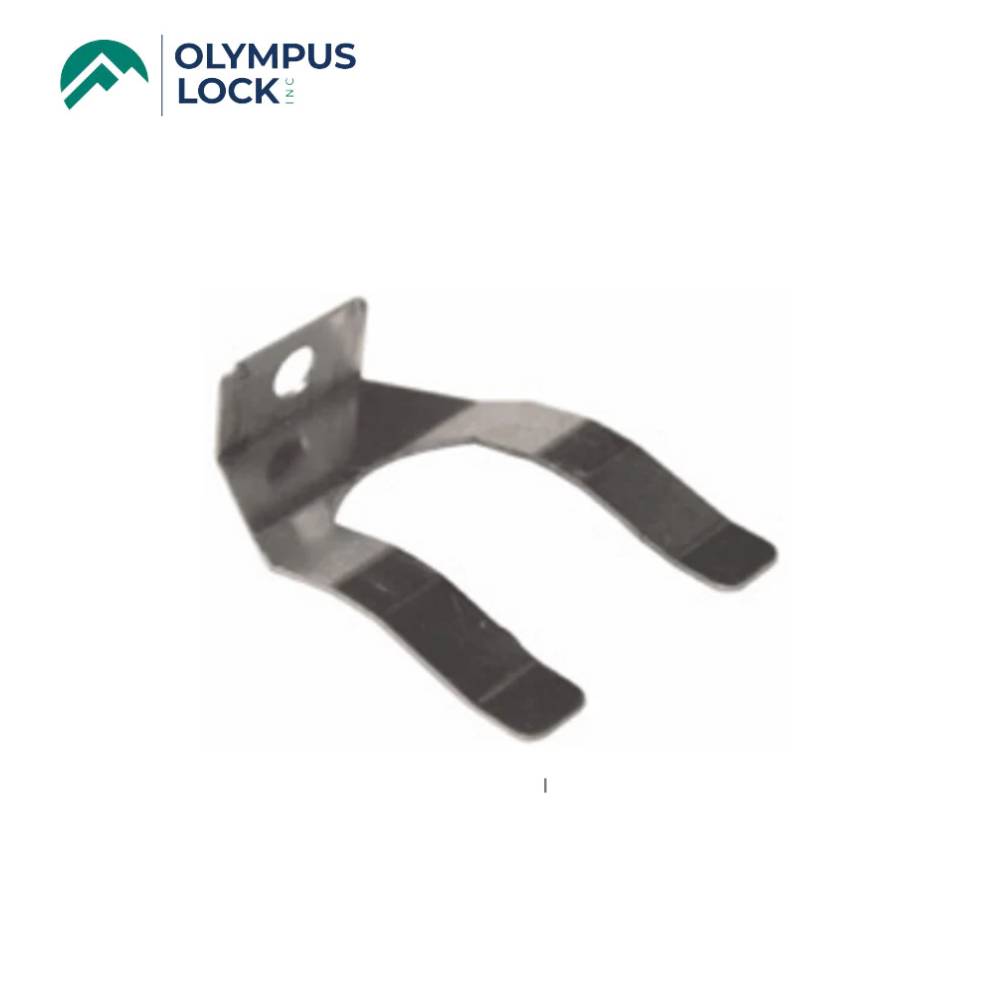

• Includes: Brass mounting nut. Spring mounting clip T37-RC is available separately.
• Barrel diameter: 3/4"
• Across flats: 5

Keying Information:

• Keyway: N Series (equivalent to National D4291 4-pin system)
• Keys: Includes 2 keys per lock
• Stock keying: KD/KA - 4 pin standard
• Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004, 51005, 51006, 51007, 51008, 51009, 51010 and groups 001 through 030 Masterkeyed: 4 pin standard
• Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)

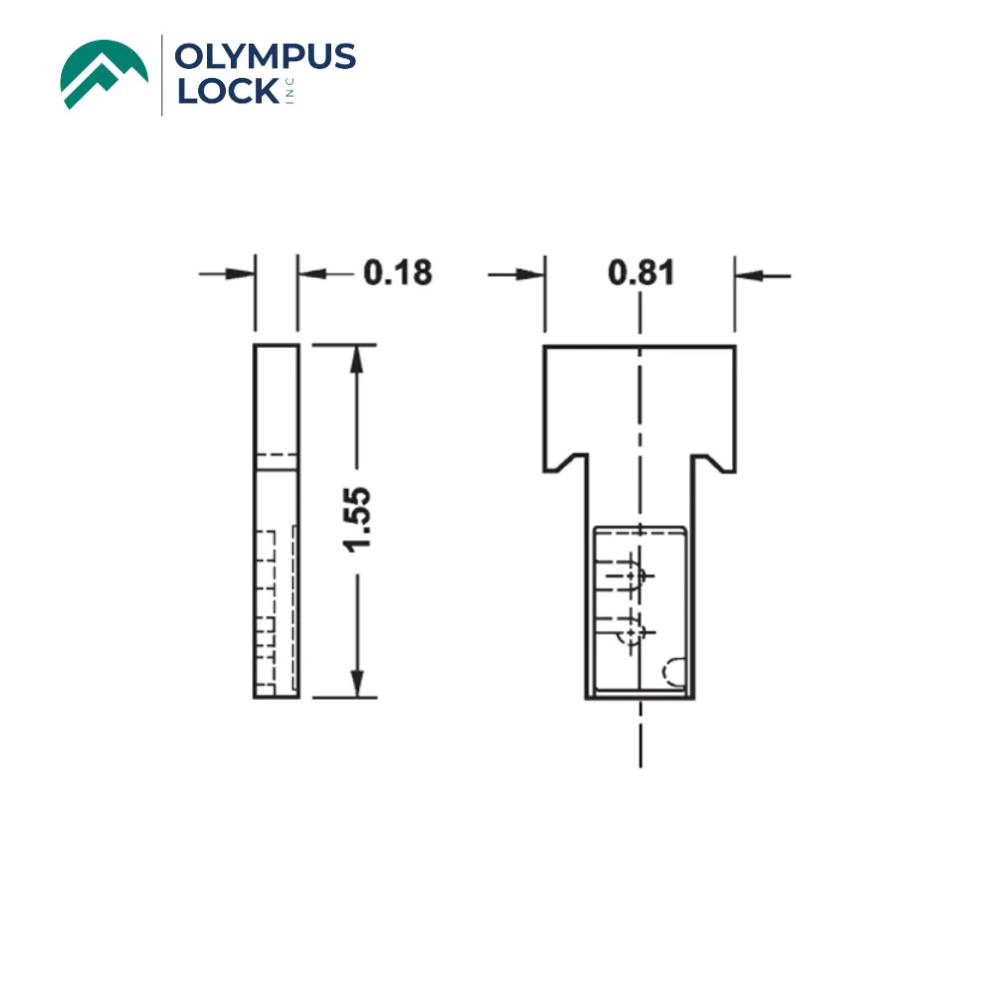

The T37-1 (regular bolt) , T37-2 (long bolt) and T37-3 (short bolt) will not work in the National C8137 lock. However, the C8137 bolts will work in the T37 lock.

MPN: T37-2

Download:

• Data Sheet
• Installation Instruction
