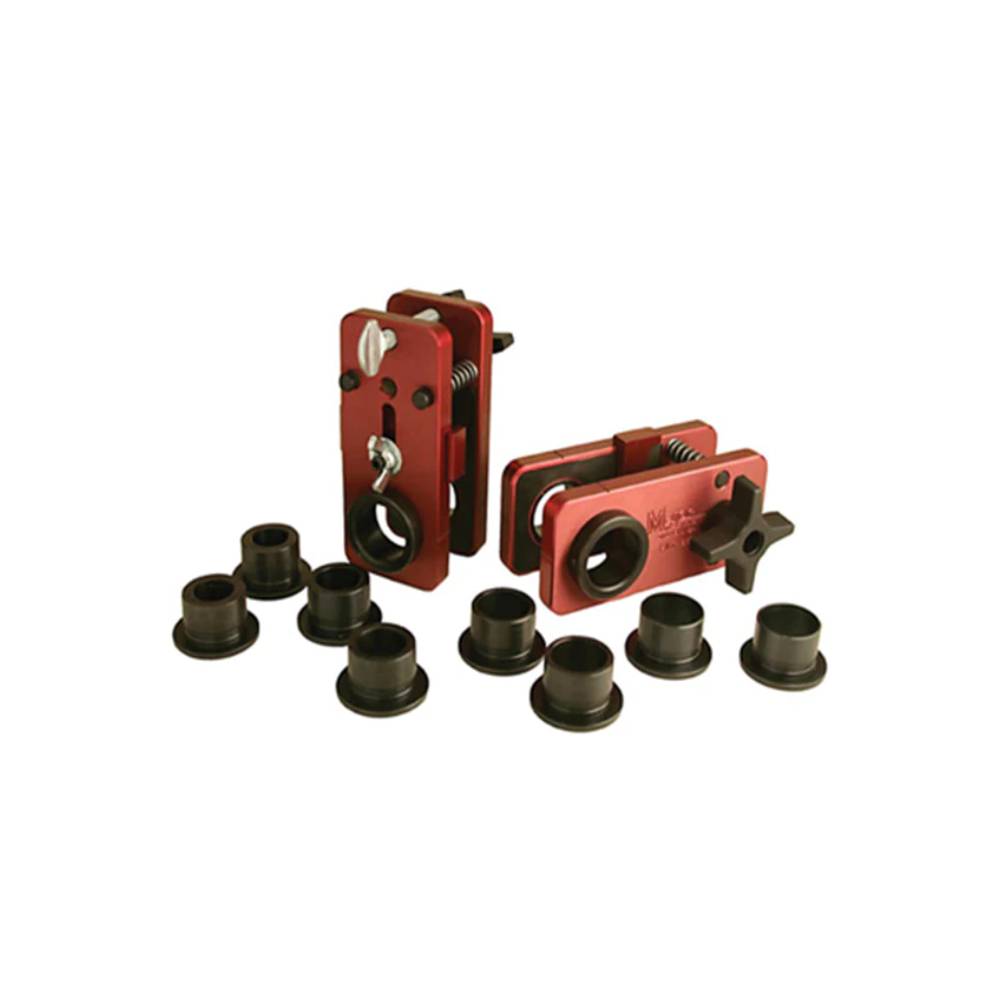

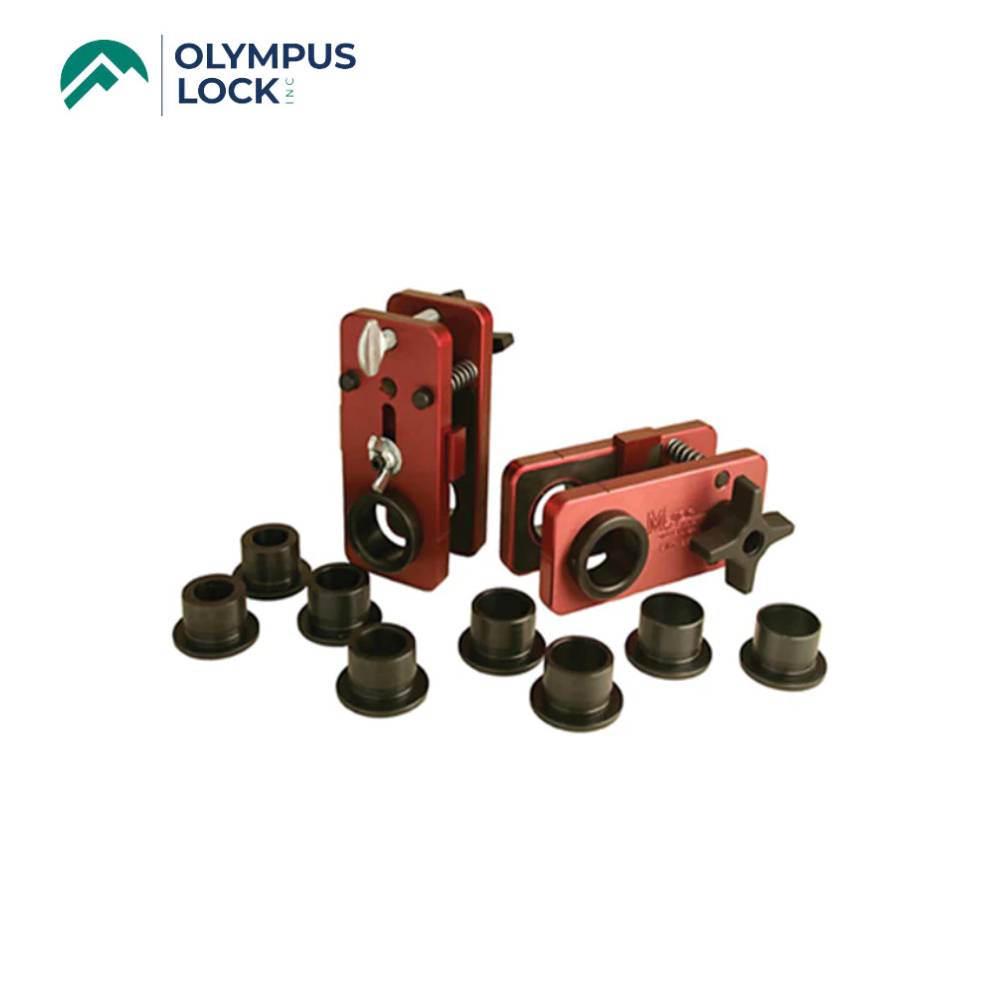

OLYMPUS LOCK - HIT-25 - Cabinet Lock Drill Guide - Adjustable Drill Bushing Sizes

OLYMPUS LOCK - HIT-25 - Cabinet Lock Drill Guide - Adjustable Drill Bushing Sizes

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• Rubber lined jaws to protect cabinet doors and give greater holding power
• Adjustable stop for repeat installations on the same cabinet door
• Works on doors up to 1-1/2" thick
• Can locate the cylinder hole up to 1-5/8" from the edge of the door
• Four sizes of drill bushings for versatility: 3/4", 7/8", 1-1/8" and 1-1/4". These bushings are designed to be used with clean cutting drill bits and are not compatible with hole saws, paddle, or spade-type bits.

Specification:

• Rubber lined jaws: Protect cabinet doors and give greater holding power
• Adjustable stop: For repeat installations on the same cabinet door
• Maximum thickness: Works on doors up to 1-1/2” thick.
• Hole location: Locate the cylinder hole up to 2-5/8” from the edge of the door.
• Five sizes of drill bushings for versatility: 3/4”, 7/8”, 1", 1-1/8” and 1-1/4”. These bushings are designed to be used with clean cutting Forstner type drill bits and are not compatible with hole saws, paddle, or spade-type bits

MPN: CL-HIT-25
