Launch - CNC-603A 2 in 1 Automatic Injector Cleaner & Tester

Launch - CNC-603A 2 in 1 Automatic Injector Cleaner & Tester

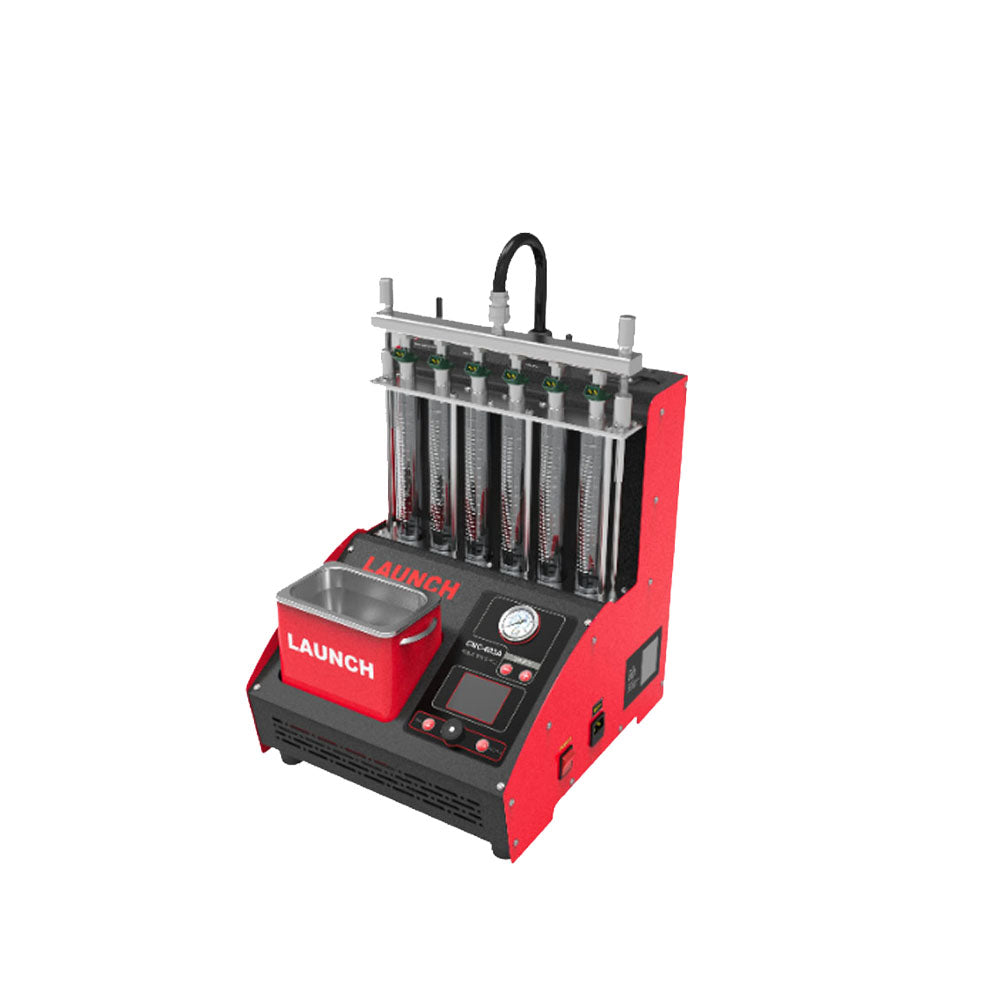

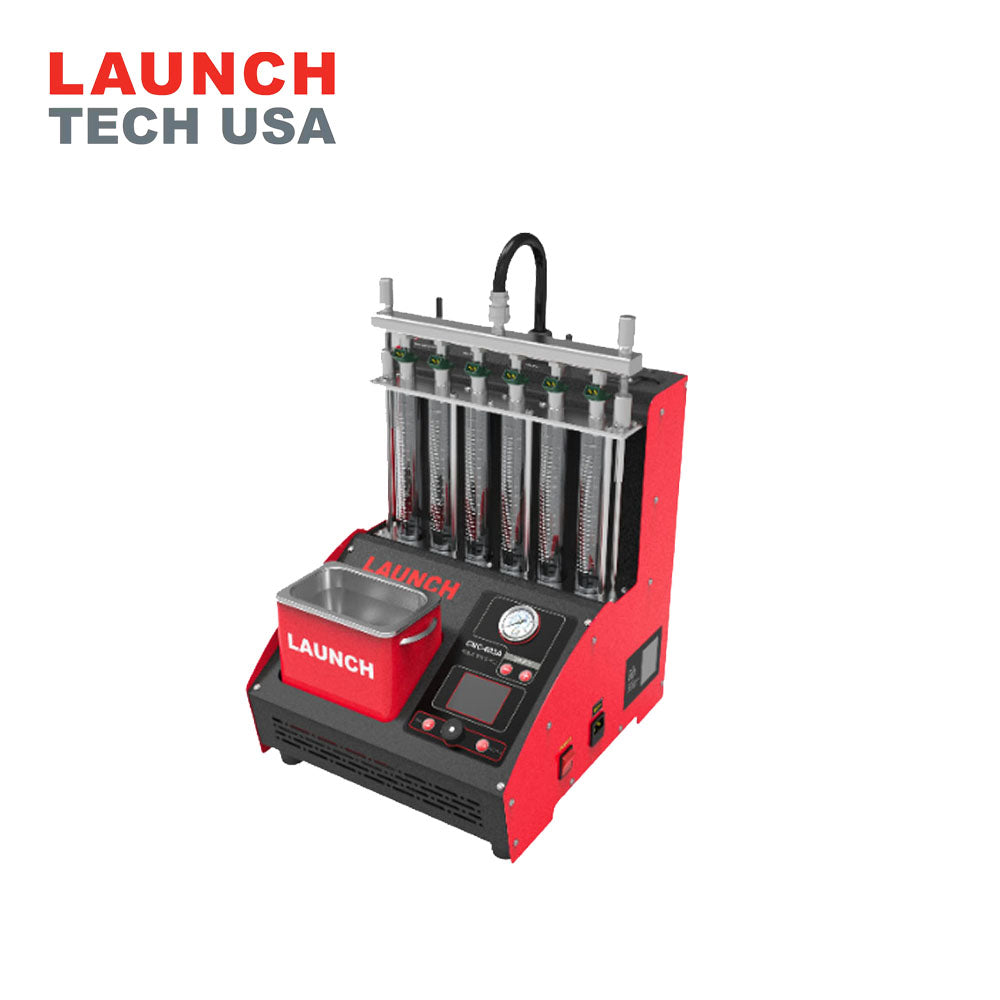

CNC-603A Injector Cleaner is an advanced electromechanical integration product that combines ultrasonic cleaning technology with microprocessor hydraulic control cleaning detection technology. It can clean and inspect the fuel injectors of the car, and also clean the fuel injectors and the fuel supply system.

Features:

• The sheet metal shell design is good for durable and reliable usage
• 2 in 1 design for more space saving, the cleaner can be separated from the device
• Glass tube is resistant to high and low temperature
• User-friendly design of the fuel intake and drain pipe for convenient oil filling and discharge
• The seamless design of the key mask for better oil resistance
• Apply the ultrasonic cleaning technology, support on-vehicle cleaning
• Variety test includes uniformity and atomization detection, sealing test, fuel injection quantity detection, automatic cleaning detection
• Automatic injector cleaning inspection
• Automatic control of cleaning and detection process
• Support both automatic and manual oil draining
• Scan QR code and get access to LAUNCH platform, check equipment information and send product feedback

Specifications:

• Power: AC110V-127V, 50Hz/60Hz 3Amax or AC220V-230V, 50Hz/60Hz 1.5Amax
• Mechanical Power: 300W
• Ultrasonic Cleaning Power: 100W
• Speed Range for Simulation Test: 10-9990rpm
• Timing Range: 1-9999s
• Pulse Width Range: 0.5-25ms(step:0.1ms)
• Operating Volume: 3000ml
• Packing Dimension: 458x433x537mm
• Main Unit Dimension: 396x380x446mm

ERP CODE: 703010070
