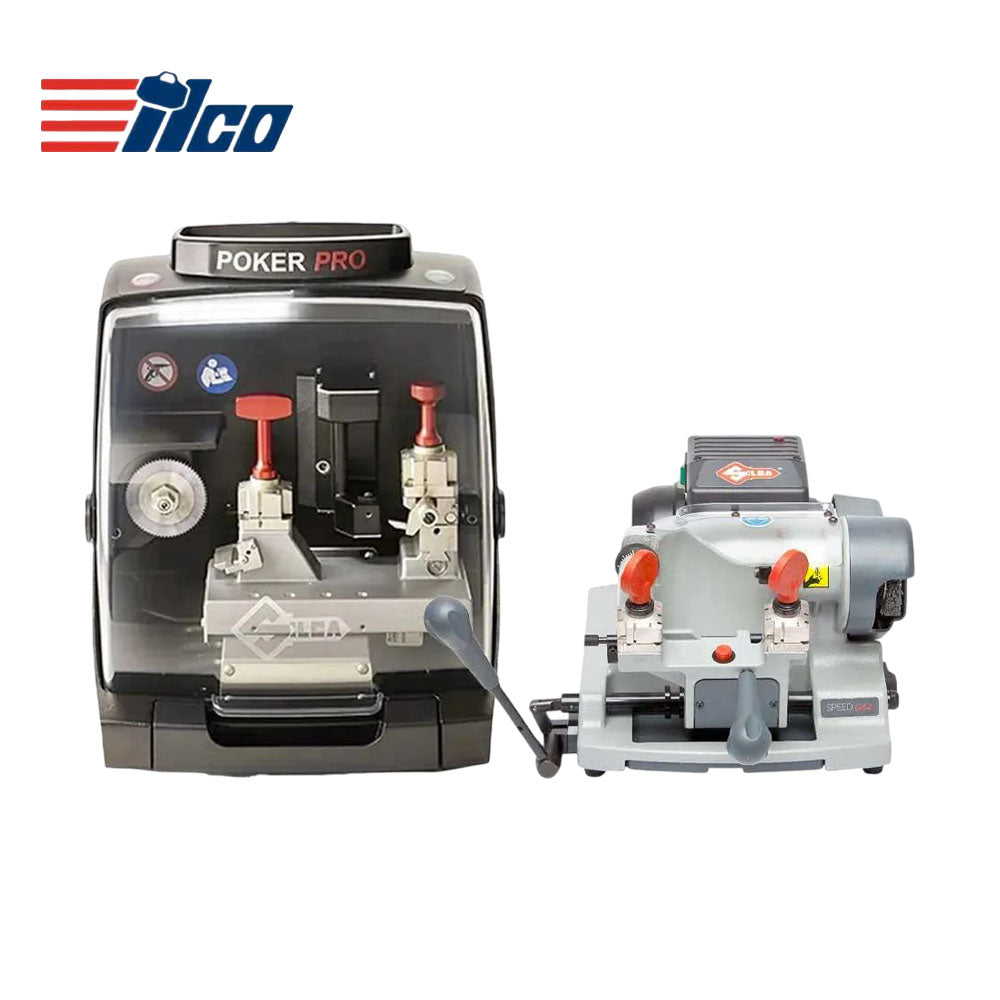

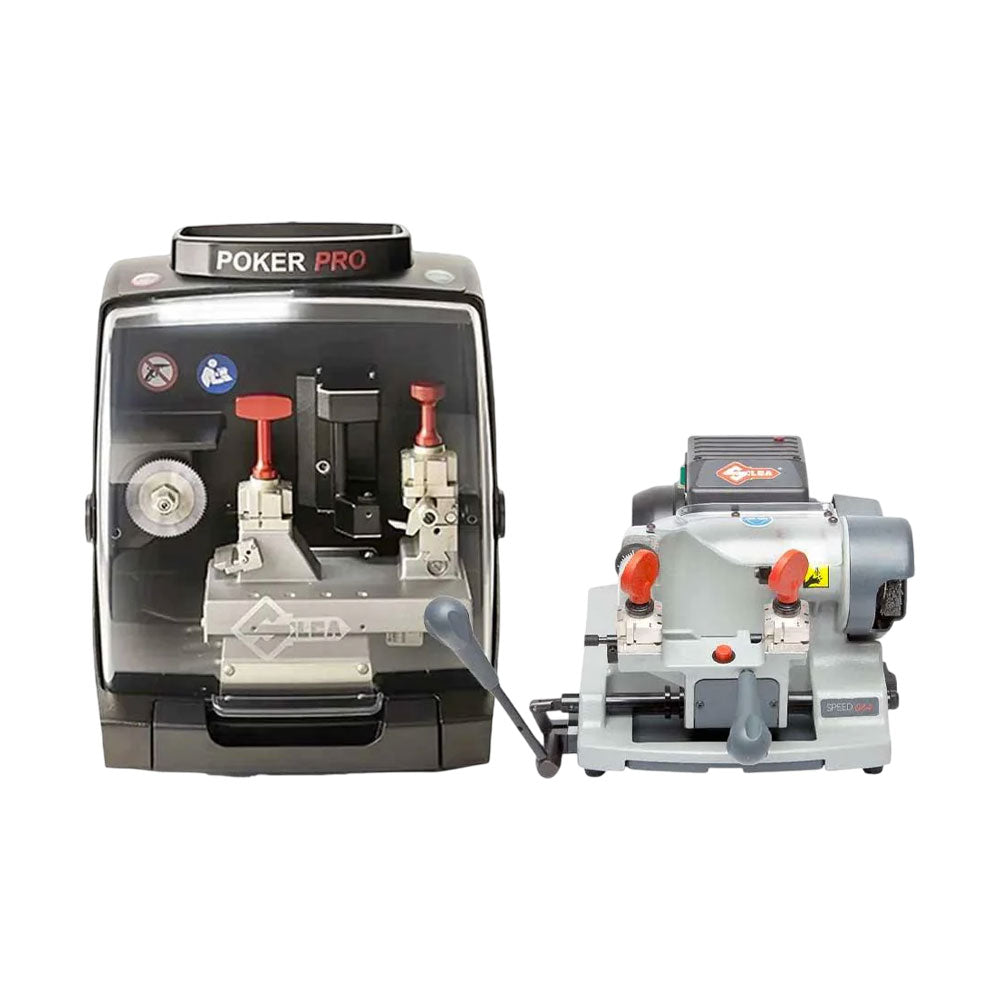

ILCO Poker Pro Automatic Key Cutting Machine with Speed 044 Semi-Automatic Duplicator Machine

ILCO Poker Pro Automatic Key Cutting Machine with Speed 044 Semi-Automatic Duplicator Machine

Includes:

• Poker Pro Automatic Key Cutting Machine
• Speed 044 Semi-Automatic Key Duplicator

ILCO Poker Pro Automatic Key Cutting Machine for Flat and Cruciform Keys with

The Poker Pro is the entirely automatic key cutting machine for duplicating original flat residential and vehicle keys, both with single and double-sided cuts and cruciform keys with an ‘x’ type profile. Easy to use, the Poker Pro is equipped with an optical reader, guaranteeing precision key cutting. The machine features a compact design and allows you to keep the workstation clean thanks to the protective shield that slides back inside the machine.

Features:

Extremely simple operation. Only two buttons (Start & Stop) are utilized to operate the machine. • Four-sided clamps have an exclusive rotation system that facilitates the installation of a wide range of keys.

• Lightweight, portable, and compact design.
• Ergonomic grips below the machine body make it easy to lift and transport.
• Features a laser reader ensuring the customer’s key is read precisely and the duplication is perfect.
• Tool accessory tray on top of the machine for holding various accessories.
• Comes with a fixing bracket, the ideal solution for locksmiths working out of a van.
• Protective shield to ensure all shaving is kept inside the machine's compartment.
• The enclosed cutting area makes it easy to keep the workbench clean and orderly
• Removable chip swarf tray below the carriage.

Description:

• Laser reader for quality cutting results The Poker Pro features a laser reader ensuring the customer’s key is read precisely and the duplication is perfect. The lack of a tracer point means no contact with the machine, therefore protecting the customer’s original key.
• Four-sided clamps The sintered, four-sided clamps have an exclusive rotation system that facilitates the installation of a wide range of keys. Each clamp is equipped with a gauge for perfectly aligning the key.
• Optimized cutter wear The hard metal cutter is resistant to wear and allows you to cut any side of a key in just one cycle. A specially designed control system regulates the carriage movement speed so that it is always proportioned to the strain the cutter is subject to. This means precise cuts, a perfectly deburred key copy, and an optimized usage of the cutter.
• Visual and audible warnings The machine features an intuitive system of colored led lights, flashes and beeps to notify procedure faults, such as the presence of dirt on the optical reader, accidental opening of the shield while cutting, key not installed, etc. The push button panel allows you to stop and restart the cutting cycle at any moment.
• Practical and ergonomic workstation Poker Pro has a wide protective shield that slides inside the machine body. The closed cutting area makes it easy to keep the workbench clean and orderly, because metal chippings are collected in the swarf tray below the carriage. The tools needed on a daily basis are close to hand thanks to the practical accessories area on top of the machine.
• Safe for the user The cutter and the carriage stop automatically when the safety shield is opened, ensuring the operator’s safety at all times.
• Compact and easy to carry Poker Pro is lightweight, portable and has a compact design. The ergonomic grip below the machine body makes it easy to lift and transport. The machine comes with a fixing bracket, the ideal solution for locksmiths working out of a van.

Technical Data:

• Power Supply: Machine: 24V d.c.- 5,5 Amp. - 130W;
  Power pack: 90/264V a.c. - 50/60Hz - 220W MEANWELL GST220A24-R7B
• Cutter Motor: 24V d.c
• Cutter: U01W in hard metal with coating Cutter Speed: 1860 rpm
• Clamps: rotating with four sides to perfectly secure keys, fitted both on the back or on the profile for keys with symmetrical cuts
• Movement: on 2 axes (with special bushes) driven by step motors (on rectified roller guides)
• Runs: X-axis: 30 mm,
  Y-axis: 5 4 mm
• Dimensions: width: 318 mm,
  depth: 413 mm, height: 340 mm
• Weight: 35.27 lbs

ILCO Speed 044 SemiAutomatic Duplicator Machine Key Cutting Machine

Description

The Speed 044 is designed for duplicating edge cut automotive, residential and commercial keys. The semiautomatic design allows the operator to duplicate keys with speed and accuracy. Once keys are loaded, the spring loaded carriage is engaged by the press of a button. The lever is then moved manually to control the carriage movement during the cutting cycle. The Speed 044 SemiAutomatic is loaded with features that any user will readily appreciate.

• The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
• Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
• Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
• Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
• Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
• TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
• Nylon deburring brush
• Electromagnetic “main” safety switch with a separate cutter motor switch for easy access.
• Large transparent cutter safety shield contains chips and provides a storage area for accessories
• Large drawer-type swarf (chip) tray under the carriage for easy access
• Mounting bracket included for securing the machine to counter
• Two year warranty

Specifications:

• Power Supply: 120V60Hz
• Maximum absorbed power: 2.8 Amp, 200 Watt
• Cutter motor: single phase and speed
• Movements: by ball joint on rectified carriage
• Tool Speed: 1350 rpm
• Carriage Runs: 1.65” (42 mm)
• Cutter: TiN coated
• Brush: Nylon, 5/8” (15.87 mm) bristles
• Dimensions: Width: 22.8” (580 mm)
• Depth: 18.1” (460 mm)
• Height: 9.8” (250 mm)
• Weight: 31 lbs.(14 kg) Part #: BB0032XXXX / D746222ZB
