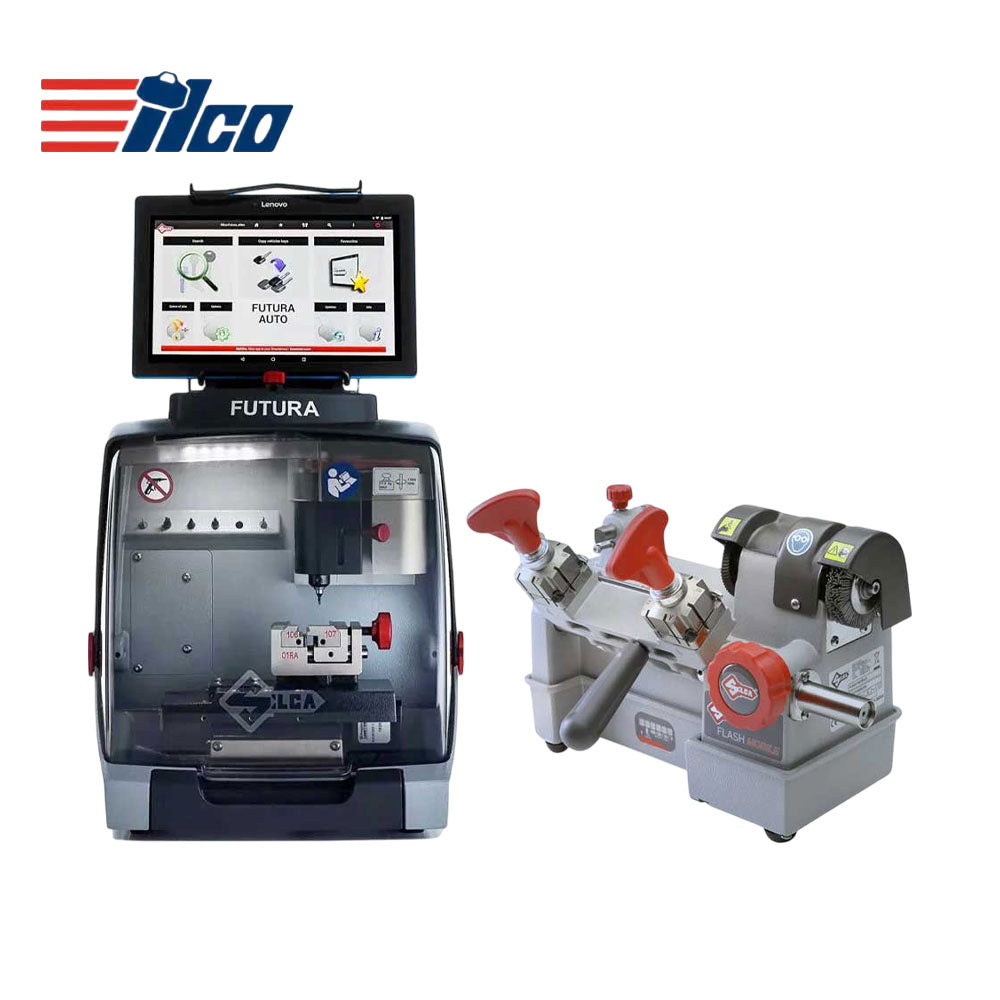

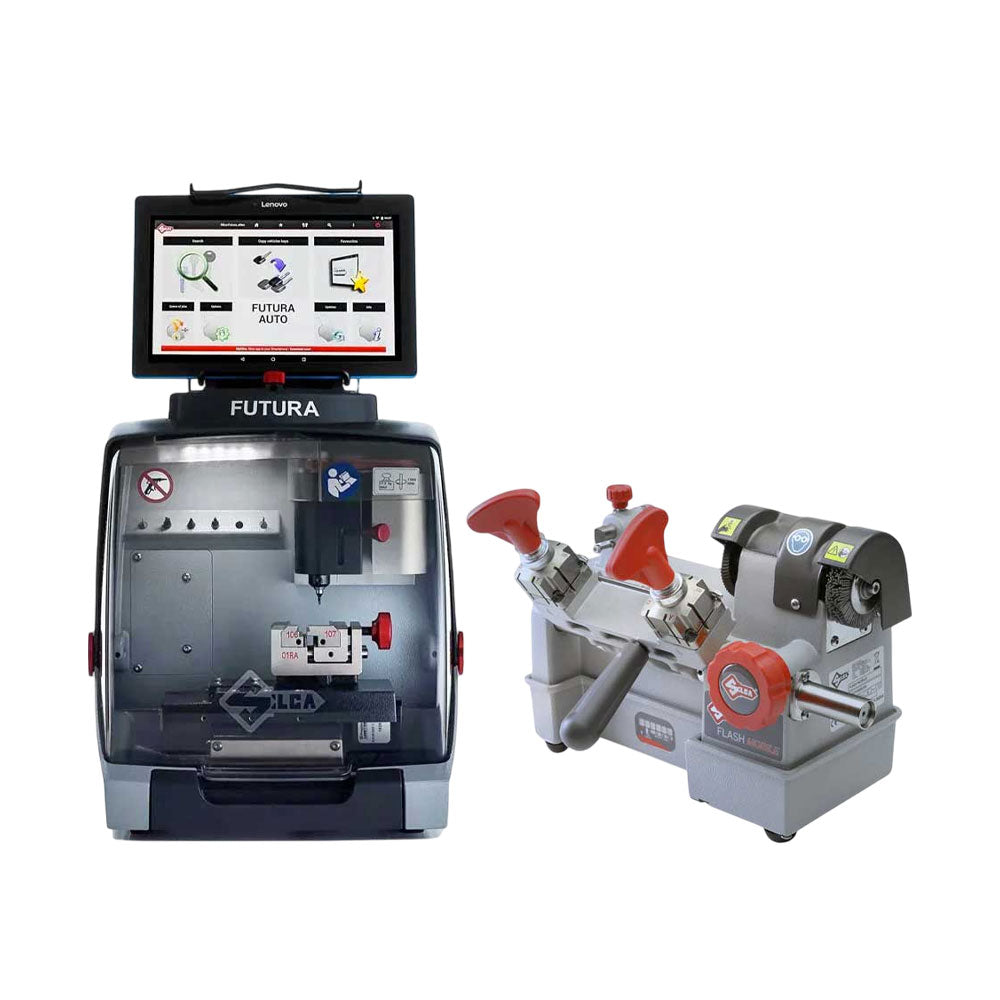

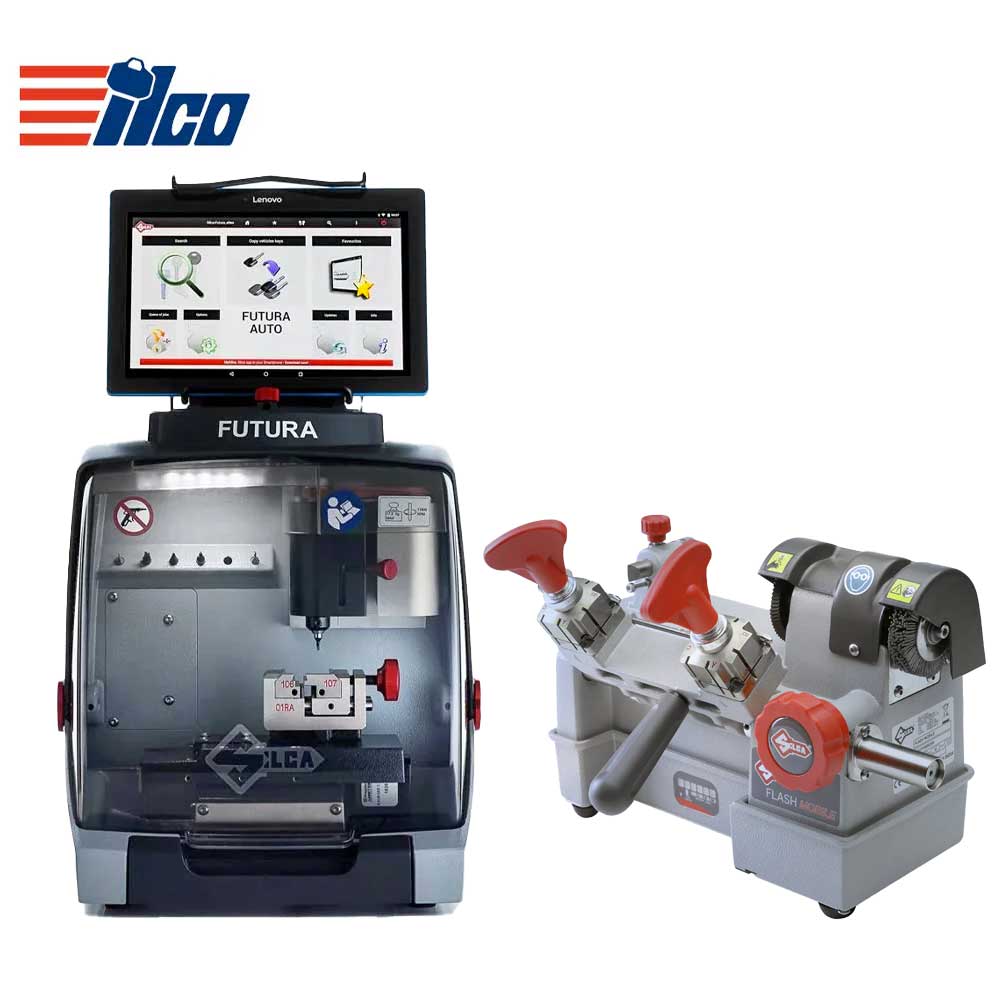

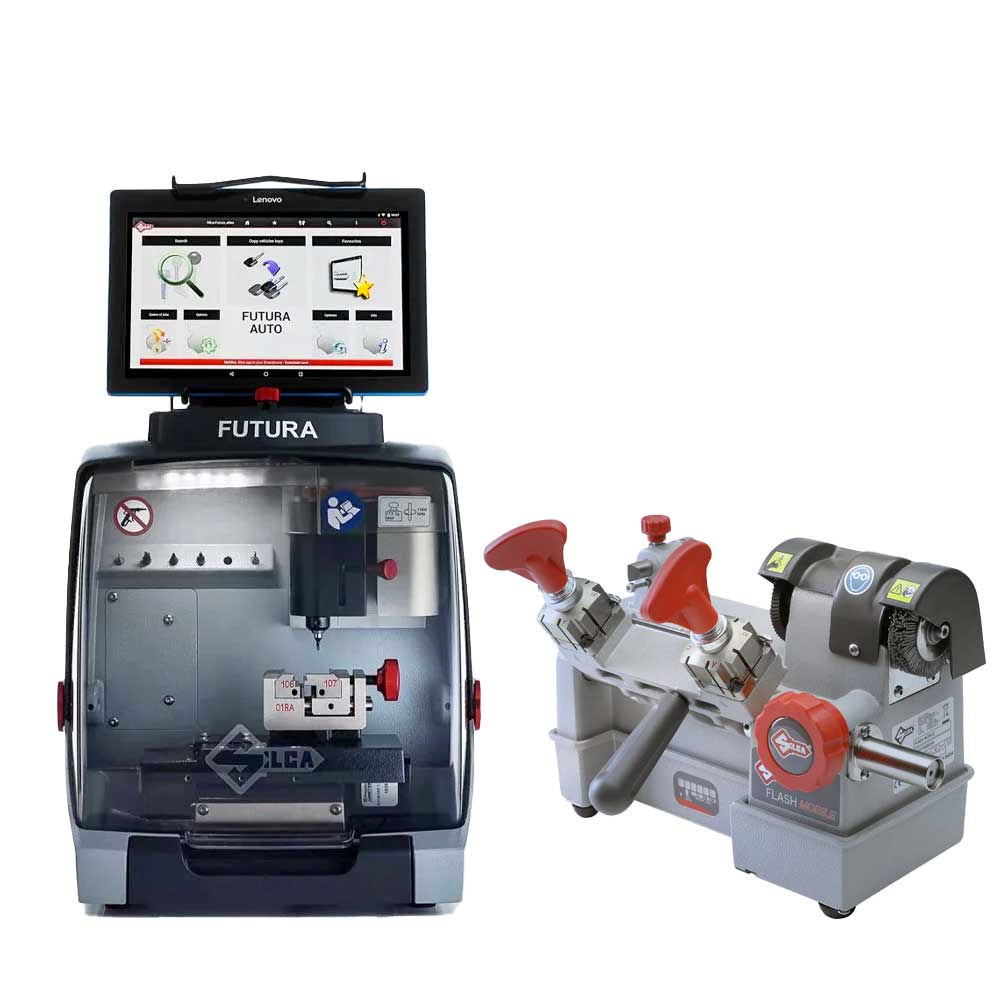

ILCO Futura Auto Automotive Code-Cutting Machine with Flash Mobile

ILCO Futura Auto Automotive Code-Cutting Machine with Flash Mobile

Includes:

• ILCO Futura Auto
• ILCO Flash Mobile

ILCO Futura Auto Automotive Code-Cutting Machine

ILCO Futura Auto Automotive CodeCutting Machine The electronic key cutting machine with one cutting station and two interchangeable clamps for duplicating and originating all types of automotive keys, including heavy trucks and motorcycles. Additional keys used for gas cap locks, glove boxes and roof racks are also included in the database. Controlled by a removable 10” (254mm) touchscreen tablet, the Futura Auto guides the user step by step in all key cutting operations making it the perfect machine for those just getting into the automotive locksmith business or the seasoned professionals offering roadside services.

Description:

• User friendly software with step by step instructions
• Fast key search – simply enter Make/Model/Year and the software guides you through the process
• Details include a cutter holder, tool/accessory holder on top of the machine
• The color changing LED lights help the operator to immediately see the process status:
  • White – machine is ready to proceed
  • Yellow – machine is in the process of cutting the key
  • Green – key cutting is complete, and it is safe to raise the safety shield
• WiFi link between machine and tablet or the user can tether the tablet directly to the machine
• Equipped with two USB ports on the back of the machine; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the WiFi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates
• Step by step instructions for updating machine software
• Software Interface with Instacode and KreateAKey

Specifications:

• Motor: 24V dc
• Power Supply: 90/264V a.c 50/60Hz/220W MEANWELL GS220A24R7B
• Tool Speed: 12100 RPM
• Movements: 3 axes (special bushings) driven by step motors on rectified roller guides
• Carriage Runs: Axis X: 1.18” (30mm)
• Axis Y: 1.97” (50mm)
• Axis Z: 1.06” (27mm)
• Dimensions: Width 12.52” (318mm) Depth 16.26” (413mm) Height – 20.47” (522mm),13.38” (340mm) w/o tablet
• Weight: 44 lbs. (20 kg)
• Warranty: 2 Years (machine and tablet).

Standard Parts / Accessories:

• Cutters: 12L HSS Super Rapid Steel – for edge cut keys; 01LW, 02LW, 06LW carbide, coated – for track keys
• Tracers: 06T D953489ZR , 07TMobile D953488ZR
• Clamps: 01RA D949928ZR w/Jaw 106 D949907ZR and Jaw 107 D949905ZR for laser keys; 01VA D949854ZR for edgecut keys
• Accessories: STOP 4 TOOL, Tip Stop Bar, Shoulder Stop Bar, 01RA, USB Pen, 1.2/1.7mm shim pins, Brush, Mounting bracket, Stylus touch pen, Z3 calibration keys, 2.5mm “T” allen key, allen key set 1.55mm,
• A45 adapter, spare fuses, plastic tool box
• Optional: *02R Clamp D743275ZB for Tubular keys used on Harley Davidson motorcycles *03R Clamp D743276ZB for Ford Tibbe FO21 keys. Part #: BK0497XXXX / D853299ZB

Download:

• Futura Auto Manual

ILCO Flash Mobile Battery Operated Key Duplicator / Edge Cut and Cruciform Keys - D8A3686ZB - Key Cutting Machine

Portable, mobile duplicator for edge-cut keys.
Flash Mobile is a battery-operated version of the popular Flash 008 machine that makes it truly a “mobile” machine. The 24V battery allows the machine to operate at 2200 RPM and will cut 300+ brass keys in a single charge.

• Designed to cut typical residential, commercial and automotive keys including those with large bows or long blades as well as tip stop and flip-type keys.
• Four jaw positions easily clamp virtually all edge cut keys present on the market
• Clamps are nickel plated to provide long life
• Space-saving solution for fixed or mobile use
• Rotating knob ensures precise horizontal movements.

Features:

• Power Supply: 24V battery
• Battery Capability: 2950mAh lithium-ion
• Battery Life: 300+ brass keys in a single charge / LED indicator for monitoring battery charge status
• Cutter Motor: 120W, 2200 RPM +/- 10%
• Movements: by rectified carriage shaft and rack
• Cutter: AlTiN coated HSS (Super Rapid Steel)
• Target Cutter Life: 1,100 brass keys.
• Carriage Runs: (maximum length of cuts) 42mm – 1.65”
• Dimensions: Width: 320 mm – 12.6”
• Depth: 255 mm – 10.5” (with carry handle).
• Height: 255 mm – 10.5”
• Weight: 7 kg – 15.4 lbs.
• Noise level: Sound pressure Lp(A) = 56 dB(A)
• Ideal Environmental conditions: between 10-40⁰ C (50-104⁰ F) 60% humidity.

Part#: BB0037XXXX

Download:

• Flash Mobile Brochure
