PDQ GP176 - Privacy HD Cylindrical Lock with 2-3/4" Backset - ASA Strike - ANSI F76 - Grade 2
$8519
$12779
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
PDQ GP176 - Privacy HD Cylindrical Lock with 2-3/4" Backset - ...
$8519
$12779
Unit price
/
Unavailable
Description
Description

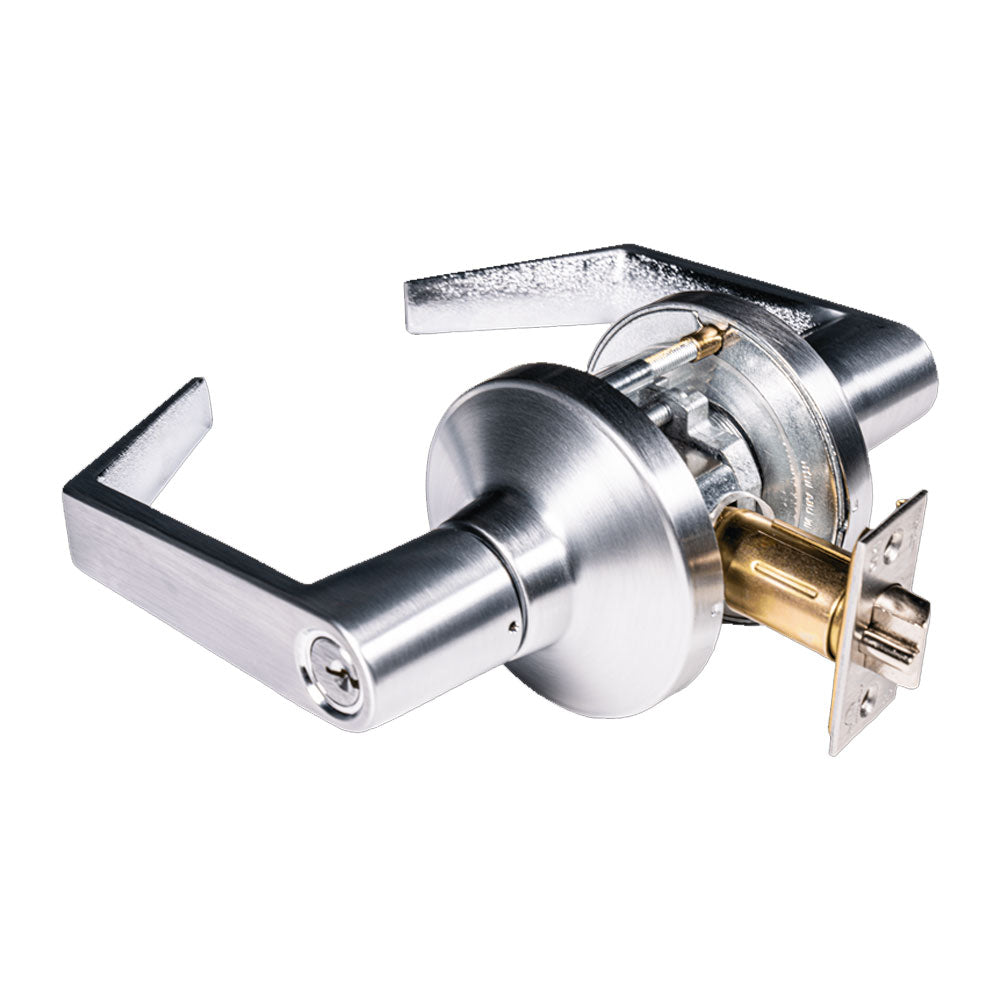

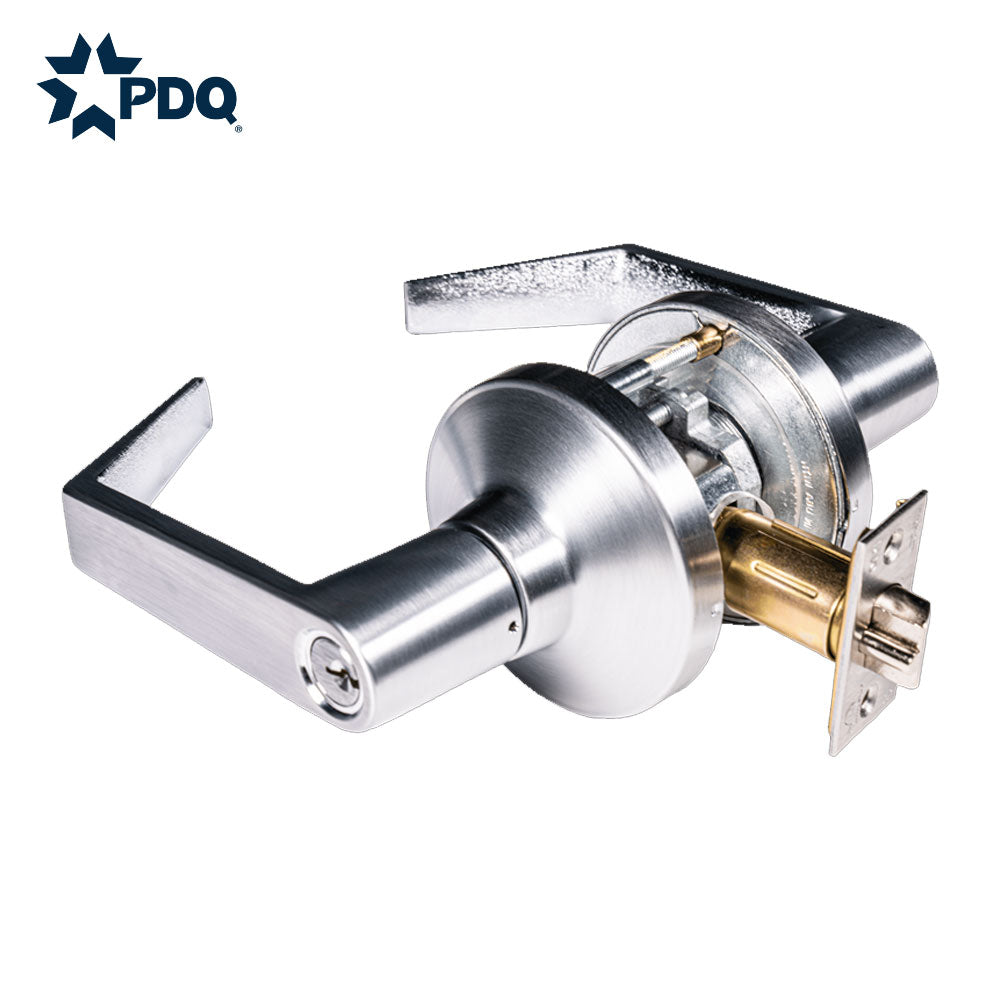

PDQ GP176 - Privacy HD Cylindrical Lock with 2-3/4" Backset - ASA Strike - ANSI F76 - Grade 2
The GP Series is a cylindrical lock, Grade 2 designed to exceed industry standards. Engineered for durability, this lock undergoes rigorous lever torque testing, surpassing ANSI/BHMA benchmarks by over 3 times.
Features & Benefits:
- Crafted with a heavy-duty diecast chassis
- Features a robust 13-gauge steel anti-rotation plate on the secure side, this ANSI/BHMA Grade 2 certified lock offers unmatched strength and reliability
- Choose from three lever styles: Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL)
- Choose from seven finishes: 605(US3), 606(US4), 612(US10), 613(US10B), 622(US19), 625(US26), 626(US26D)
- Has a lever torque resistance of 1,500 lbf-in-exceeding the BHMA/ANSI standard by 3 times
Certifications:
The GP Series Grade 2 cylindrical lock is backed by impressive certifications, ensuring reliability and safety.
- Certified to ANSI/BHMA 156.2 Grade 2 standards, this cylindrical lockset meets rigorous industry benchmarks for durability and security
- It is UL 10C listed for use on 3-hour fire doors, suitable for single doors up to 4' x 8'
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 accessibility standards, making it an inclusive choice for accessible and usable buildings
Specifications:
| For Doors: | 1-3/8" to 1-3/4" thick Preset for 1-3/4" door |
| Applications: | Through door thru-bolting Fits 160 and 161 Door prep |
| Backset: | 2-3/4" Standard 2-3/8" 5" Optional |
| Chassis: | Heavy duty diecast, investment cast, cold rolled steel, stainless steel mechanism |
| Front: | 2-1/4" x 1-1/8" or 2-1/4" x 1" Stainless Steel or Wrought Brass Beveled 1/8" in 2" |
| Strike: | ASA standard T-Strike or Full Lip Strike optional Stainless Steel or Wrought Brass |
| Levers: | Philadelphia Boston Miami |
| Rose: | 3-3/8" DIA Wrought |
| Latchbolt: | 1/2" Throw |
| Hand: | Non-handed |
| Trim: | Solid diecast PHL, BSN or MIA Levers 65° Lever Rotation Wrought Brass Roses Concealed Screws |
| Keys: | Two (2) per Lock |
| Keyways: | SCC standard (Schlage C Compatible) Compatible with Best, Falcon and Arrow small format IC cores |
| Interchangeable Core: | Available for all keyed functions 6 or 7-pin Large Format IC Core available for PHL Lever ONLY Compatible with Best, Falcon and Arrow small format IC cores |
| Cylinder: | 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available |
| Keying: | Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems |
| Finishes: | 605 (US3), 606 (US4), 612 (US10), 613E, 619 (US15), 622 (US19), 625 (US26), 626 (US26D) Optional Antimicrobial Coating 626 (USD26D) only |
| Certifications, Listing, Compliances: | UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA 156.2, Grade 2 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings |
| Warranty: | Eight (8) Year Limited Warranty |
| Country of Origin: | Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act as a COTS product manufactured in the United States |
