ARROW | SKU:
ARW-RK11-BD-32D-CS
17% off
Arrow - RK11-BD-32D-CS - RK Series Cylindrical Ball Knob Locks - 2 3/8 Backset - Conventional Cylinder Schlage C Keyway - Satin Stainless Steel - Grade 2
$3900
$4680
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Arrow - RK11-BD-32D-CS - RK Series Cylindrical Ball Knob Locks - 2 ...
$3900
$4680
Unit price
/
Unavailable
Description
Description

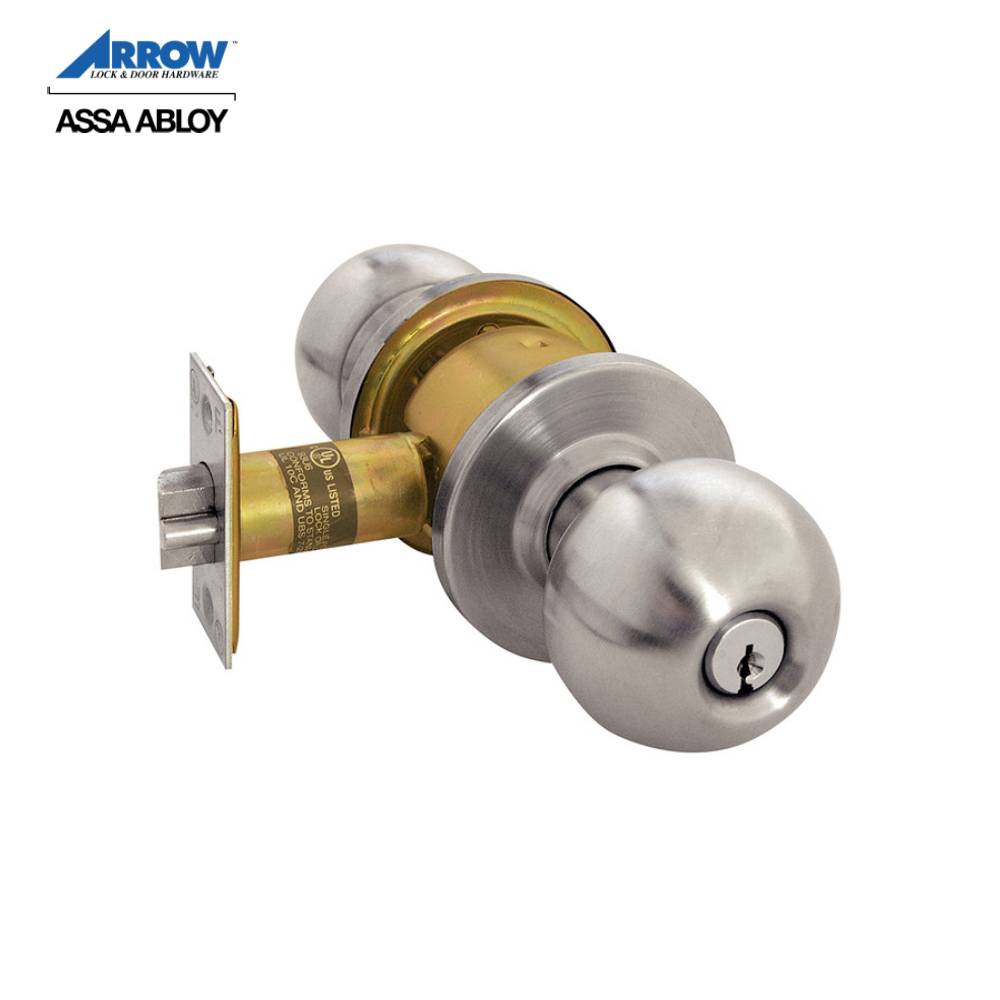

Arrow - RK11-BD-32D-CS - RK Series Cylindrical Ball Knob Locks - 2 3/8" Backset - Conventional Cylinder Schlage C Keyway - Satin Stainless Steel - Grade 2
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
Features:
- Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
- Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim:RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4"(57.15mm) full lip strike.
- Cylinder: Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys: 2 brass keys.
- Handing: Non-handed.
- Thru-bolts: Removable thru-bolts standard on RL Series.
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Arrow |
| SKU | RK11-BD-32D-CS |
| UID | ARR100RK11BD32DCS |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| UL Listing Type | ANSI A156.2 Series 4000, Grade 2, UL Listed |
| ANSI Number | F109 |
Technical Specifications:
| Function | 11-Entrance |
| Function Family | Entrance |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | BD - Ball Knob |
| Lever/Knob Design Family | Ball Knob |
| Rose/Escutcheon Design | 2-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 2-1/2" |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage C Keyway |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/8"to 1-3/4" |
| Std. Latch Number | R70 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/8" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1"x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | R60 |
| Std. Strike Type | T-Strike |
| Std. Strike Height | 2-3/4" |
| Std. Strike Width | 1-1/8" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
