HAGER | SKU: HAGR-297D-60

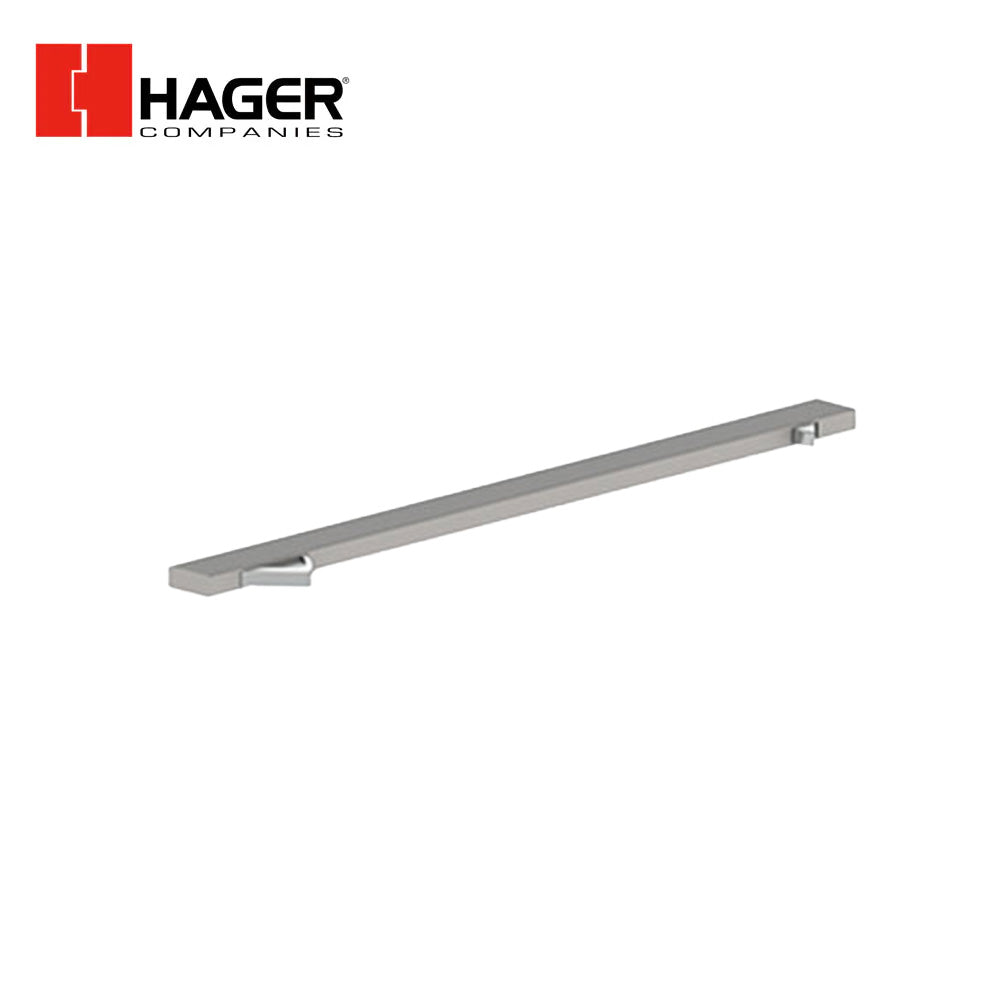

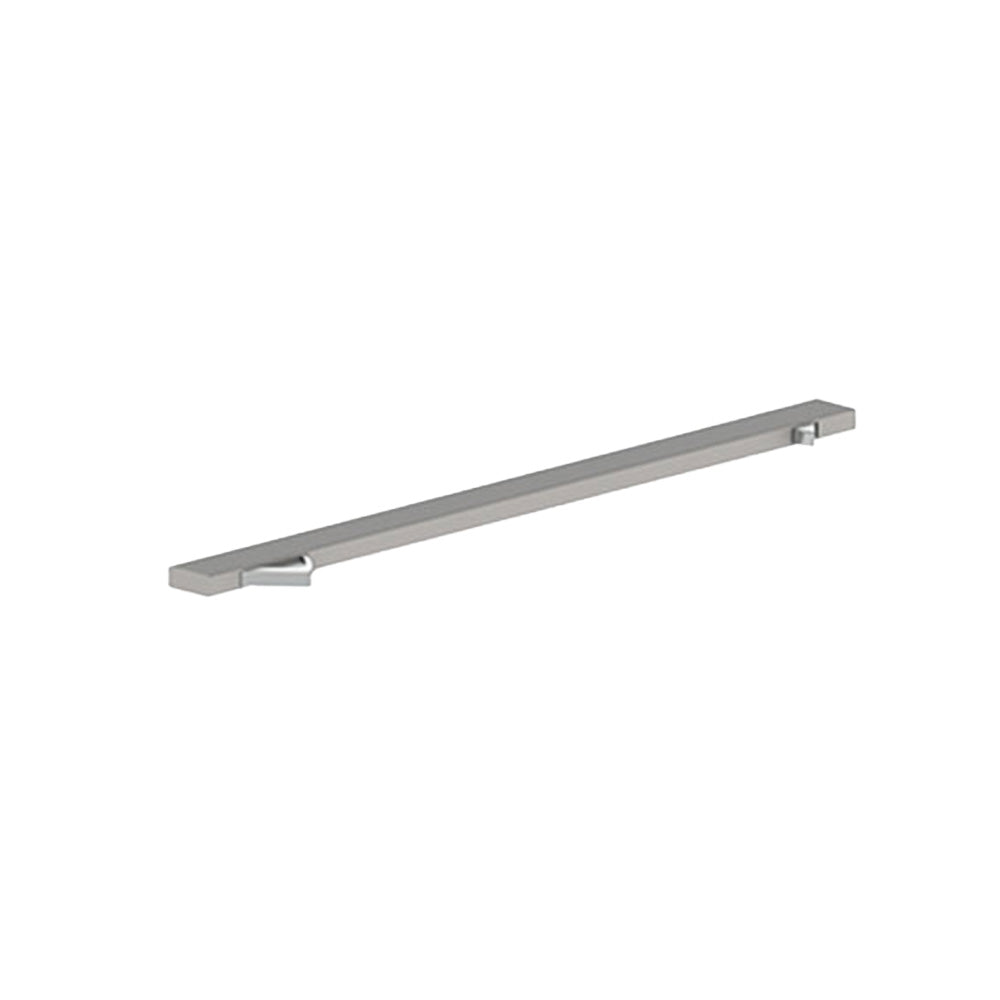

HAGER - 297D - Steel Coordinator with Filler Bar and 1-5/8 Inch by 5/8 Inch Base - Black

Name: HAGER - 297D - Steel Coordinator with Filler Bar and 1-5/8 Inch by 5/8 Inch Base - Black
Brand: HAGER
Price: 1.1476 USD
Availability: InStock
Rating: 5 (1 reviews)

$114⁷⁶ ~~$137⁷¹~~

Shipping calculated at checkout.

Size

Product variants

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Please note that this item does not qualify for free shipping. After you place your order, we will reach out to collect shipping costs.

Description

HAGER - 297D - Steel Coordinator with Filler Bar and 1-5/8" by 5/8" Base - Black

Features:

Designed for use on pairs of doors when one door needs to close before the other
Active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf
ANSI A156.3 Type #21A
Coordinator may not span the entire length of the stop
297F Filler Bar, cut to length by factory to match overall frame width, may be needed to fill extra space
Optional mounting brackets 297M/297N may be used when mounting other soffit applied hardware
Non-handed
Compatible with flush bolts
Do not use spring hinges with coordinating device
USP Black Prime Coat
Includes Four #8 x 1″ combo screws, Seven 12 – 24 x 1-1/4″ TPHMS

Models:

297D-60 (for 60" door openings)
297D-72 (for 72" door openings)
297D-96 (for 96" door openings)

Product Specifications:

Vendor	Hager Companies
Manufacturer	Hager
Installation	Commercial
Unit of Measure	Each
Hand	Non Handed
Product Type	Door Coordinators
ANSI/BHMA Standard	Meets ANSI A156.3 Type 21A
Material	1-5/8" x 5/8" Steel
Fire Rating	UL Listed for installation on labeled frame
Finish	Black

Downloads:

297D-Installation-Instructions
