Launch - ELT500 EV Battery Pack Airtightness Tester - Compression T...
Description
Description

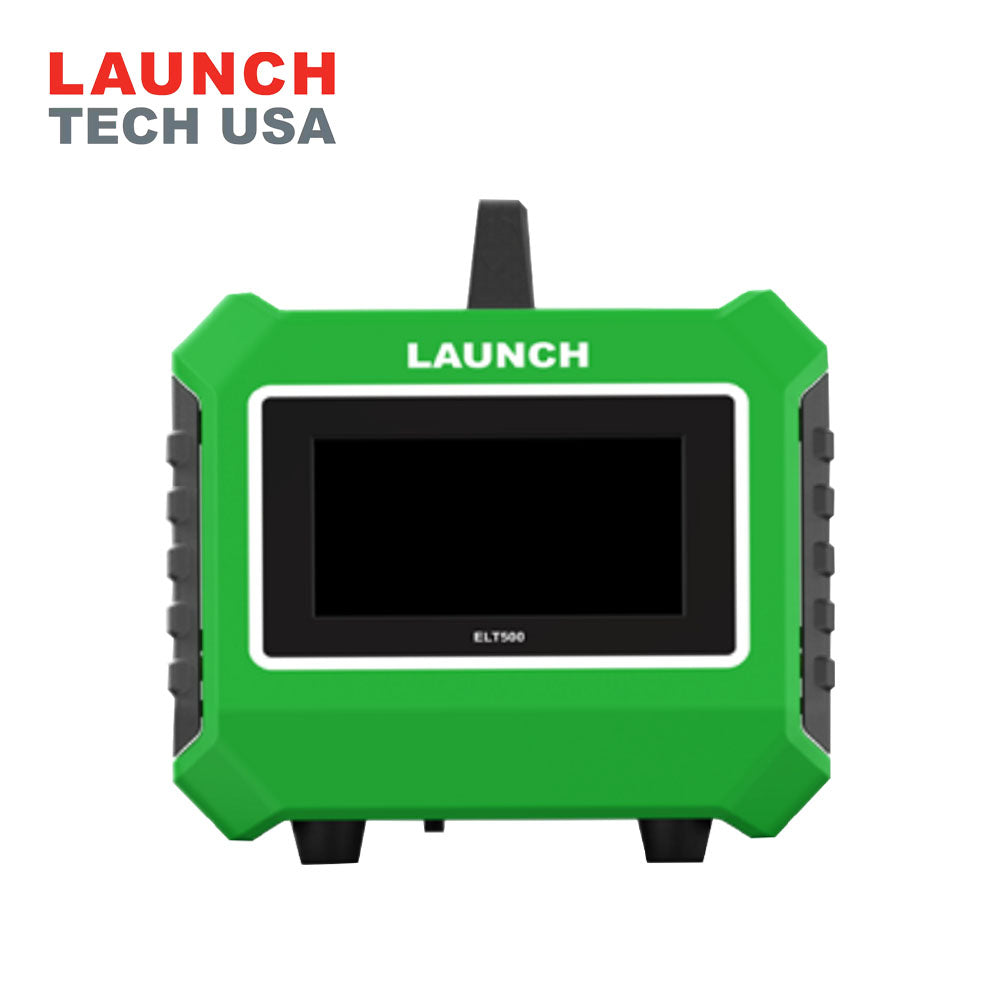

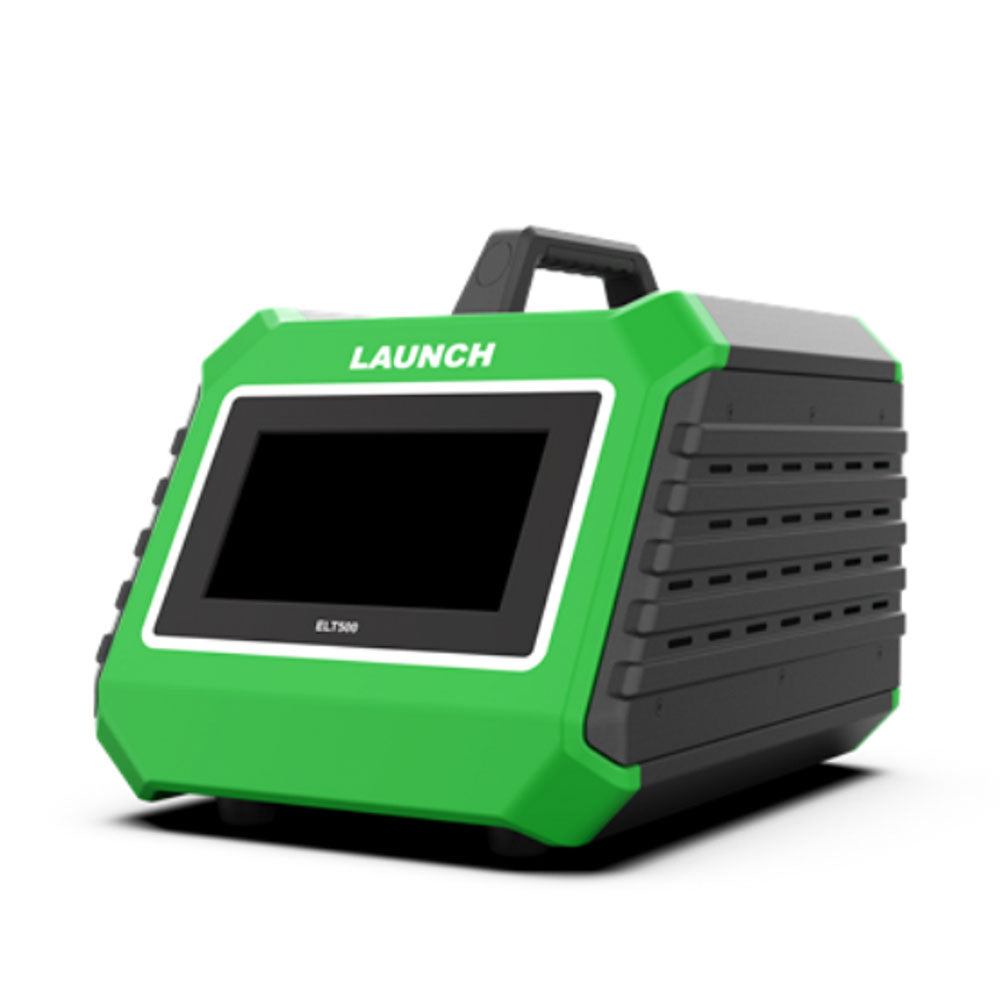

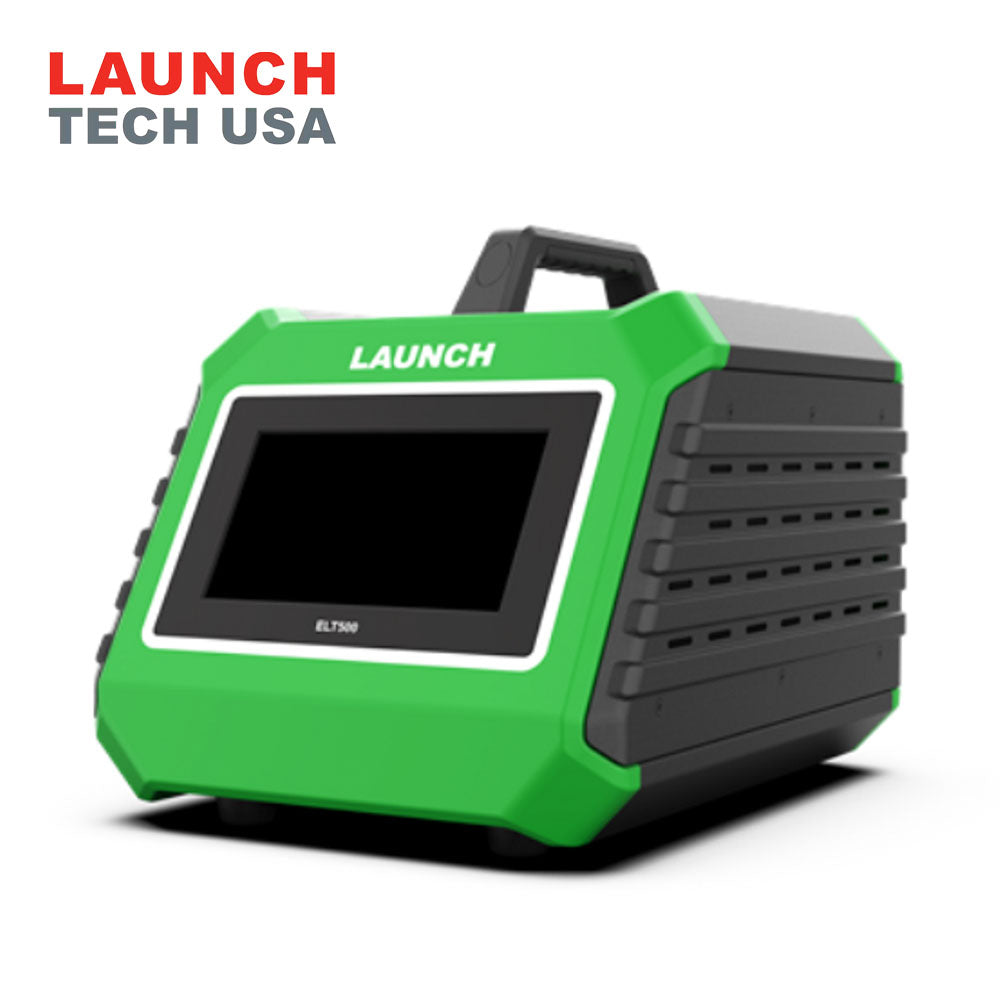

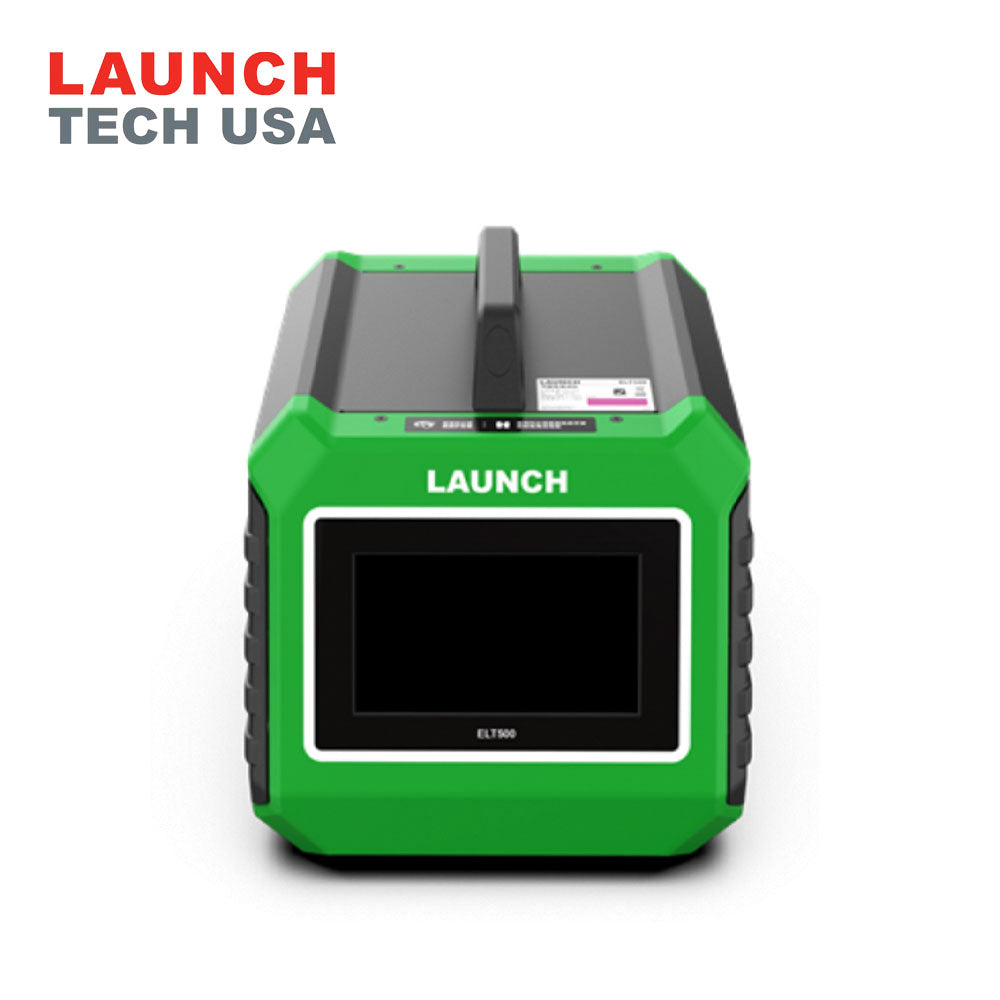

Launch - ELT500 EV Battery Pack Airtightness Tester - Compression Testing Equipment
The ELT500EV Battery Pack Airtightness Tester is a compression testing equipment that is used to test the air compression rate and to maintain pressure in the inner cavity/surface of the battery/product . This is important to maintain the sealing effect of the battery pack to ensure it is operating within the parameters that will suffice for the efficiency of the electric vehicle. Additionally, the ELT500EV is also applicable for motor controllers, voltage distribution boxes, compressors and other parts.
Features:
- The 7-inch LCD touch screen and the intuitive menu allows for a seamless usability experience.
- High-sensitivity pressure sensing, greatly improving test accuracy and stability.
- During the testing process the progress of each stage is displayed.
- Real-time display of pressure dial and display of process pressure curve.
- Preset test parameters for standard parts allow for usability and convenience.
- Work piece number volume, pressure, time of each stage, and leakage limit are preset table parameters.
- When an abnormal test is encountered the sound alarm is set.
Specifications:
- Power: 20W (Max)
- Test Pressure Range: 0~30Kpa
- Sensor Resolution: 1Pa
- Test Accuracy: ±5Pa

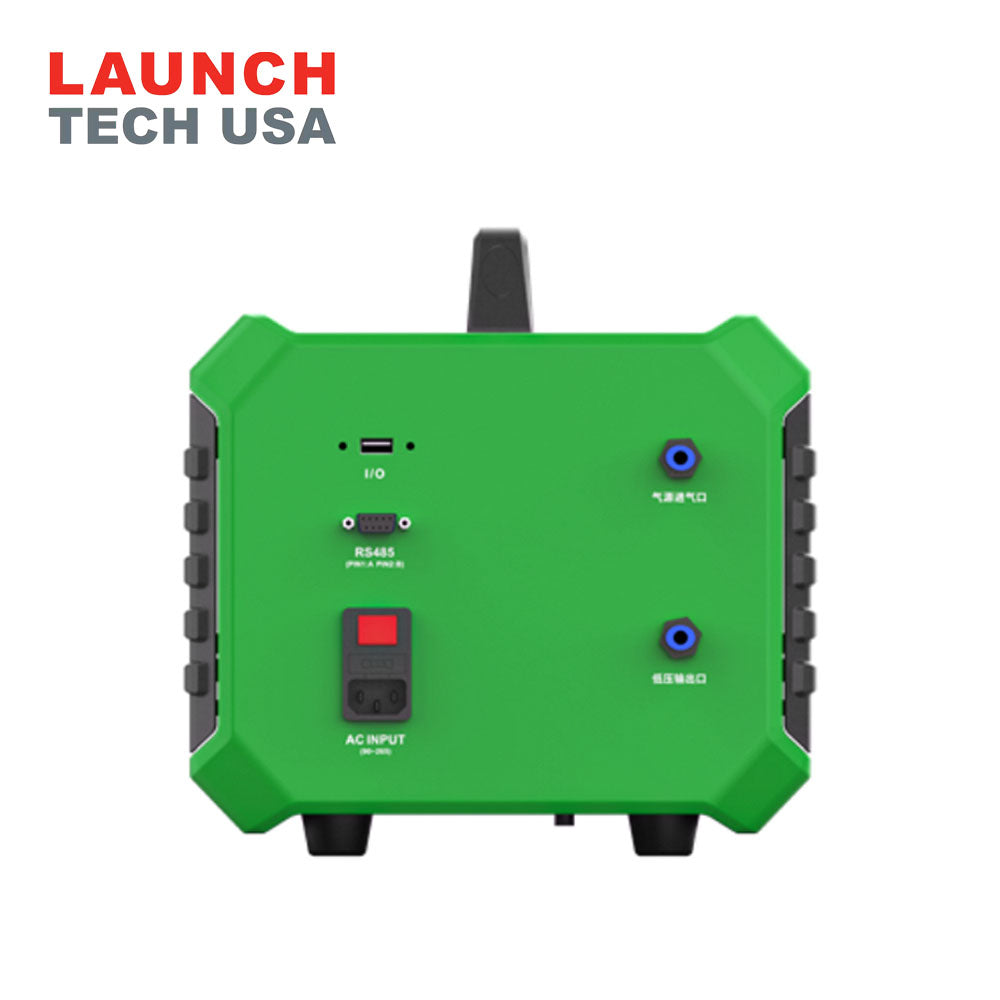

- Communication Interface: RS485/USB
- Data Storage Method: Internal storage, or data upload to USB drive
- Power Supply: AC 90~265V
- Air Source Requirements: 0.1~1.0 Mpa dry compressed air
- Working Temperature/Humidity: -10~55°C/10%~90%@25°C
- Dimensions/Weight: 280*276*360(mm)/4.5kg
ERP CODE: 307010262
