Launch - ELP400 EV Battery Pack Module Charging and Discharging Device
Description
Description

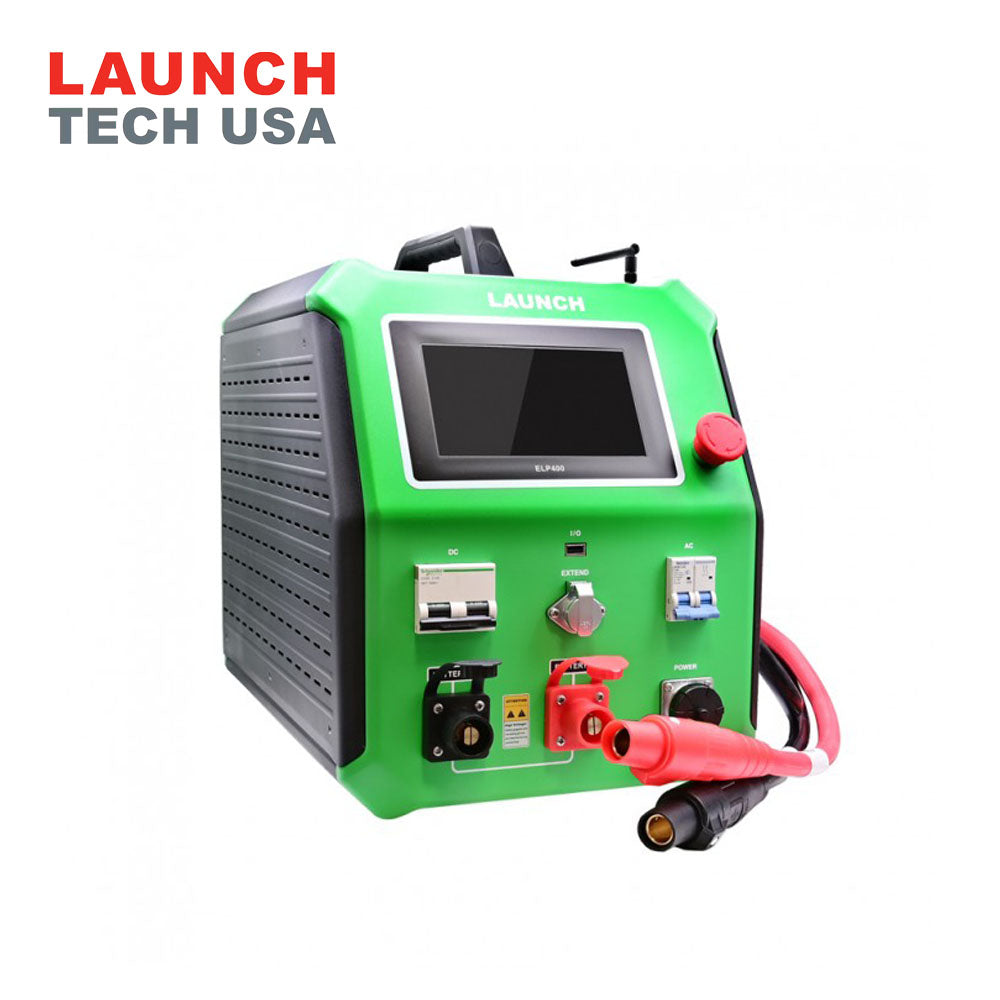

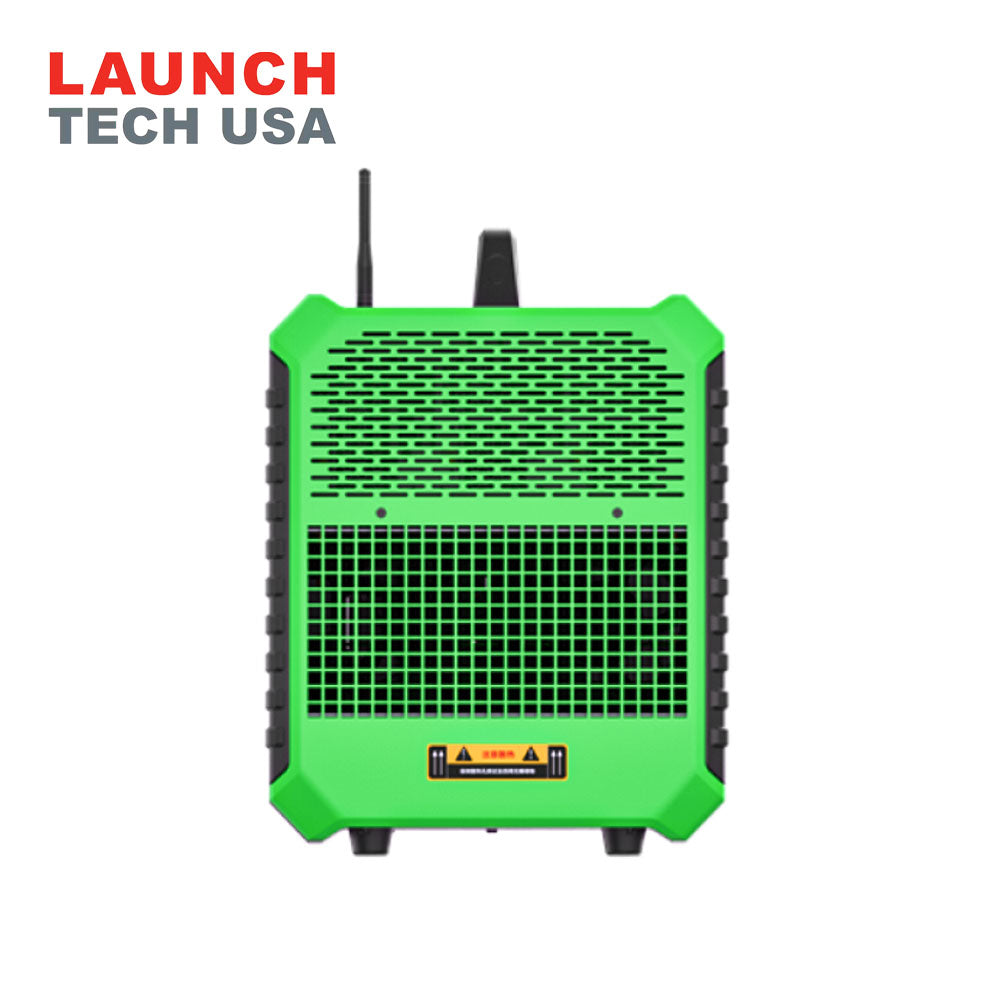

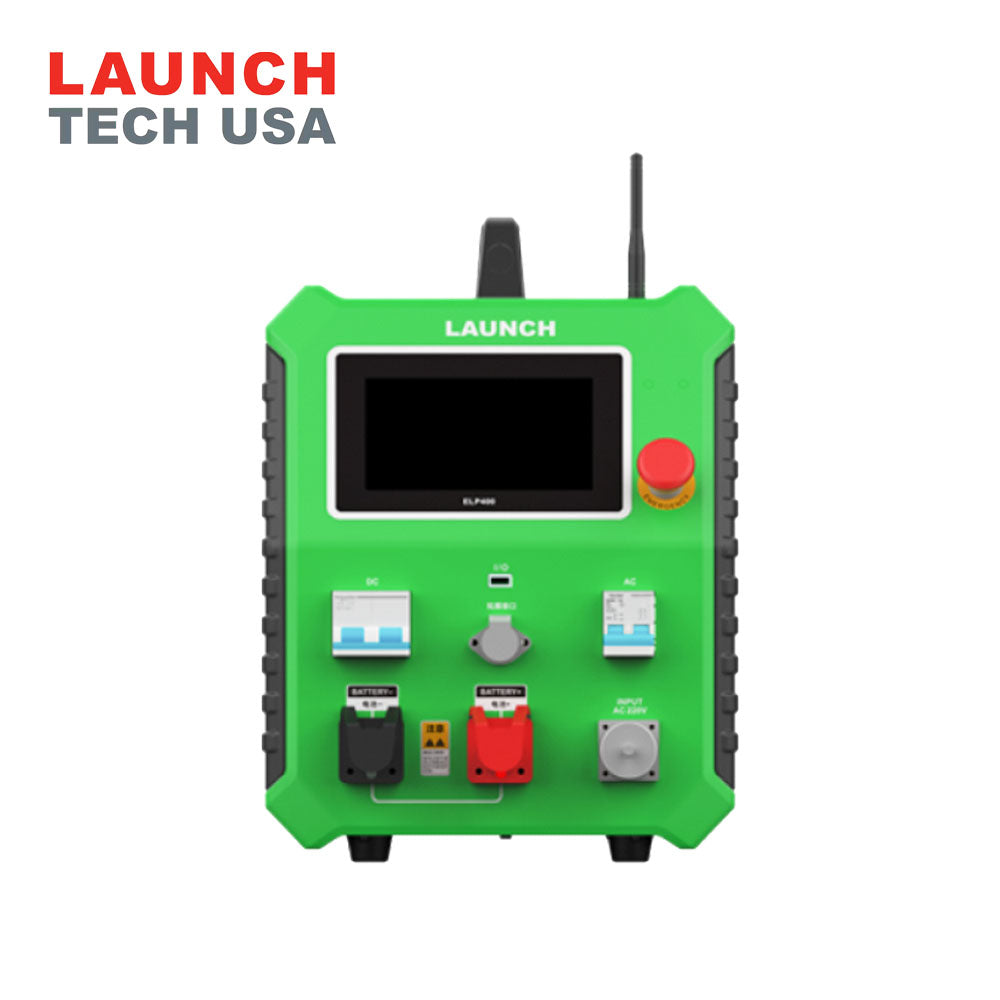

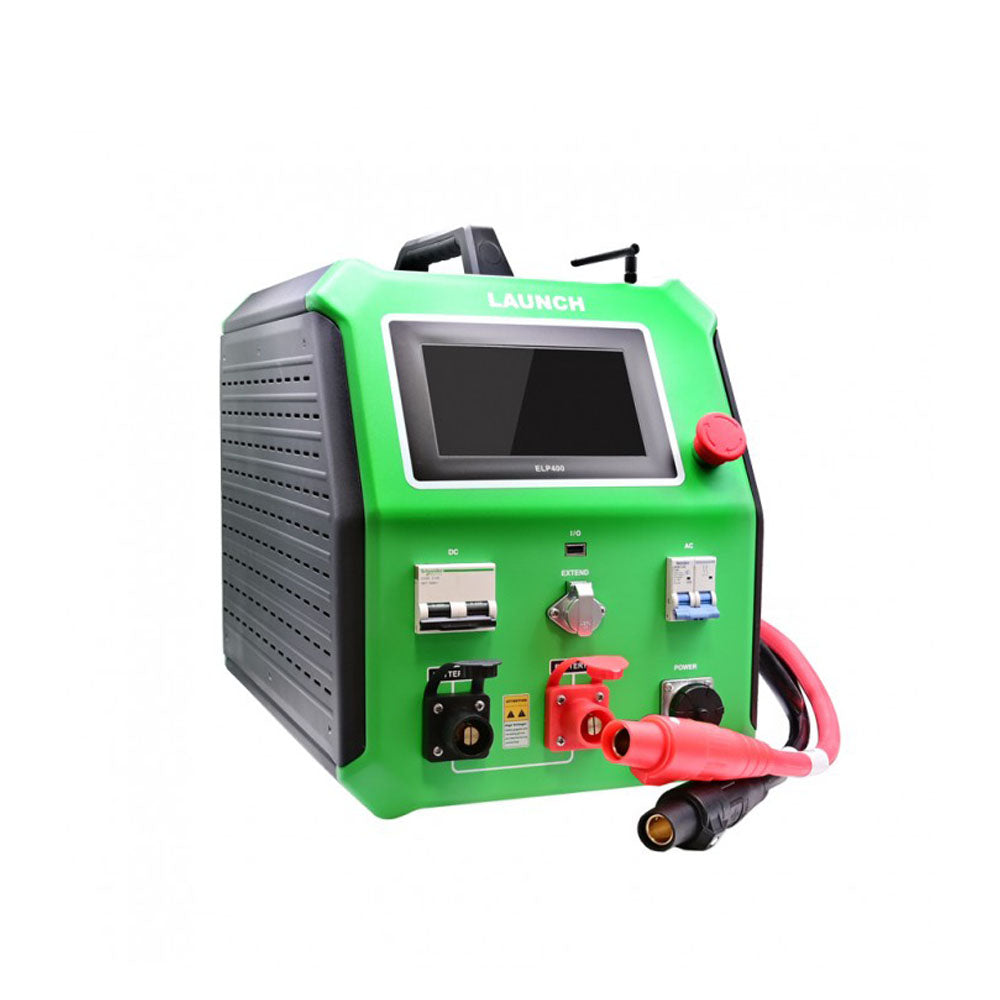

Launch - ELP400 EV Battery Pack Module Charging and Discharging Device
The Launch ELB300 Battery Pack Cell Equalizer is battery maintenance equipment diagnostic tool for EV Batteries and technology. The ELB300 diagnoses numerous issues such as inconsistent cell voltage, and individual battery cell capacity variances. The ELB300 issuer friendly and can be us for maintenance, battery production, research and development of new EV/Battery enterprises.
Features:
- The 7-inch LCD touch screen and the intuitive menu simplified the operation
- Portable, easy to carry and transport
- Applied to all common lithium battery packs testing with various voltage levels.
- Equalizing maintenance test mode can activate the lithium battery performance completely.
- Support intelligent equalizing function, and equalizing maintenance parameter customization.
- Adopt wave width modulation technology,high efficiency, high power factor, low noise, low electromagnetic interference.
- Support the safety pretection functions such as overvoltage, undervoltage, overcurrent, output short curcuit, anti-reverse pretection and overheating protection.
- Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.
- Customized setting the total charging time, constant voltage time, charging capacity, and charging current.
Specifications:
- Power Input: AC 90~265V
- Data Communication: CAN RS485
- Data Dump: U disk
- Data Storage: 16G
- Modual Data Acquisition Communication: Harness sampling
- Group Voltage Accuracy: ≤±0.5%FS+0.3V, resolution: 0.001V
- Cell Voltage Accuracy:≤±0.1%FS+5Mv, resolution: 0.001V
- Current Measurement Accuracy:≤±0.1%FS+0.2A,Resolution: 0.001V
- Charging / Dischargingt Voltage Range:≤±0.1%FS+0.2A
- Charging Current Range: 0~100A, maximum power 4.4kw
- Discharging Current Range: 0~100A,maximum power 7.2kw
- Charging Control: Constant surrent charging + constant voltage charging
- Discharging Mode: Constant current discharging
- Charging and Discharging Data Acquisition: In-camera active measurement + external can communication data acquisition
- Radiation Method: Forced air cooling
- Temperature: Working temperature range: 5~40°C; Storage temperature: -20~70°C
- Humidity: Relative humidity 0~90% (40±2°C)
- Elevation: Rated altitude 2000m
ERP CODE: 307010261
