Dormakaba E-Plex - E2066 - E2000 Series Electronic Pushbutton Morti...
Description
Description

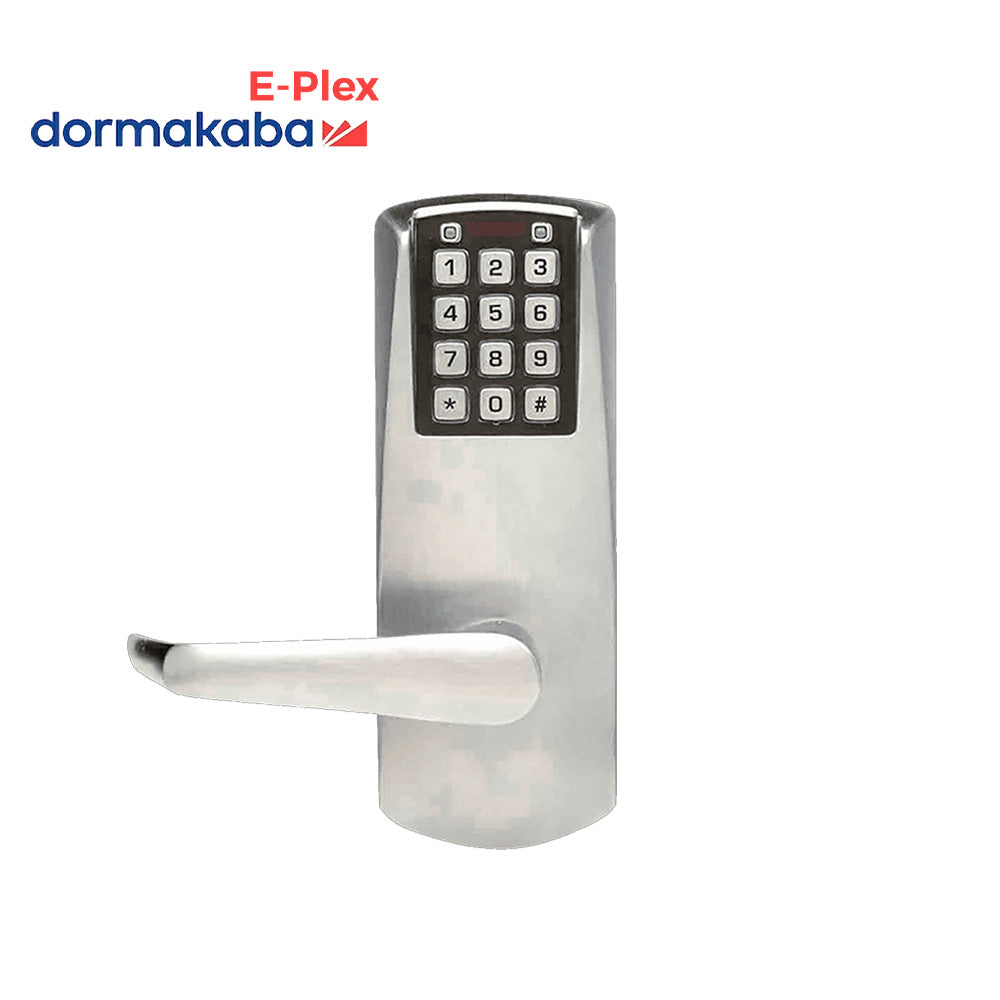

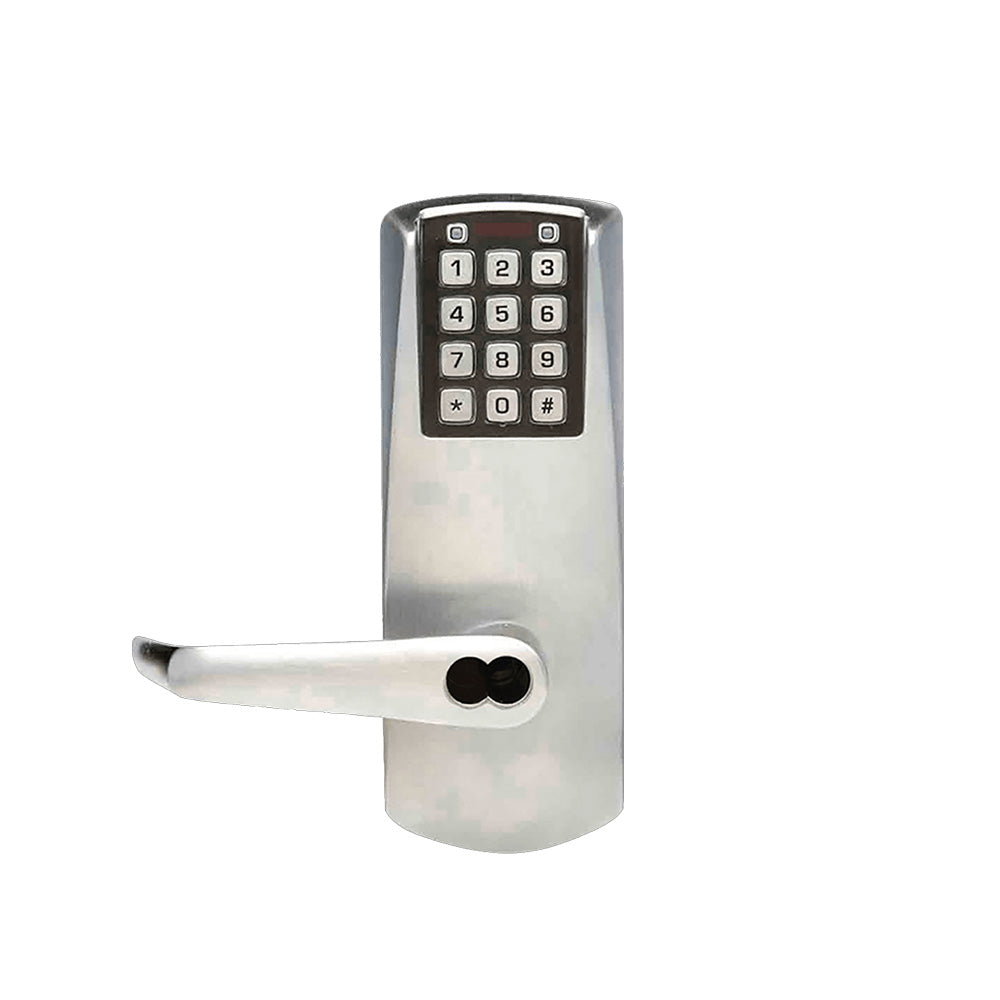

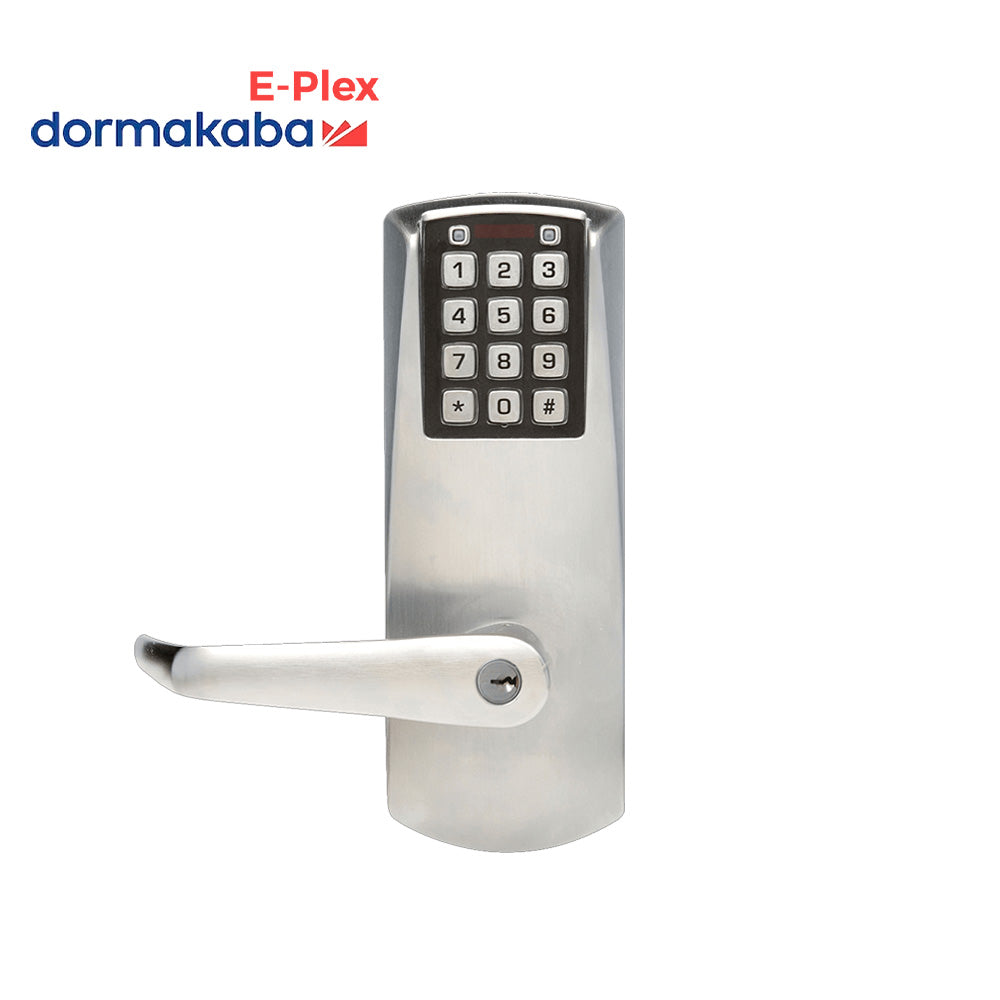

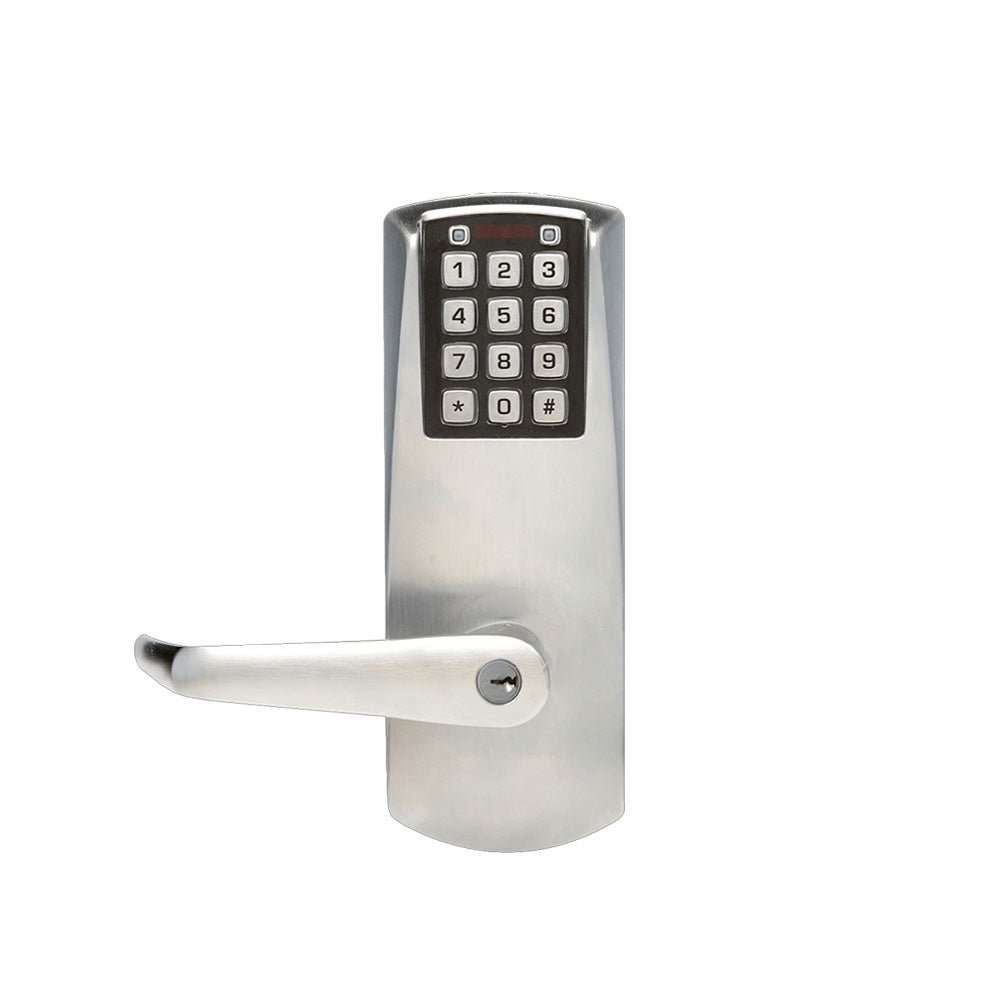

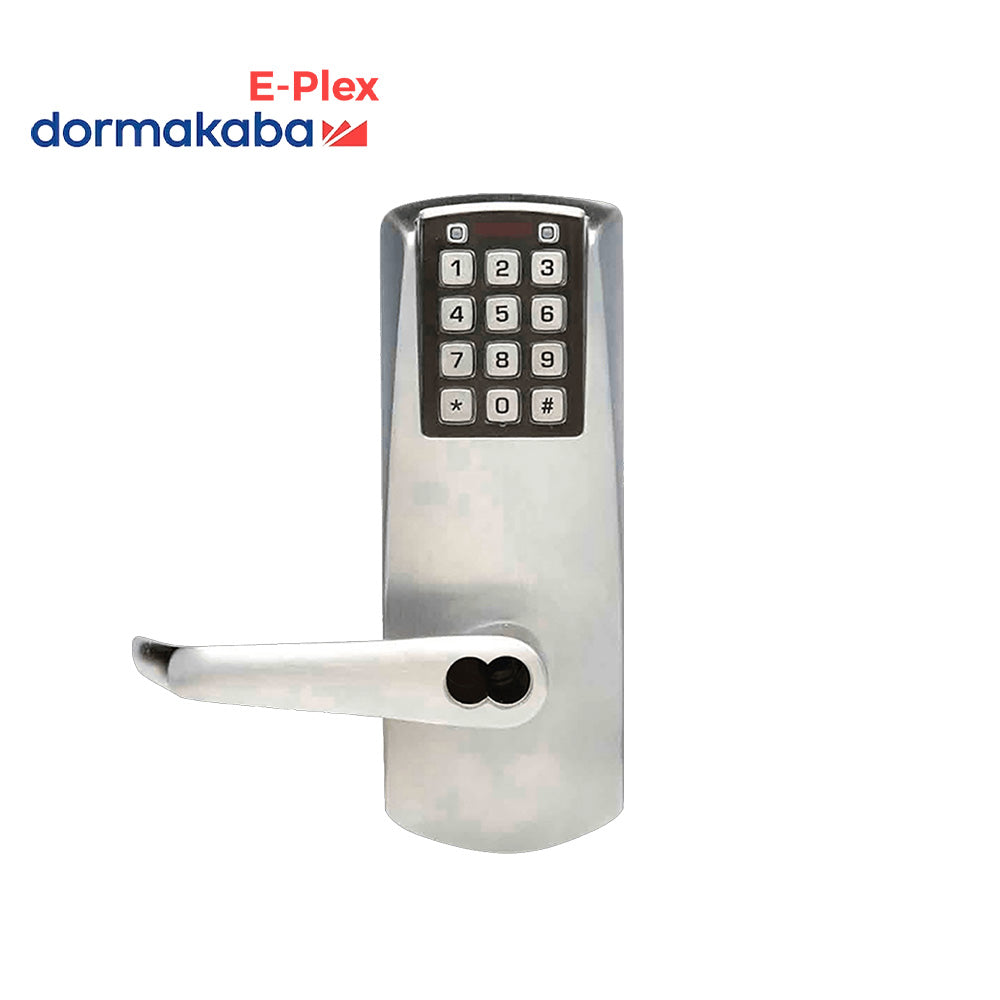

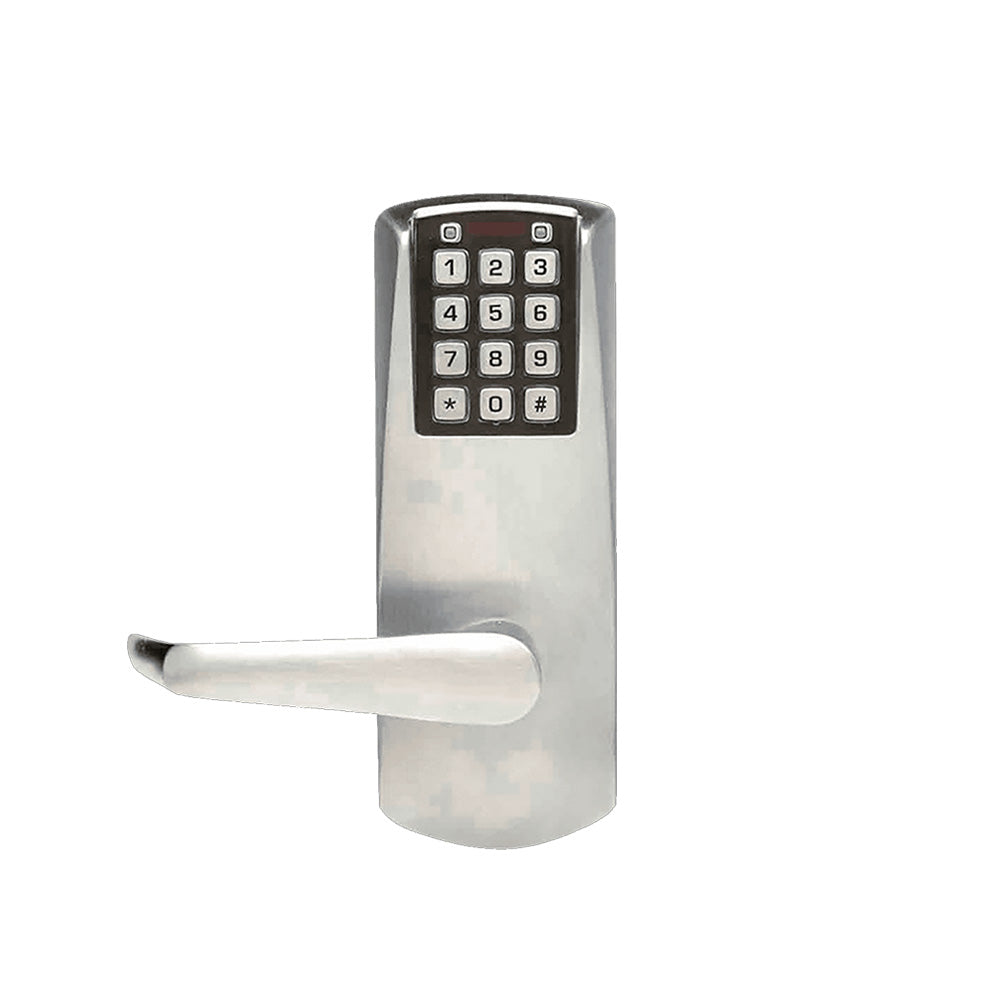

Dormakaba E-Plex - E2066 - E2000 Series Electronic Pushbutton Mortise Lock
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. No deadbolt included. Key override Included.
Features:
- Requires no wiring to or through the door-eliminates risk of damage from pinched wires that can result in costly callbacks.
- Multiple Users-100 Codes.
- Non-handed; pre-assembled for left-hand door installations-easily changed in the field.
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
- PIN access.
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level.
- Code length-adjustable to accept 4 to 8 digits.
- Anti-tamper lockout-adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds.
- Re-lock time-adjustable from 2 to 20 seconds.
Specifications:
| Construction | Heavy-duty commercial lockset, solid cast exterior housing, solid cast levers |
| Handing | Non-handed, pre-assembled for left-hand door installation, easily changed in the field |
| Locking Device | STD Mortise 1-1/4" (32 mm) face plate no deadbolt (non-handed) |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Key Override | Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included |
| Backset | 2-3/4" (70 mm) backset |
| Minimum Stile Recommended | 5" (127 mm) |
| Latch | 3/4" (19 mm) latch, 1" (25 mm) |
| Door Preparation | ASA 86 door preparation with three additional through bore holes |
| Door Thickness | 1-3/4" (44 mm) to 2-1/4" (57 mm); pre-assembled to accommodate doors 1-3/4" (44 mm) to 2-1/8" (54 mm) |
| Accessibility Standard | Americans with Disabilities Act (ADA) |
| Certification | ANSI/BHMA Grade 1 Certified |
| Fire Rating | UL 10C fire rated |
Downloads:
