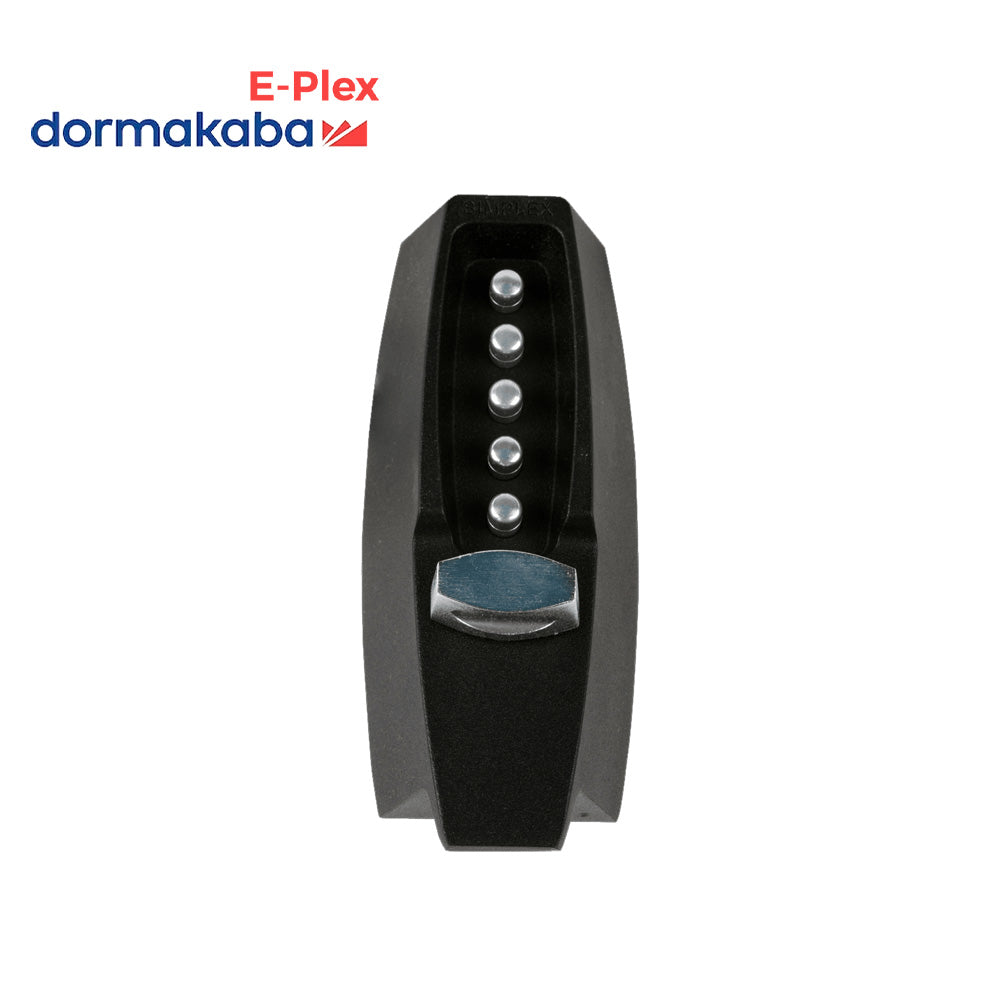

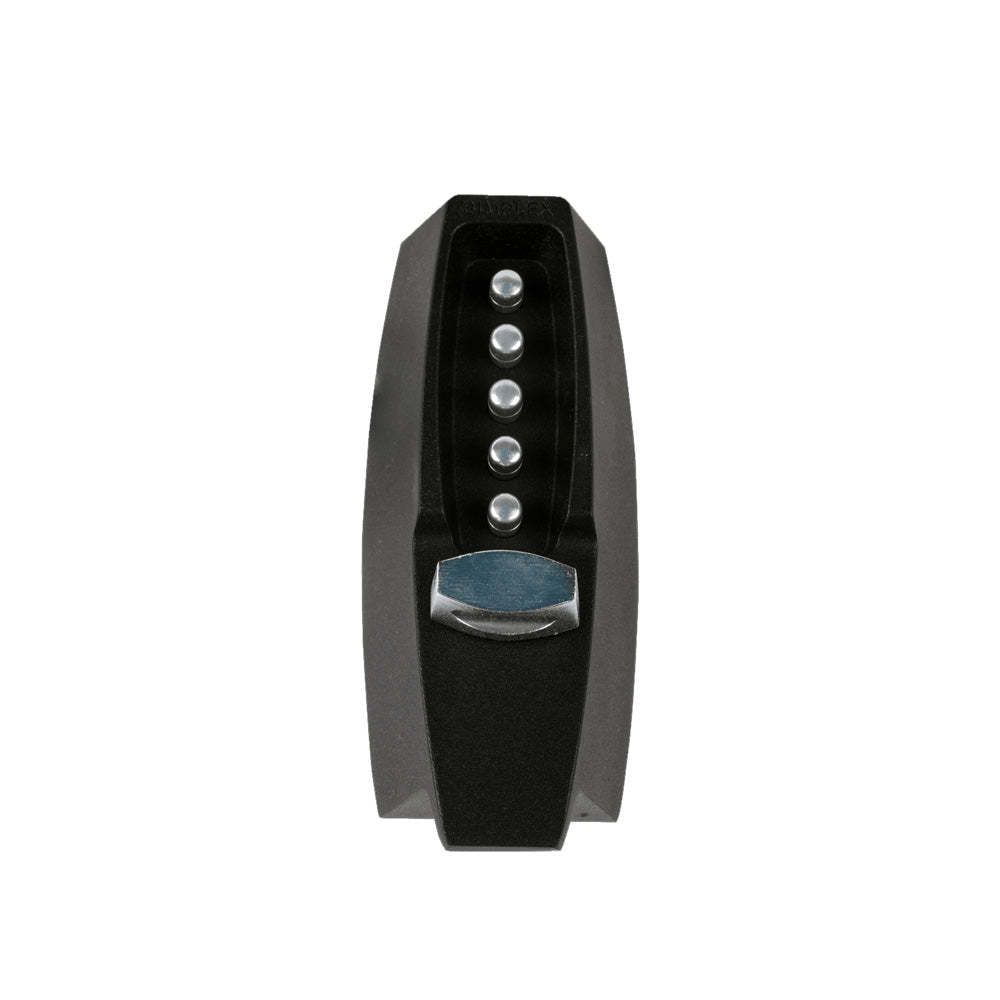

Dormakaba E-Plex - 7108 - Mechanical Push Button Combination Deadbolt Lock with 2-3/8" Backset
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes.This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Features:
- No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
- Deadbolt: must be manually relocked.
- Number of Codes: Single access code-one easy-to-manage code for all users.
- Programming: Lock is easily programmed via keypad without removing lock from the door.
- Handing: Field reversible.
- Operation Mode: Pushbutton Access.
- Economical: A cost effective access control solution.
Specifications:
| Construction | All metal cast front housing; force-resistant, clutch-protected exterior thumbturn |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Handing | Field reversible |
| Latch | 1" (25 mm) tubular deadbolt 1/2" (13 mm) deadlocking latch 5/8" (16 mm) rim deadlocking latch |
| Backset | 2-3/4" (70 mm) or 2-3/8"" (60 mm) backset |
| Strike | Models 7102 and 7108: Flat deadbolt strike plate Model 7104: Curved lip strike plae Model 7106: Box strike for in-swing doors and flat strike for out-swing doors |
| Minimum Stile Required | 4" (102 mm) |
| Installation | 1-3/8" (35 mm) diameter through bore 1" (25 mm) diameter cross bore 3/4" (19 mm) through bore 2 x 1/4" through bores |
| Door Thickness | 1-3/8" (35 mm) to 2-1/4" (57 mm), wood or metal |
| Durability | Weather resistant |
| Finish | Black |
