Description

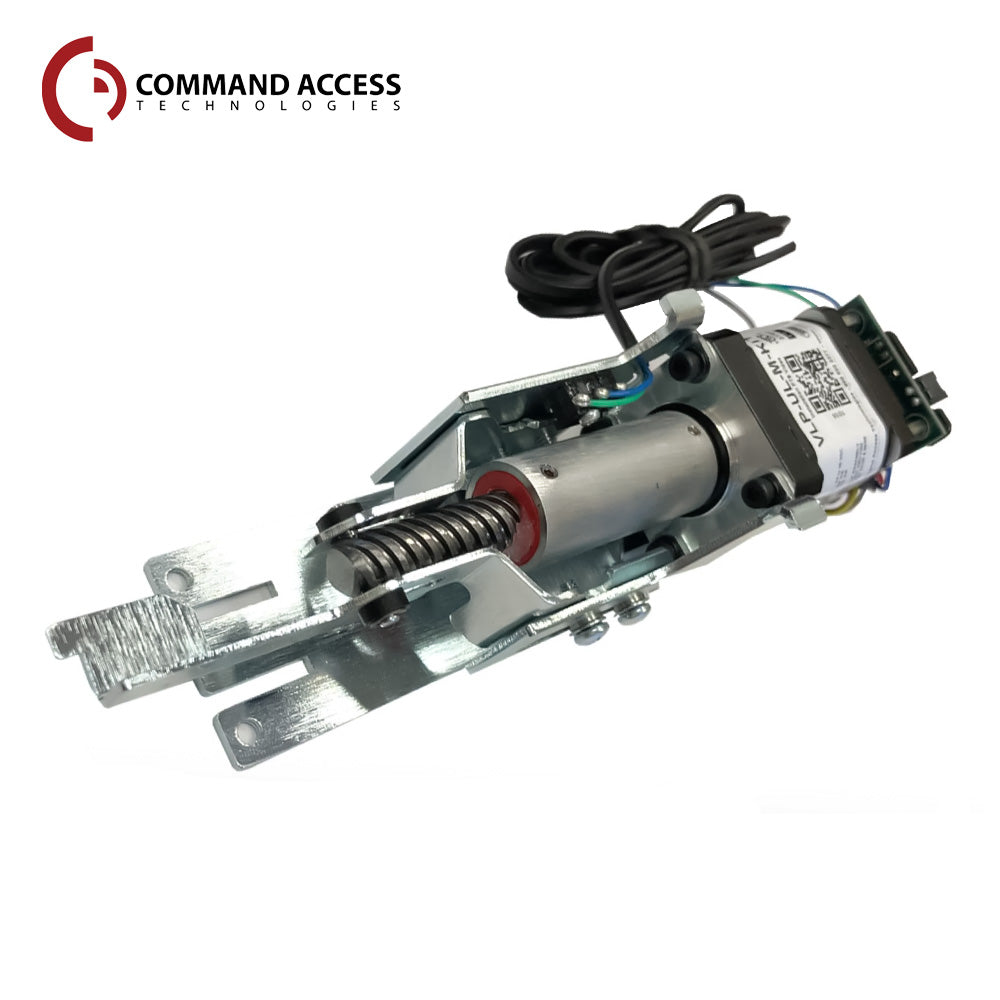

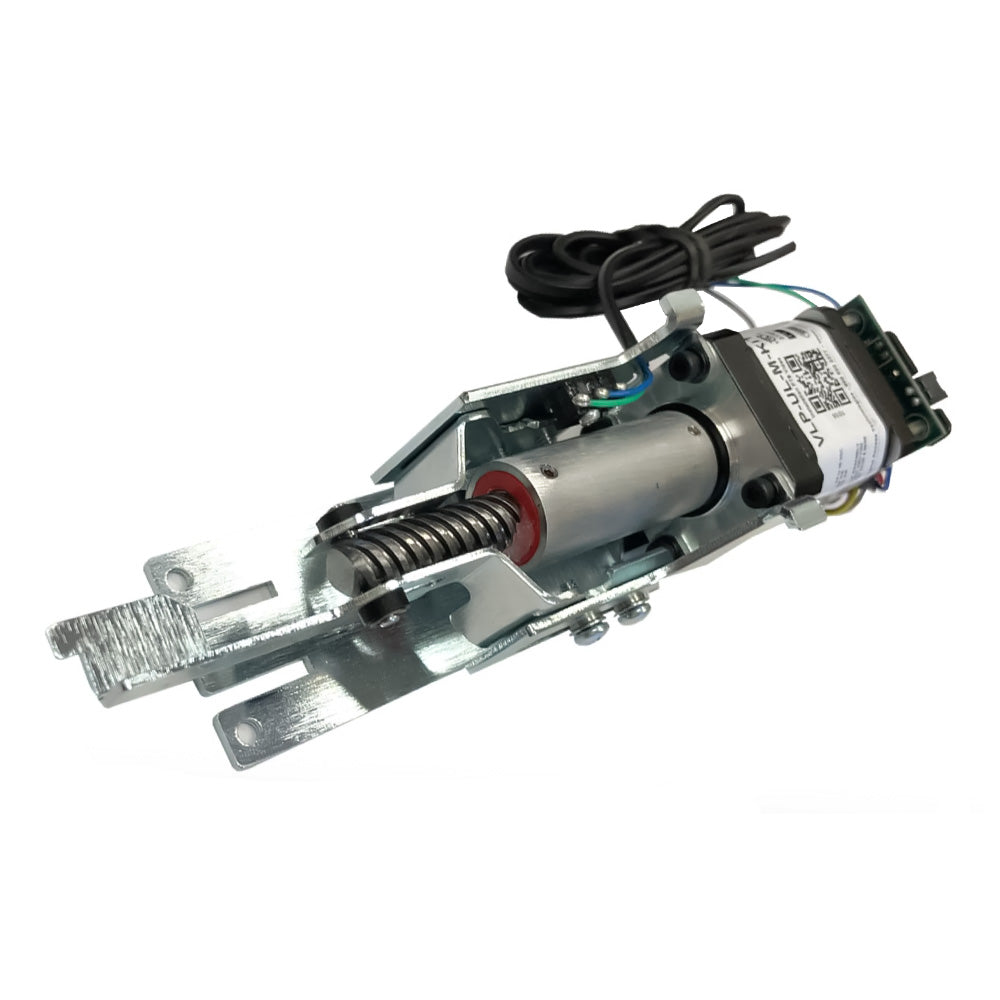

Command Access - MLRK1-VD22 - Motorized Latch Retraction Kit for Von Duprin 22 Series Exit Device

The new MLRK1-VD22 is a practical and cost-effective way to convert a mechanical Von Duprin 22 series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and is backed by CAT’s 3-year no hassle warranty. It easily hooks into the dogging tail piece and is secured with (2) screws, in a matter of seconds. The only hole you’ll need to drill is for the wire raceway. Push to Set (PTS) allows for an easy post-installation adjustment of the latch/ latches. A built-in REX switch on all units! Last but not least, the Kit features our updated MM5 module, energy conscious while still being capable of getting the tough jobs done!

Patent Pending Push To Set (Pts) Technology
Incredibly Easy To Install
Low Energy Motor Drive
Ul Listed
3 Year No Hassle Warranty

Features:

Next Generation MM5 Smart Module: On board diagnostics
with audible feedback for adjustment and power issues
“PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
Up to 300’ wire run with 2-18ga wire - Long wire runs
provides installer with convenience of placing the Command locking hardware power supply in a centralized location;i.e. the same closet as the access control panel
6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.

Voltage:

Voltage range – 24 to 25.3 VDC
System protection – unit shutdown when voltage exceeds 28VDC
Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
PTS adjustment – approx. 1/4”

Wire Run:

300' with 18ga wire

Product Details:

Weight: 2 Lbs

Device Cutdown Details:

New 36” Model - Max Cut 5”
New 48” Model - Max Cut 9”

Accessories:

Request to Exit (REX) - Built-in Request to Exit Standard
Latchbolt Monitor (VDLBMKIT-ED) - Field or Factory install

Download:

Installation Instruction
