Command Access - MLRK1-VD - Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device

Name: Command Access - MLRK1-VD - Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device
Brand: Command Access
Price: 4.1066 USD
Availability: InStock
Rating: 5 (1 reviews)

$410⁶⁶ ~~$492⁷⁹~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

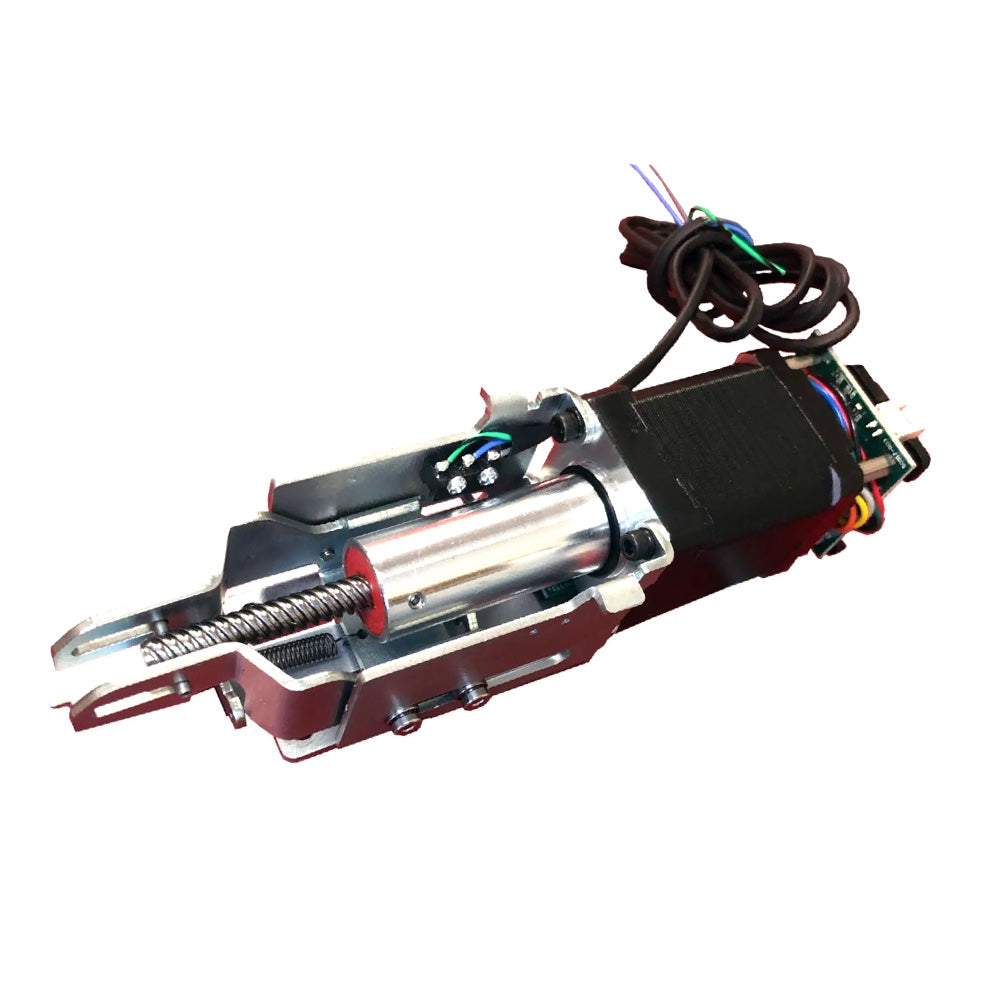

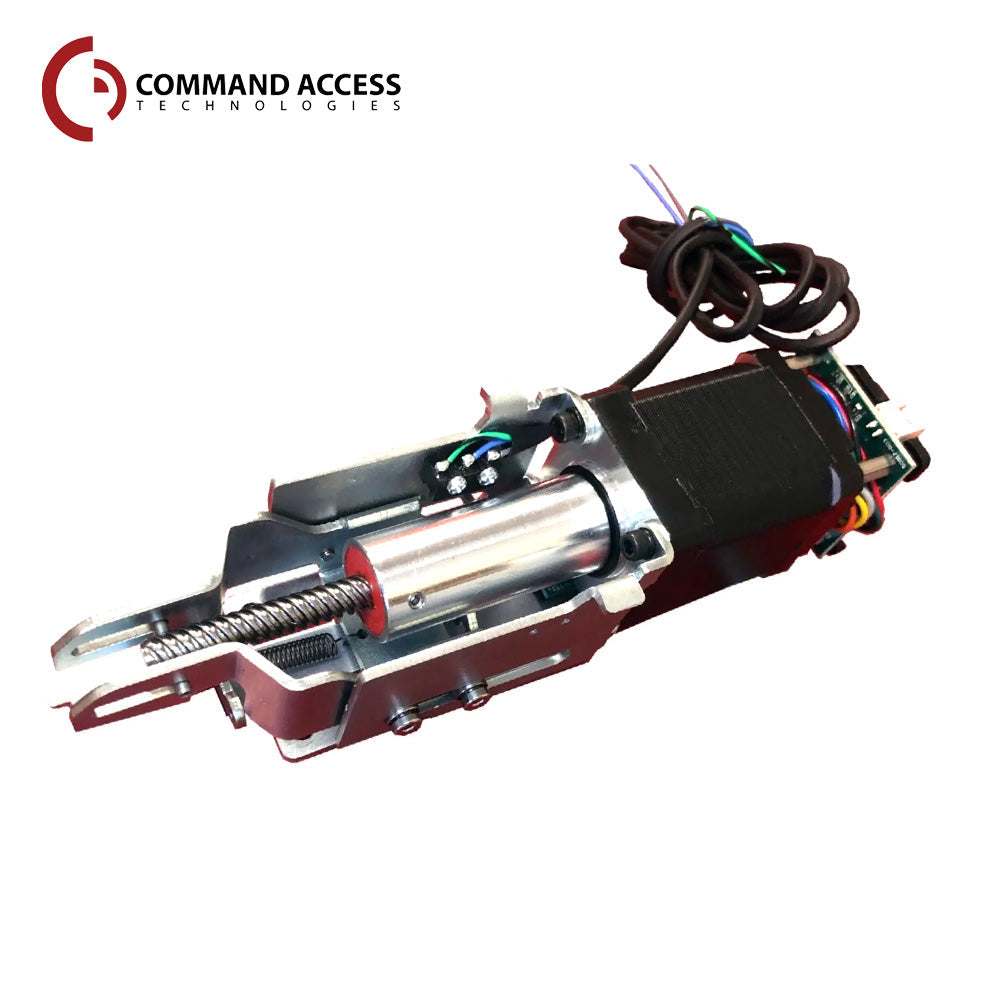

Command Access - MLRK1-VD - Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device

The MLRK1-VD is a practical and cost-effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in moments & includes a built-in request to exit (US ONLY). It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the VD features an updated MM5 module, energy conscious while still being capable of getting tough jobs done

Works On All Von Duprin 99/98 & 35/33 Series Devices
Fast, Quite, Smooth &Amp; Strong!
Includes Built-In Request To Exit On Board
Patent Pending Push To Set (Pts) Technology
Ul Listed
3 Year “No Hassle” Warranty

Features:

Next Generation MM5 Smart Module: On board diagnostics
with audible feedback for adjustment and power issues
“PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
Up to 300’ wire run with 2-18ga wire - Long wire runs
provides installer with convenience of placing the Command locking hardware power supply in a centralized location;i.e. the same closet as the access control panel
6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.

Voltage:

Voltage range – 24 to 25.3 VDC
System protection – unit shutdown when voltage exceeds 28VDC
Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
PTS adjustment – approx. 1/4”

Wire Run:

300' with 18ga wire

Product Details:

Weight: 2 Lbs

Device Cutdown Details:

36”/ 48” - 6.5” Filler Plate Needed

Accessories:

Request to Exit (VDREXKIT-ED) - Built-in to all Units or order an additional for double REX applications
Latchbolt Monitor (VDLBMKIT-ED) - Field or Factory install
Low Current versions of REX or LBM available, add LC to part #

Download:

Installation Instruction
