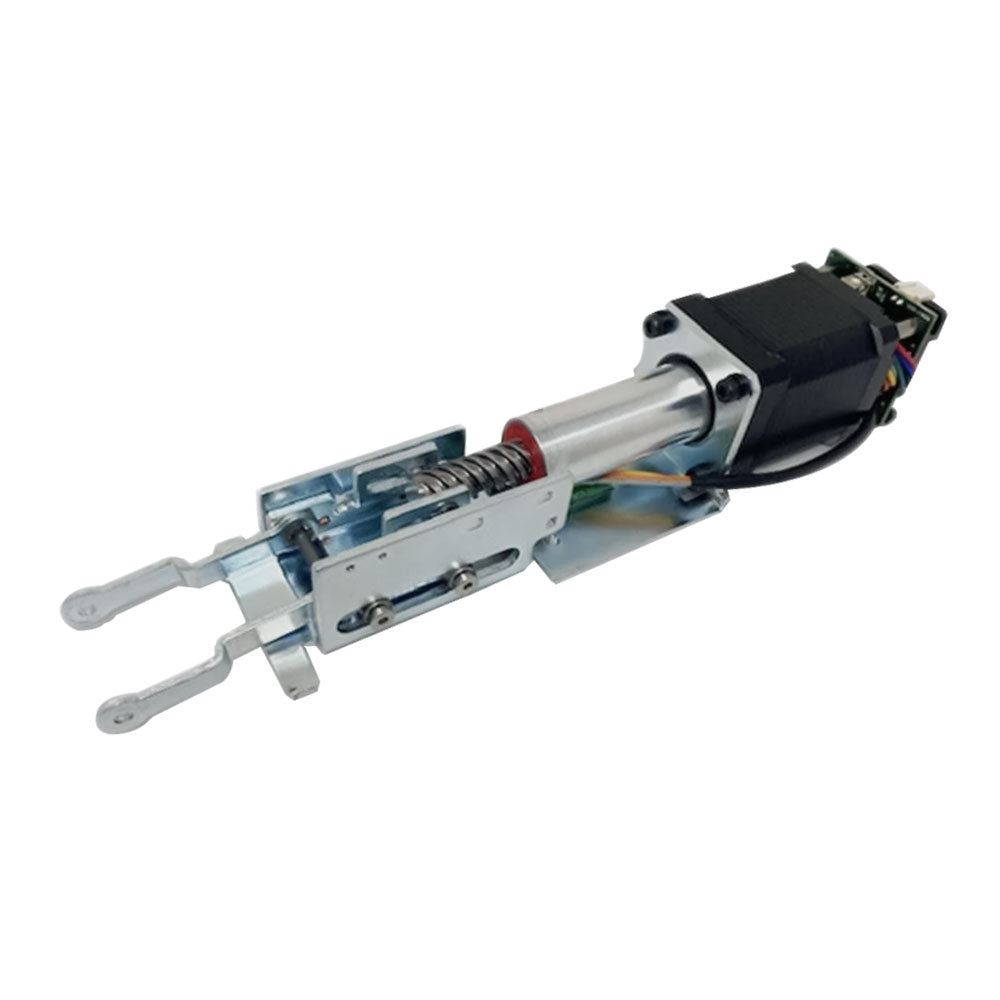

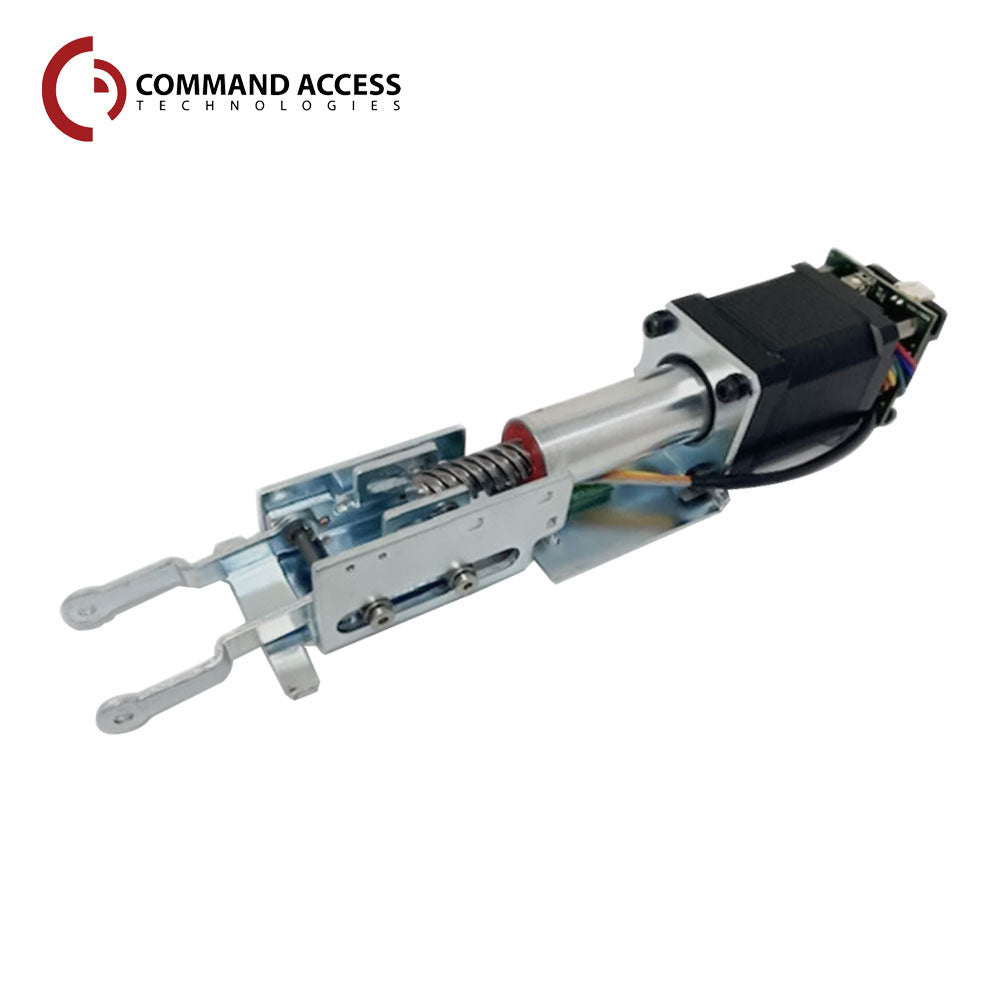

The MLRK1-MRK is a robust, straightforward field-installable motorized latch retraction kit for Marks M9900 & Design Hardware 1000 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units!

• Push to Set Technology
• Easy Installation - Fast, Quiet, Smooth
• True Electronic Dogging - Full Push Pad Retraction
• UL Listed
• 3 year warranty

Features:

• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location the same closet as the access control panel.
• Request-to-exit kit available
• 3-year “no hassle” warranty

Voltage:

• Voltage range – 24 to 25.3 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 1.3A, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300' with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36” - 1-1/4”
• 48” - 1-1/4”

Accessories:

• Request-to-Exit - Field Installable REX kit
• Latchbolt Monitor Switch
• Door Position Switch

Download:

• Installation Instruction
