Description

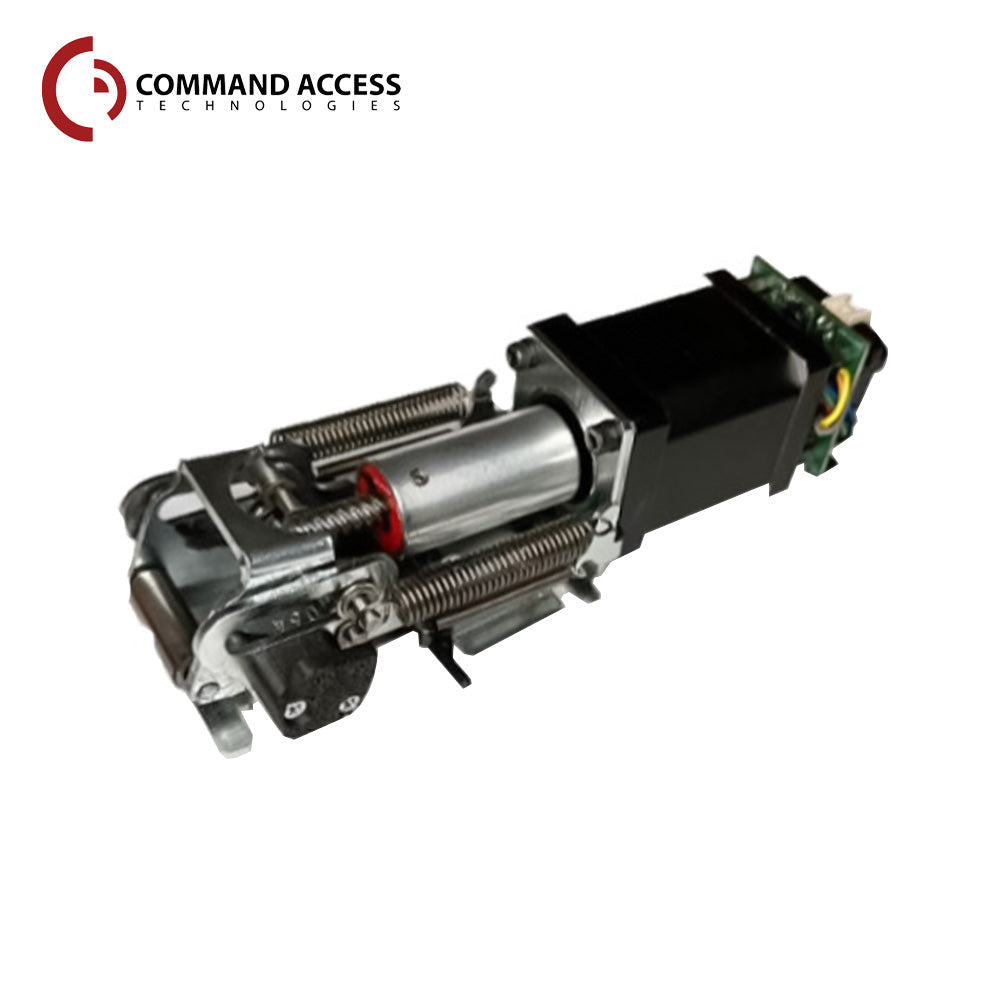

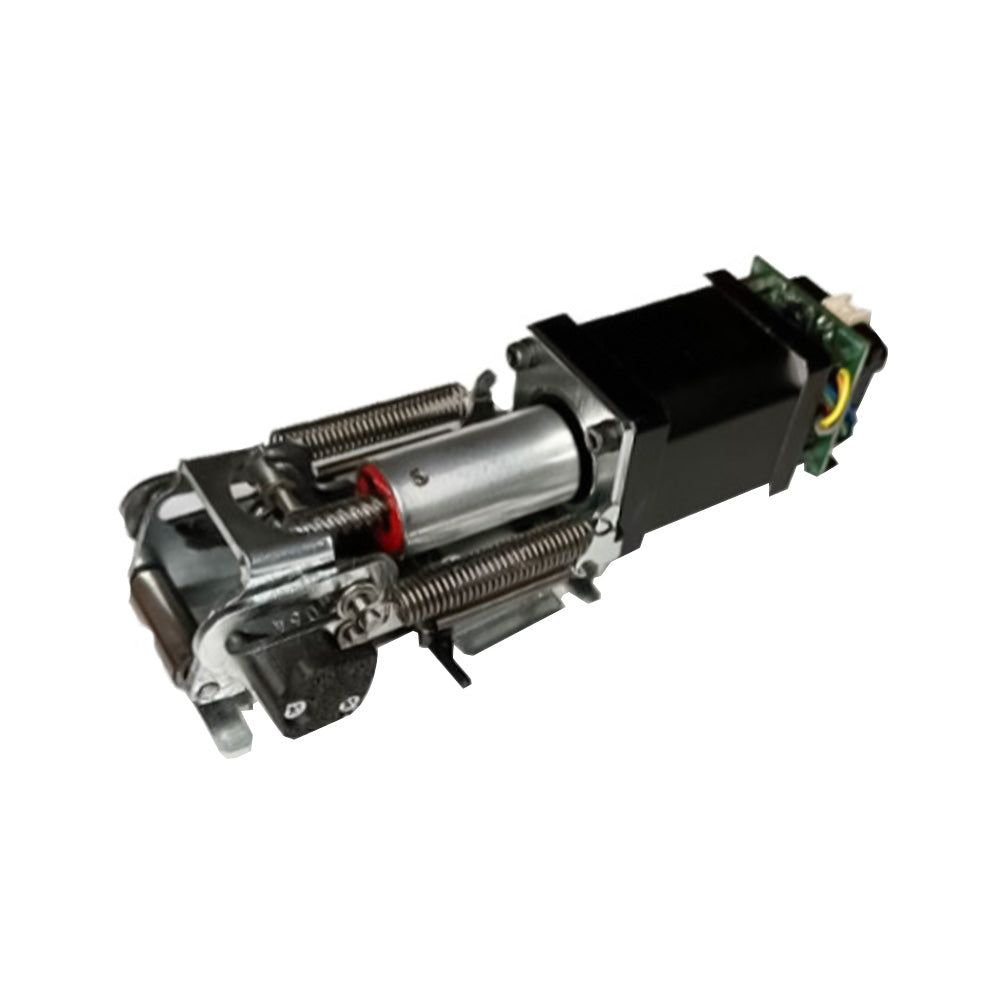

Command Access - MLRK1-JAC12 - Motorized Latch Retraction Kit for Kawneer 1686/1786 Series Exit Device

The MLRK1-JAC12 is a robust, straightforward field-installable motorized latch retraction kit for Jackson 1275/85/95, Kawneer 1686/1786, & AHT 8/9 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology.

Jackson 1275/85/95, Kawneer 1686/1786, & AHT 8/9 series
1 Touch “PTS” Push to Set Technology
Easy Installation - Fast, Quiet, Smooth
True Electronic Dogging - Full Push Pad Retraction
3 Year No Hassle Warranty + Add Locking Hardware PS to take both to 5 Years!
UL Listed

Features:

Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
1 Touch “PTS”: Quick & easy post-installation adjustment
Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
8’’cable with Robust Quick Molex Connect for MM5 module to conect to incoming power.
3-year “No Hassle” Warranty

Voltage:

Voltage range – 24VDC +/- 10%
System protection - unit shutdown when voltage exceeds 28VDC
Standard - Average Current Peak: 900mA, Average Current Hold: 215mA
PTS Adjustment - approx. 1/4”

Wire Run:

300' with 18ga wire

Product Details:

Weight: 2 Lbs

Accessories:

Request-to-Exit - Field Installable REX kit or built-in to the kit.

Kawneer Kit:

Mechanical Device
CAT Modified Solenoid
CAT Modified Motor
Kawneer Motor
SDC Motor (LR100-KWK)
AHT Motor (MEL1)

Download:

Installation Instruction
