Adams Rite | SKU: ADMR-4900-36-201-628

Adams Rite - 4900-36 - Heavy Duty Deadlatch Flat Faceplate with 1-1/8 Backset and 2-5/8 Flat Mortised Strike - 628 (Satin Aluminum Clear Anodized Finish)

Name: Adams Rite - 4900-36 - Heavy Duty Deadlatch Flat Faceplate with 1-1/8 Backset and 2-5/8 Flat Mortised Strike - 628 (Satin Aluminum Clear Anodized Finish)
Brand: Adams Rite
Price: 0.8743 USD
Availability: InStock
Rating: 5 (1 reviews)

$87⁴³ ~~$104⁹²~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

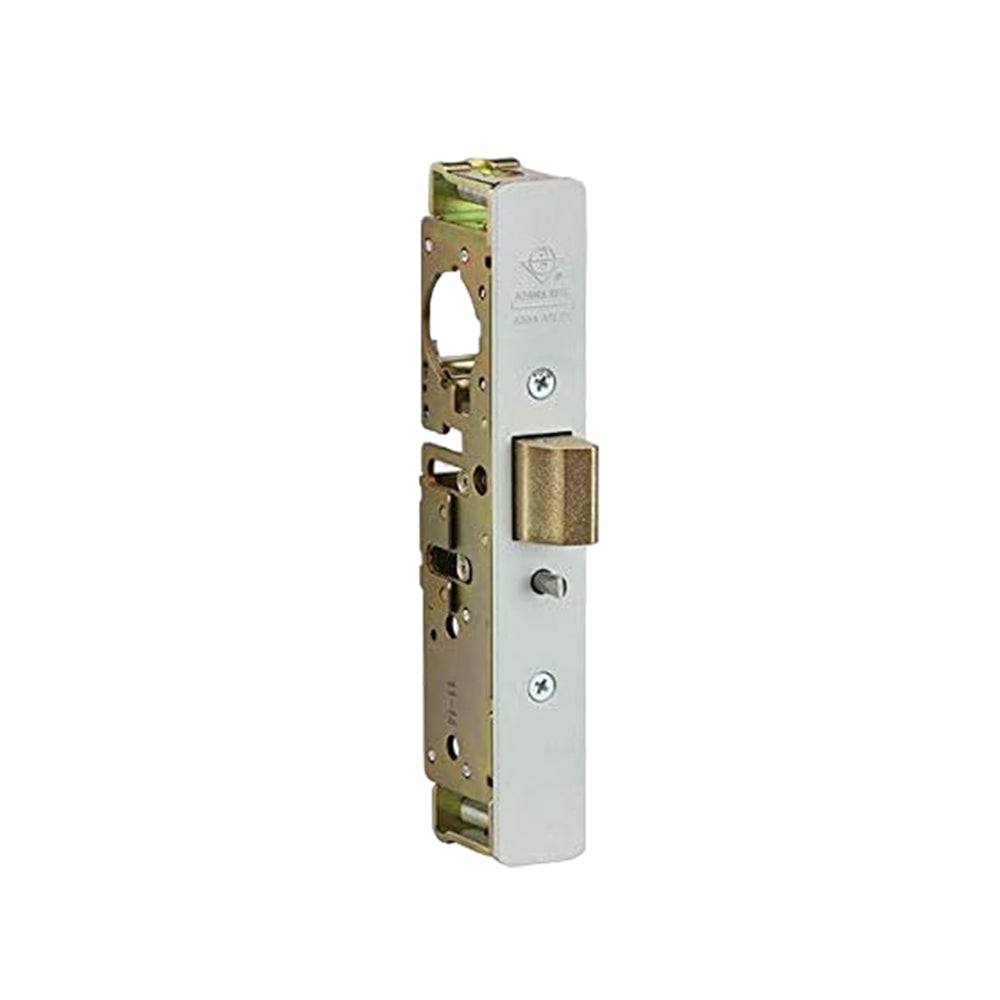

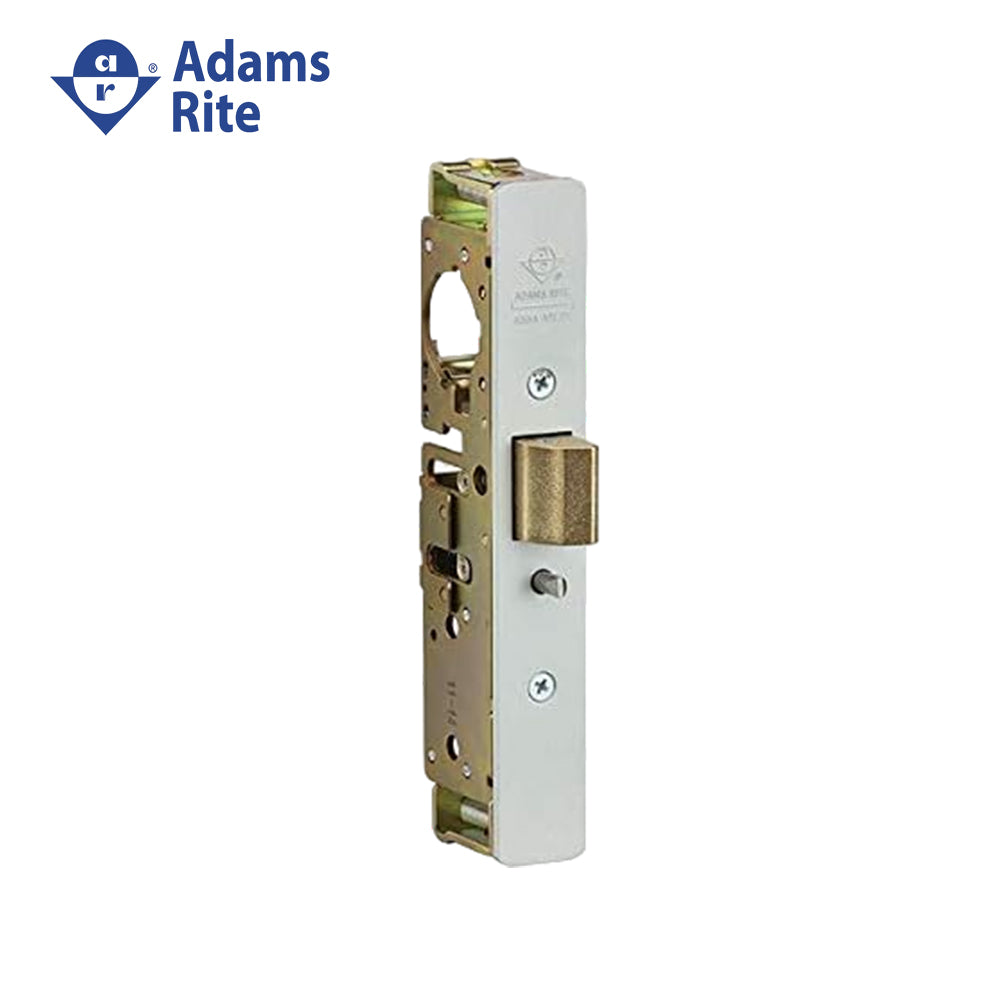

Adams Rite - 4900-36 - Heavy Duty Deadlatch Flat Faceplate with 1-1/8" Backset and 2-5/8" Flat Mortised Strike - 628 (Satin Aluminum Clear Anodized Finish)

4900 Heavy Duty Deadlatch Flexible traffic control and easy installation. A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for applications which require free entrance at certain times and exit-only at other times.

Features:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
Cylinder Backset: 31/32”, 1-1/8”, or 1-1/2”
Case: Measures 7/8” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
Latchbolt: 5/8” x 1” x 5/8” throw. Solid brass. Handing is easily reversible using only a screwdriver.
Auxiliary Latchpin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
Faceplates: Measures 1” x 6-7/8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
Strikes: Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
Options: Backset, strike, and finish must be specified when ordering. For information on handles, paddles, and lever operators, see TRIM. See ELECTRIC STRIKES for compatible access control products. See 4920AN Heavy Duty Deadlatch (ANSI Size) for wood and hollow metal door applications.
Standard Package: Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1/4 lbs.

Product Specifications:

Vendor	Assa Abloy
Manufacturer	Adams Rite
SKU	4900-36-201-628
UID	ADA100490036201628
Installation	Commercial
Origin	USA
Unit of Measure	Each
Base Material	Aluminum
BAA Qualified	Yes
Limited Warranty	5 Years

Technical Specifications:

Function	Narrow Stile Latch Lock
Cylinder Type	Less Cylinder
Handing	Field Reversible
Door Thickness	1-3/4" - 2"
Std. Latch Type	Dead Latch (Guarded)
Std. Latch Backset Dim	31/32"
Lock Face Size	6-7/8" x 1"
Bolt Projection	5/8"
Std. Strike Number	4902-01
Std. Strike Type	Mortise
Std. Strike Height	2-5/8"
Std. Strike Width	1-9/16"
Dust Box	Plastic
Screws	Machine
Product Type	Mortise Lock

Installation Instructions:

4900 Series Heavy Duty Deadlatch Installation Instructions
