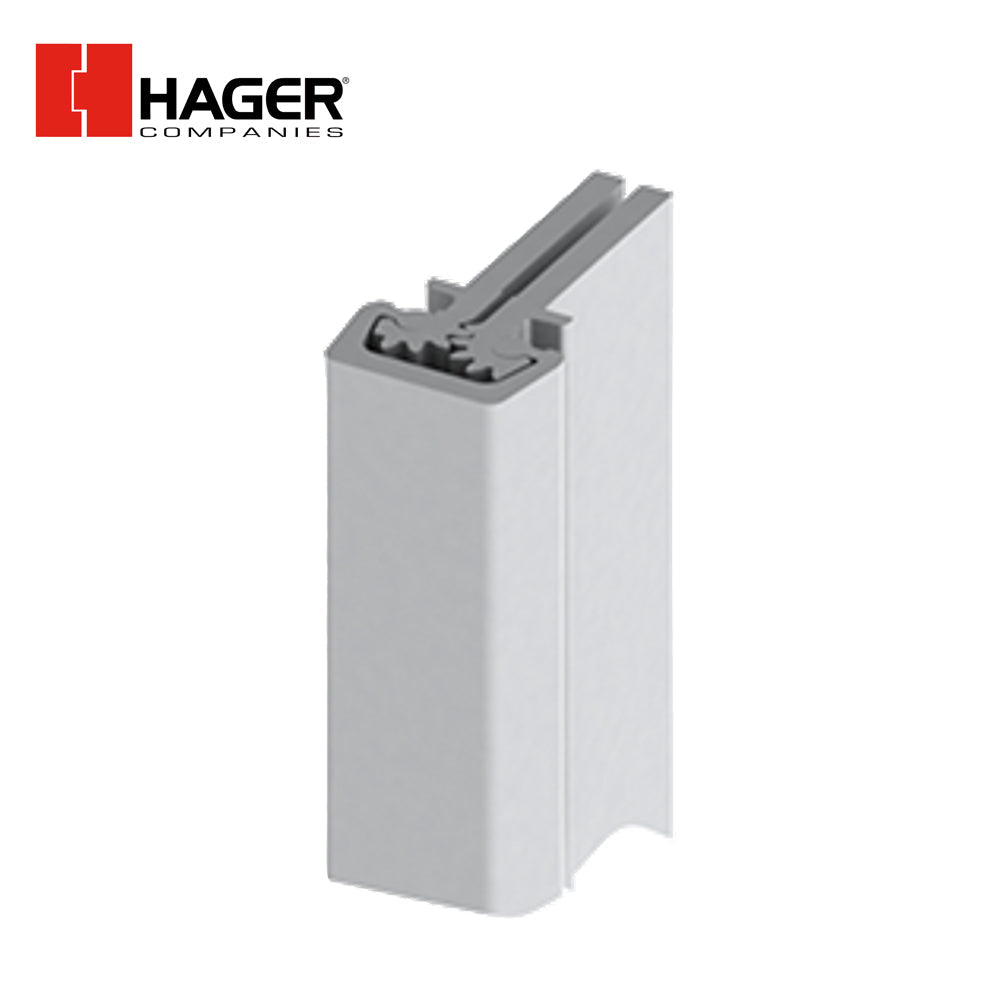

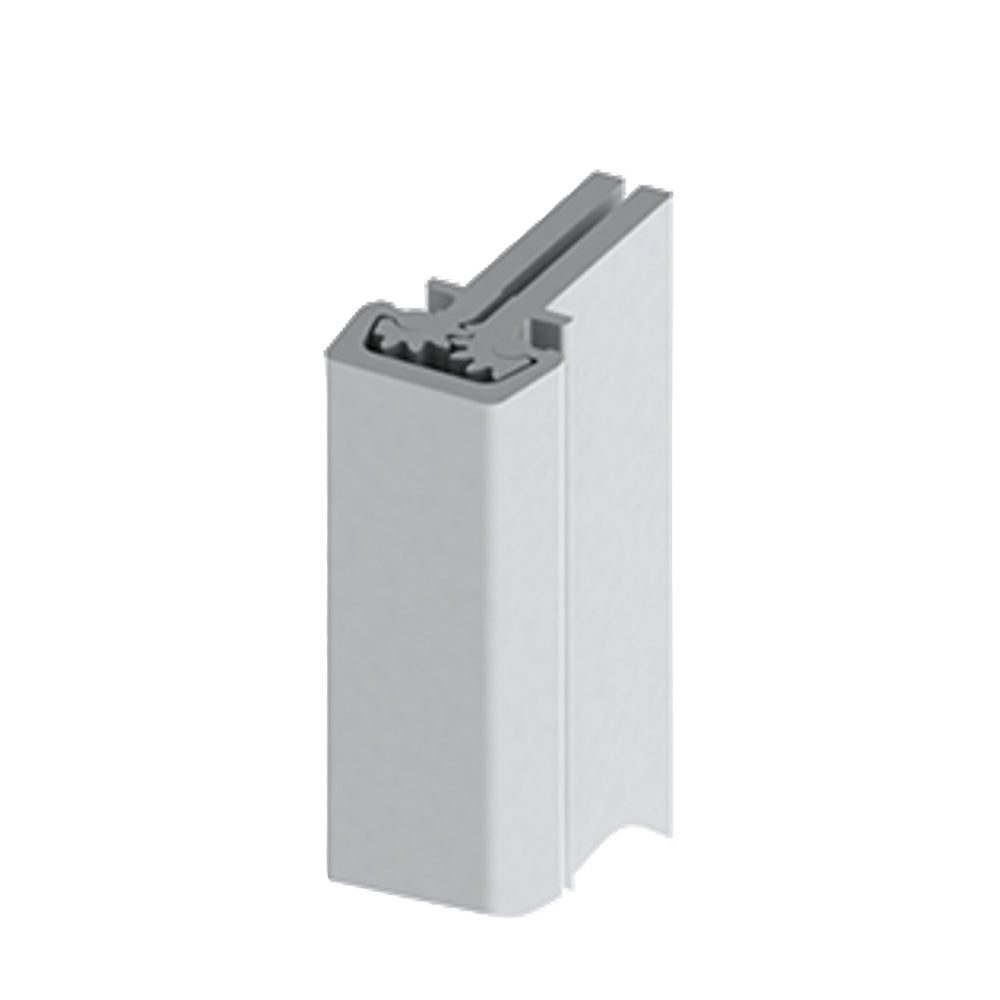

HAGER - 780-110HD - Heavy Duty Concealed Leaf Continuous Geared Hinge
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
HAGER - 780-110HD - Heavy Duty Concealed Leaf Continuous Geared Hinge
Please note that this item does not qualify for free shipping. After you place your order, we will reach out to collect shipping costs.
Description
Description
HAGER - 780-110HD - Heavy Duty Concealed Leaf Continuous Geared Hinge
HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.
Product Specifications:
Applications:
- For use on door 1" (25mm) to 1-3/8" (35mm) thick
- Frame and door leaf alignment ribs for proper hinge and door location
Clearance:
- 5/16" (8 mm) hinge side plus standard lockside clearance
- Refer to Door and Frame Dimensioning in the General Information section for further details
Fasteners:
- Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws.
- Additional Options Available upon request.
Features:
- Heavy duty for high frequency doors or heavy, medium frequency doors. For doors 1" (25 mm) to 1-3/8" (35 mm) thick.
- Frame and door leaf alignment ribs for proper hinge and door location.
Finishes:
- DKB - Satin Aluminum Clear Anodized (628)
- DBA - Dark Bronze Anodized Aluminum (313)
- BLK - Black Etch Anodize
Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs)
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Length: 79", 83", 85", 95", 119"
Material: Aluminum 6063-T6
Maximum Door Thickness: 1†to 1-3/8â€
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Electric Modifications: Exposed Electric Switches (E1S)
Notes:
EPD: Roton Continuous Hinges Environmental Product Declaration
Download:
