PDQ 7100 Series - Extra Heavy Duty Door Closer - Grade 1
Description
Description

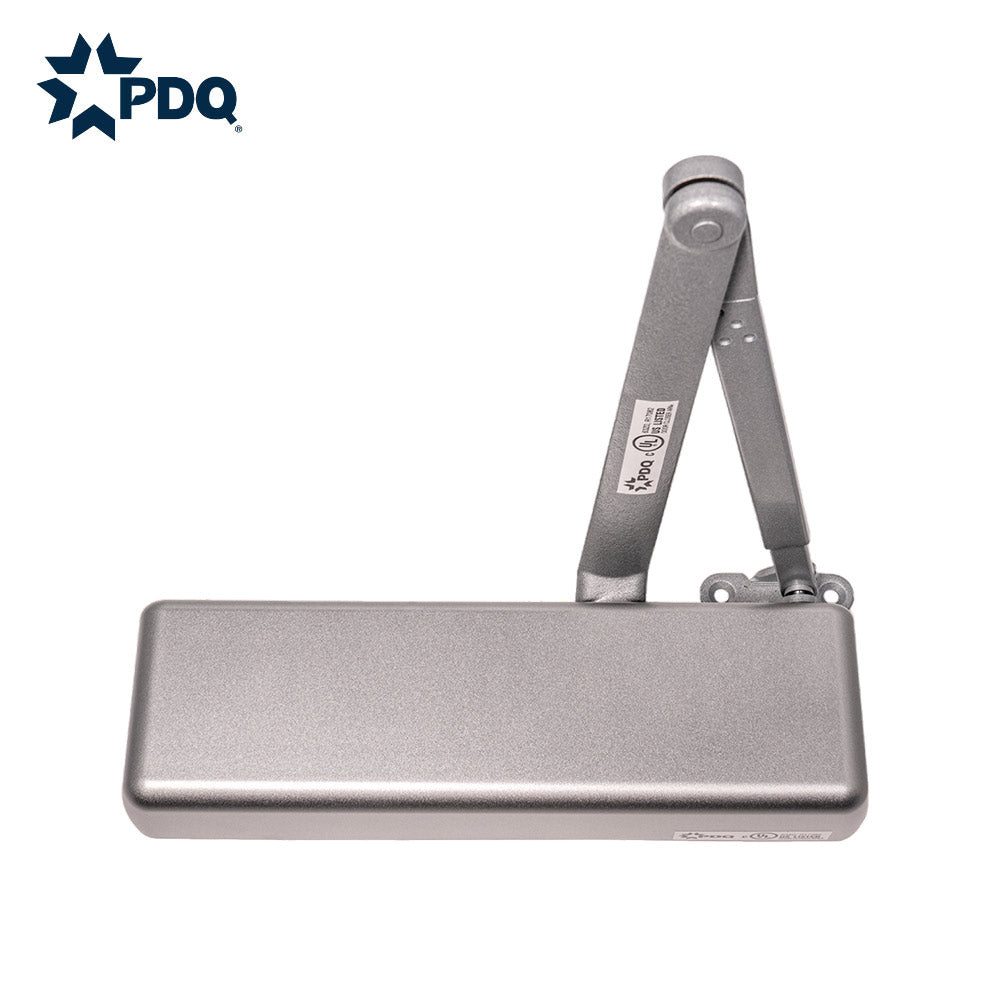

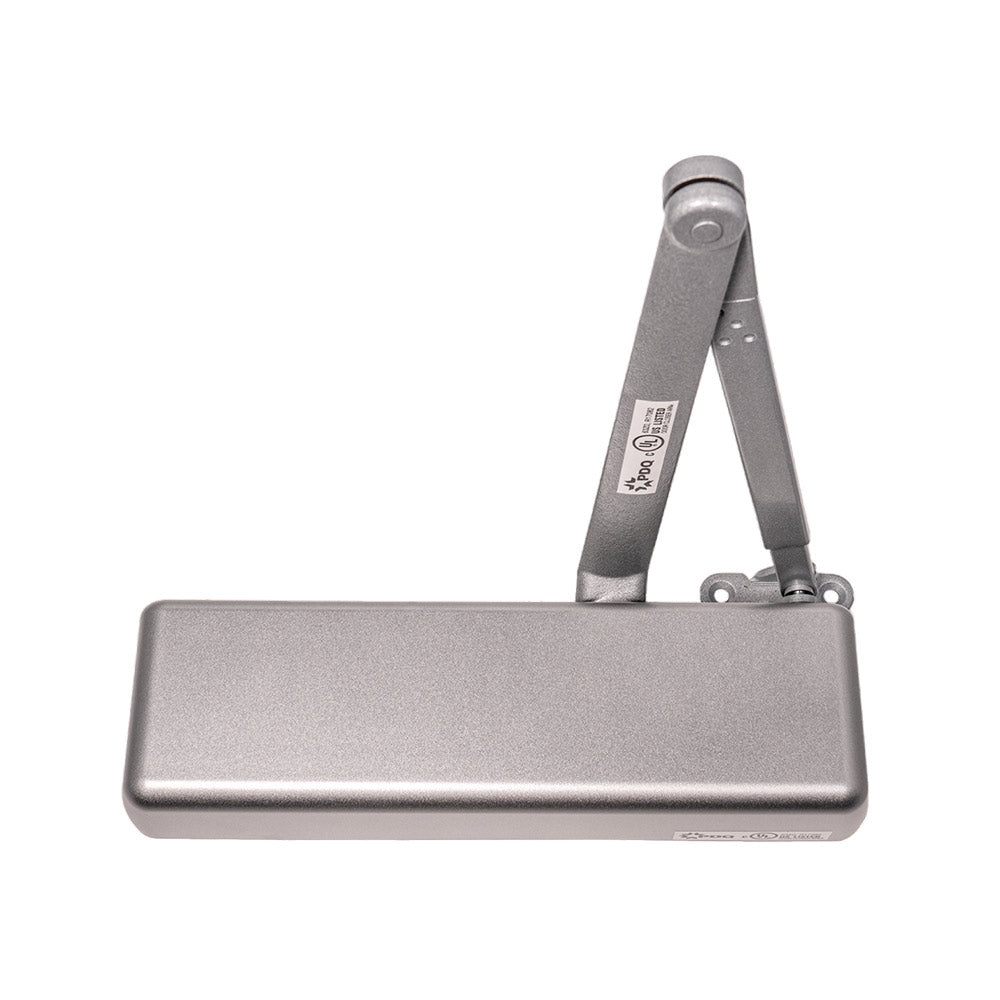

PDQ 7100 Series - Extra Heavy Duty Door Closer - Grade 1
The 7100 Series Extra Heavy Duty Door Closer. This Grade 1, commercial surface door closer is designed for rigorous applications, featuring a high-strength cast iron body and forged steel main arm. Certified to ANSI/BHMA A156.4 Grade 1 and UL listed for 3-hour fire doors, it ensures top-notch reliability. Available in six finishes, it also complies with ADA standards for accessible buildings. Trust the 7100 door closer for your most demanding door control needs. Ideal for commercial settings requiring robust and lasting solutions, contact a sale rep to learn more.
Features & Benefits:
- Constructed with a high-strength cast iron body and a forged steel main arm, this extra heavy duty door closer ensures durability and long-lasting performance
- Available in 6 finishes: 605(US3), 625(US26), 689(SP28), 693(SPBLK), 695(SP313), 696(Gold)
Certifications:
- It’s UL listed for 3-hour fire doors, ensuring optimal safety in commercial settings
- Our 7100 door closer Grade 1 is also certified to ANSI/BHMA A156.4 Grade 1, guaranteeing superior performance and reliability
- Complies with ADA and ICC/ANSI 117.1 standards for accessible and usable buildings, making it an ideal choice for inclusive design
Specification:
| Body | High Strength Cast Iron |
| Arm | Forged steel main arm |
| Arm Options: | PA - Parallel Arm HO - Hold Open DS/DSHO - Heavy Duty Parallel Arm Stop RA - Regular Arm SCS/SCSHO - Heavy Duty Parallel Arm Cushion Stop TA/TAHO - Track Arm EDA/EDAHO - Extra Duty Parallel Arm PS - Pivot Stop Arm |
| Piston | 1-1/2" diameter |
| Adjustment | Hydraulic controlled closing Hydraulic backcheck standard Backcheck positioning valve standard (starts backcheck snubbing sooner) Optional delayed action (in addition to backcheck) |
| Adjustment Values | All Adjustment Valves are STAKED to prevent removal during adjustment. |
| Size | Adjustable BF through 6 |
| Mounting | Mounting hole pattern retrofits LCN 4040 Tri-packed for regular, top jamb and parallel arm installations Includes sex nuts/bolts and screws for wood/metal doors/frames Self drilling self tapping screws standard Separate limiting stop may be required for high abuse applications |
| Cover | Full plastic cover standard, optional full metal cover available |
| Finished | 605 - Polished Brass 625 - Polished Chrome 689 - Aluminum 693 - Black 695 - Duro Bronze 696 - Gold |
| Warranty | Twenty-five (25) year Limited Warranty |
| Certifications, Listings, Compliances | UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings TAA compliant. Country of origin: KR |
Download:
- Data Sheet
- Installation Instruction
