Norton | SKU:
NRT-CLP8501-2019S-689
17% off

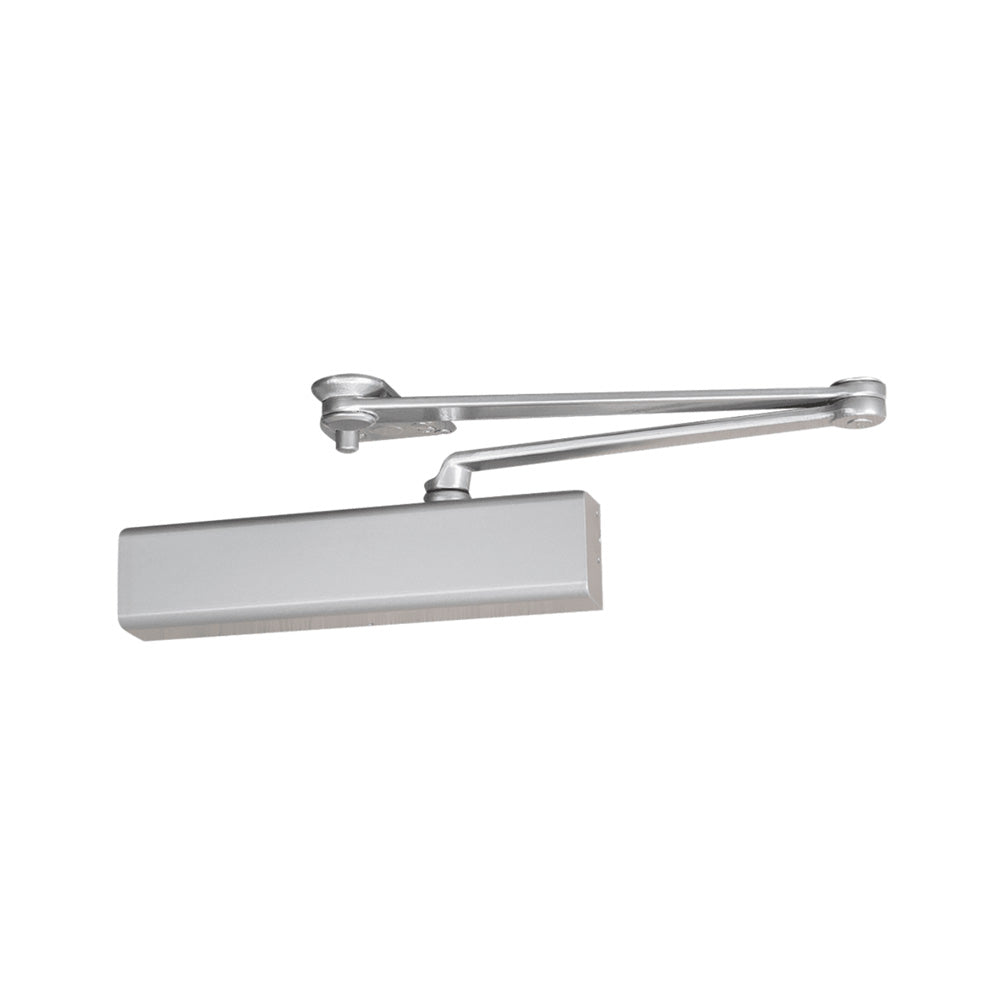

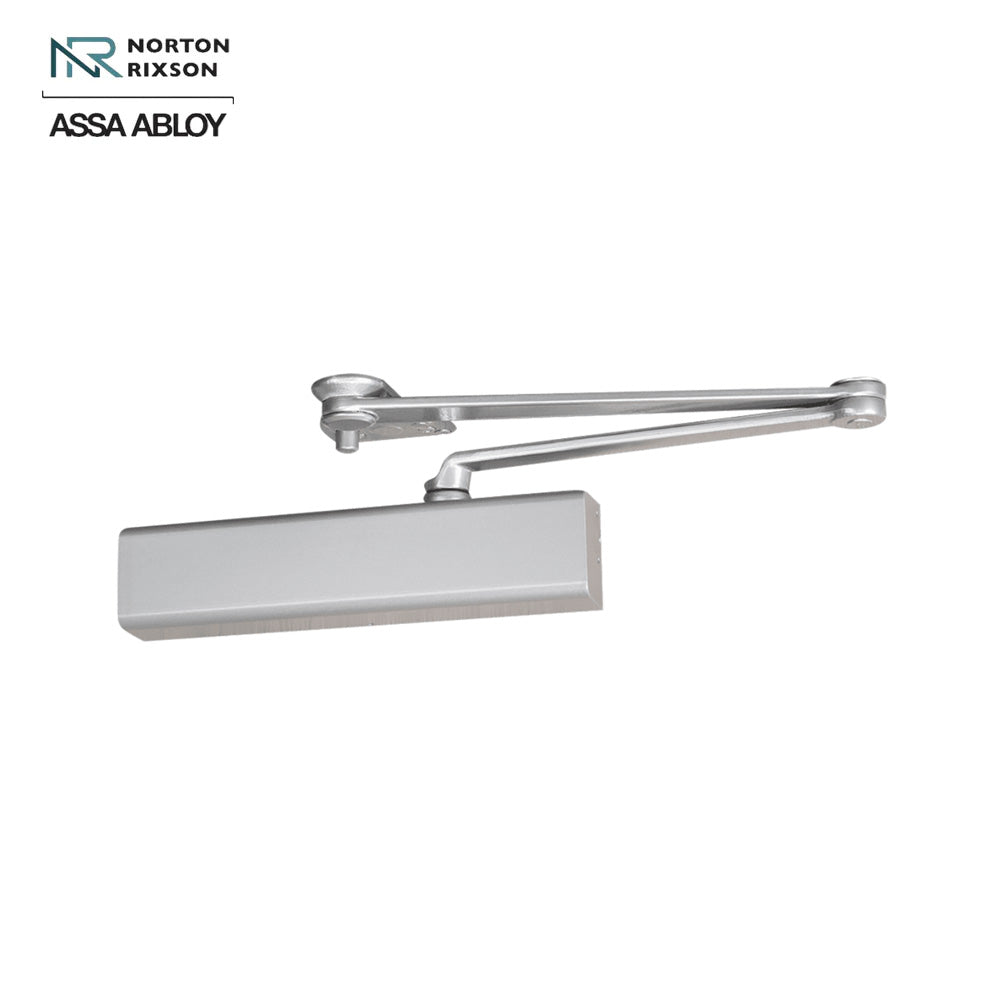

Norton - CLP8501 - Closer Plus Parallel Arm Door Closer with Push Side and Parallel Arm Heavy Duty - Plastic Cover - Grade 1 - Aluminum Painted
$19687
$23624
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description
Norton - CLP8501 - Closer Plus Parallel Arm Door Closer with Push Side and Parallel Arm Heavy Duty - Plastic Cover - Grade 1 - Aluminum Painted
The 8000 Series is a multi-sized, surface closer offering a complete range of arms and a sleek, minimal design suited for moderate to high-traffic, architectural openings.
Features:
- Cast aluminum closer
- Adjustable spring sizes 1-6
- Tri-packed
- Exceeds 25 million cycles
- 1-1/4" diameter piston
- Staked valves
- Non-handed
- 2-1/8" projection (standard covers)
- Interior or exterior doors
- All standard arm applications allow doors to swing 180, conditions permitting
- Standard, separate and independent latch, sweep, and backcheck intensity valves
- Hold open, heavy-duty and low profile arms available
- Slide track - push or pull side mounting
- Mounting plates, drop plates, brackets available
Certifications:
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire-rated doors
- UL10C listed for positive pressure fire test
- Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | Norton |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Closer Plus |
| UL Listing Type | UL 10C |
| ANSI Number | ANSI A156.4 |
| BAA Qualified | Yes |
| Limited Warranty | 25 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Parallel Arm |
| Hold Open | No |
| Closer Size | 1 to 6 |
| Arm Type | Parallel Arm Heavy Duty |
| Hand | Non-Handed |
| Degree Swing | 85 Deg. to 110 Deg. |
| Block | 2019S |
| Stop | Positive Stop |
| Back Check | Adjustable |
| Cover | Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
Downloads:
