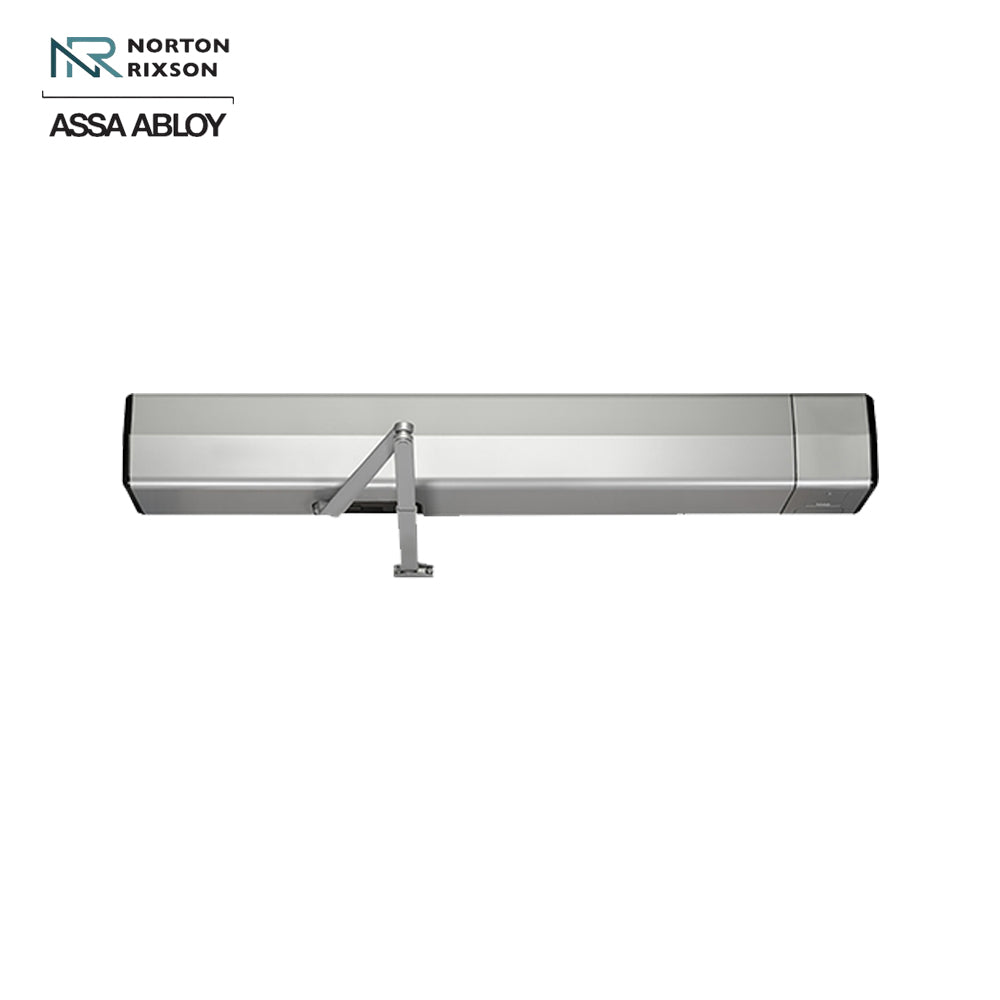

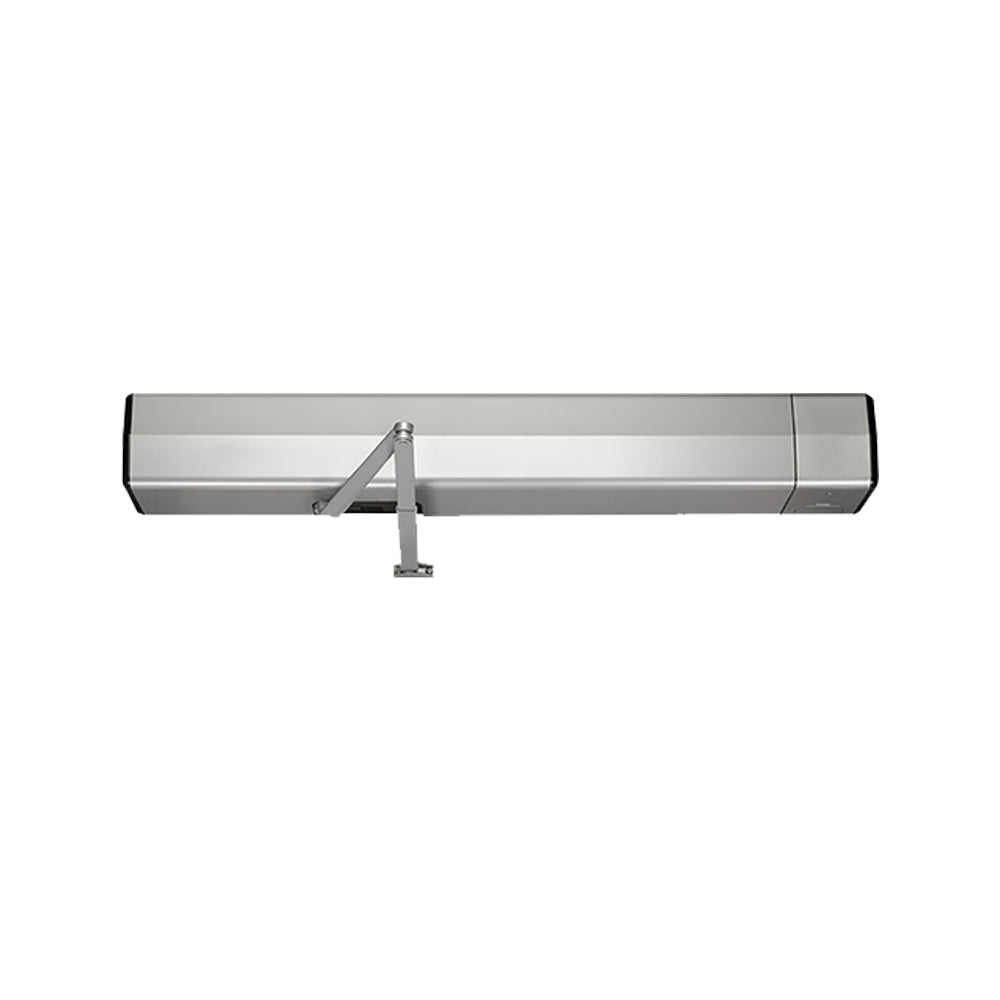

Norton - 6021 - Low Energy Push Side Door Surface Mount Operator with Double Lever Arm Regular - 689 (Aluminum Painted)

Norton - 6021 - Low Energy Push Side Door Surface Mount Operator with Double Lever Arm Regular - 689 (Aluminum Painted)

The 6000 Series combines intelligence, reliability and superior control in one package. Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.

Functions:

• Push and Go selector

As the door is manually opened, the operator "senses" movement and opens door to the full-open position

• Open/Close obstruction detection

Open: Door closes if it hits an obstruction while opening

Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed

• Motor startup delay adjustment

Delays operator opening

• Vestibule delay adjustment
• Hold open delay adjustment
• Single Pole Double Throw (SPDT) relay output

SPDT relay output time adjustment

SPDT alarm output

• Blow open for smoke ventilation
• Presence detector input
• Selector mode switch

Off – Disables signal inputs except blow open

On – Activates signal inputs

Infinite Hold Open - Door will hold open at set position until power is turned off

Features:

• Push or pull side mounting
• Non-handed
• 1.3A onboard power supply
• Activated by push button, handsfree and RF devices
• Infinite hold open
• Maximum door size 4'0" x 8'0", 250 lbs
• Push and Go opens door to full-open position upon manual activation
• Obstruction Detection on both open and close cycle
• Operates as a mechanical surface closer when power is off
• On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
• 2 year limited warranty

Product Specifications:

Technical Specifications:

Installation Instruction:

• 6000 Series Installation Instruction Manual
