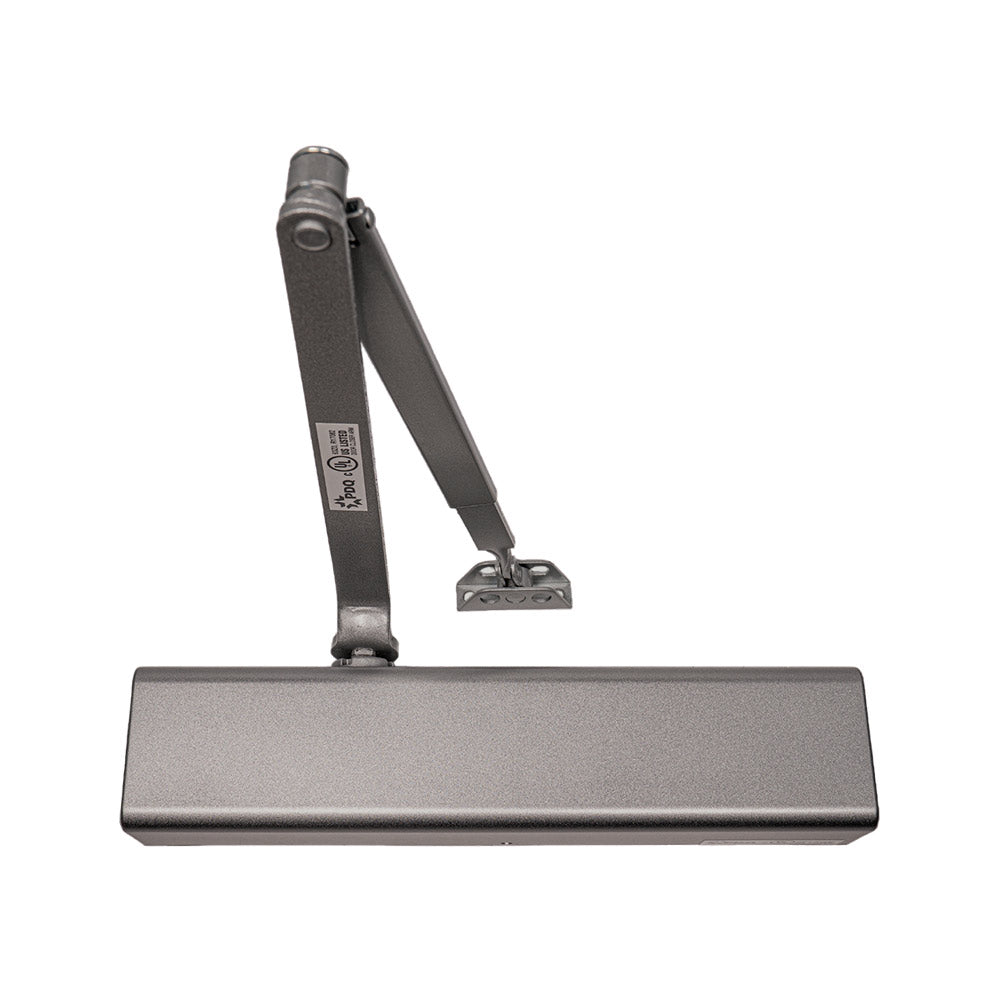

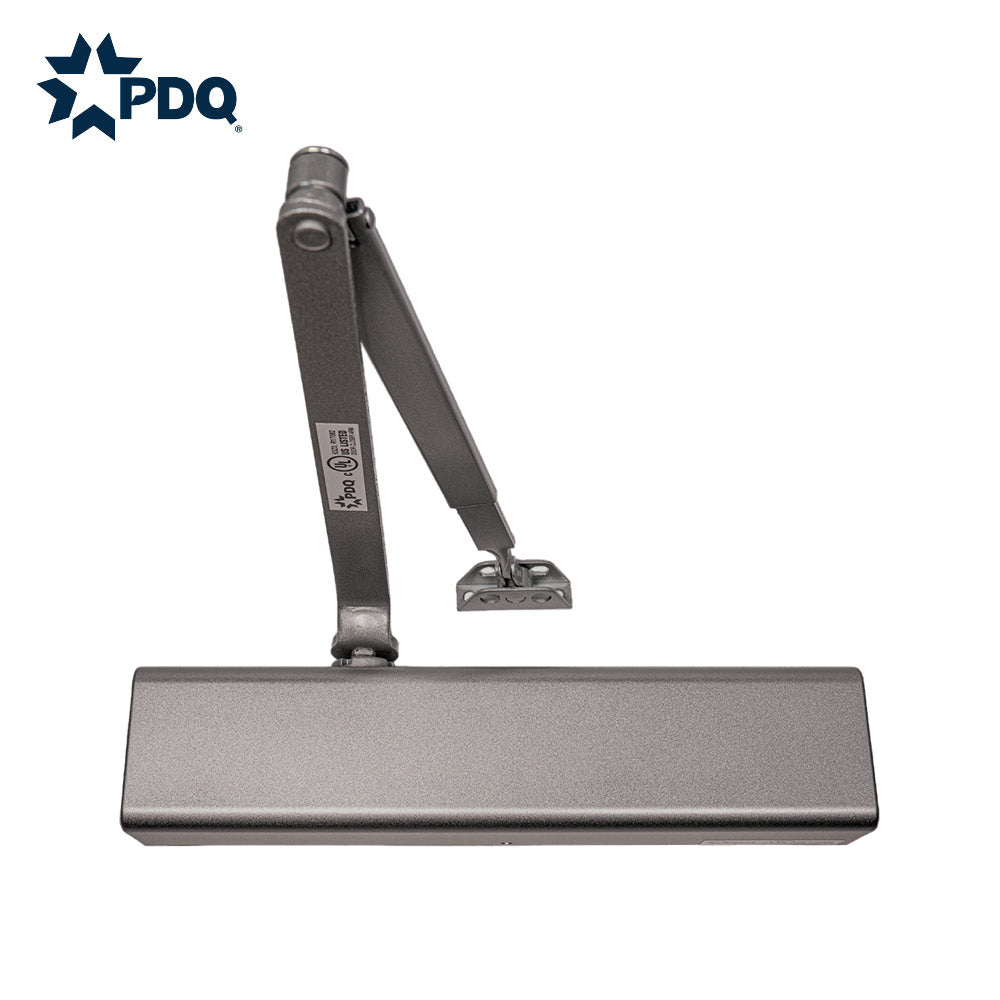

PDQ 5500 Series - Standard Duty Full Cover Door Closer - Field Reversible - Grade 1
The 5500 standard duty door closer offers reliable performance for commercial applications. This 5500 commercial door closer grade 1 features a high-strength cast aluminum body and a full cover design for enhanced protection and aesthetics. Available in six stylish finishes, it complements any design while providing robust functionality. This door closer is UL listed for 3-hour fire doors and certified to ANSI/BHMA A156.4 Grade 1, ensuring top-tier quality and compliance. Ideal for diverse settings, the 5500 door closer guarantees durability and efficiency. Elevate your space by connecting with a sales rep about this grade 1 door closer.
Features & Benefits:
- Featuring a high-strength cast aluminum body, this full cover door closer ensures durability and reliability
- Its common 12" x 3/4" mounting hole pattern seamlessly retrofits Norton 8300/8500 and Yale 3300/3500 models
- Choose from 6 premium finishes: 605(US3), 625(US26), 689(SP28), 693(SPBLK), 695(SP313), 696(Gold)
Certifications:
- This full cover door closer is UL listed for 3-hour fire doors, demonstrating its capacity to enhance safety in high-risk environments
- Certified to ANSI/BHMA A156.4 Grade 1 standards, it meets rigorous durability and performance criteria
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations, ensuring accessibility and usability in commercial and institutional buildings
Specification:
| Body | Cast High Strength Aluminum Alloy Body |
| Arm Options: | PA - Parallel Arm HO - Hold Open DS/DSHO - Heavy Duty Parallel Arm Stop RA - Regular Arm SCS/SCSHO - Heavy Duty Parallel Arm Cushion Stop TA/TAHO - Track Arm EDA/EDAHO - Extra Duty Parallel Arm PS - Pivot Stop Arm |
| Adjustment | Hydraulic controlled closing Separate hydraulic backcheck standard Optional adjustable delayed action (in addition to backcheck) |
| Size | Adjustable BF through 6 |
| Mounting | Includes sex nuts/bolts and screws for wood/metal doors/frames Tri-packed for regular, top jamb and parallel arm installations Separate limiting stop may be required for high abuse applications Self drilling, self tapping screws standard |
| Cover | 5500 Series - Full plastic cover standard (field reversible) |
| Finished | 605 - Polished Brass 625 - Polished Chrome 689 - Aluminum 693 - Black 695 - Duro Bronze 696 - Gold |
| Warranty | Twenty-five (25) year Limited Warranty |
| Certifications, Listings, Compliances | UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings TAA compliant. Country of origin: KR |
