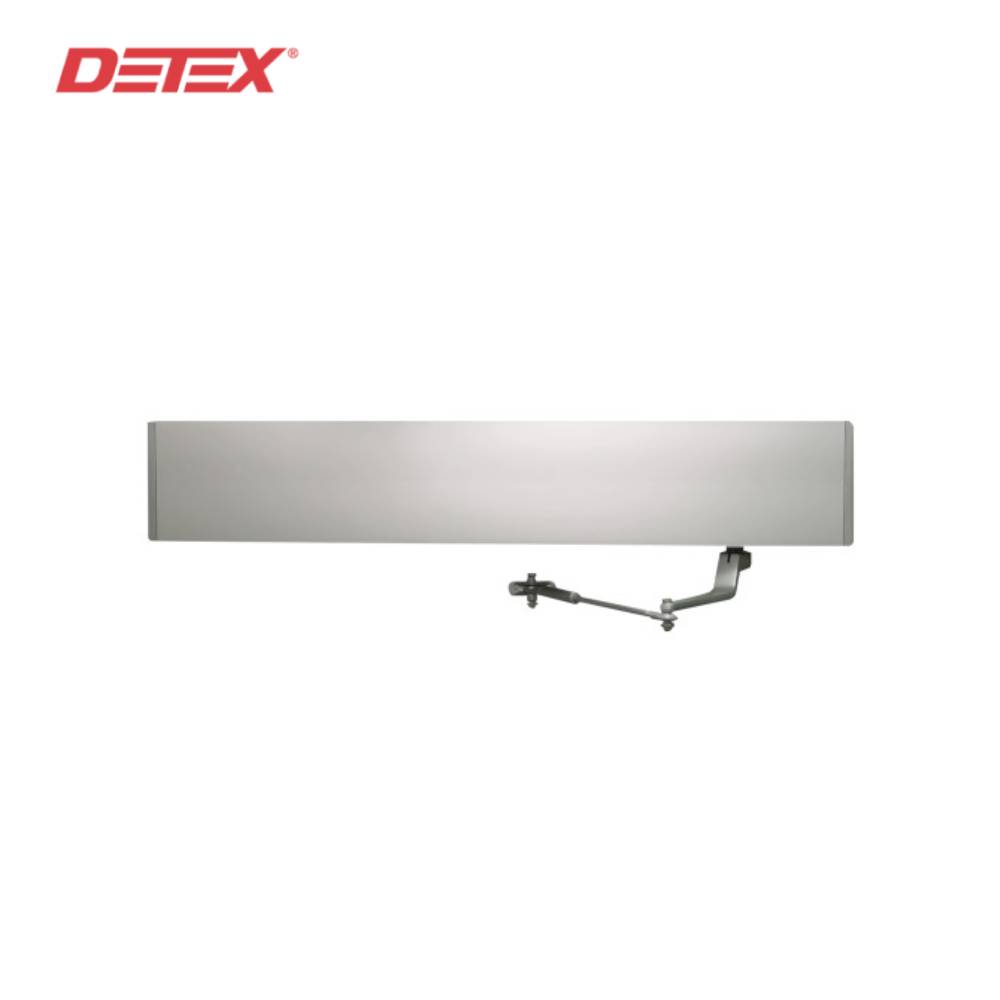

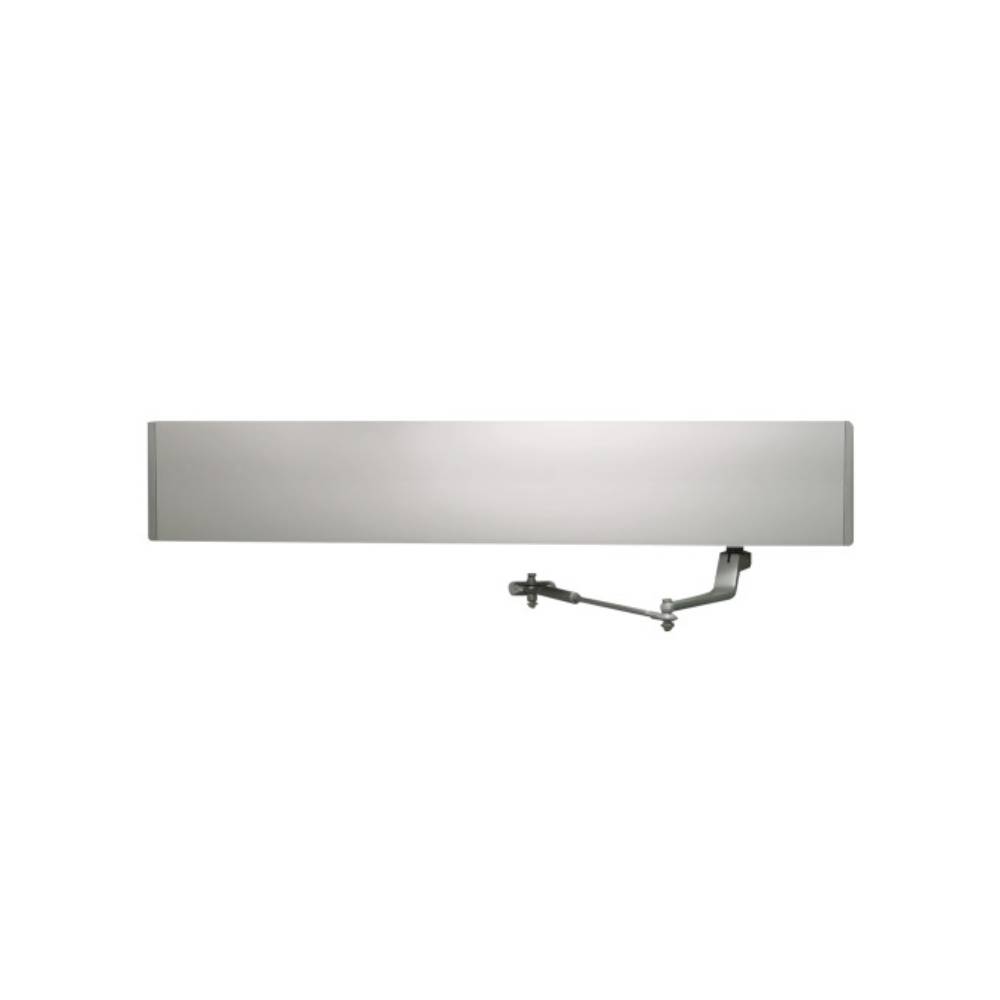

Detex - AO19-1xRH PUSH 45.5 AL - Low Energy Swing Door Operator Single Door Right Hand Push
The Detex AO19-1XRH-PUSH (single Right Hand Push), AO19 Series, Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy application. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.
Features:
- Economical operator provides safe and easy access in medium to high-traffic and security areas
- Provides ADA compliant access to handicap applications
- Quiet operation
- 115VAC power plug-in mounted in header
- Hanger plate allows quick installation
- Self-contained unit in an extruded case allows easy access for maintenance and adjustments
- Works with existing access control, locking and computer signal devices
- Reduced service calls due to heavy duty construction
- 3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
- Single voltage source required to operate
- Adjustable closing speed
Product Specifications:
| Vendor | Detex |
| Manufacturer | Detex |
| SKU | AO19-1xRH PUSH 45.5 AL |
| UID | DETAO191XRHPUSH455AL |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | EACH |
| ANSI Number | A156.19 |
| BAA Qualified | Yes |
Technical Specifications:
| Type | Surface |
| Technology | Electromechanical |
| Mounting Location | Push Side |
| Mounting Style | Regular |
| Hold Open | Yes |
| Hold Open Type | Electric |
| Arm Type | Double Lever Arm Regular |
| Hand | RH |
| Back Check | Yes |
| Delay | Yes |
| Cover | Metal |
| Door Size | 42" Single Door |
| Reveal Size | 11" Maximum |
| Voltage | 115V |
| Relay | Form C |
| Physically Handicapped | Yes |
| Product Type | Door Operators |
