Detex - 11-800 - Controller System - 120VAC/24VDC - 24 Point Terminal Strip and Flip-Down Tray

Detex - 11-800 - Controller System - 120VAC/24VDC - 24 Point Terminal Strip and Flip-Down Tray

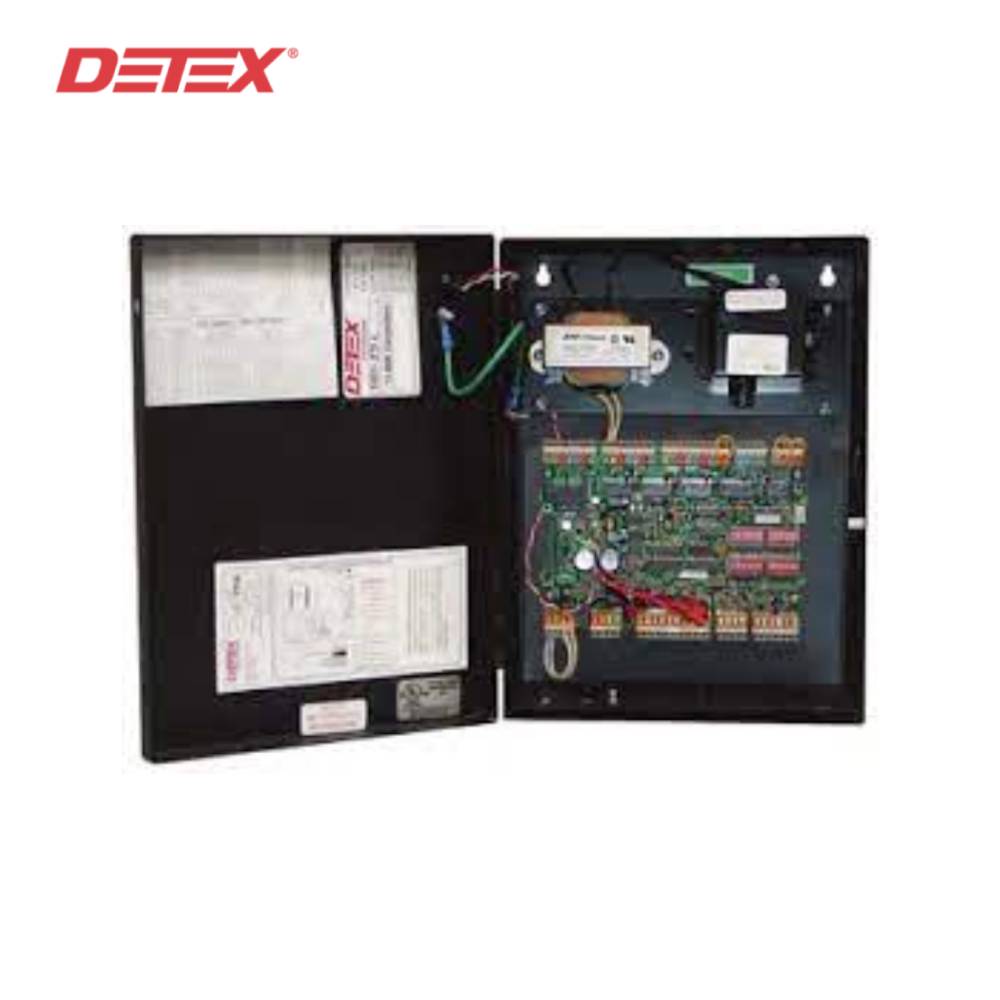

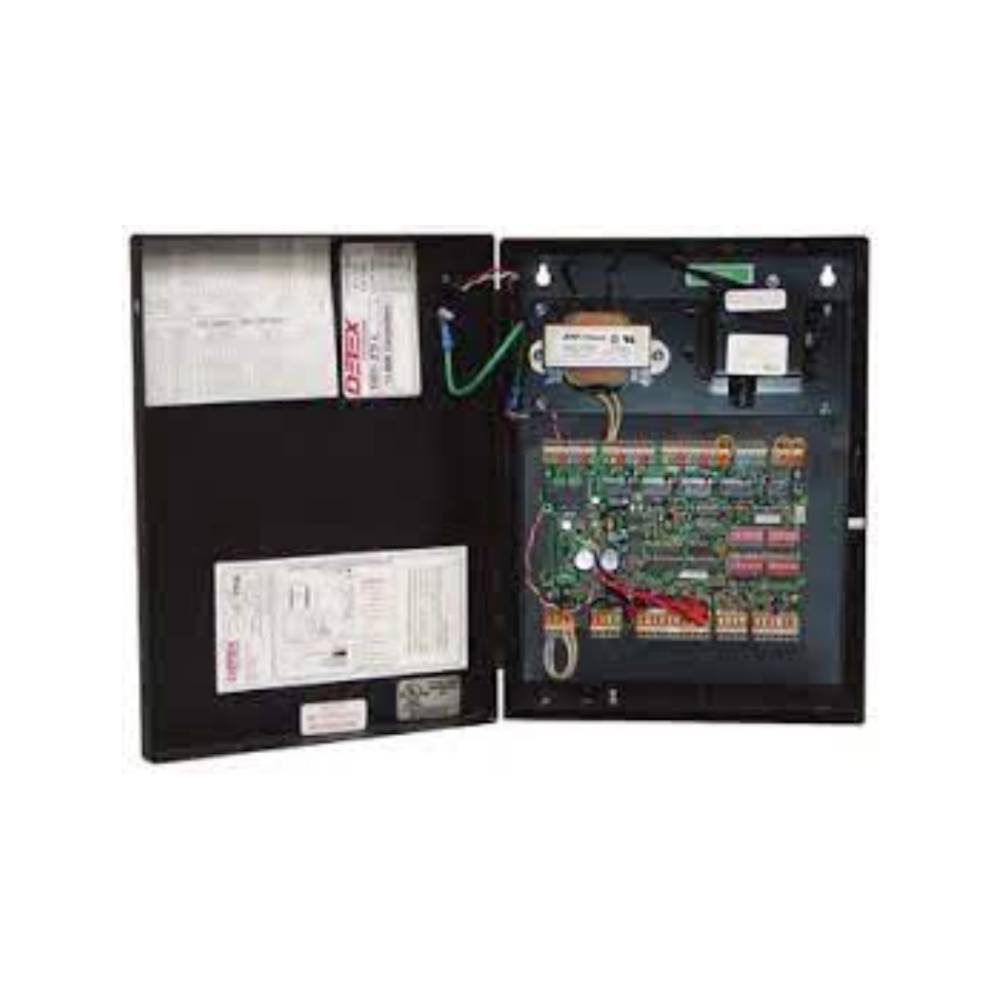

The Detex 11-800 are universal logic and power supply controllers that allow for total controlover all electrified hardware. The controller receives input from a switch, access control or any dry contact device and processes it into the desired output. One controller can manage applications for up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or remote signaling are contained in one box. The 11-800 logic controllers provide at least 2A of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an uninterrupted source of power for up to 4 hours (battery sold separately).

Features:

• Power supply and controller all in one box
• Controls up to 2 separate doors for standard egress or 2-door interlock applications
• 1 controller required for each independent delayed egress application
• Output relays for locks, local alarm and remote alarms
• Status LED's toggle on or off for easy troubleshooting
• Central terminal connections provide easy wiring
• Inline fuse protects against power surges
• Designed specifically to support electric locks, access control systems and delayed egress systems
• Single AC line voltage required to activate
• Dual voltage selection (12/24VDC)
• 9VDC, 100mA output terminal tap
• Battery backup circuit - standard

Product Specifications:

Technical Specifications:
