Uniview Tec | SKU: UVT-IPV4B28X

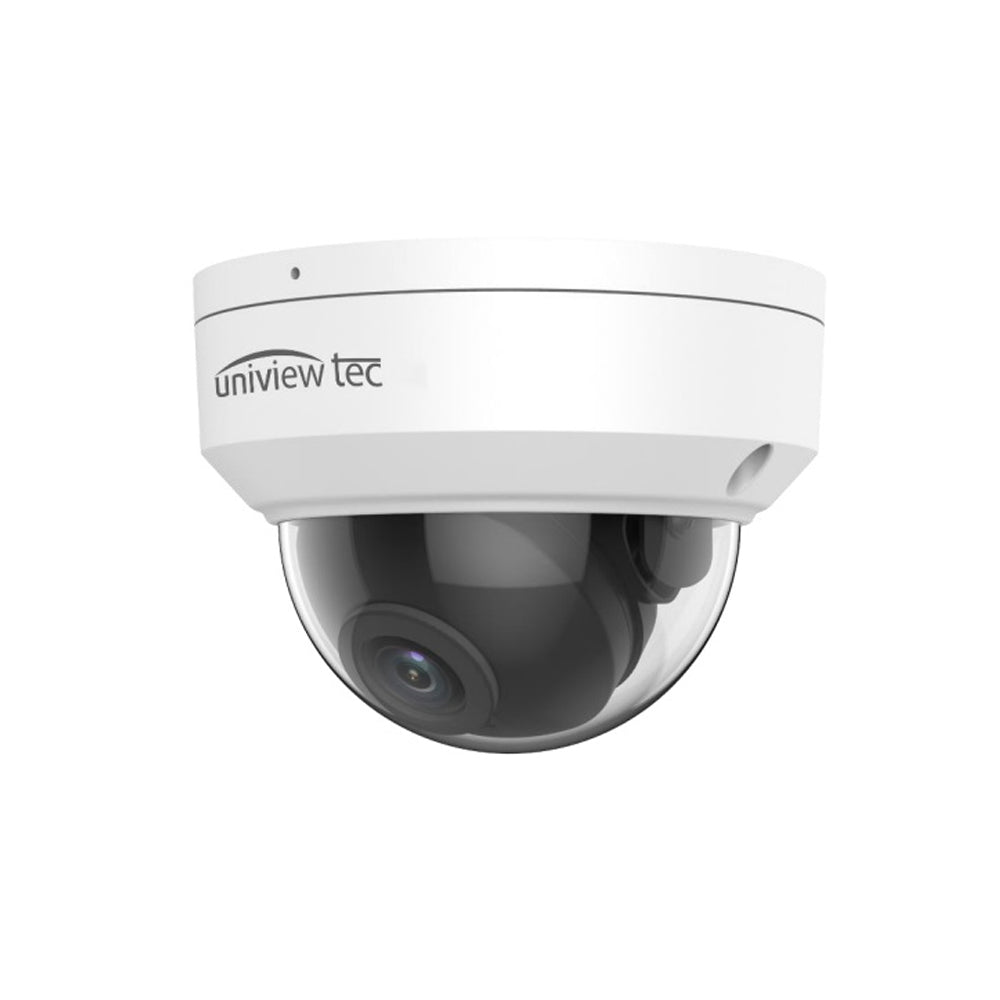

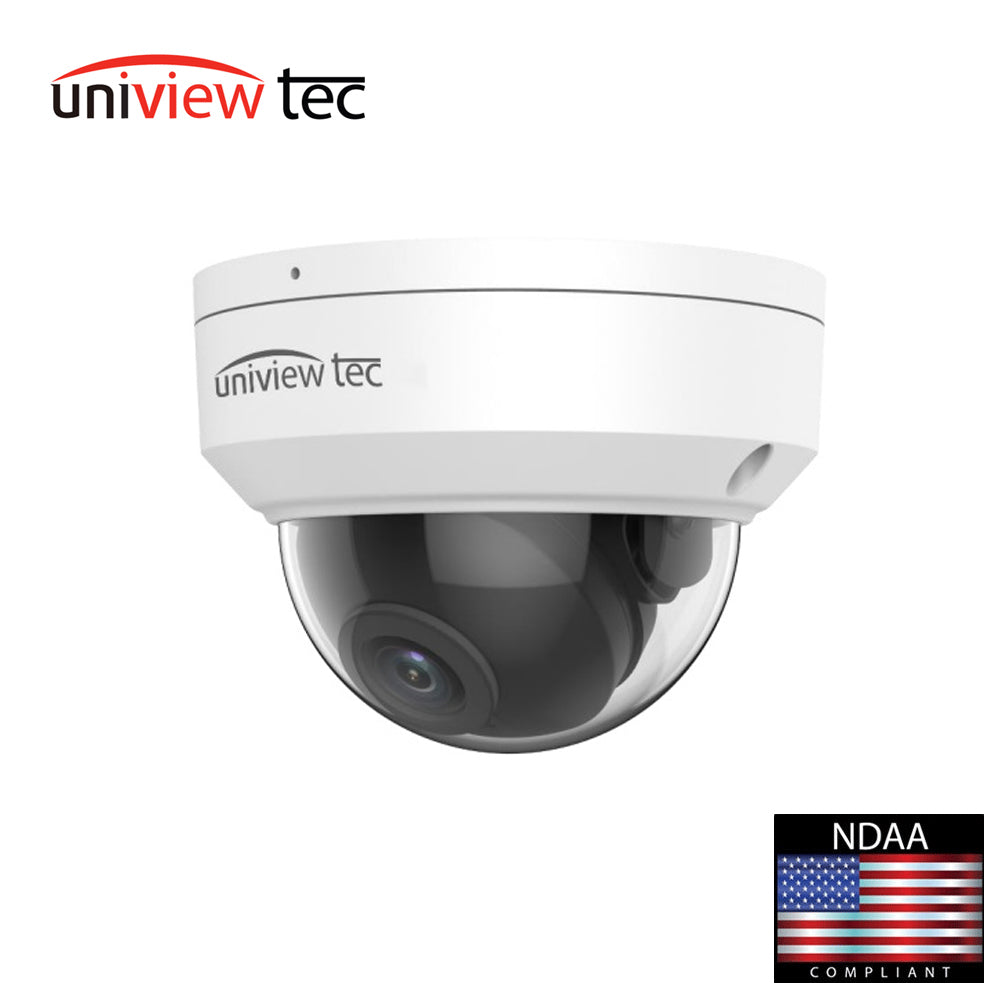

Uniview Tec IPV4B28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night WDR Built-in Microphone

Name: Uniview Tec IPV4B28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night WDR Built-in Microphone
Brand: Uniview Tec
SKU: UVT-IPV4B28X
Price: 239.00 USD
Availability: InStock

$239⁰⁰ ~~$315⁰⁰~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Uniview Tec IPV4B28X IR Vandal Dome Camera 2.8mm 4MP True Day/Night WDR Built-in Microphone

Key Features:

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
2.8mm fixed, wide-angle lens
Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 131 Feet
TRUE Day/Night and WDR functionality for all Lighting Conditions
Backlight Compensation, Defog and 3D DNR (Digital Noise Reduction)
Dual Video Streams; ONVIF Profile S Compliant and built-in Microphone
Built-in Micro-SD Card Slot enables local storage up to 128GB
Intrusion Detection Analytics
3-Way Axis, IP67 Weather Resistant Housing
PoE & 12VDC Power Options
Supported by uniview tec Guard Station Software and Guard Viewer Mobile App's for iPhone and Android Device

Specifications:

Camera

Sensor

1/2.9” 4MP, progressive scan CMOS

Minimum illumination

Color: 0.01 lux (F2.0, AGC ON); 0 lux with IR on

True Day / Night

IR-cut filter with auto switch (ICR)

Shutter

Auto / Manual, 1 ~ 1/100000s

Adjustment angle (3-way Axis)

Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotate: 0° ~ 360°

WDR

120dB

S/N

>52dB

Lens

2.8mm @ F2.0

Iris

Fixed

Field of View (H)

101.5°

Field of View (V)

55.6°

Field of View (D)

111.6°

DORI

DORI Distance

Detect (m)

Observe (m)

25.2

Recognize (m)

12.6

Identify (m)

6.3

Illuminator

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps; 720P (1280 x
720), Max 30fps
Sub Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

U-code

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Dual


White Balance

Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

Digital Noise Reduction

2D / 3D DNR

Smart IR

Supported

Flip

Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise

HLC

Supported

BLC

Supported

Defog

Digital Defog

Intelligent Analytics

Smart intrusion prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Recognition

Face capture

Attribute Collection

Color retrieval

People Counting

Support people flow counting and crowd density monitoring

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Intrusion Events

Basic Detection

Motion detection, Ultra motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP
authentication, user authentication

Storage

Edge Storage

Micro SD, up to 128GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS,
SSL/TLS, SNMP, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

Guard Station, Guard Viewer

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Built-in Mic

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

General

Power

DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 10W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Ø 118 x 96mm ( Ø 4.6 x 3.8”)

Weight

0.30kg (0.66lb)

Material

Metal + Plastic

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Conformity Certifications

IP67, CE, FCC
