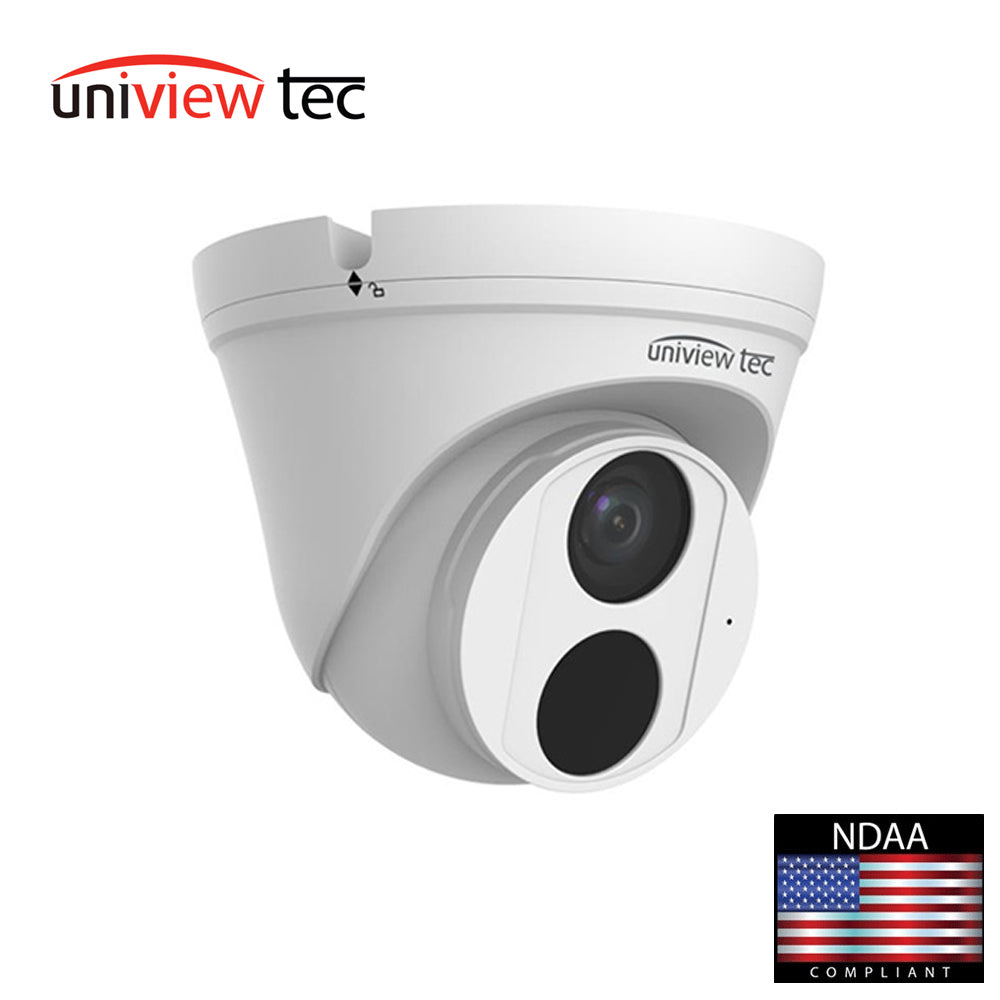

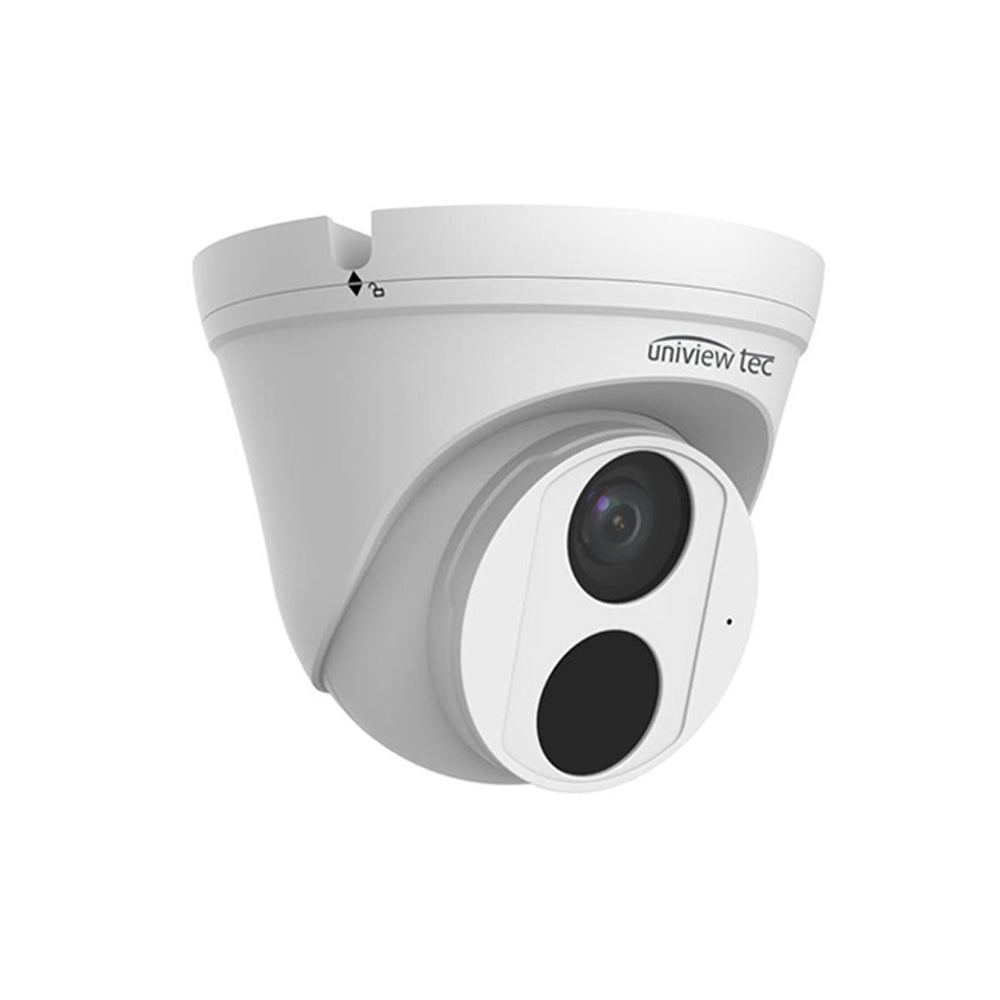

Uniview Tec IPT4ES28X Fixed Lens Turret Camera 4MP True Day/Night WDR AI Smart IR

Uniview Tec IPT4ES28X Fixed Lens Turret Camera 4MP True Day/Night WDR AI Smart IR

Key Features:

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• Easy Star Illumination technology ensures color image up to 0.003 Lux (F1.6, AGC ON)
• Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0Lux Nighttime Operation up to 98 Feet
• 2.8mm Fixed Lens; ONVIF Profile S Compliant
• TRUE Day/Night and WDR functionality for all Lighting Conditions
• Dual Video Streams, Built-in mic, Corridor Mode, Backlight Compensation, and 3D DNR
• Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
• PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
• Built-in Micro-SD Card Slot enables local storage up to 512GB
• 3-Way Axis and IP67 Weather Resistant
• Supported by Uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile Apps for iPhone and Android Devices

Specifications:

Camera

• Max Resolution: 4MP
• Sensor: 1/3.0" CMOS
• Min. Illumination: Color: 0.003 lux (F1.6, AGC ON); 0 Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Shutter: Auto/Manual, 1 ~ 1/100000 s
• Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
• S/N: >52dB
• WDR: 120dB

Lens

• Focal Length: 2.8 mm
• Iris Type: Fixed
• Iris: F1.6
• Field of View (H): 97.0°
• Field of View (V): 52.2°
• Field of View (D): 107.5°

DORI

• DORI Distance(Lens): 2.8mm
• DORI Distance(Detect): 63.0m(206.7ft)
• DORI Distance(Observe): 25.2m(82.7ft)
• DORI Distance(Recognize): 12.6m(41.3ft)
• DORI Distance(Identify): 6.3m(20.7ft)

Illuminator

• Supplemental Light: IR
• Illumination Distance(IR): 30 m (98.4 ft)
• Wavelength: 850 nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: H.265; H.264; MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate: Main: 4MP (2688*1520) @25fps; 4MP (2560*1440) @25fps; 3MP (2304*1296) @30fps; 1080P (1920*1080) @30fps; 720P (1280*720) @30fps; Sub: 720P (1280*720) @25fps; D1 (720*576) @30fps; 640*360 @30fps
• Video Bit Rate: 128 Kbps ~ 6144 Kbps
• U-code: Support
• OSD, Privacy Mask: Up to 4
• ROI: Support
• Video Stream: Dual Streams


• White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90° Clockwise; 90° Anti-Clockwise
• De-warping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Events

• Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
• General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication

Audio

• Audio Compression: G.711U; G.711A
• Audio Bitrate: 64 Kbps
• Two-way Audio: N/A
• Suppression: Support
• Sampling Rate: 8 KHz

Storage

• Edge Storage: Micro SD, up to 512 GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
• Client: Guard Live, Guard Viewer, Guard Station
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1 x RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
• Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
• Protection: IP67 (IEC 60529)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af); Max 4.4W
• Power Interface: Ø 5.5 mm coaxial power plug
• Dimensions: Φ118 x 95mm (Φ4.6” x 3.8”) (Ø x H)
• Protection: IP67 (IEC 60529)
• Weight: 0.32kg (0.71lb)
• Material: Metal + Plastic
• Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
