Uniview Tec | SKU: UVT-KNR82T64

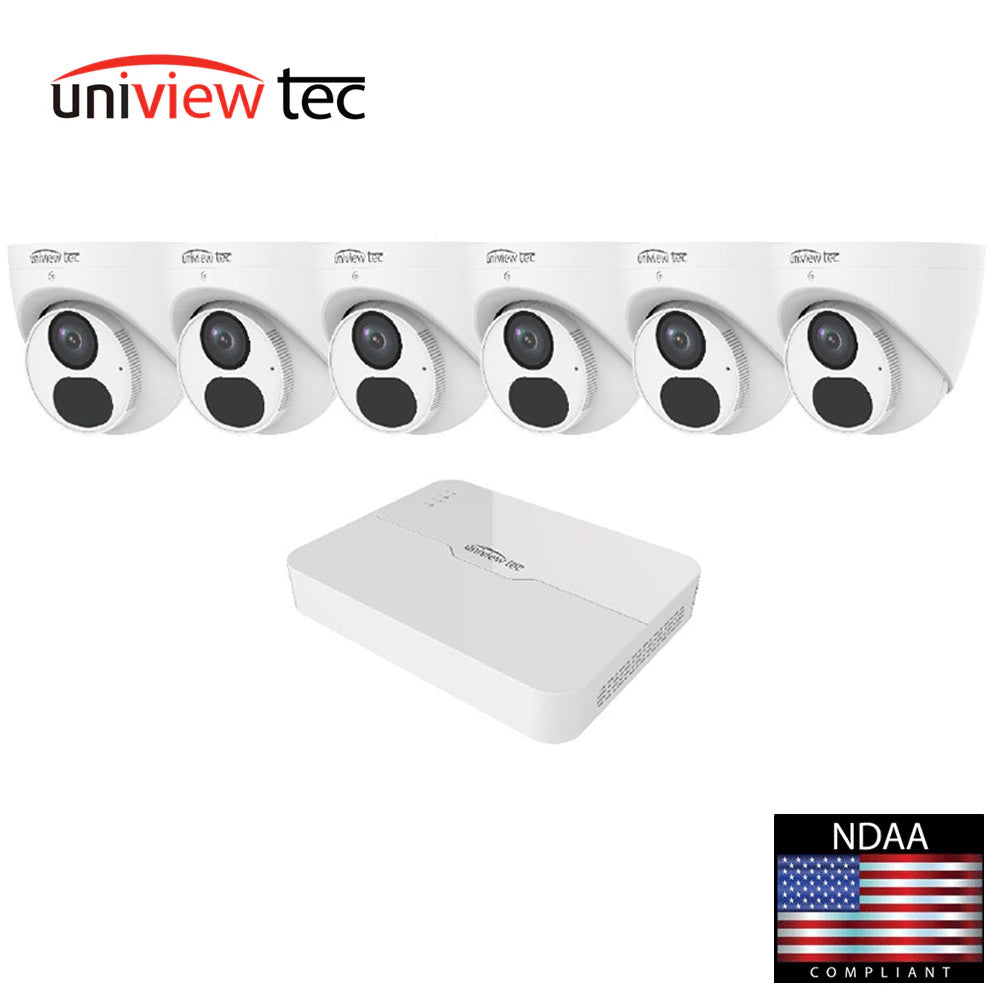

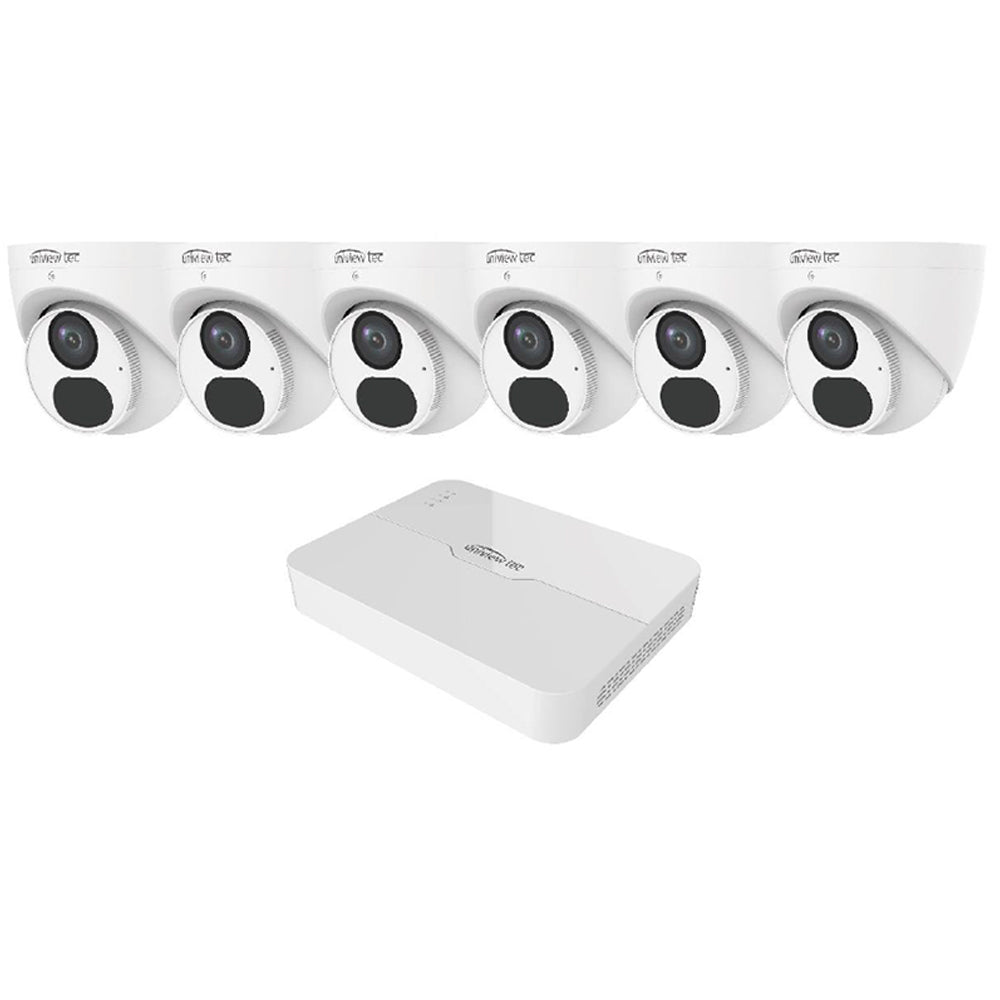

Uniview Tec KNR82T64 4MP Turret Camera with 8 Channels and 8 PoE NVR KIT

Name: Uniview Tec KNR82T64 4MP Turret Camera with 8 Channels and 8 PoE NVR KIT
Brand: Uniview Tec
SKU: UVT-KNR82T64
Price: 803.00 USD
Availability: InStock

$803⁰⁰ ~~$1,089⁰⁰~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Uniview Tec KNR82T64 4MP Turret Camera with 8 Channels and 8 PoE NVR KIT

Key Features:

Kit Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
Includes 8ch network recorder NR081XP, 1 SATA HDD and Embedded PoE Switch
Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Includes 6 x IPT4B28X Turret Cameras, 4MP, 2.8mm fixed lens, IR LED Lights
Dual Video Streams, True Day/Night, WDR, Defog, 3D DNR
Micro-SD Card slot, ONVIF Profile S, Built-In Microphone
Intrusion Detection Analytics, PoE and 12VDC Power Options
3-Way Axis, IP67 Weather Resistant Housing, with optional mounts available

Specifications:

Camera

Sensor

1/2.9” 4MP, progressive scan CMOS

Minimum illumination

Color: 0.01 lux (F2.0, AGC ON); 0 lux with IR on

True Day / Night

IR-cut filter with auto switch (ICR)

Shutter

Auto / Manual, 1 ~ 1/100000s

Adjustment angle (3-way Axis)

Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotate: 0° ~ 360°

WDR

120dB

S/N

>52dB

Lens

2.8mm @ F2.0

Iris

Fixed

Field of View (H)

101.5°

Field of View (V)

55.6°

Field of View (O)

111.6°

DORI

DORI Distance

Detect (m)

Observe (m)

25.2

Recognize (m)

12.6

Identify (m)

6.3

Illuminator

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps; 720P (1280 x
720), Max 30fps
Sub Stream: D1 (720 x 576), Max 30fps; 640 x 360, Max 30fps; 2CIF (704 x 288), Max 30fps; CIF (352 x 288), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

Video Stream

Dual


White Balance

Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

Digital Noise Reduction

2D / 3D DNR

Smart IR

Supported

Flip

Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise

HLC

Supported/td>

BLC

Supported

Defog

Digital Defog

Intrusion Events

Basic Detection

Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP
authentication, user authentication

Storage

Edge Storage

Micro SD, up to 128GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS,
SSL/TLS, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

Guard Station, Guard Viewer

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Built-in Mic

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

General

Power

DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 4W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø × H)

Ø 118 x 96mm ( Ø 4.6 x 3.8”)

Weight

0.30kg (0.66lb)

Material

Metal + Plastic

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Conformity Certifications

IP67, CE, FCC

NVR

Video & Audio Inputs

IP Video Input

8-ch

Audio Input

1-ch, RCA

Video & Audio Outputs

VGA Output

1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024
x 768 / 60Hz

HDMI Output

3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280
x 720 / 60Hz, 1024 x 768 / 60Hz

Audio Output

1-ch, RCA

Audio Compression

G.711A, G.711U

Synchronous Playback

Live view display

1 / 4 / 6 / 8 / 9

Network

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Supported Browsers

IE(IE10/11) for Windows;
Firefox (version 52.0 and above) for Windows;
Chrome(version 45 and above) for Windows;
Edge(version 79 and above) for Windows

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot, up to D1 resolution

Decoding

Decoding format

Ultra 265 / H.265 / H.264

Live view/Playback

8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

Capability

Ultra 265 /H.265: 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30, 16 x 1080p @ 30
H.264: 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @ 30, 14 x 1080p @ 30

Hard Disk Drives

SATA

1 SATA Interface

Capacity

Up to 8TB for each HDD

System Alarm

General Alarm

Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal/td>

Smart Features

VCA Detection by Camera

Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene
Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection)

VCA Search

Face Search, Behavior Search, People Counting Report

People counting

People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention (SIP), Face Detection, UMD by Camera

8-ch

External Interface

Network Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB3.0, 1 x USB2.0

PoE

Interface

8 x RJ-45 10M/100M self-adaptive Ethernet Interface

Max Power

Max 30W for single port
Max 75W in total

Supported Standard

IEEE 802.3af/at

General

Power Supply

52V DC / 1.8A; Power Consumption: ≤ 10W (without HDD)

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions (W × D × H)

205 × 212 × 46mm (8.1 × 8.3 × 1.8")

Weight ( without HDD )

≤ 0.98Kg (2.16lb)

General

Certifications

FCC, CE (UL – Power Supply only)
