Camden - CX-93M12LS - Mortise Mount - Shear Lock - with Lock Sensor...
Description
Description

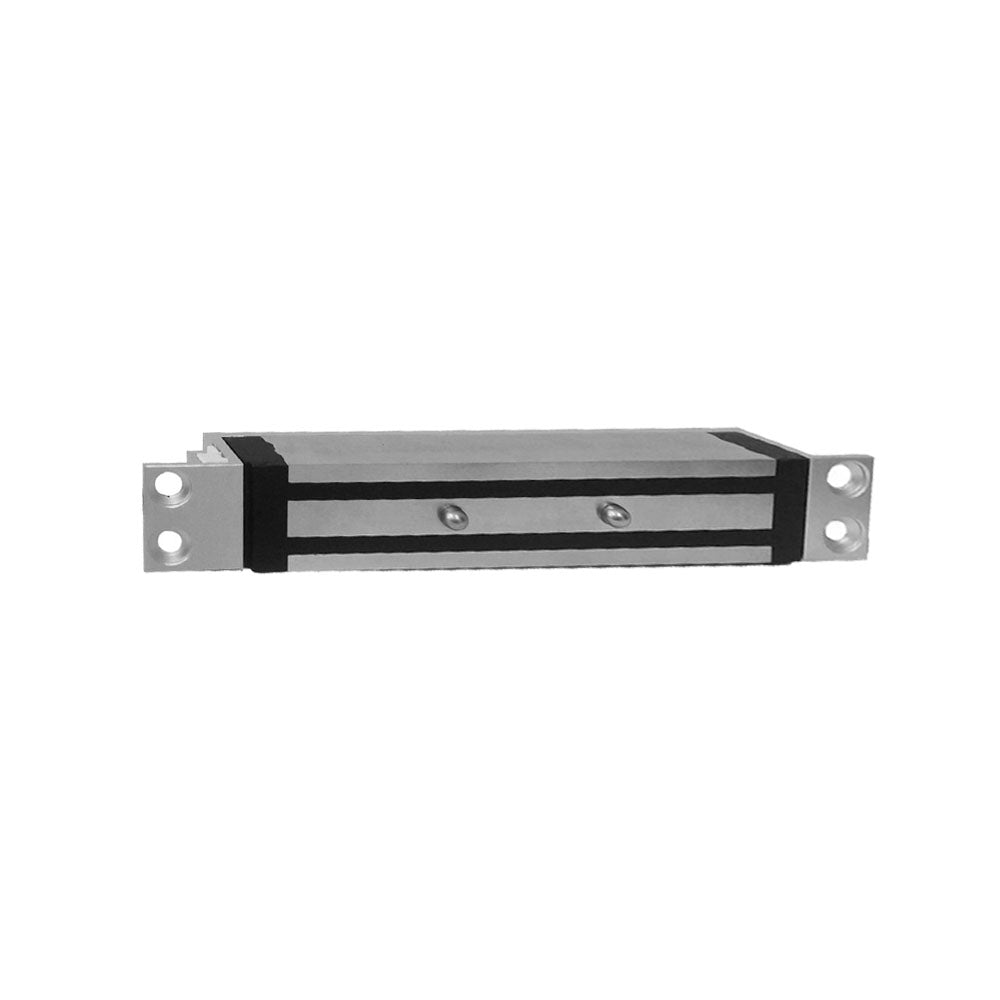

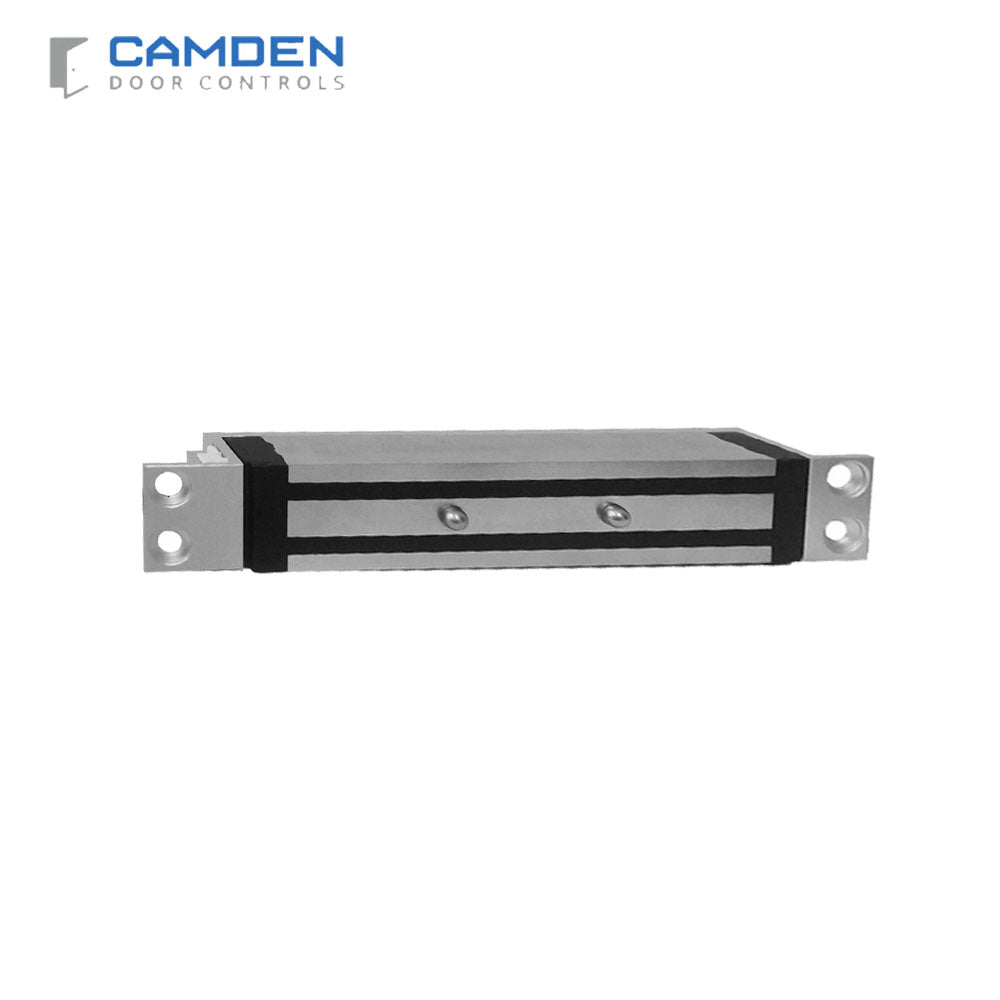

Camden - CX-93M12LS - Mortise Mount - Shear Lock - with Lock Sensor Relay and Timer
CX-93M-12LS has a rugged and compact design, 1,200 lbs. holding force, door monitor contact, and selectable 3 to 12 second timer.
Features:
- Holding Force: 1,200 Lbs. (545 kg.)
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- Built-in door monitor sensor and relay output, 0.5 Amp. @ 28 VDC
- Selectable 3, 6, 9 and 12 second timer
Specification:
| Voltage | 12/24 VDC |
| Current Draw | 310 mA @ 12 VDC 180 mA @ 24 VDC |
| Temp Range | 14°F to 122°F (-10°C to 50°C) |
| Contact Rating | Bond Sensor: 0.5 A @ 28 VDC |
| Time Delay | electable 3, 6, 9 and 12 Seconds |
| Temp Operating Range | -4°F to 122°F (-20°C to +50°C) |
| Dimensions |
Lock: 1-3/8"H x 7-1/4"W x 1"D (35mm x 184mm x 25mm) Control Board: 2-1/2"H x 1-1/16"W (61mm x 27mm) |
