Camden CX-92S-12 Double Door Magnetic Lock 600 lb Holding Force -12...
Description
Description

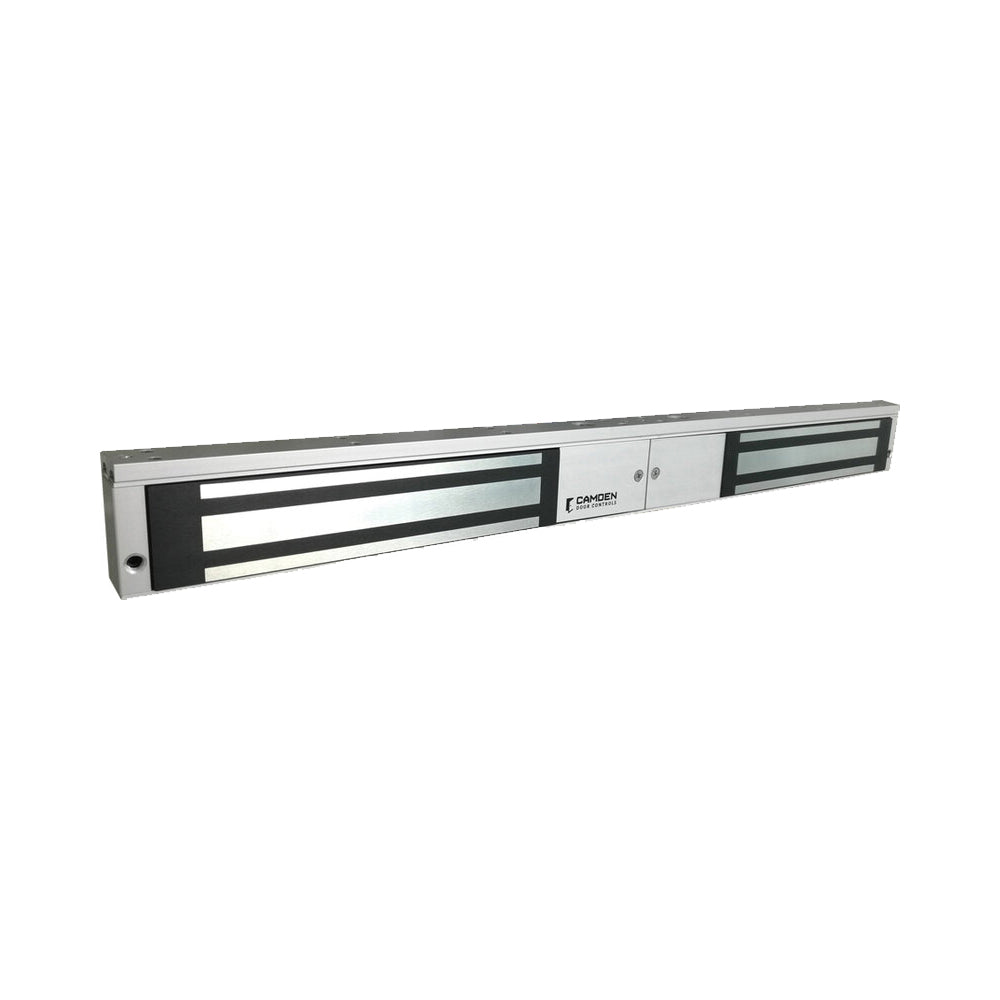

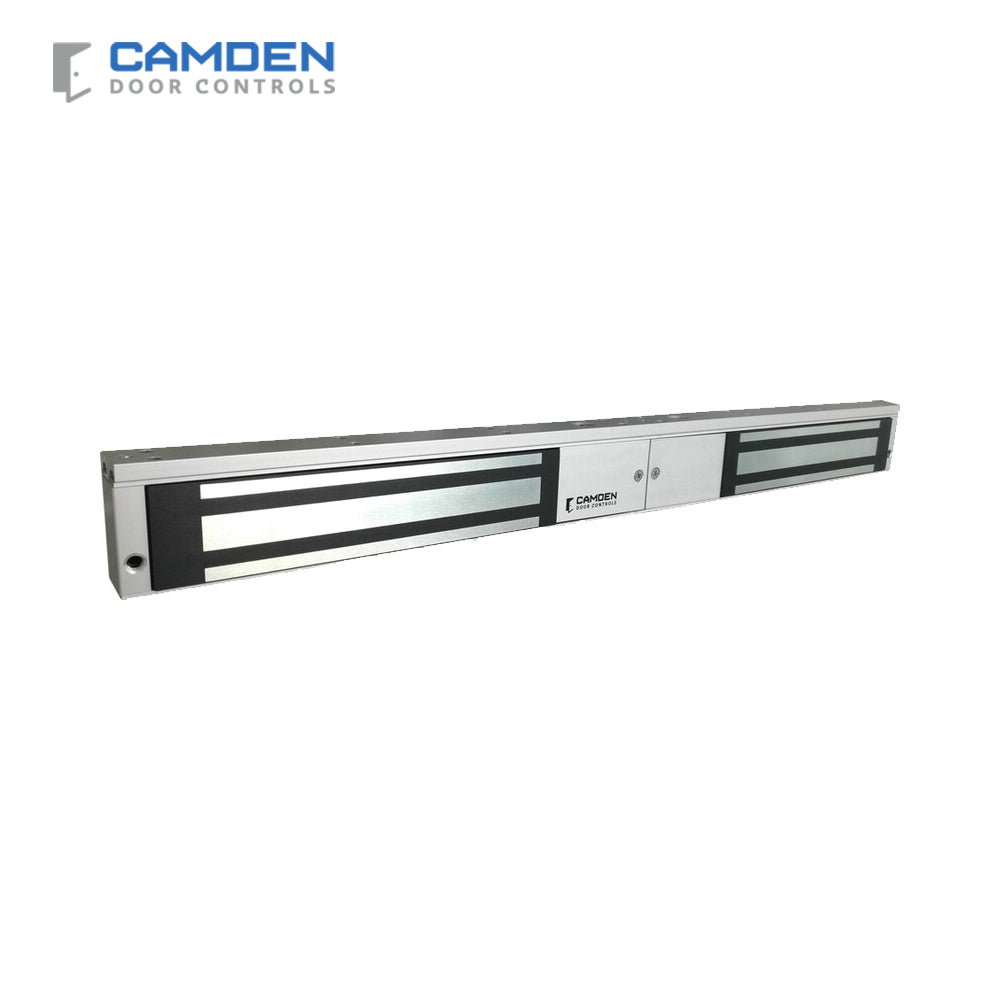

Camden CX-92S-12 Double Door Magnetic Lock 600 lb Holding Force -12/24 VDC
The Camden CX-92S-06 double door magnetic lock with a 600 pound holding force offers the best performance and value. There are models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.
Features:
- 600 and 1,200 Lb. models are UL and ULC listed
- Weather and vandal resistant constuction proven over thousands of installations
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime warranty
Specifications:
| Voltage: | 12/24 VDC |
| Current Draw: | 2 x 500 mA @ 12 VDC 2 x 250 mA @ 24 VDC |
| Temp Range: | 5°F to 122°F (-15°C to 50°C) |
| Contact Rating: | TDS Models Only Bond Sensor: 1 A @ 30 VDC Door Status Switch: 0.5A @ 30V AC/DC |
| Time Delay: | TDS Models Only: 0 to 30 Seconds |
| Dimensions: | CX-92S-06: 19-5/8" x 1-7/8" x 11/16" (498m x 48mm x 17mm) CX-92S-12: 21" x 2-7/8" x 1-7/8" (533mm x 73mm x 48mm) Armature Plate: 600 Lbs.: 2 x 7-15/16" x 2-3/16" x 5/8" 2 x (202mm x 56mm x 16mm) 1,200 Lbs.: 2 x 7-15/16" x 3" x 5/8" 2 x (202mm x 76mm x 16mm) |
Specification Sheets:
Manuals:
Reference Guides:
