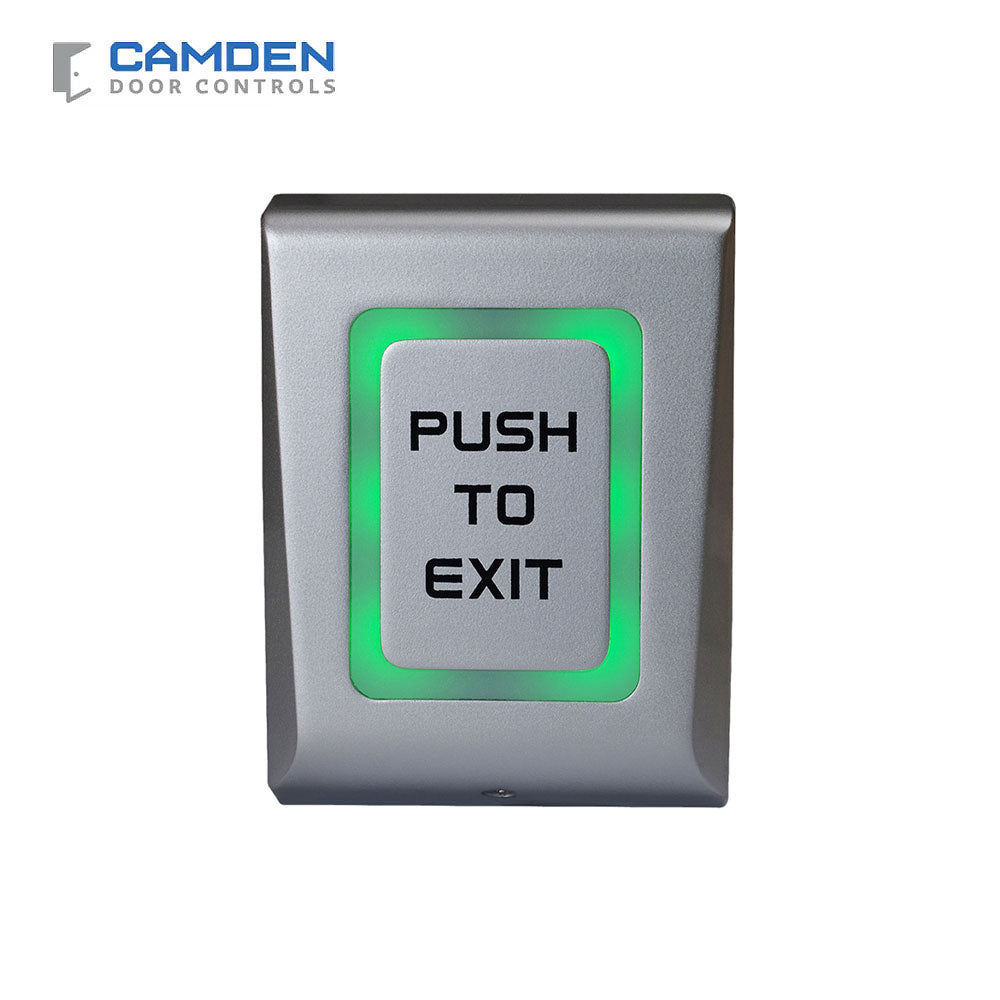

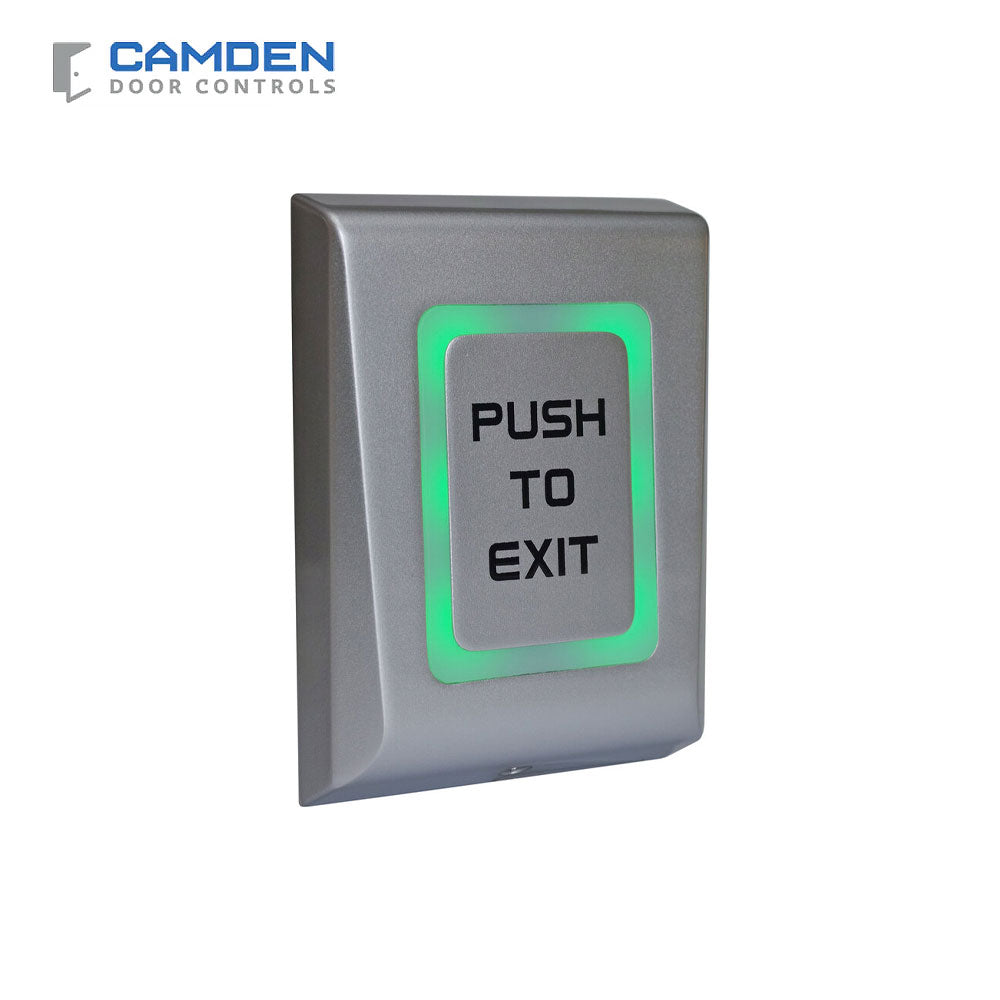

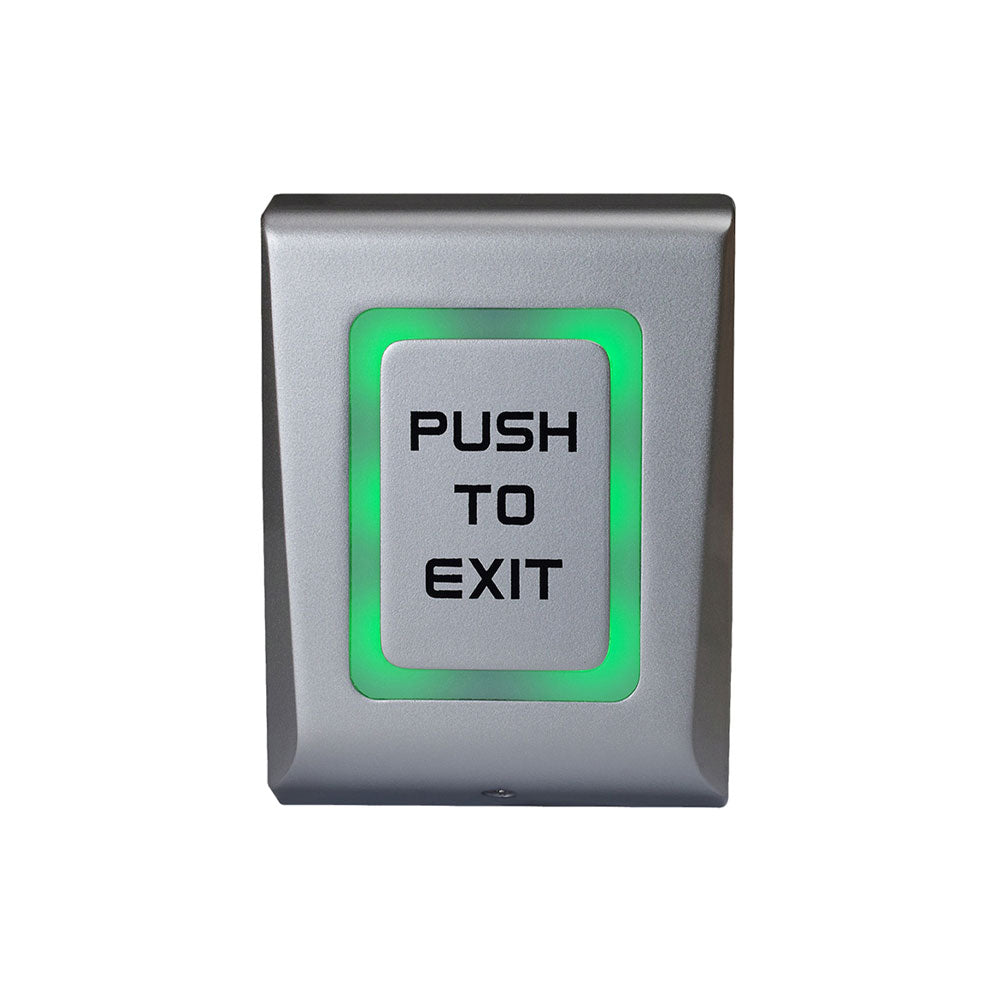

Camden CM-9800/7 Surface Mount LED Illuminated Capacitive Push/Exit Switch
CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status.
The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.
CM-9800 series illuminated capacitive touch switches are designed for use where high visibility and vandal resistance is required. They are ideal for use as ‘Request to Exit’ switches in access control applications, as well as for activation of automatic door operators, where permitted by building code. CM-9800 series switches may also be used for other door control or equipment switching applications.
Features:
- Capacitive 'light touch' technology. No moving parts
- ADA and ROHS Compliant
- Weather and vandal resistant. IP 66 rated
- Large LED Light Ring, RED, GREEN/ORANGE/NONE
- Switch status or door status illumination (External input)
- Hold Open relay timer, selectable 0 to 60 seconds
- Heavy duty Form 'C' relay, rated 2 Amps
- Tamper alarm
- 12/24V, AC/DC
Specifications:
| Input Voltage: | 12/24V, AC/DC |
| Current Draw: | Max.65mA |
| Relay Output: | 2 A @ 24 VDC / 120 VAC |
| Set Relay Time: | 0.5 to 60 Seconds or toggle (ON/OFF) |
| LED Illumination: | Red, Green, Orange |
| LED Control: | Yes, by DIP switch |
| Tamper: | Yes |
| Back Light On/Off: | Yes, by DIP switch |
| Buzzer On/Off: | Yes, by DIP switch |
| Operating Temperature: | -4°F to 122°F (-20°C to 50°C) |
| Housing: | Die-cast aluminum alloy |
| Protection: | IP66 |
| Dimensions: | 4-9/16"H x 3-3/8"W x 13/16"D (116mm x 86mm x 21mm) |
