Camden CM-2020 - Flush Mount SPDT Momentary Key Switch - Cast Alumi...
Description
Description

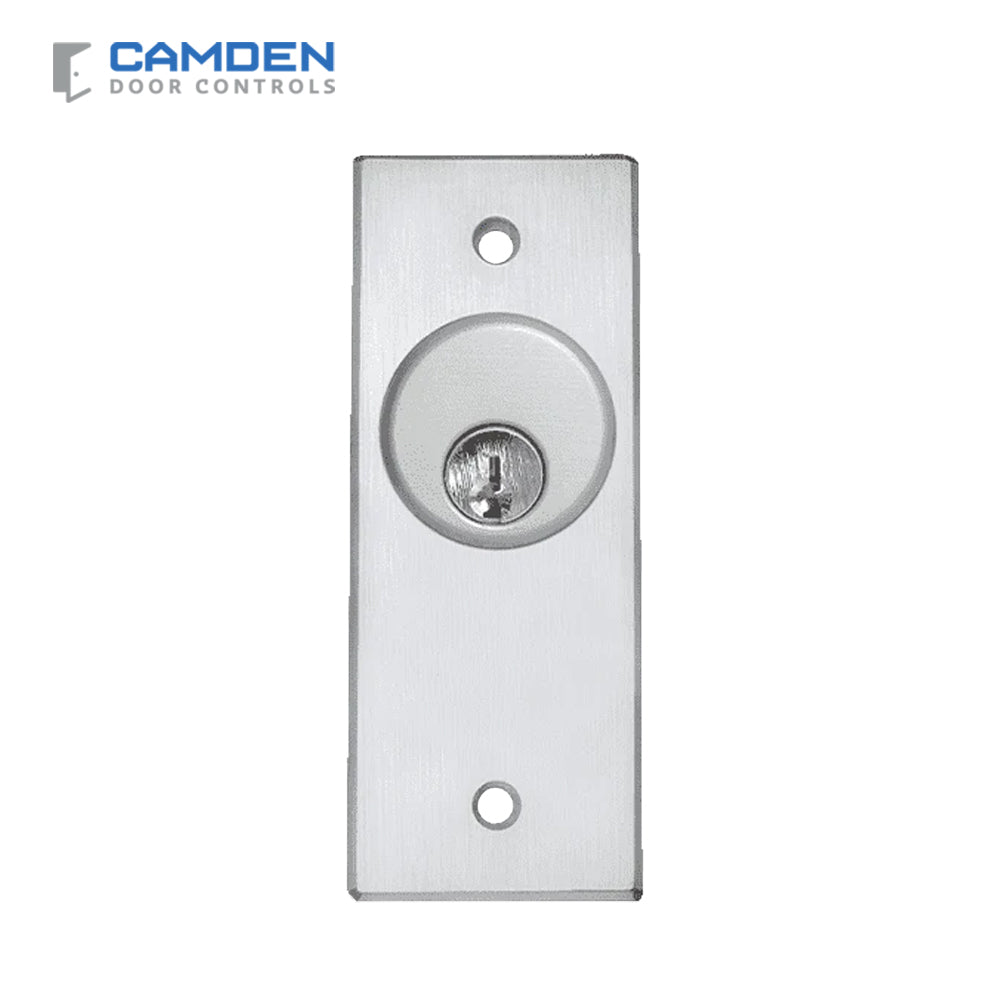

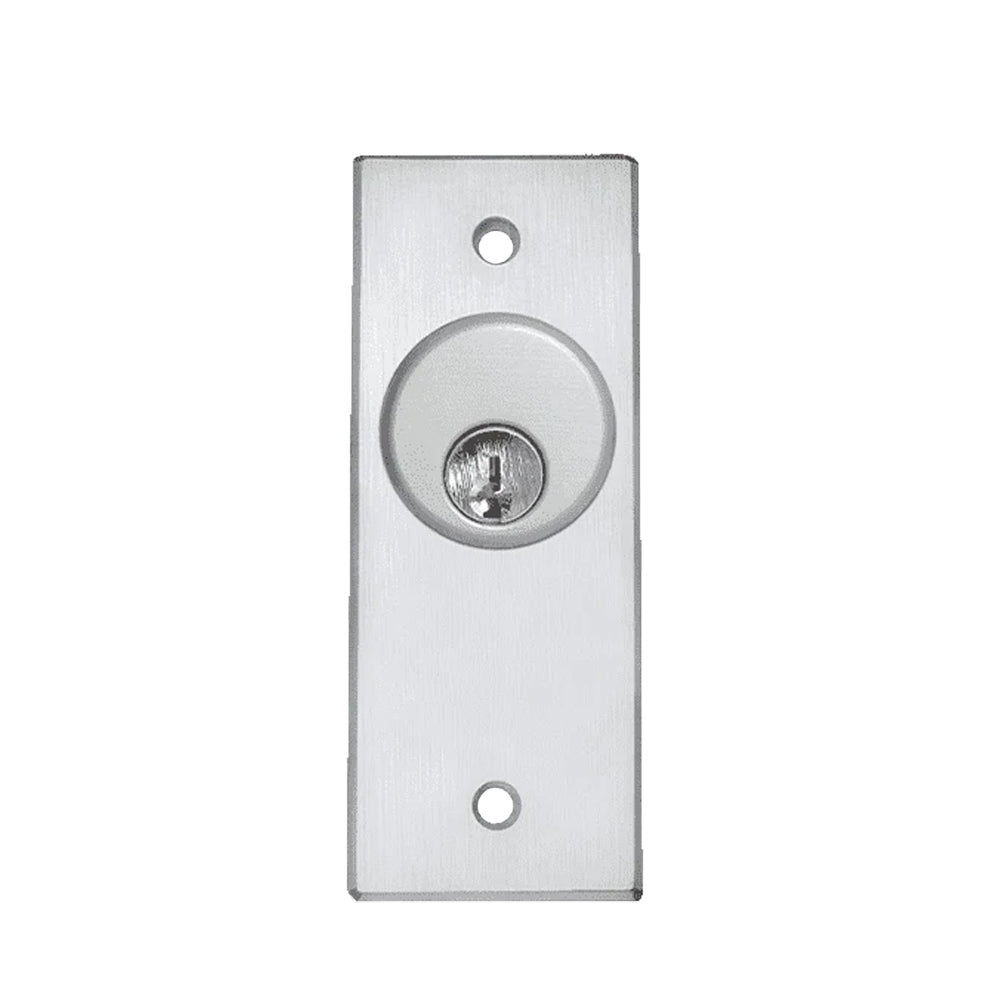

Camden CM-2020 - Flush Mount SPDT Momentary Key Switch - Cast Aluminum Narrow Faceplate
Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately).
Features:
- Indoor or outdoor flush applications
- Accepts standard mortise cylinders (1" - 1-1/4")
- Mullion style - only 1-3/4" wide
- Heavy duty 1/4" thick aluminum plate
- 1 piece die cast construction
- Locators prevent cylinder from spinning
- Cylinder sits flush to faceplate
- Tamper proof screws and driver provided
- No set screw required
- 1 or 2 switches may be installed
- Heat shrink protective sleeve over contacts
Specifications:
| Voltage: | 12/24V AC/DC |
| Contact Rating: | 6 A @ 30 VDC |
| Switch Life: | 100,000 cycles |
| Temp Range: | 32°F to 85°F (0°C to +85°C) |
| Std. Finish: | Brushed Aluminum |
| Dimensions: |
Narrow: 4-1/2" x 1-3/4" x 1-1/2" (114mm x 44m x 42mm) |
