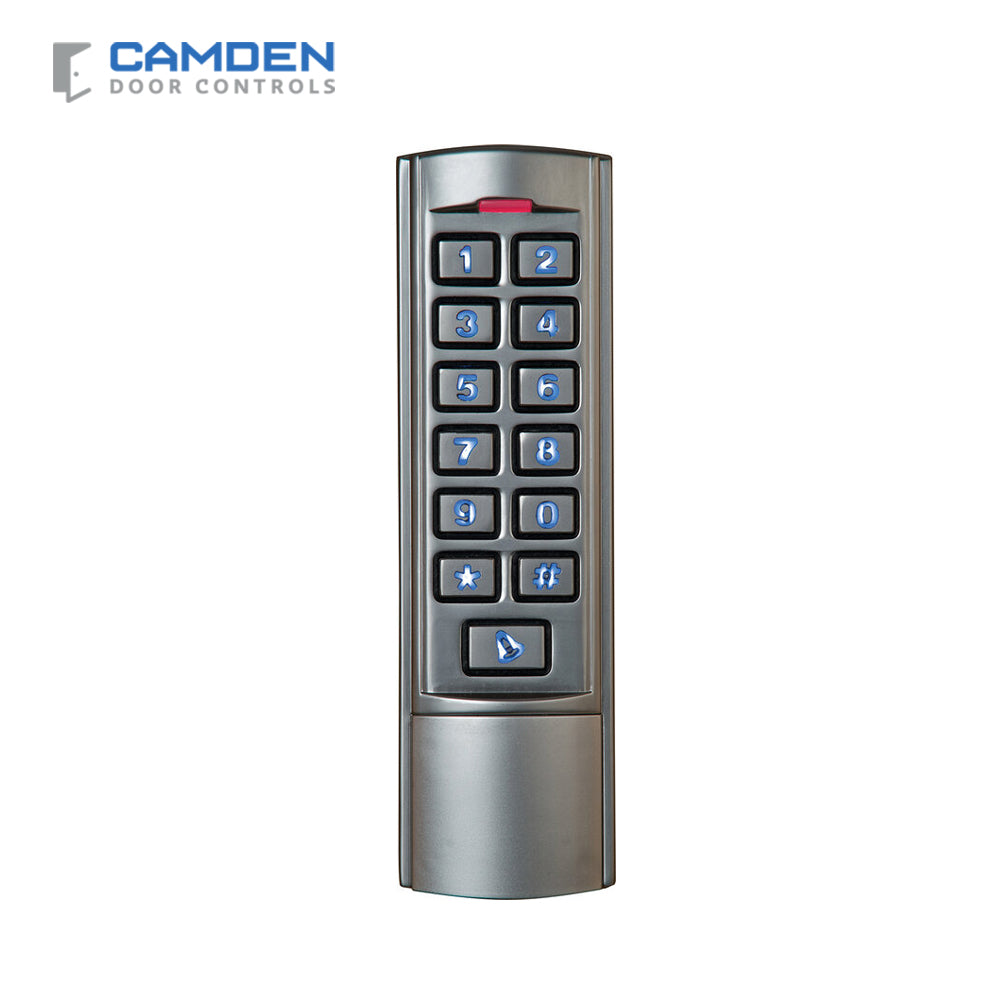

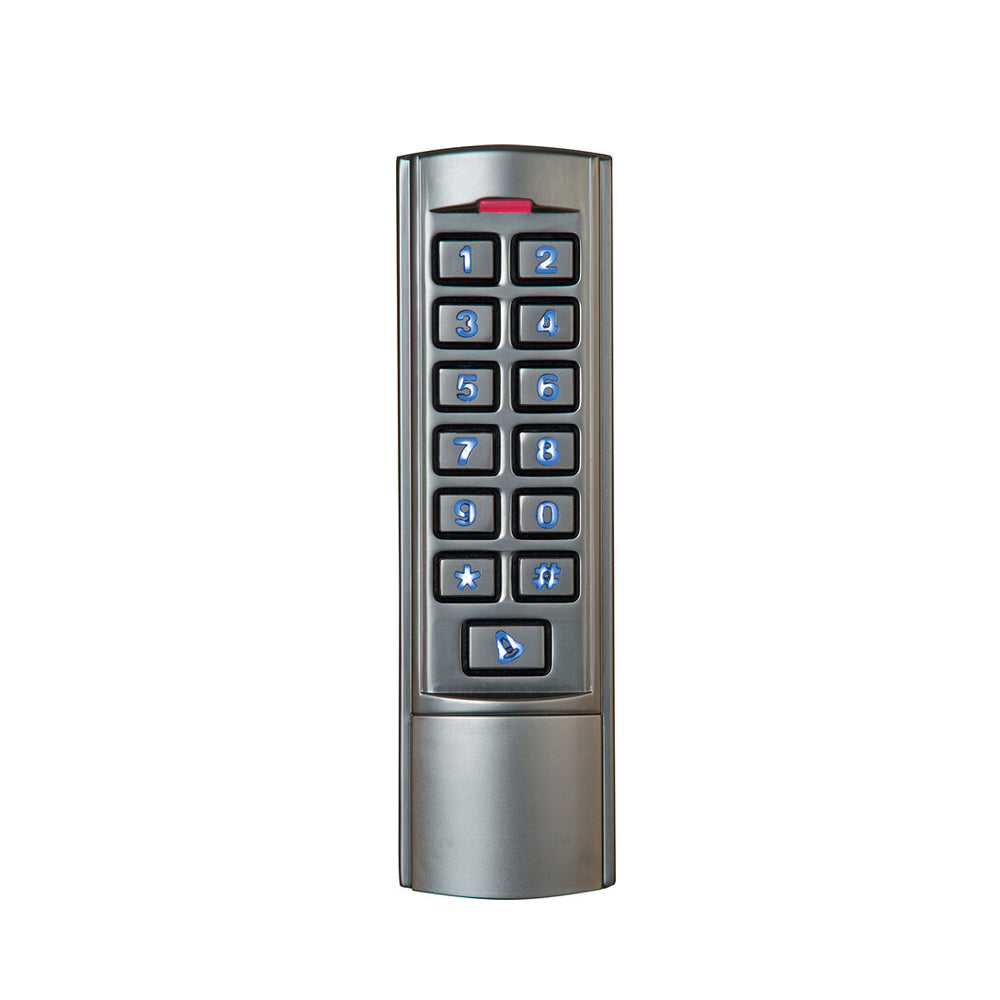

Camden CM-110SK - Slim Line Surface Mount Keypad 2,000 Users Vandal Resistant- 12VDC
Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, 'Request to Exit' inputs, tamper alarm, and support of up to 20,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors, or other electrical devices.
Features:
- Up to 20,000 users
- Backlit vandal resistant keypad
- All metal construction for wall or jamb mounting
- Weather resistant IP68 rated
- Adjustable door delay time
- Adjustable door open time
- Tamper alarm output
- Request to Exit device input
- CM-110SK: 8 bit burst Wiegand Output
- CM-550SK: 4 or 8 bit burst Wiegand Output
- 3 year warranty
Specifications:
| Voltage: |
CM-550SK: 12 VDC +/- 10% CM-110SK:12 VDC |
| Protection: |
CM-110SK: IP68 CM-550SK: IP65 |
| Current Draw: |
CM-110SK: 60 mA CM-550SK: 50 mA |
| Contact Type: |
CM-110SK: (1) Form ‘C’ CM-550SK: (2) Form 'C' |
| Contact Rating: |
CM-110SK: 3 A @ 30 VDC CM-550SK: 2 A @ 30 VDC |
| Wiegand Interface: | CM-110SK:8 bit burst CM-550SK: NA |
| Time Delay: | 0 – 99 seconds |
| Alarm Time: | 0 – 3 minutes |
| Temp Range: |
CM-110SK: -49°F/+140°F (-45°C/+60°C) CM-550SK: -49°F/+113°F (-45°C/+55°C) |
| Dimensions: |
CM-110SK: 6"H x 1-3/4"W x 1"D (152mm x 45mm x 25mm) CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm) |
