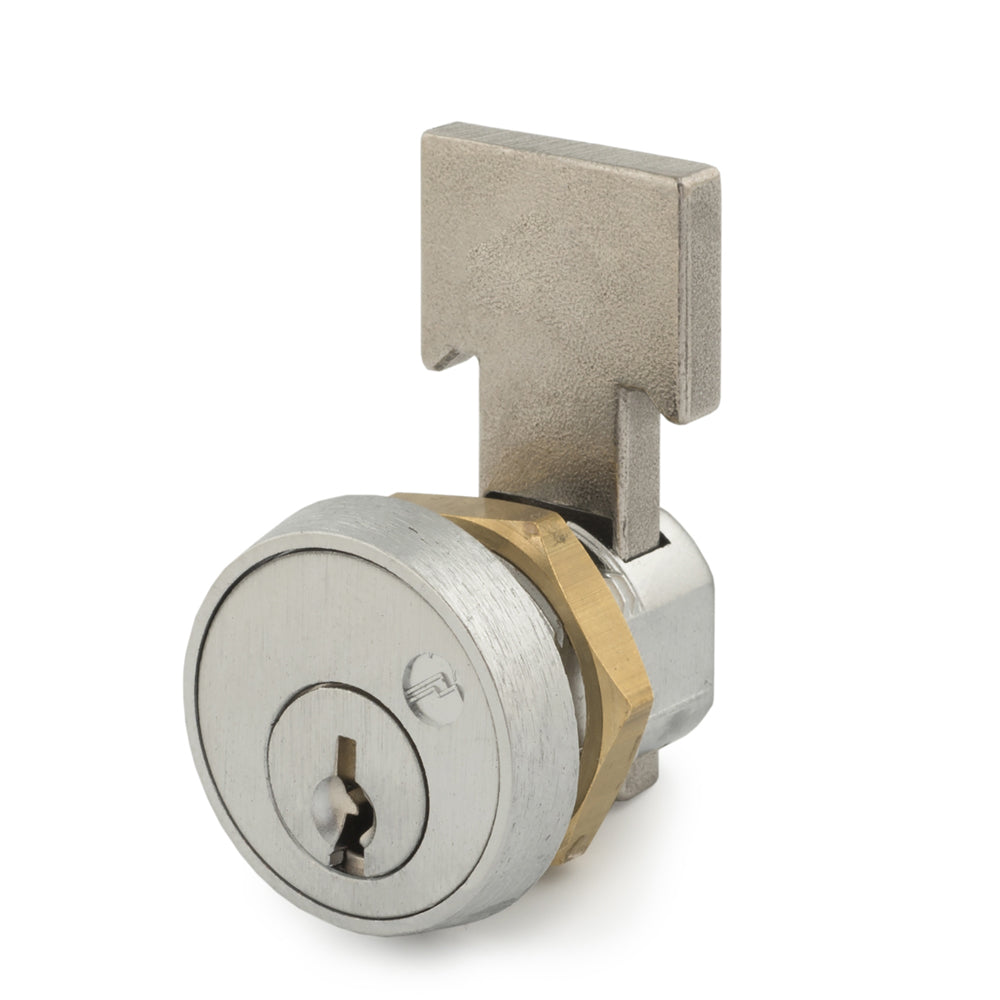

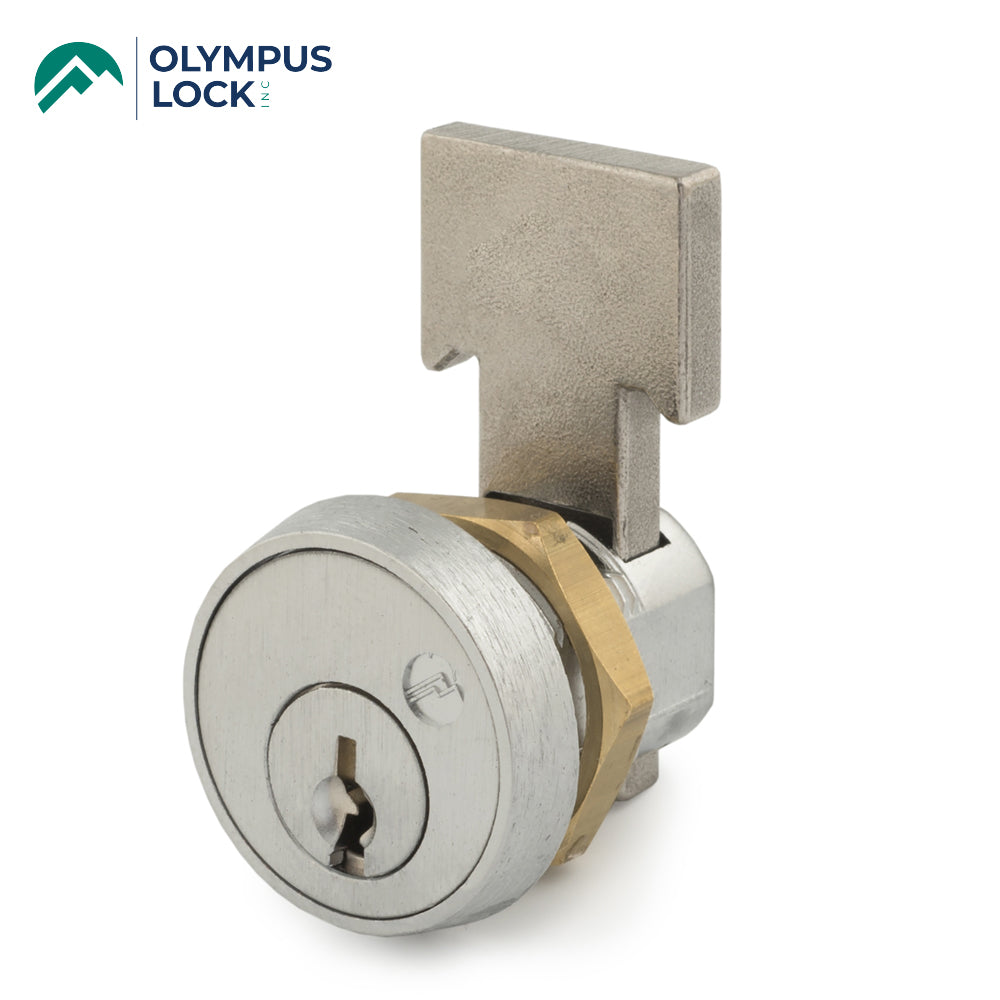

OLYMPUS LOCK - T37 - T-Bolt Metal Bank Drawer Lock - N Series National - 26D - Satin Chrome - KD

OLYMPUS LOCK - T37 - T-Bolt Metal Bank Drawer Lock - N Series National - 26D - Satin Chrome - KD

N Series National Keyway T-Bolt Metal Bank Drawer Lock

The industry’s first easily rekeyable T-bolt lock for metal bank drawers
Directly replaces National C8137. Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.

SPECIFICATIONS

- Function: T-Bolt Metal Bank Drawer Lock
- Cylinder: National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock
- Keyed Alike: No - KD Keyed Differently
- Rekeyable: Working top-slide, cylinder retainer staple and removable bezel ring make rekeying fast and easy. No more need to pry off faceplates and pin retainer clips.
- Retrofits: National C8137
- Body: Zinc die cast
- Bolt: Stainless steel
- Across flats: 5/8”
- Barrel Diameter: 3/4”
- Cylinder length: 19/32”
- For Material: 1/4”
- Mounting: Ships standard with brass fixing nut. The lock comes standard with clip mounting locations for 0” to 11/64” material thicknesses. (Mounting Clip not included... sold separately)
- Functions: Key removable in locked or unlocked position.
- Body: Zinc die cast
- Finish: 26D - Satin Chrome
- Includes: - Brass mounting nut

SPECIAL NOTE ON BOLTS ONLY

The T37 (regular bolt) will not work in the National C8137 lock. However, the C8137 bolts will work in the T37 lock.

Downloads
Spec Sheet / Dimensions
Installation Instruction
Rekeying Instructions
