OLYMPUS LOCK INC | SKU: OLY-100M26D78-101KA

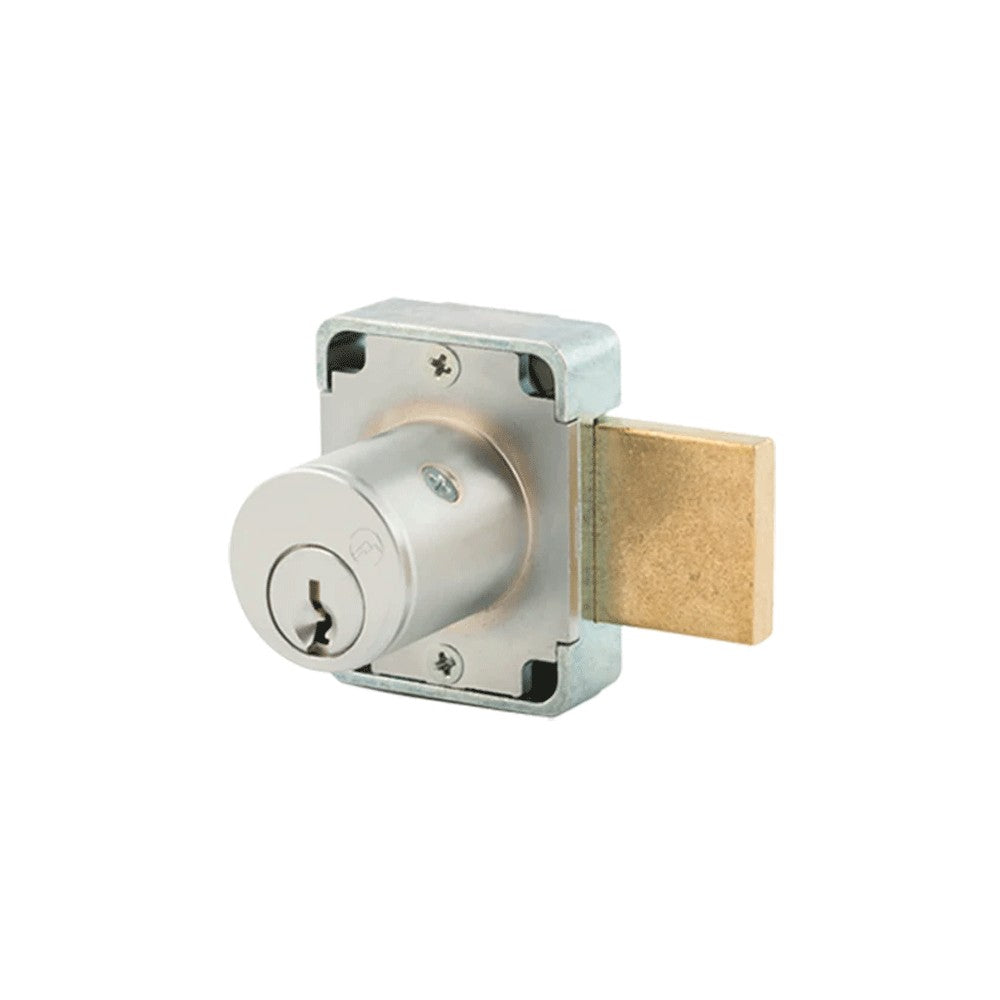

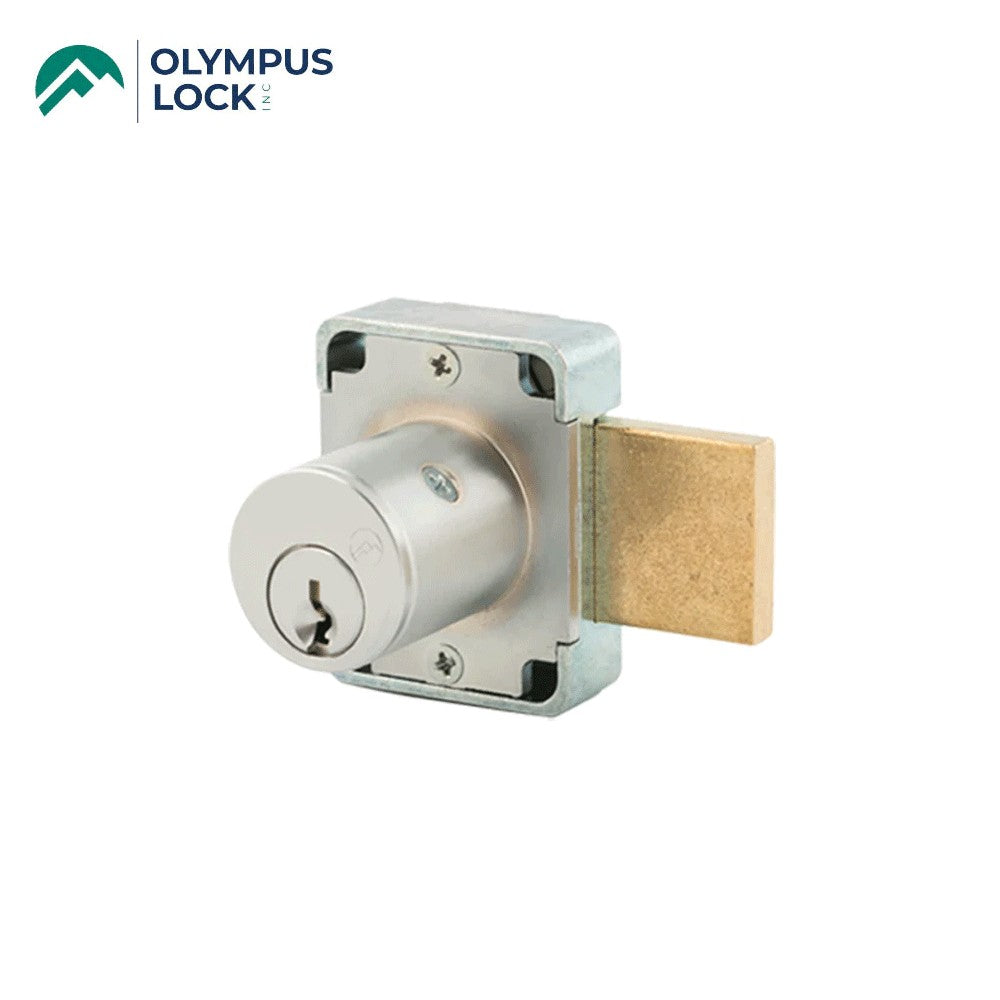

OLYMPUS LOCK - 100M - Non-Magnetic Cabinet Deadbolt Door Lock - MRI Function - N Series - Optional Cylinder Length - Optional Keying - US26D (Satin Chrome-626)

Name: OLYMPUS LOCK - 100M - Non-Magnetic Cabinet Deadbolt Door Lock - MRI Function - N Series - Optional Cylinder Length - Optional Keying - US26D (Satin Chrome-626)
Brand: OLYMPUS LOCK INC
Price: 0.3377 USD
Availability: InStock
Rating: 5 (1 reviews)

$33⁷⁷ ~~$40⁵²~~

Shipping calculated at checkout.

Cylinder Length

Keying

Product variants

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

OLYMPUS LOCK - 100M - Non-Magnetic Cabinet Deadbolt Door Lock - MRI Function - N Series - Optional Cylinder Length - Optional Keying - US26D (Satin Chrome-626)

Feature:

N Series: National Keyway
100M deadbolt door lock
All non-ferrous (non-magnetic) materials and parts
Suitable for use in Magnetic Resonance Imaging suites where all components must have non-magnetic properties
Easily rekeyable via set screw cylinder release mechanism
Solid brass pin tumbler cylinder drilled for 5 pins
(E07041) ANSI/BHMA Grade 1
Barrel lengths: 15/16", 1-3/8" or 1-5/8". Specify barrel length when ordering
Barrel diameter: 7/8"
US26D finish
Includes bar strike 56-1
US Patent Nos: 4,899,563; 4,920,774
1-5/8" barrel length for 3/4" x 3/4" drawer construction

Specification:

Keying: Can be keyed together with other N Series locks
Rekeyable: Easily rekeyable via set screw cylinder release mechanism
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16", 1-3/8" or 1-5/8"
Barrel diameter: 7/8"
Finish: 26D

Keying Information:

Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004*note
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)
Keyblank 5-pin copper plated: KBN-5B (use with 100M/200M MRI locks)

Included Acessories:

100M: 2 keys, 56-1 bar strike, and lock mounting screws (keys, components and materials are nonferrous/non-magnetic)

Optional Accessories:

Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22 (1/4" thick), WP23 (1/2" thick)
Strikes: 07S, 12-1, 12-2, 12-3, 12-5, 12-4, 56-1
Trim ring: TR1256
Through-bolt hardware: ETS2 trim plate, ETS2-PL trim pull and ETST2 template
Long bolt (bolt only): 15-1-35 for use with 100DW/100B/100M locks

MPN: 100M26D78-101
