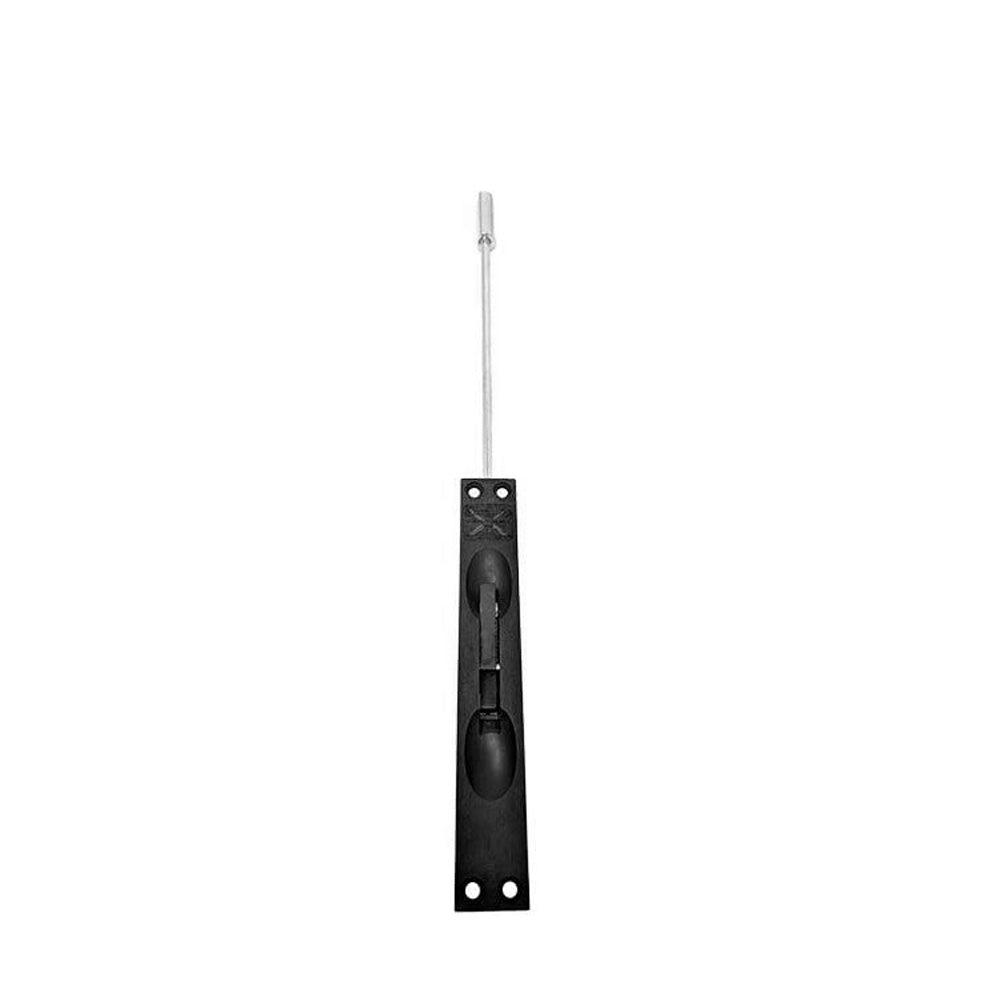

Ives FB458 Single Manual Flushbolt with Metal Doors and Extension Rod

Ives FB458 Single Manual Flushbolt with Metal Doors and Extension Rod

Specifications:

• When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened
• When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf
• Simplified installation in metal frames
  • Round bolt head requires only a punched hole
  • Use of strike optional
  • Special design of guide and flat sided bolt tip to prevent bolt rotation
• Non-handed
• Bolt tip 1⁄2" diameter
• Bolt throw is 3⁄4" with a 7⁄8" vertical adjustment
• Bolt backset is 3⁄4"
• Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
• Optional rod lengths available for top bolt only on non-fire rated openings—18", 24" for fire rated doors with AHJ approval, 36" and 48" for non-fire rated doors
• Mounting hardware: 8-32 X 1" FPHMS
• Certifications: UL10C Listed (3 hour) fire doors 8’0" X 10’0" (fire rated openings require top and bottom bolt)

Dimensions:

• Body size: 1" W x 6 3⁄4" L x 1 1⁄8" D
• Guide size: 1" W x 2" L x 5⁄64" H
• Strike size: 15⁄16" W x 2 1⁄4" L x 5⁄64" T

Finishes:

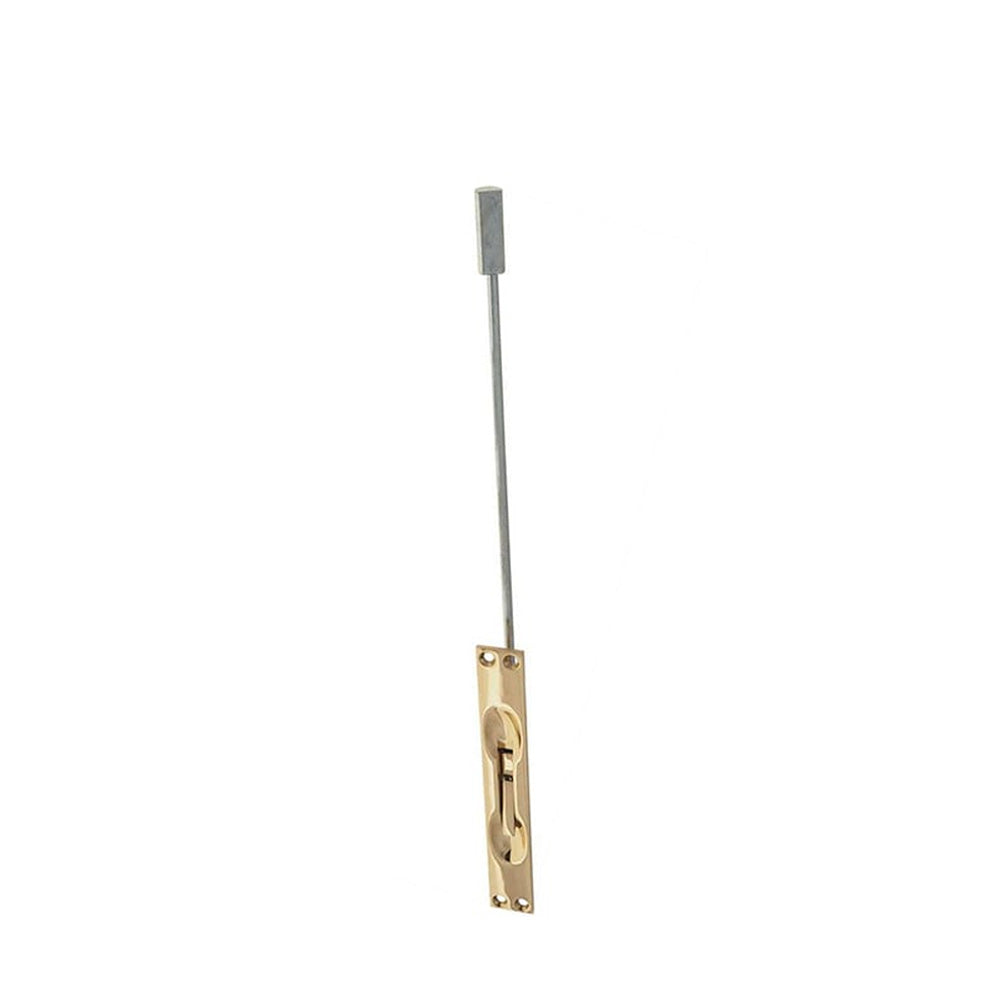

• 605/US3 - Bright Brass

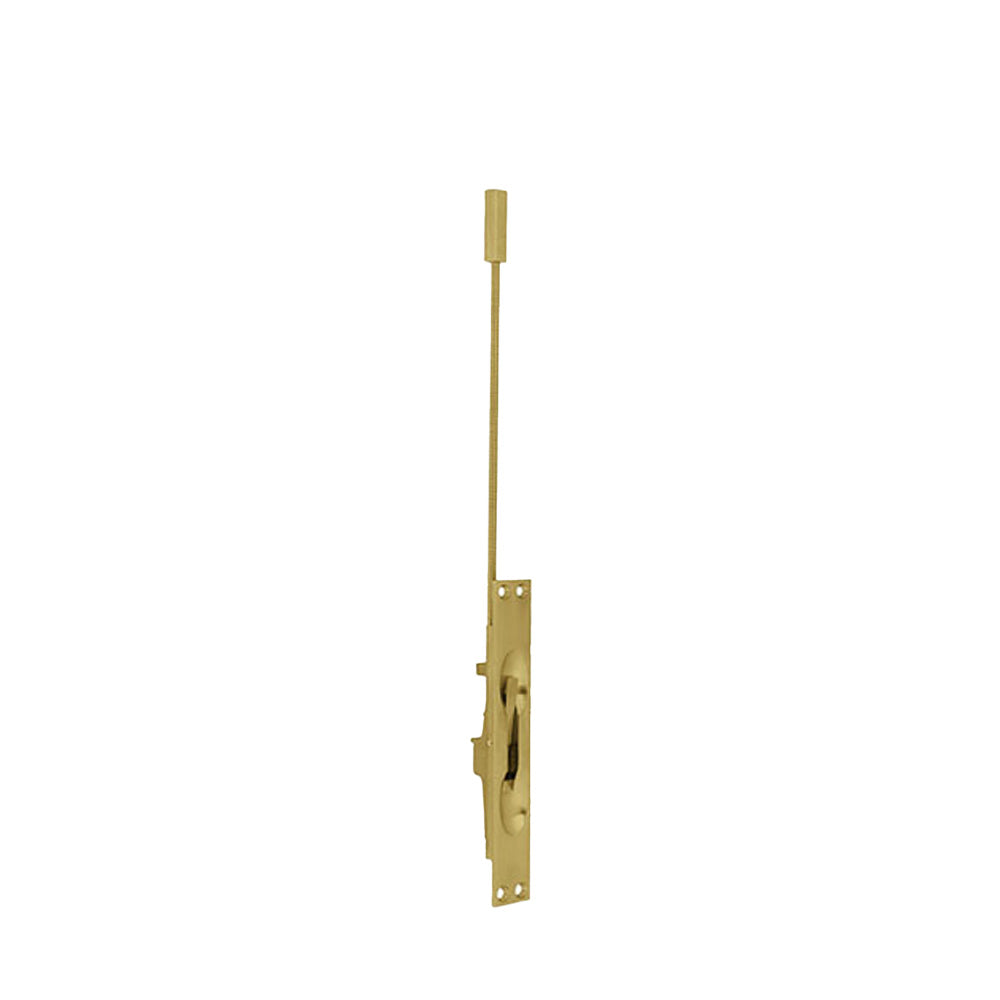

• 606/US4 - Satin Brass
• 609/US5 - Satin Brass, Blackened
• 612/US10 - Satin Bronze

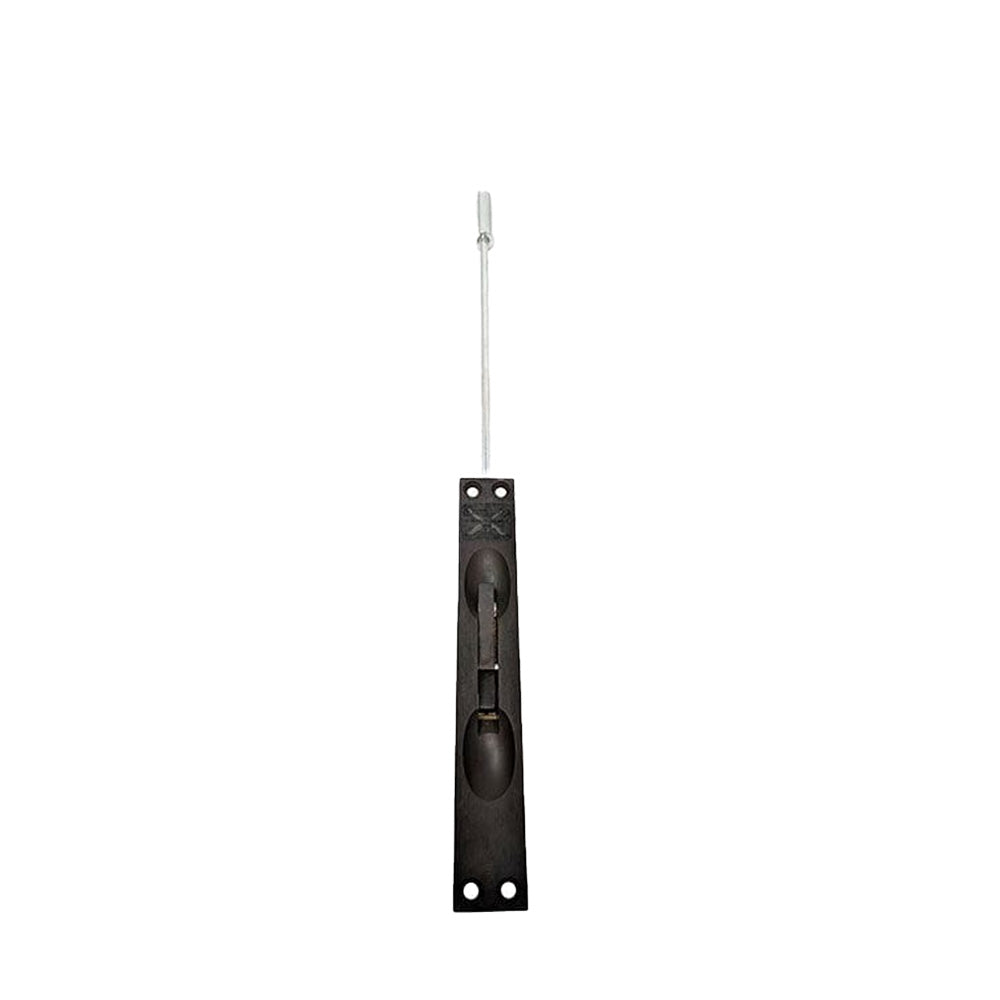

• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 622/BLK - Matte Black

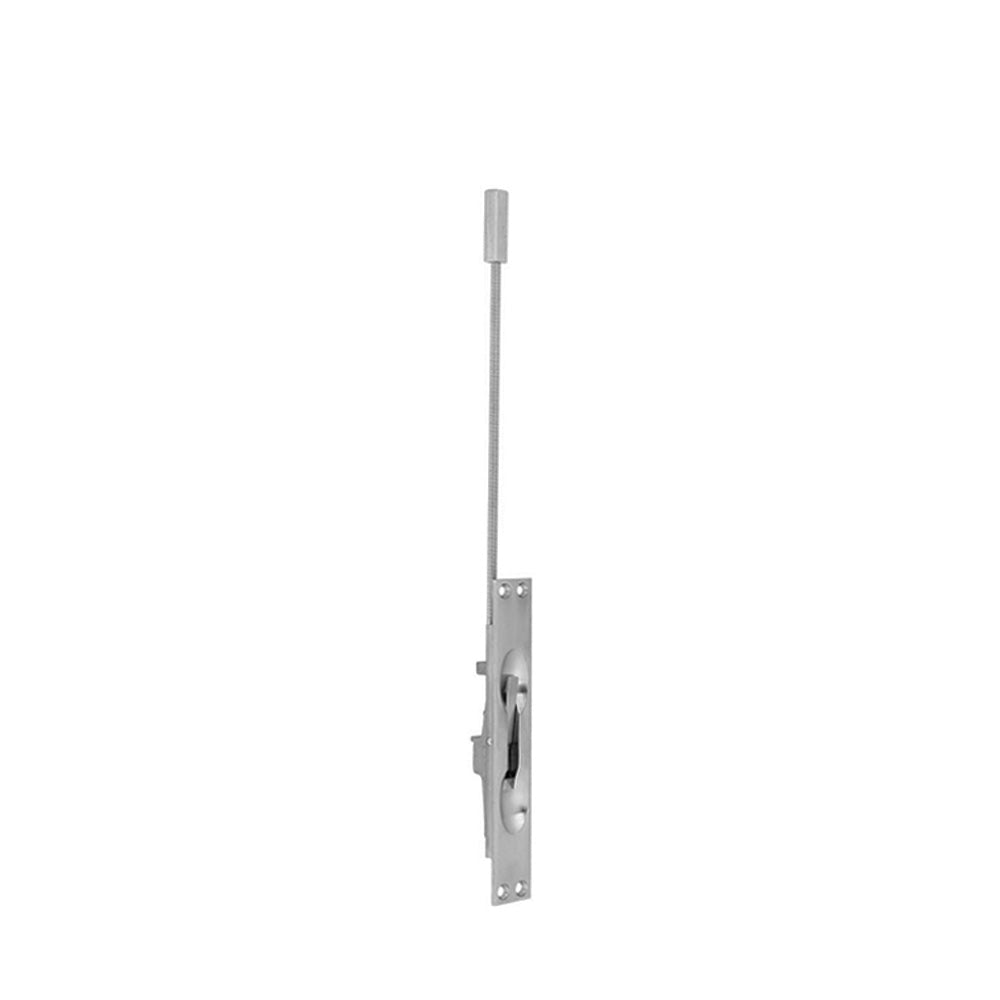

• 625/US26 - Bright Chrome

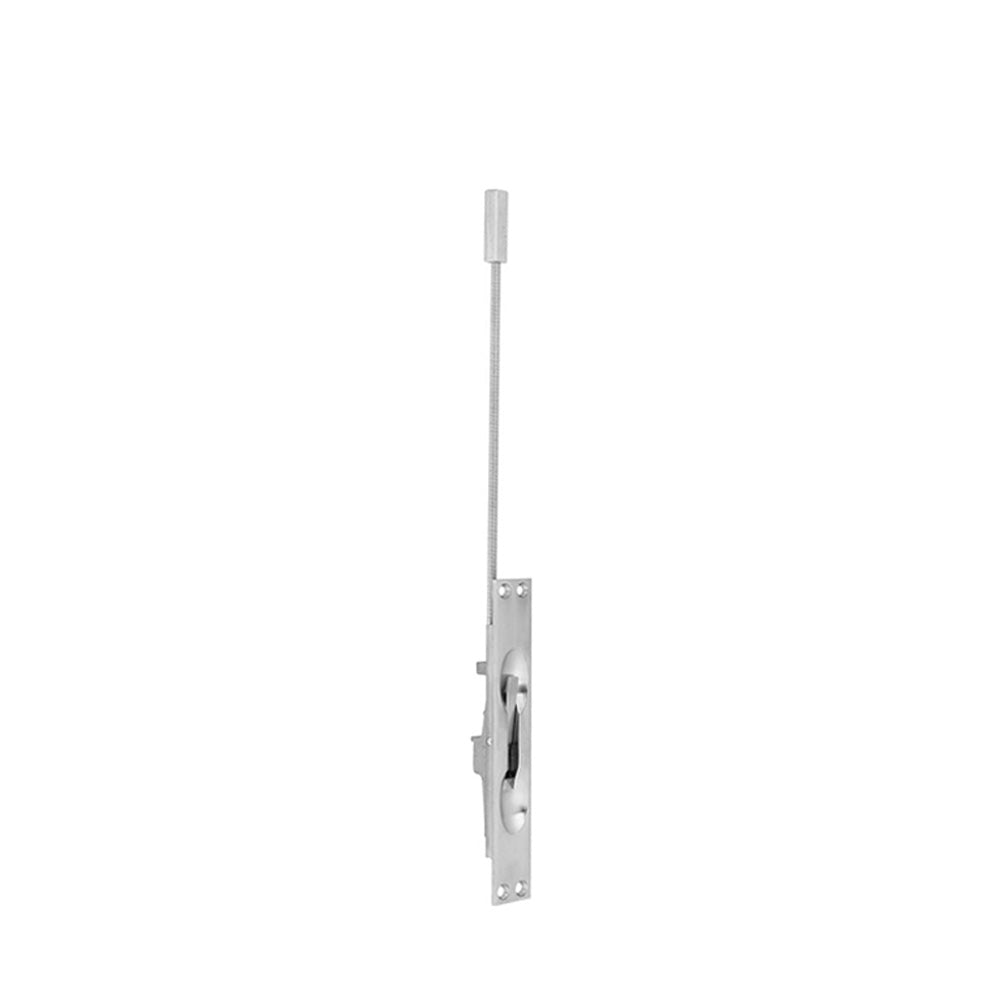

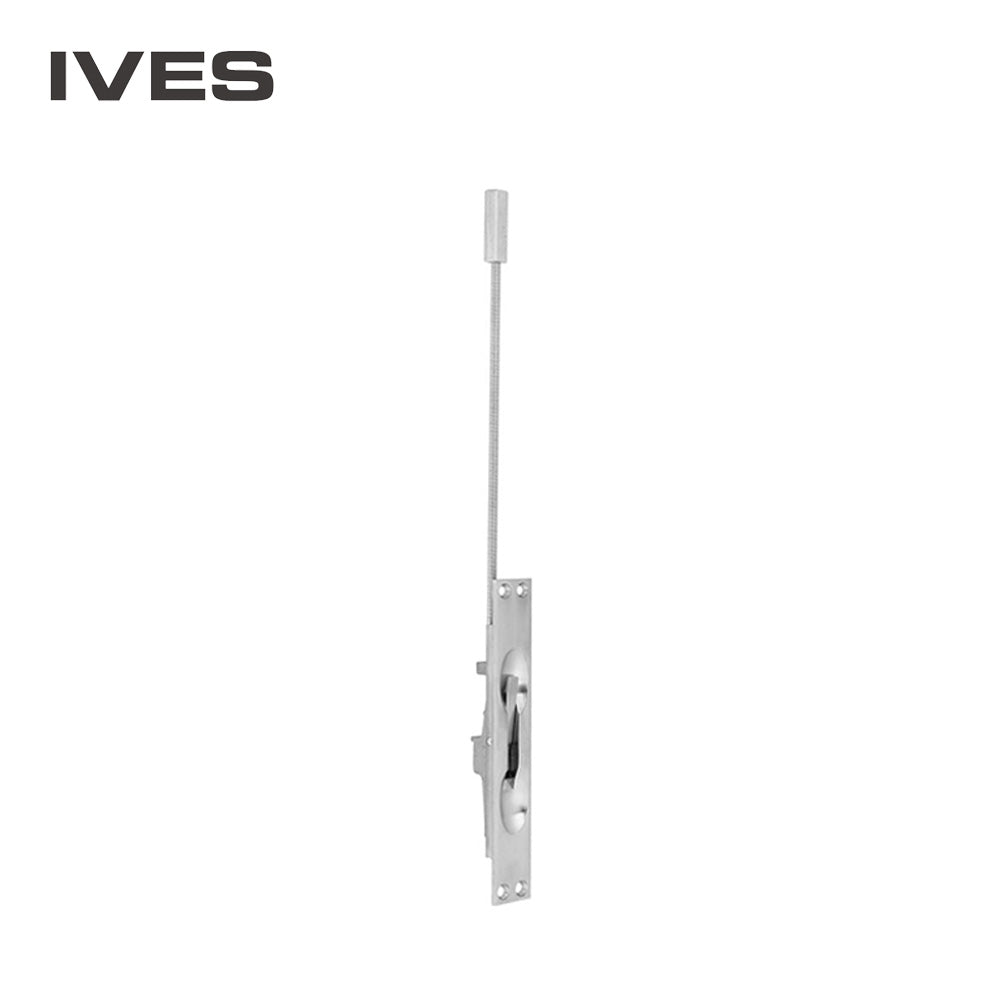

• 626/US26D - Satin Chrome
• 643e/716 - Aged Bronze
