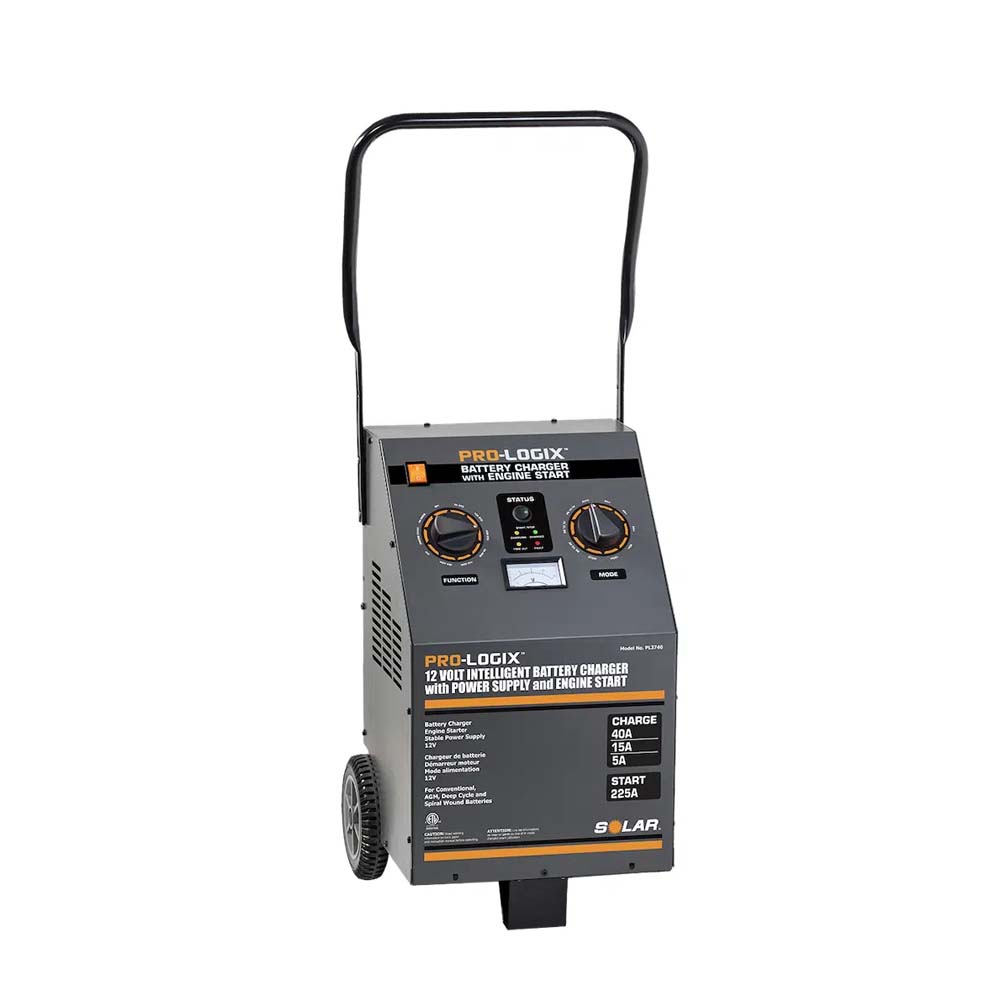

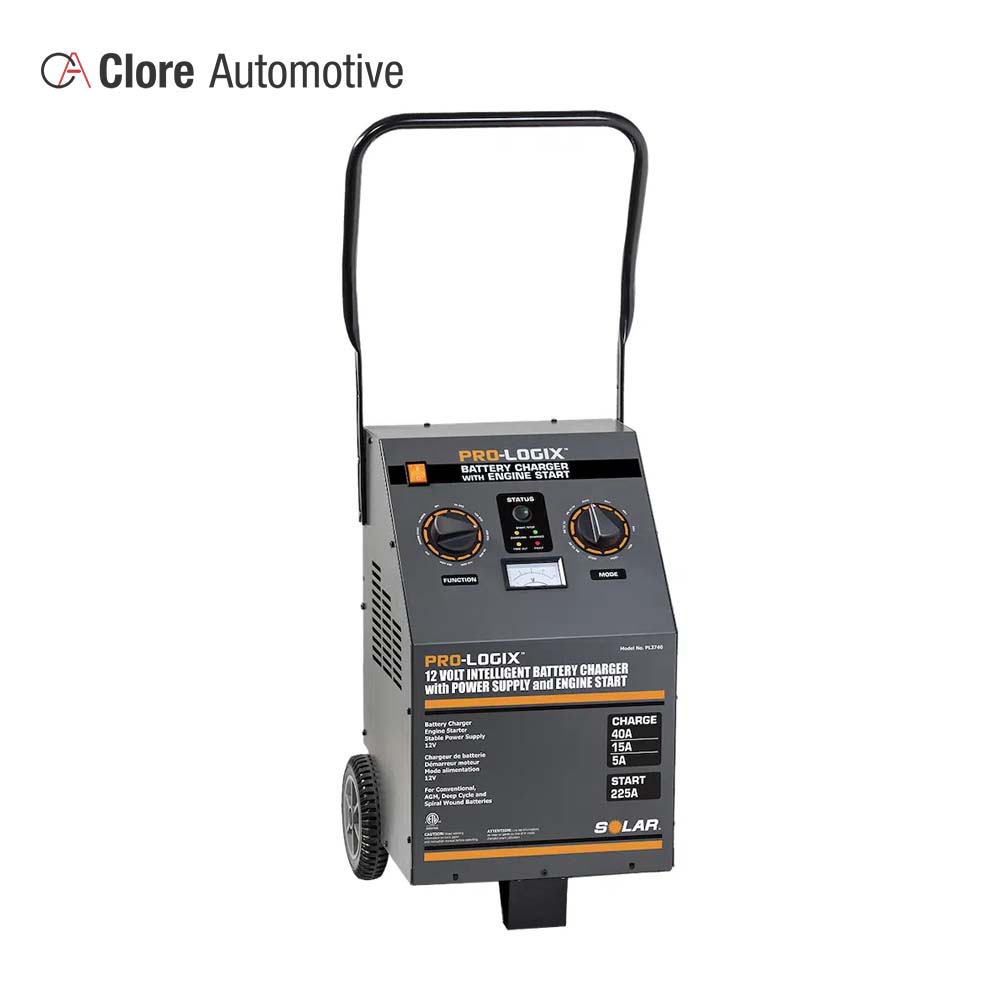

Clore Automotive PL3740 Solar 40/15/5/225A 12V Intelligent Wheel Charger with Engine Start

Clore Automotive PL3740 Solar 40/15/5/225A 12V Intelligent Wheel Charger with Engine Start

Model PL3740 delivers versatile service to today’s busy shops, from battery charging and engine starting to battery maintenance and power supply support for a variety of applications. It provides shops with the ability to manage a variety of lead acid battery types, including AGM batteries.

With charge rates to 40A, the PL3740 makes quick work of charging even the largest batteries. Plus, it has charge settings for Flooded and AGM/Spiral Wound batteries, ensuring each battery charged gets exactly the power it needs. Add in temperature compensation and our multi-phase charging process and the result is batteries with increased reserve capacity and longer service life.

Features:

• 40/15/5A charge rates
• AUTO and HOLD charge modes
• Timed charge modes
• Properly charges Flooded, AGM, Spiral Wound, Deep Cycle and Marine batteries
• PS Mode at 3 preset values (13.4V, 13.7V, 14.1V)
• 225A Engine Start

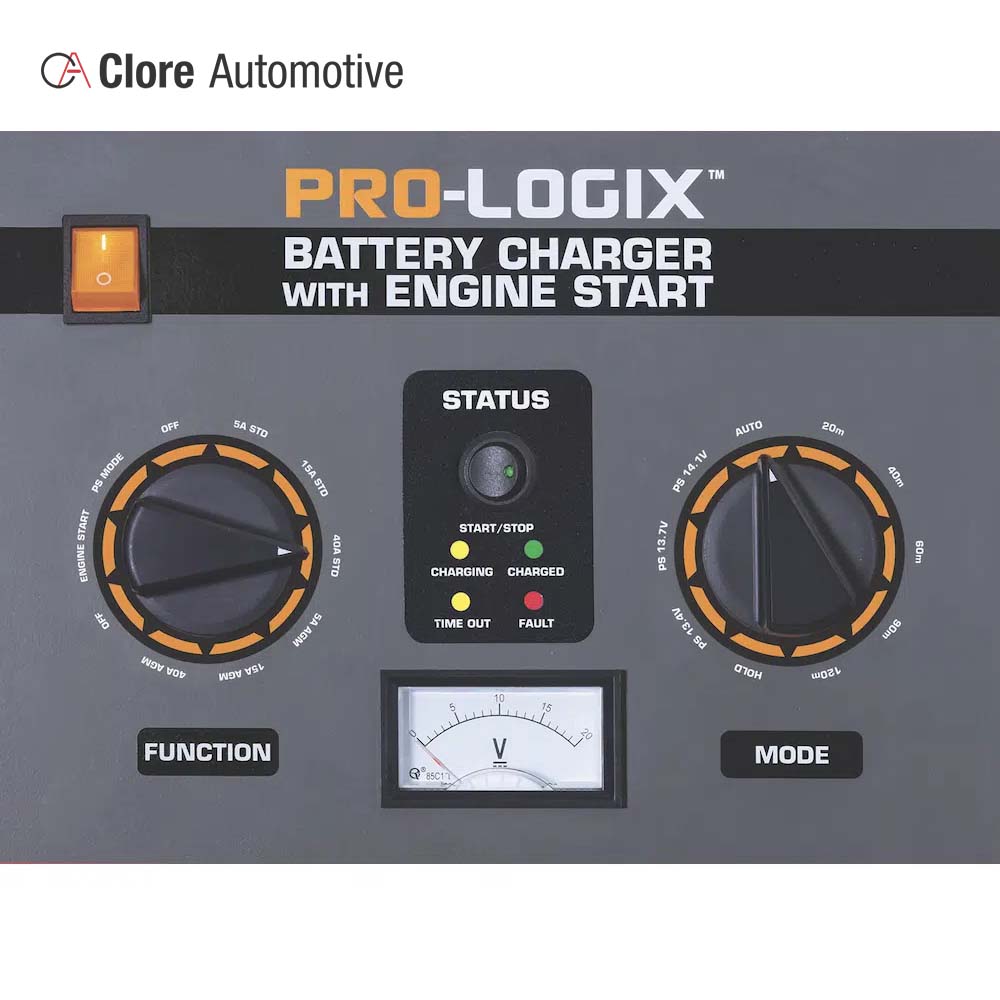

• Analog knob controls
• Easy, intuitive interface
• Forced start mode allows servicing of totally dead (0.0V) batteries
• Reverse polarity protection
• Over-voltage protection
• Short circuit protection
• Ships fully assembled

Specifications:

• OperatingVage : 12V
• Operating Mode : Auto / Hold / Timed
• 12V Engine Start Rating : 225A
• 12V PS Mode : 0-40A; 13.4/13.7/14.1V
• Charges 0.0V Batteries : Yes
• Reverse Polarity Protection : Yes
• Battery Fault Detection : Yes
• Battery Recondition Mode : Yes
• Soft Start Mode: Yes
• Temperature Compensation : Yes
• Output Cable Length : 72″
• Output Cable gauge : 6 AWG
• Weight : 46.6 lbs.
• Warranty : 2 Year Limited
• UPC : 010271200832

Download:

• PL3740 Operator's Manual
• PL3740 Info Sheet
