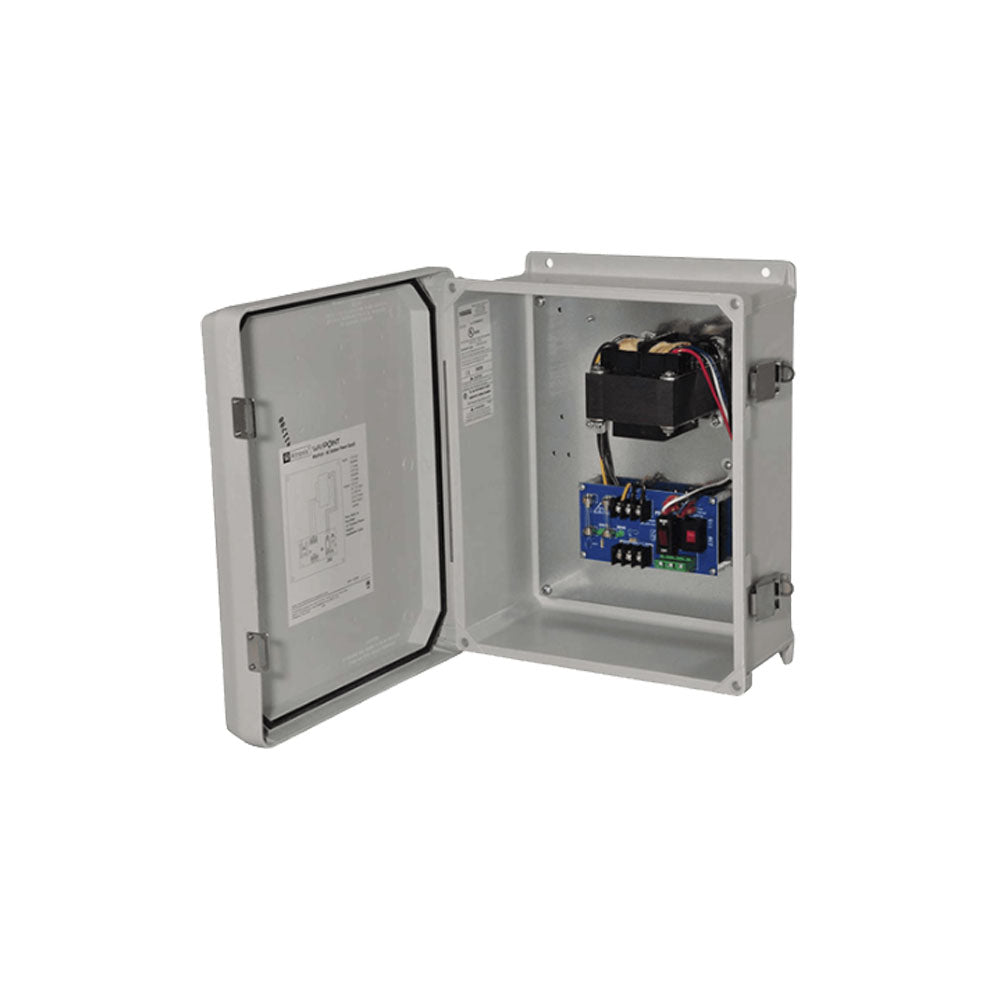

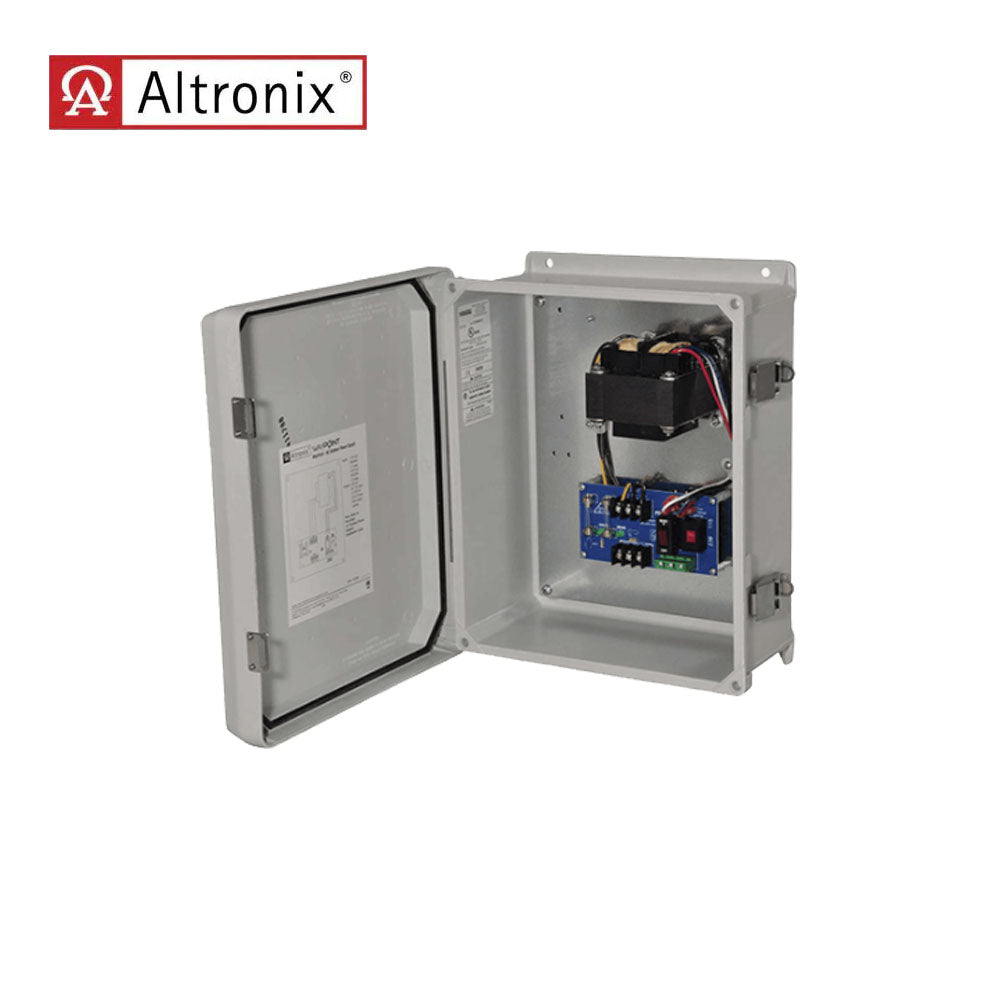

Altronix - WAYPOINT17AU - AC Outdoor Power Supply Charger - 115VAC(50 or 60Hz) at 1.7A or 220VAC(50 or 60Hz) at 1A Input - 2 Fuse Protected Outputs - Weather Resistant Grey Enclosure

Altronix - WAYPOINT17AU - AC Outdoor Power Supply Charger - 115VAC(50 or 60Hz) at 1.7A or 220VAC(50 or 60Hz) at 1A Input - 2 Fuse Protected Outputs - Weather Resistant Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input: 115VAC, 50/60Hz, 1.7A or 220VAC, 50/60Hz, 1.0A.

Output:

• Output options:
  • a. 24VAC @ 7.25A max.
  • b. 28VAC @ 6.25A max.
  • c. Both 24VAC and 28VAC not to exceed 6.25A max.
• Output fuses rated @ 5A/32V.

Visual Indicators:

• Individual power output LED indicators.
• Illuminated master power switch.

Temperature:

• Operating Temperature:
  • 24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F);
  • 28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
• Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 90 BTU/Hr.
• System AC input VA requirement: 230VA.

Operating Altitude:

• - 304.8 to 2000m ( - 1000 to 6,561.679 ft.).

Enclosure:

• NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
• Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).

Download:

• Installation Instruction
