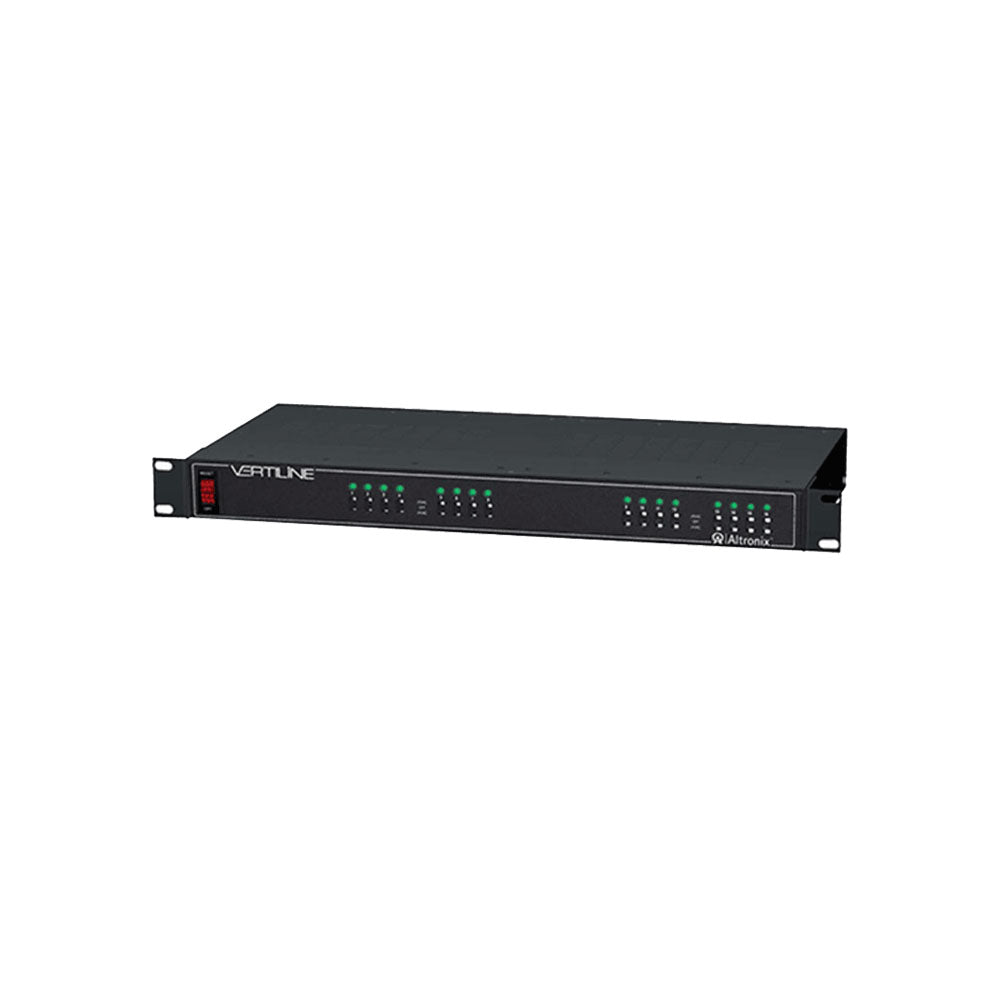

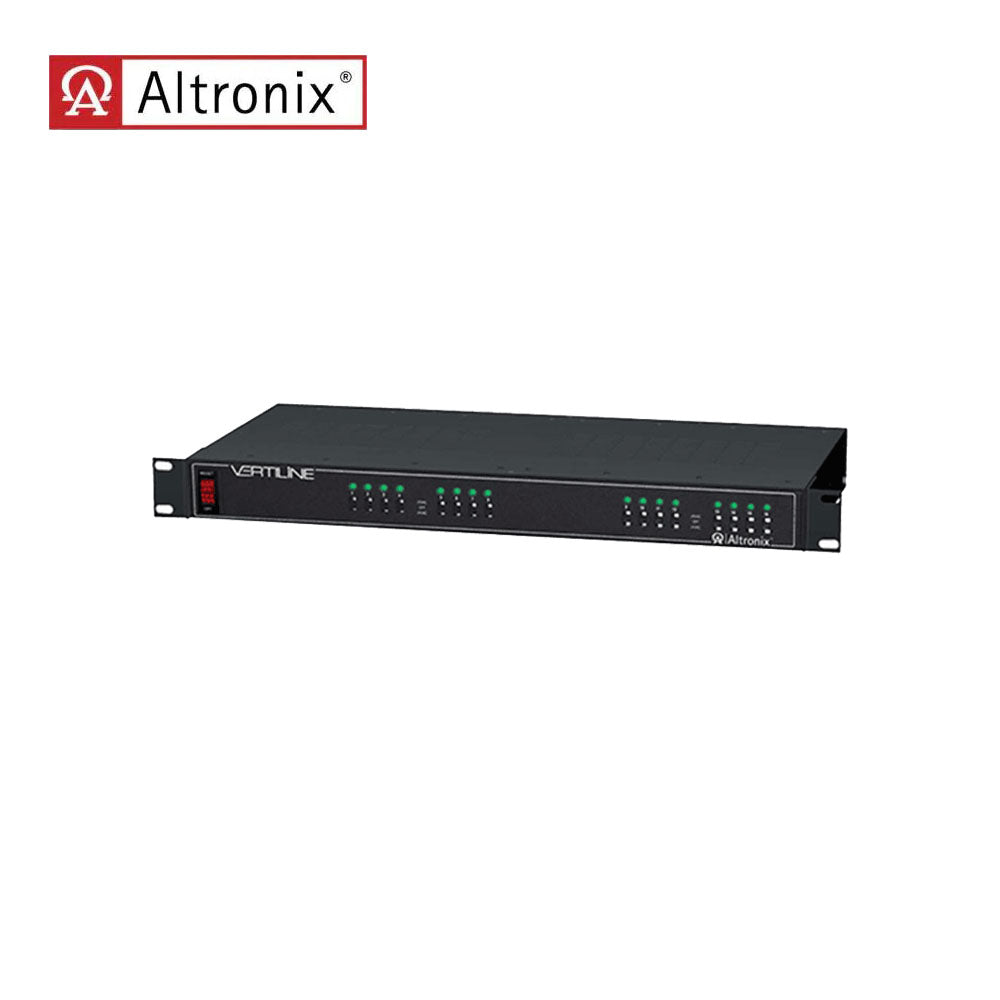

Altronix - VERTILINE16I - AC CCTV Rack Mount Power Supply - 16 Fuse Protected Outputs 24 or 28VAC at 16A Max

Name: Altronix - VERTILINE16I - AC CCTV Rack Mount Power Supply - 16 Fuse Protected Outputs 24 or 28VAC at 16A Max
Brand: Altronix
SKU: ALX-VERTILINE16I
Price: 931.35 USD
Availability: InStock

$931³⁵ ~~$1,034⁸³~~

Shipping calculated at checkout.

Secure transaction

Pickup available at MIAMI MAIN WAREHOUSE

Usually ready in 1 hour

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more

Return Policy

At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.

For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.

View Full Return Policy

Description

Altronix - VERTILINE16I - AC CCTV Rack Mount Power Supply - 16 Fuse Protected Outputs 24 or 28VAC at 16A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

General Use
CCTV
Fire Alarm
POIP

Input:

Selectable 115VAC 60 Hz or 230VAC 50/60 Hz input.
115VAC 60 Hz., 7A.
230VAC 50/60 Hz., 4A.

Output:

Sixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 16A max. total (1A per device, 2.5A max.).
Individual electronically isolated outputs.
Sixteen (16) PTC protected outputs rated @ 2.5A.
Surge suppression.

Features:

Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.

Temperature:

Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
- 24VAC: 197 BTU/Hr.
- 28VAC: 229 BTU/Hr.
System AC input VA requirement:
- 115VAC: 805VA
- 230VAC: 920VA.

Enclosure:

Modular 1U standard EIA 19" rack mount chassis.
Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

Installation Instruction
