Description

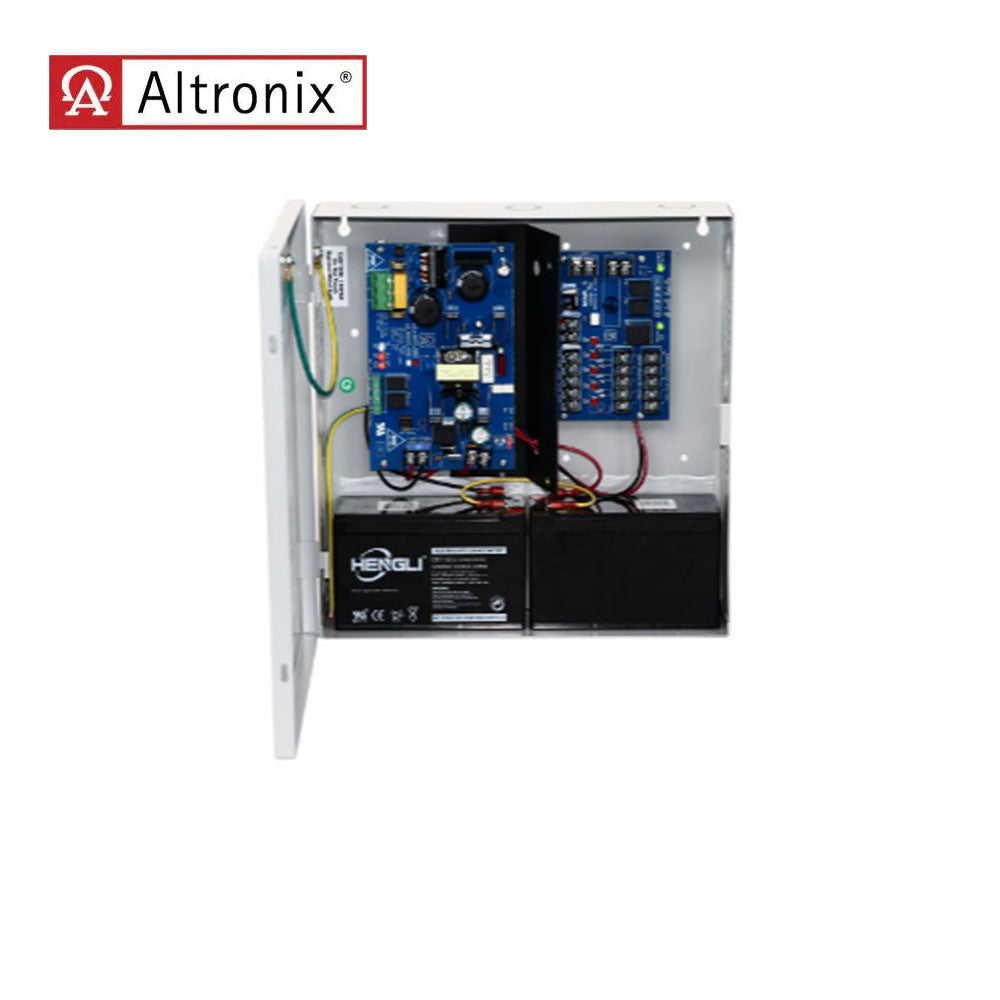

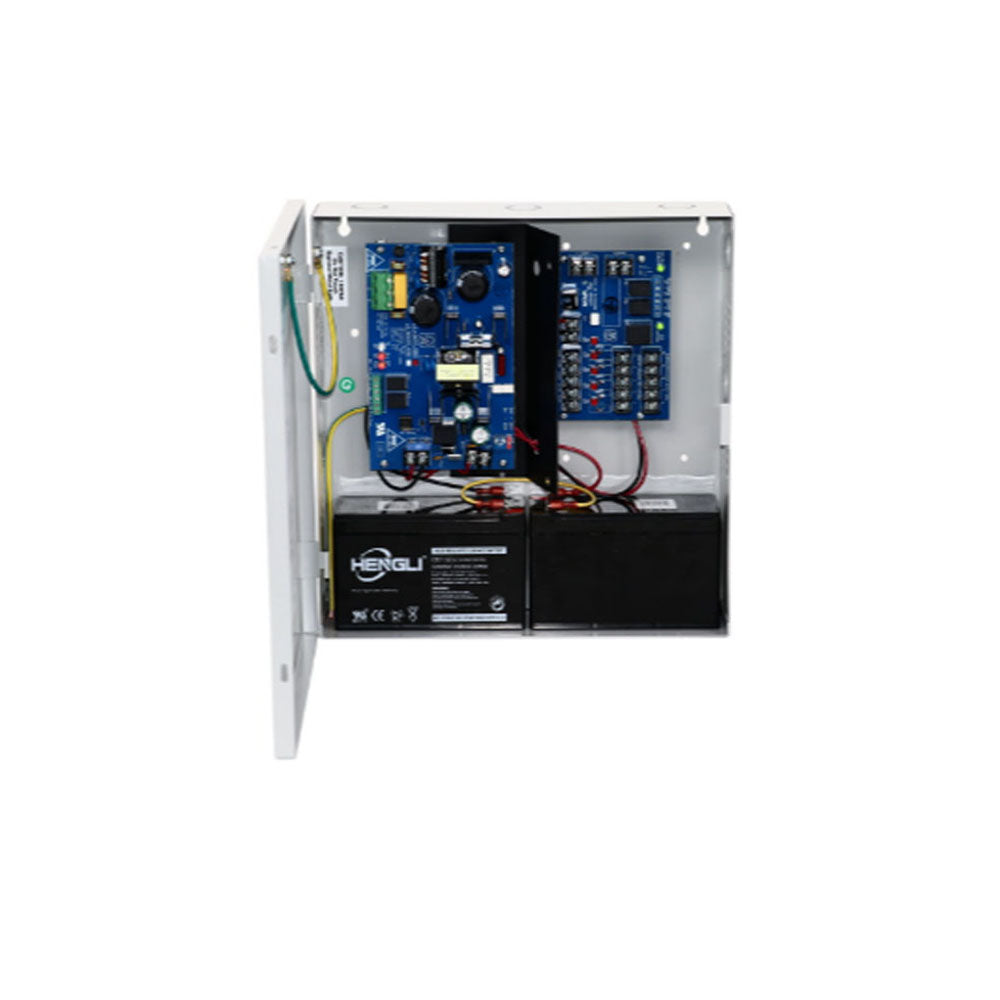

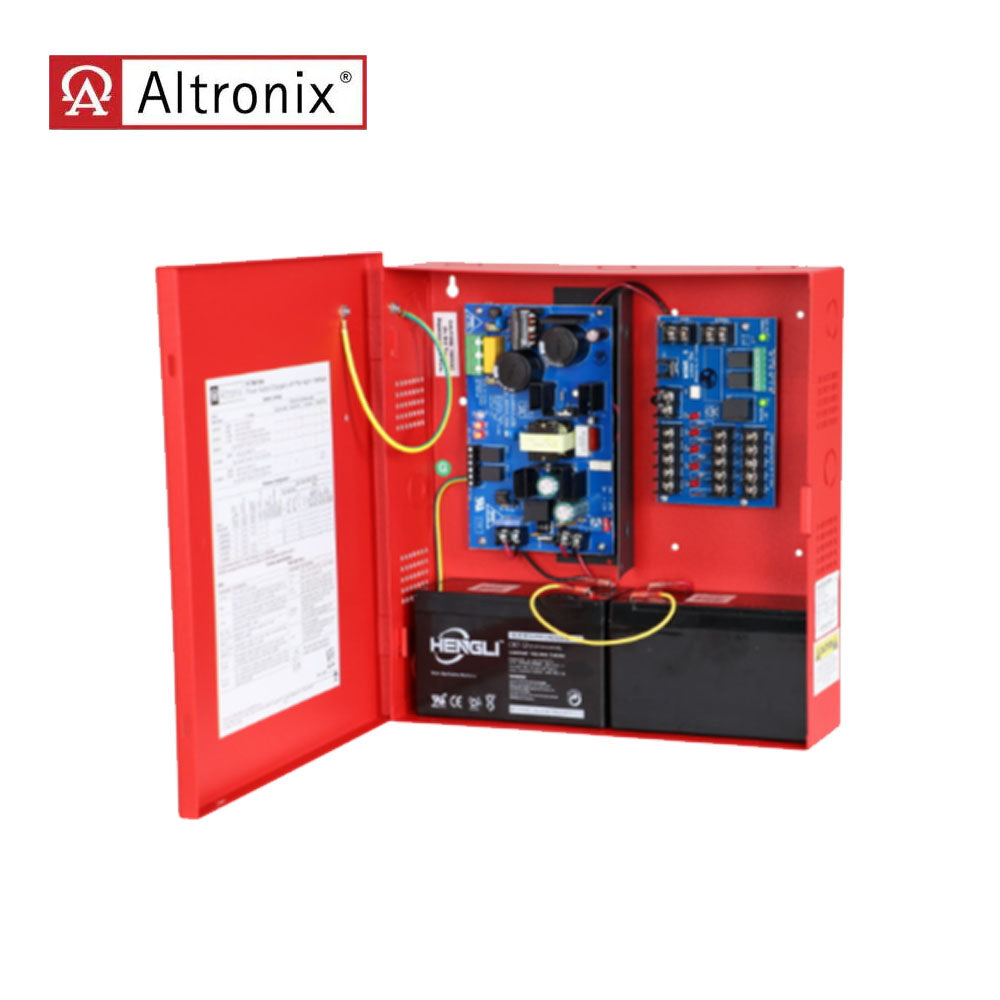

Altronix - M Series (AL400ULM or AL400ULMR) - Power Supply With Fire Alarm Disconnect

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

General Use
CCTV
Fire Alarm
POIP

Input:

Input 115VAC / 60Hz, 3.5A
Input fuse rated @ 5A/250V
Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input

Output:

12VDC or 24VDC selectable outputs
12VDC @ 4A or 24VDC @ 3A supply current
Burglar Alarm Applications:
12VDC = 10VDC-13.2VDC;
24VDC = 20VDC-26.4VDC.
Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable).
Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC)
Filtered and electronically regulated output.
Short circuit and thermal overload protection

Supervision:

AC fail supervision (form "C" contacts).
Low battery and battery presence supervision (form "C" contact).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Power fail supervision relay (form "C" contacts)

Visual Indicators:

AC input and DC output LED indicators.
Red LEDs indicate condition of power outputs (multi-output board)
Power & input trigger LEDs (multi-output board).

Temperature:

Operating 0° C to 49° C (32° F to 120° F)
Storage: - 20° C to 70ºC ( - 4° F to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr (approx.): 12VDC: 25 BTU/Hr and 24VDC: 37 BTU/Hr.
System AC input VA requirement: 402.5VA

Battery Backup:

Built-in charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails.

Enclosure:

Wall mount enclosure for indoor use
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D)
1/2" and 3/4" combination knockouts

Download:

Installation Instruction
