XTOOL - 12+8 Gateway Bypass Cable 2018+ for Chrysler Dodge Jeep

XTOOL 12+8 Gateway Bypass Cable 2018+ for Chrysler Dodge Jeep

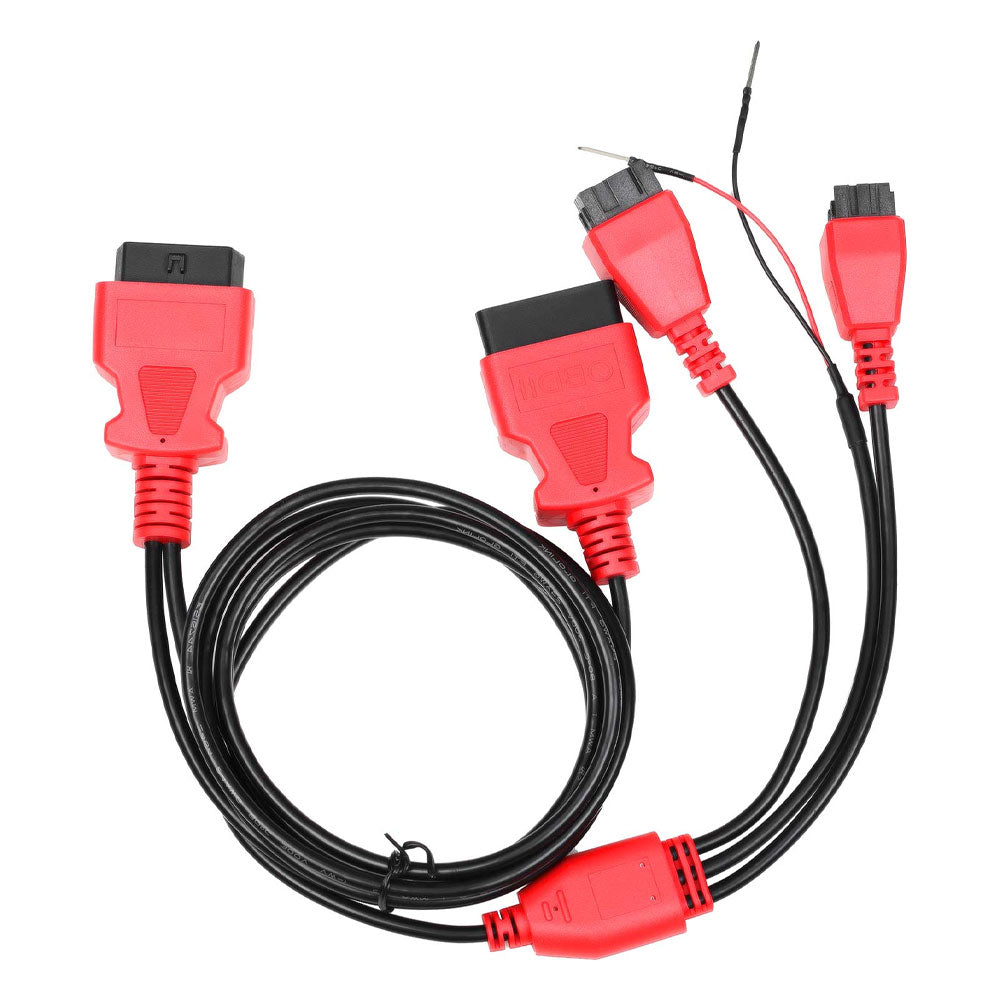

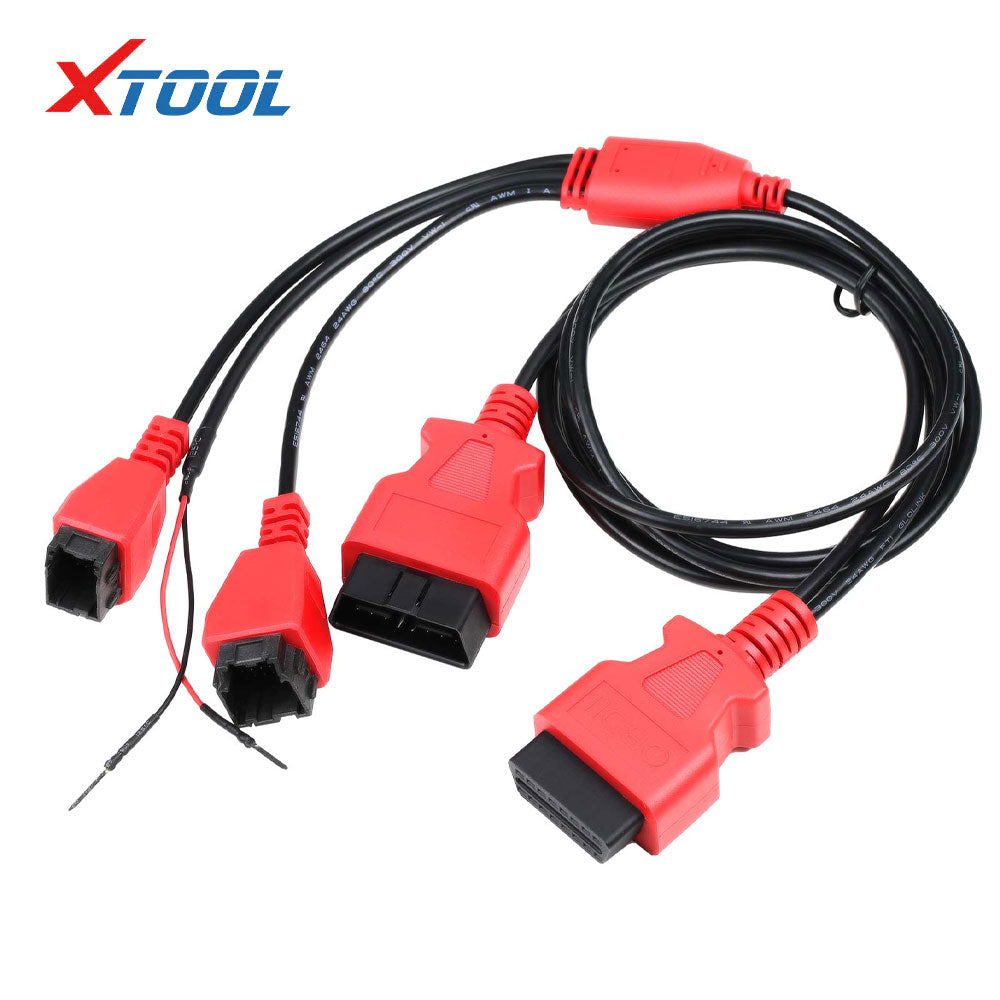

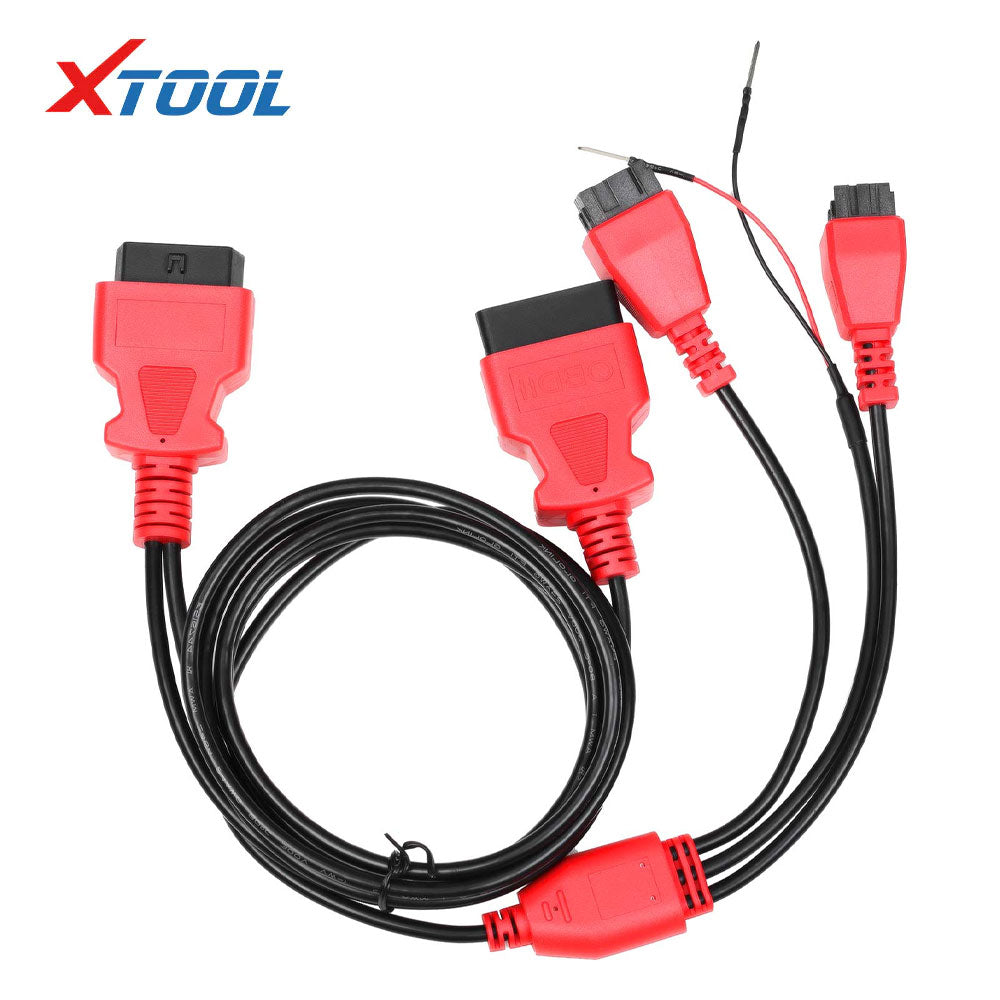

The Chrysler/Dodge/Jeep 2018+ bypass cable by XTOOL is designed to interface almost all automotive transponder programmers that have the capability of programming 2018+ Chrysler vehicles. It functions by intercepting your programmer's CAN high and low signals and passing them though the attached probes and 12+8 connectors. Depending on your plan of attack, you can tap the CAN wires directly in the STAR module, in the vehicle instrument cluster or at the wires which transport the information between the STAR module and the immobilizer. The OBD throughput will feed 12V back to your programmer to keep it charged if that feature is supported by your machine. Alternatively, the same outcome can be achieved by directly plugging the 12+8 connectors into the security gateway module of the vehicle.

Features:

• Used for 2018+Chrysler/Jeep/Dodge Model Key Match
• Bypass the vehicle Security Gateway Module (SGM)
• Has 2-pin jumpers for Star connectors
• Only 3 step to achieve the connection
• Compatible with XTOOL X100 PAD PLUS, X100 PAD, X100 PAD2, X100 PAD3, X100 MAX, Inplus IK618, PS701 PRO, EZ400 PRO, D7, D8 D8BT, Inplus IP616, Inplus IP819, A80, A80 PRO, A80 PRO MASTER, D9, D9 PRO, Inplus IP819TP

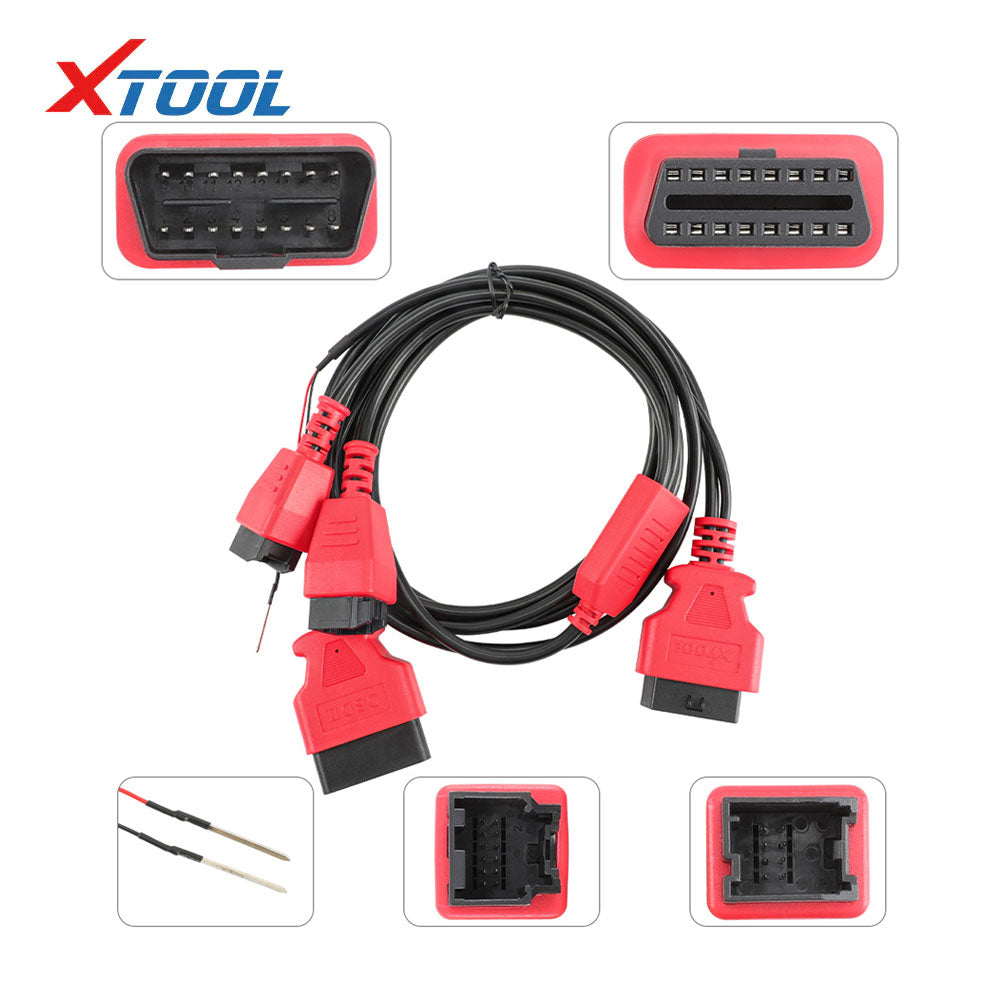

12+8 Adapter Detail:

• Serial number 1 is for connecting to the vehicle OBD interface
• Serial number 2 is the interface for connecting to the lower computer
• Serial numbers 3 and 4 are the plugs for docking vehicle modules

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

• 2013+ RAM Promaster
• 2015+ Fiat 500x
• 2015+ RAM Promaster City
• 2016+ Jeep Renegade
• 2017+ Alfa Romeo Giulia
• 2017+ Jeep Compass
• 2017+ Jeep Cherokee
• 2018+ Jeep Wrangler
• 2018+ Ram Trucks
• 2018+ Dodge Durango
• 2018+ Jeep Wrangler (JL Body only, not JK)
• 2018+ Dodge Journey
• 2018+ Jeep Grand Cherokee
• 2018+ Chrysler Pacifica
• 2018+ Chrysler 300
• 2018+ Dodge Charger
• 2018+ Dodge Challenger
• 2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
• 2020+ ALL F-C-A vehicles

How to use (12+8 connector):

• Plug the main cable of your programmer of choice into the female OBD port of the adapter
• Locate the security gateway module on the vehicle. Location varies from model to model
• Locate and unplug the connectors currently plugged into the module. Plug in the 12+8 connectors directly into the module
• Use your programmer of choice to select by vehicle or system type and program like normal
